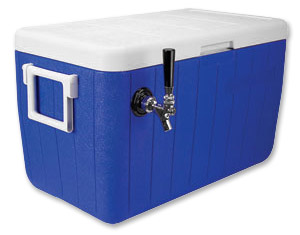

This single-faucet cold plate jockey box is offered in a blue or red 48-quart cooler with Ultratherm insulation for superior cold retention. The cooler lid holds open at 95° for easy access and is fitted with a snap-lock child-safety latch. A recessed drain plug allows for drainage of excess water inside the cooler. The jockey box includes a chrome-plated brass faucet with a brass lever, a faucet knob, shank, a 10" x 15" cold plate, a cold plate rack and an ice box coupler assembly. The cooler measures 29-1/2"L x 15-1/4"W x 14-3/4"H.
Cold plate jockey boxes are only recommended for use when the internal keg temperature can be kept colder than 55°F so that the beer can be continuously dispensed from the faucet at 36°F-38°F. In addition, the melted ice water in the cooler should continuously be drained and the ice pushed down to keep it in contact with the plate. The cold plate should never sit in water.
To complete your Jockey Box set up, you will need to add the following products if you do not already have them:
1. Keg Coupler
Whether you plan on tapping an American D System keg or a European Import keg, you can choose from our selection of keg couplers to find the correct coupler to fit your needs.
2. CO2 Regulator
A CO2 regulator helps you control the flow of gas from your CO2 tank to the keg. We have a wide variety of both single gauge regulators, which only display the CO2 output pressure, and dual gauge regulators, which display both CO2 output pressure and volume.
3. CO2 Tank
CO2 cylinders house the CO2 gas that is used to push beer from the keg through the beer line and out of the faucet. The bigger the tank, the more kegs you can dispense before needing to refill it. Generally speaking, it takes about a pound of CO2 to dispense a full size keg.
4. Air Line Assembly
The air line assembly (made up of one length of 5/16" blue air tubing and two plastic air line clamps) allows the CO2 to flow from the regulator into the keg, pushing beer out to the faucet. We have different lengths of air line to choose from.
5. Jumper Line Assembly
The jumper line assembly (made up of 5' of 3/8" Thermoplastic (Super Vinyl) beer tubing and your choice of wing nut or hex nut fittings) connects the keg to the back of the jockey box.
6. Gauge Cage
Protect your regulator with a heavy duty gauge cage, which helps prevent the gauges from being damaged if the CO2 tank is accidentally knocked over.
7. Drip Tray
A drip tray can be installed below the faucet to catch any runoff beer, minimizing mess and making cleanup a breeze.
8. Cleaning Kit
To make it as convenient as possible to keep your jockey box dispense system clean between uses, we give you the option to add on one of our quick and easy cleaning kits.
