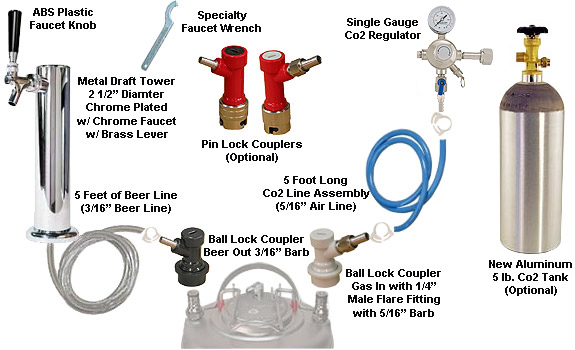

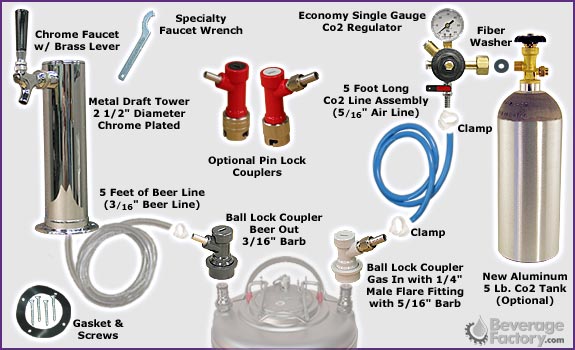

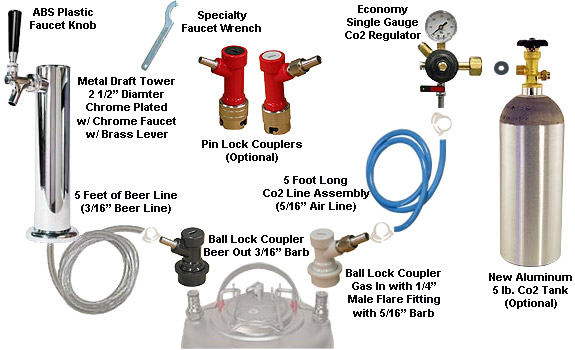

Kegco Economy Homebrew Tower Kegerator Conversion Kit
When converting a compact refrigerator it is very important to know your internal dimensions to insure that this kit will work on your refrigerator. When measuring the Interior Height, be sure to measure from the top of the bottom shelf. All refrigerators have a compressor step that needs to be accounted for when measuring your interior height. You can call us at (800) 710-9939 if you have any additional questions or concerns about the conversion process. We are draft beer experts and can help qualify if this kit will work for you.
Our homebrew kegerator conversion kits come complete with detailed instructions and are supported by our friendly and experienced product specialsts. You can count on them for personalized attention both before and after your purchase.
- (Optional) Co2 Tank. We offer the Co2 Tank as an optional kit component because many people already have one or would like a large tank size. All of our brand new tanks are made from high strength aluminum alloy which is not as heavy as a steel tank and will not rust. If you do not already have a tank, we highly recommend you take advantage of our incredible low price on brand new Co2 tanks.
- Includes a 2.5" Diameter Chrome Plated Metal Draft Tower
The tower is a commercial grade Single Column, Single Faucet, 2.5" Diameter, Chrome Plated Metal Draft Tower. This Tower comes complete with a Chrome Plated Faucet with Brass Lever and 5 Feet of 3/16 Inch I.D. Clear Beer Tubing. This Tower is mounted using the gasket and four screws that are included.
- Includes Single Gauge Co2 Regulator
This Regulator works with any Co2 Tank with a CGA-320 valve. The single gauge measures PSI indicating how much Co2 pressure is inside the keg. Adjustable output pressure 0-60 psi. 3000 psig Max Primary Inlet. 60 psig Safety Relief Valve R82. Female CGA-320 connection. Ball valve outlet w/ 5/16" OD Hose Barb connection. Total ports = (2) Primary 1/4" FNPT ports, (2) Secondary 1/4" FNPT ports. UL Listed, Compressed Gas Regulator - for use w/ Air, Co2 and Inert Gases.
- Includes 5 feet of 5/16 Inch I.D. Draft Beer Line Assembly with 2 Snap Clamps
The standard length is 5 feet of 5/16" I.D. Blue Air/Co2 Tubing made of Themoplastic Vinyl Hose (Super Vinyl). This tubing will not rot, swell or dry out and is unaffected by normal cleaning compounds. This air line assembly comes with two Plastic Snap Clamps with a reusable clamp design.
- Includes Ball Lock Home Brew Keg Connectors for Ball Lock Kegs
This is a set of two Ball Lock Home Brew Keg Connectors. This set includes both a gas in and beer out coupler that works with a ball lock Cornelius pepsi kegs. The Gas in features a 1/4" thread for a flare fitting. This connector already has attached the special 1/4" nut that has a 5/16" hose barb attached. The larger hose barb makes it connect to the same size air line that standard draft beer regulators use. The Beer out connnector has a 3/16" hose barb that connects to standard 3/16" beer line.
- Includes Chrome Beer Faucet with Brass Lever
This premium quality faucet features a forged brass body with a highly polished chrome finish. This faucet has a brass shaft assembly and lever with a Teflon ball washer that ensures smooth operation. The brass lever has standard threading that is compatible with most branded tap handles.
- Comes with black ABS plastic Faucet Knob.
- 1 Fiber Washer that is placed between regulator and Co2 Tank. This washer is optional. You can pick up additional washers when you get you tank filled.
- 1 Neoprene Washer that is placed between keg coupler and beer line assembly. The purpose of this washer is stop any beer from leaking out the top of the keg coupler.
- Standard Specialty Faucet Wrench
This specialty faucet is used to connect the shank to the faucet. To properly tighten the faucet to the shank without leakage, requires this wrench that hooks into the holes on tightening colar. This faucet wrench is needed to remove faucet for cleaning or if you are switching to a stout faucet.
- Detailed Instruction/Installation Manual.
- All additional technical questions can be handled by one of our friendly technical support staff by calling toll free 1-800-710-9939.
