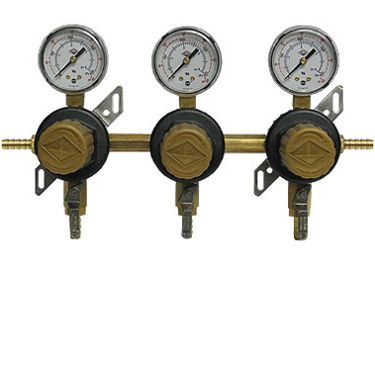

T1683STC-01 Three Product Secondary Co2 Regulator with Check Valve by Taprite
The T1683STC-01 Secondary Regulator has built in check valves in the shut off valves which prevent backflow of liquid into the regulator body. Secondary regulators are used when you are attempting to dispense two or more kegs off of the same Co2 tank. A secondary regulator will allow you to regulate the pressure of each keg individually.
- To protect dispensing systems each regulator has a built-in high volume external safety relief valve factory set to relieve at 55-65 PSIG.
- Taprite secondary regulators are designed to further reduce pressure from a primary regulator to a proper dispensing level.
- Internal relief valve opens if the delivery pressure exceeds set pressure by 15 PSIG. This serves as a warning that the seat or diaphragm may be worn and require replacing.
- Forged brass body for greater durability. Body has enough mass to serve as a heat sink to help prevent freeze up.
- Body parts are 1/4" NPT (F).
- Outlet fittings feature Taprite 1600 ball type shut-off. Fits 5/16" I.D. pressure hose. Inlet designed for 5/16" I.D. pressure tubing.
- All models have heavy duty stainless steel wall mounting brackets.
- Maximum delivery pressure: 50 PSIG
- Non-removable adjusting screw limits maximum delivery pressure to 50 PSIG
- Front loading seat assembly is easily replaceable in the field.
- All regulators are pressure tested for leaks and defects prior to delivery to assure in-field reliability.
- Built-in check valves to prevent backflow of liquid into the regulator body.
