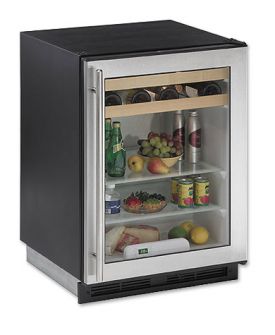

U-Line 1175BEVS-00 Beverage Center - Stainless Steel Trimmed Door - Field Reversible

This Attractive Beverage Center 1175BEVS-00 by U-Line is designed to accomodate a variety of different sizes and types of beverages. This Beverage Center provides variation for storage of different beverages with its unique Double Zone Temperature System with Touch Pad Digital Control: the upper half ranges from 39-45 degrees, and the lower half ranges from 34-39 degrees.

This U-Line 1175BEVS-00 Beverage Center holds up to 48 (12 oz.) bottles and 63 (12 oz.) cans on two adjustable sleek Tempered Glass Shelves in its spacious 5.6 Cu. Ft. slick Black Interior. In addition, at the top of the Beverage Center are two Vinyl Coated Metal Beech-Trimmed Wine Racks that can be stained to match surrounding décor.

With its Black Cabinet and Stainless Steel Trimmed LowE Coated, Argon Gas Filled Thermopane Glass Door with a Self Closing Door Mechanism, this Beverage Center is designed to outfit any room. This unit has been designed for both Built-in and Freestanding situations. Other features of this unit include Automoatic Defrost, An Interior Light, Audible Door Open Alarm, and Adjustable Leveling Legs that add up to 1" height extension.

• Field Reversible
• Black Vinyl-Clad Steel Cabinet
• Stainless Steel Door Frame with Commercial-Style Stainless Steel Handle
• LowE Coated, Argon Gas Filled Thermopane Glass Door
• 5.6 Cubic Feet of Refrigeration Capacity
• Stores Up to 16 Bottles of Wine
• Holds Up to 48 12-oz. Bottles or 63 12-oz. Cans
• Double Zone Temperature System
• Adjustable Temperature Control via Touchpad Digital Control
• Approx. Temperatures: 45°F (Wine Racks); 38°F (Glass Shelves)
• 2 Beech-Trimmed, Slide-Out Wine Racks Can Be Stained to Match Surrounding Décor
• 2 Adjustable, Removable Tempered Glass Shelves
• Automatic Defrost Technology
• Recessed Interior Light Automatically Illuminates When Door is Opened
• Sabbath or "Black Out" Feature
• Adjustable Leveling Legs Provide Up to 1" Height Extension

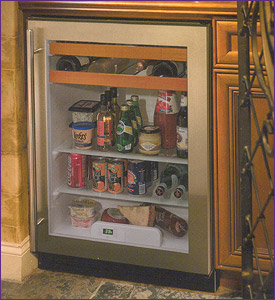

• Designed for Built-in or Freestanding Applications
• No Additional Clearance or Ventilation For Built-in Installation (Do Not Obstruct Front Grille)
• UL Listed

INSTALLATION REQUIREMENTS

• MUST add 1/4" to overall width for proper installation
• Allow 2-1/2" clearance on hinge side for a 90° opening when installed against a wall
• Front grille/toe kick must be unobstructed for proper ventilation

DOOR CLEARANCE INFORMATION

*Zero clearance on all 2000 Series black or white units when installed with custom full overlay door panel/frame.
*Zero clearance on all 2000 Series and 1000 Series black or white units when installed with a 1/4" flush insert panel. Allow proper clearance for a raised insert panel.
*Allow 2-1/2" clearance, on hinge side, for a 90 degree opening when installed against a wall on all Stainless Steel models.

UPC: 833790003407

Dimensions
Height	34 1/8"
Width	23 15/16"
Depth	23 7/16"
Weight
Shipping Weight	126 lbs.
Capacity
Cubic Feet	5.6
Wine Bottle Count	16
12-oz. Can Capacity	63 (or 48 12-oz. Bottles)
Key Features
Built-in Capable	Yes
Security Lock	None
Multiple / Dual Zone	No
Beverage Center	Yes
Cabinet Color / Material	Black
ADA Compliant	No
Commercial Use	Yes
Outdoor Use	No
Energy Star Rated	No
Cooling System
Type	Compressor
Defrost System	Automatic
Front Ventilation	Yes
Controls
Adjustable Thermostat	Yes
Digital	Yes
Shelving
Type	Slide-Out Wine Racks, Adjustable Glass Shelves
Number of Shelves	2 Wine Racks, 2 Glass Shelves
Material	Vinyl-Coated Metal with Beech Trim
Removable	Yes
Adjustable	Yes (Glass Shelves)
Glide-Out (Roller Assemblies)	Yes (Wine Racks)
Door
Type	Thermal Glass Door
Number of Doors	1
Color / Material	Stainless Steel
Door Handle	Commercial-Style Stainless Steel
Field Reversible	Yes
Accepts Custom Panel	No
Tinted / UV Protective	Yes
Self-Closing	Yes
Electrical
Electrical Requirements	110/115 V, 60 Hz
Running Amps	2.4
Warranty
Labor	1 Year
Parts	1 Year
Compressor (Parts Only)	5 Years
