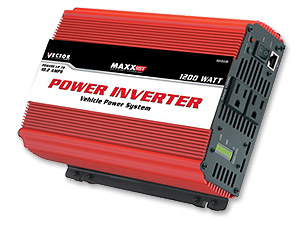

Vector VEC053D 1200-Watt Power Inverter
We beat any delivered price! Call us at 1-800-710-9939.
Run AC powered appliances or electronics by converting your car, boat or RV's 12 volt DC to 110/120 volt AC household power. The Vector VEC053D Power Inverter outputs 1200 watts of continuous power with a peak usage of 2400 watts. Vector's Soft Start Technology (SST) gradually and safely ramps up the output voltage to start difficult motorized loads and protects sensitive appliance circuits.Automatic reset automatically restarts the power inverter if it shuts down. A low battery alarm and low battery shutdown prevents battery drainage.
This power inverter also features two grounded AC outlets, LED power and fault indicators, a wattage output power level meter and a turbo cooling fan.
STANDARD FEATURES
 |
|
|
|
|
| Dimensions & Specifications | ||||
|
|
|
|
|
|
|
Height: 3 1/4" | |
|
|
|
Width: 7" | |
|
|
|
Depth: 10" | |
|
|
|
Weight: 8 lbs. | |
|
|
|
Max. Continuous Power: 1200 Watts | |
|
|
|
Surge Capacity: 2400 Watts | |
|
|
|
Input Voltage Range: 10.5-15.5 VDC | |
|
|
|
Output Voltage Range: 110 VAC, 60 Hz | |
|
|
|
Under Voltage Shutdown: 10.0 V | |
|
|
|
Max. Efficiency: Approx. 90% | |
|
|
|
No Load Current Draw: 0.6 A | |
|
|
|
Internal Fuse: 25 A x 6 | |
|
|
|
|
|
|
|
||||
WARRANTY INFORMATION
CHOOSING THE RIGHT POWER INVERTER
How big of an inverter will you need?
First you will have to determine the total wattage of the devices you want to operate. Check the back of the product or manual of your device. Once you find the total watts used, find an inverter that supplies at least that wattage constantly. Inverters have two ratings, a constant and peak rating. For example a 1000W inverter will supply a constant supply of up to 1000 watts but will deliver a peak of 2000 watts. The peak voltage can't be sustained very long but it will allow extra power to start an electric motor or compressor.
If you know the amps of a device and need to convert that to watts, use this formula: Amps x Volts = Watts. For example, a 3 amp motor running on 110 volts AC would convert to 330 watts. You would need an inverter that supplies at least 330 watts constantly. Be sure to allow a slight variance just to be sure.
