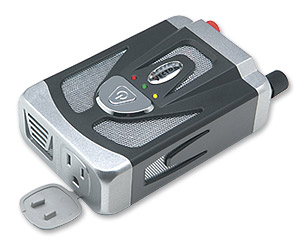

Vector VEC1023 200-Watt Power Inverter
We beat any delivered price! Call us at 1-800-710-9939.
The Vector VEC1023 200-Watt Power Inverter converts your vehicle's 12-volt DC to 110/120 volt AC household power, offering 200 watts of maximum continuous power for very small appliances. Use the included heavy-duty clamps to connect it directly to your vehicle's battery, or plug the portable power inverter into a 12-volt DC outlet for low wattage use.Featuring Vector's Soft Start Technology (SST), this DC to AC power inverter offers unrivaled reliability. Soft Start gradually and safely ramps up the output voltage to start difficult motorized loads and protects sensitive appliance circuits.
LED indicators show power and fault conditions, while a low battery alarm and auto shutdown prevent battery drainage. Other safety features include short circuit protection, a ground fault interrupter circuit, high and low voltage protection and overload protection. An automatic reset feature automatically restarts the power inverter if it shuts down.
STANDARD FEATURES
 |
|
|
|
|
| Specifications | ||||
|
|
|
|
|
|
|
Max. Continuous Power: 200 Watts | |
|
|
|
Input Voltage Range: 12.5 VDC | |
|
|
|
Output Voltage Range: 120 VAC | |
|
|
|
Fuse: 25 A x 1 * 8 A x 1 | |
|
|
|
|
|
|
|
||||
WARRANTY INFORMATION
CHOOSING THE RIGHT POWER INVERTER

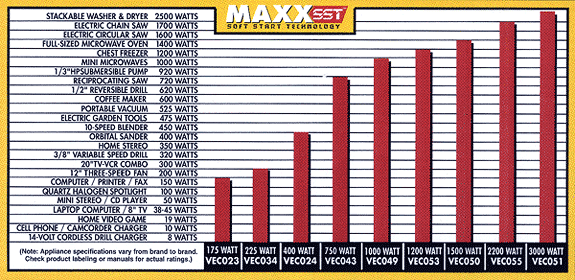

How big of an inverter will you need?
First you will have to determine the total wattage of the devices you want to operate. Check the back of the product or manual of your device. Once you find the total watts used, find an inverter that supplies at least that wattage constantly. Inverters have two ratings, a constant and peak rating. For example a 1000W inverter will supply a constant supply of up to 1000 watts but will deliver a peak of 2000 watts. The peak voltage can't be sustained very long but it will allow extra power to start an electric motor or compressor.
If you know the amps of a device and need to convert that to watts, use this formula: Amps x Volts = Watts. For example, a 3 amp motor running on 110 volts AC would convert to 330 watts. You would need an inverter that supplies at least 330 watts constantly. Be sure to allow a slight variance just to be sure.
