Allavino

FlexCount Classic Series 174 Bottle Single Zone Wine Refrigerator - Right Hinge

Model:YHWR174-1SWRN
Regular Price: $1999.99
You Save $400.00 (20%)
$1,599.99
+ FREE Shipping
Specify Model:

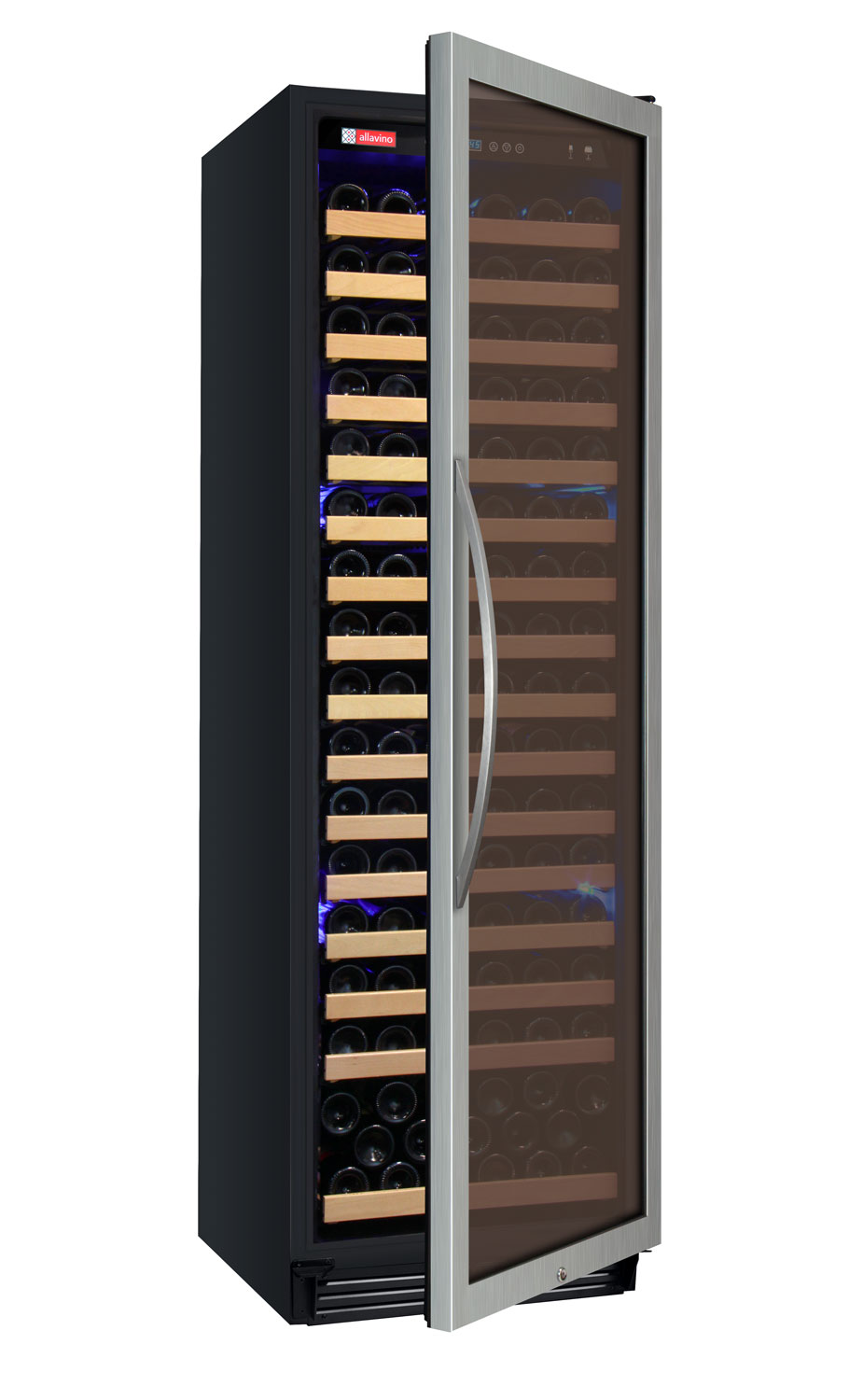

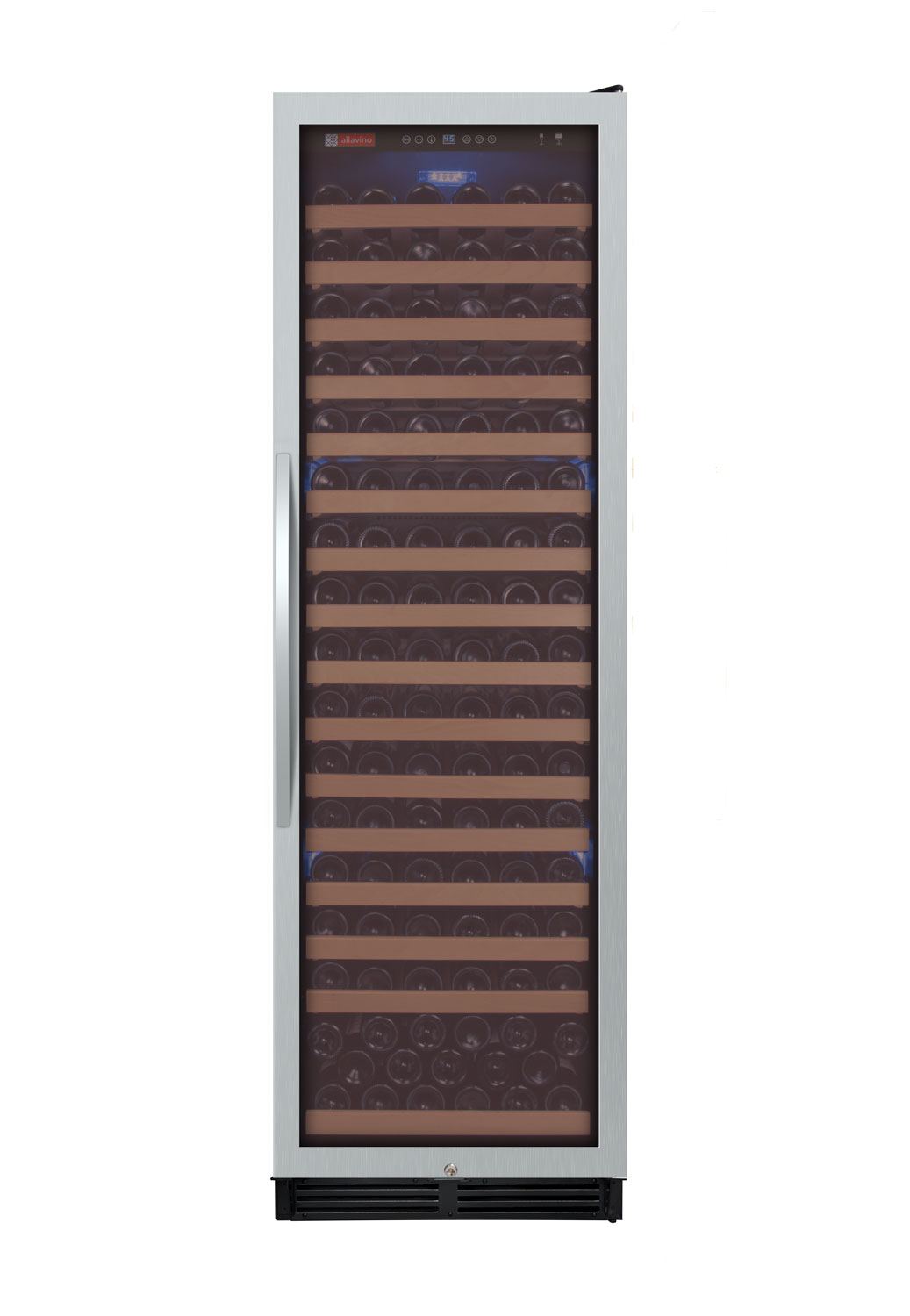

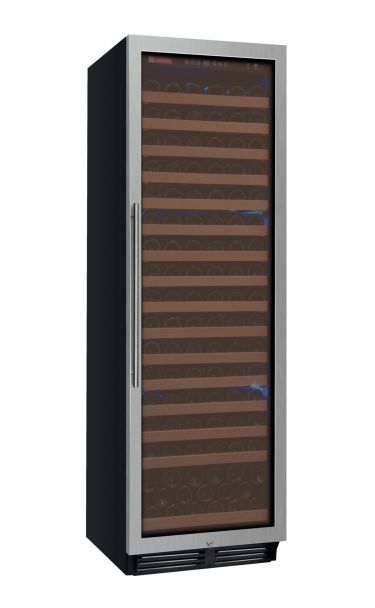

The Allavino FlexCount Classic Series YHWR174-1SWRN Wine Refrigerator combines classic design with loads of modern features to seamlessly fulfill your wine storage needs. The large capacity design can hold up to 174 bottles of your favorite wines on beautiful wood shelves that extend on roller glides far enough to access the rear bottles. A quiet and energy efficient compressor provides consistent cooling to ensure your collection ages properly in the optimal conditions. The dual paned glass door features UV protection to keep harmful light away from your wine and an elegant stainless steel door frame with security lock.

Allavino YHWR174-1SWRN Wine Refrigerator Features

Powerful and Efficient Cooling

A state-of-the-art compressor provides powerful cooling while being efficient enough to meet the strict California Department of Energy consumption guidelines. Internal fans circulate cool air throughout the cabinet to create faster cooldown and eliminate hot spots, ensuring that each bottle in your collection is aging in the intended temperature range.

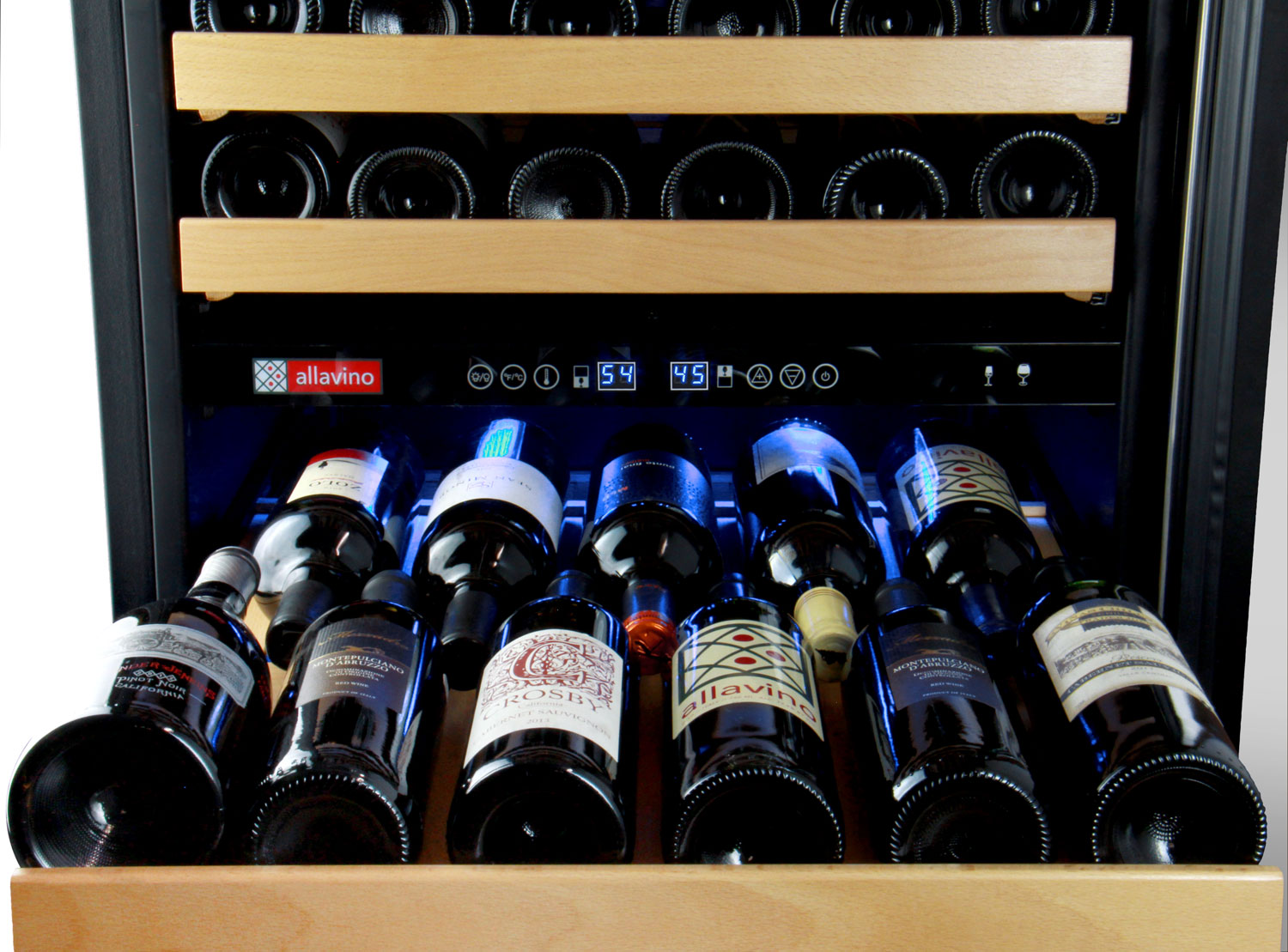

Digital Controls

The digital display and push button controls are easily accessible and intuitive. You can precisely control the interior temperature of the cabinet in one degree increments by pressing the up and down arrows. The LED display shows the set temperature during adjustments, then displays the current temperature, allowing you to monitor how the unit is performing. You can also turn the lights on and off, change the display from Fahrenheit to Celsius and turn off the power to the appliance with the push of a button.

Beautiful Styling

A finished black cabinet allows the unit to look great in freestanding applications, while the front-venting design allows you to build the appliance into cabinetry so that only the stainless steel framed glass door and toe kick are visible. The cool blue lighting and refined wooden shelves add to an aesthetic that is pleasing to the eye.

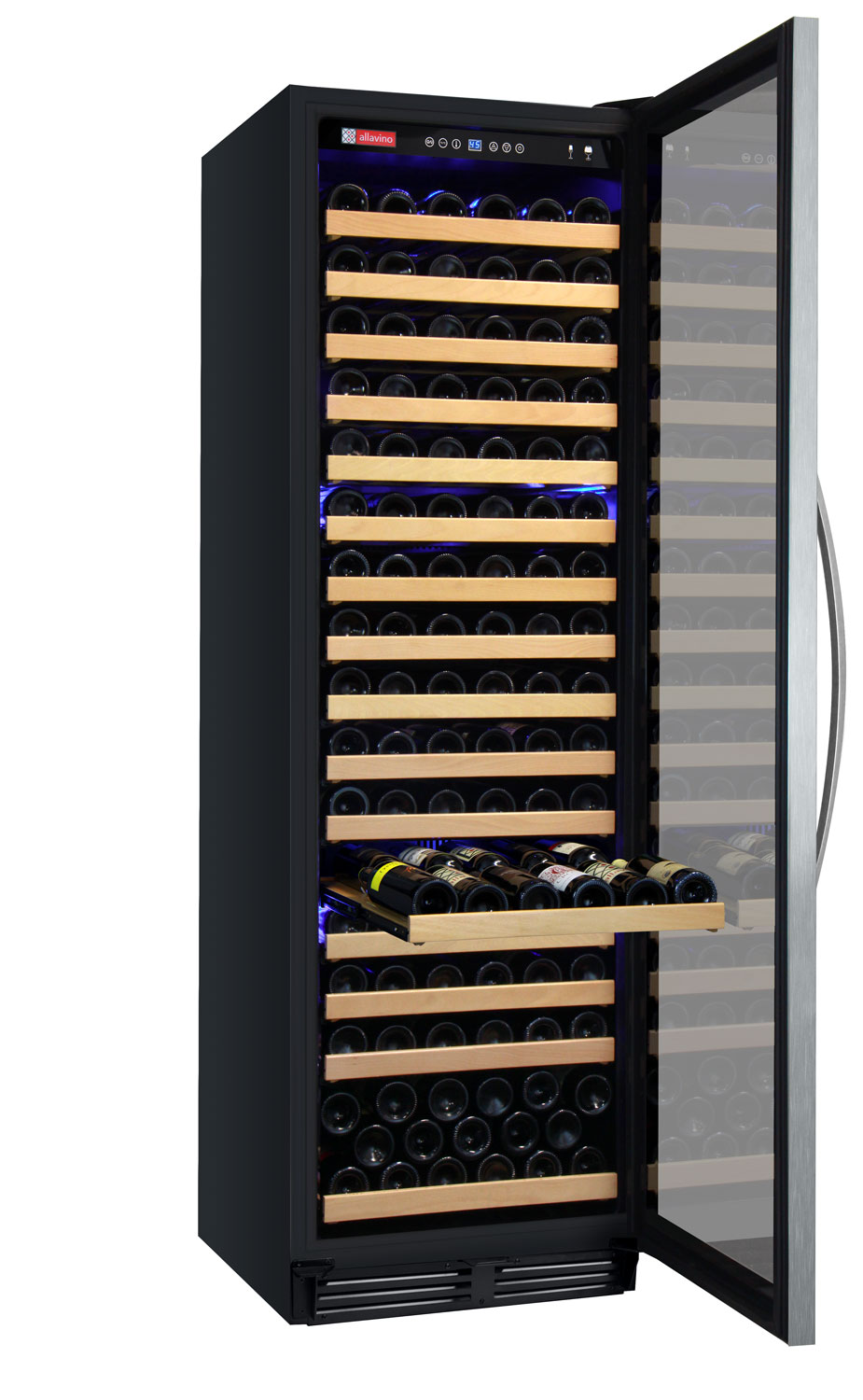

Glide-Out Wooden Shelves

15 sturdy wooden shelves gently cradle your bottles and reduce harmful vibration that could upset the sediment of your wine during long term storage. Telescoping roller assemblies extend all but the bottom shelf so that you can easily view and access the rear bottles, so you don't have to remove the front bottles to determine what is behind them.

  • Up to 174 bottle capacity*
    This bottle count is an estimate based on 3" diameter standard wine bottle. If you have larger bottle diameters, you may hold less bottles per rack or you can remove racks to accommodate the larger bottle sizes.
  • Black Cabinet and Stainless Steel Framed Glass Door with hinge on right. Door is not field reversible.
  • Stainless Steel Curved and Towel Bar Handles
  • LED Temperature Display
  • Push button controls
  • Can be set between 40 and 65 degrees Fahrenheit
  • Temperature can be displayed in Fahrenheit or Celsius
  • Fan-forced cooling for even temperature distribution
  • Cool Blue interior lighting
  • Beautiful hardwood shelves
  • Beveled shelf slats securely cradle wine bottles to reduce vibration
  • Telescoping roller glides extend shelves far enough to access rear bottles
  • Security Lock
  • Dual Paned Glass Door with UV Protection
  • Built-in or Freestanding use

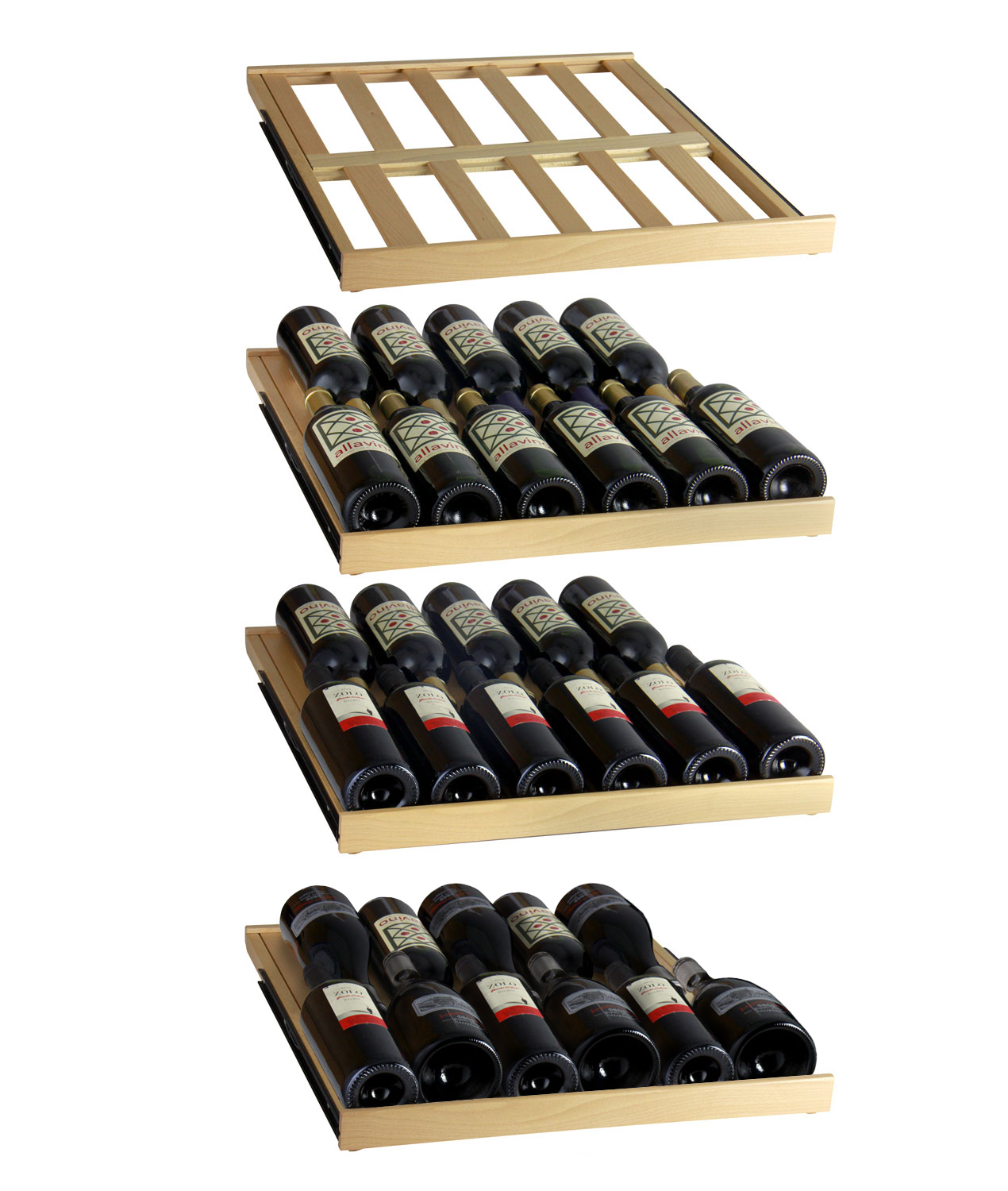

Wine Bottle Dimensions

We realize that there is no "standard" bottle size anymore. Here is a small sample of bottle size variations and how they can affect your overall bottle capacity. Each of these bottles are 2 3/4" at the base but have varying shoulders and overall heights.

  • Bottle A is the ideal bottle size. The bottles are just short enough that the neck of the back bottles fit between the shoulders of the front bottles without touching and the 2-15/16" diameter allows plenty of room between bottles. This allows you to fit 20 bottles on the top rack and 11 bottles on the other 14 racks with a total capacity of 174 bottles.
  • Bottle B is taller than the average bottle at both the top and the shoulder. If only using this size bottle, the top of the rear bottles on the rack would hit the shoulder of the front bottles on the rack and push them too far to either side to have bottles all the way across the front of the rack. We were able to fit 8 bottles on a shelf, with one bottle in front and another bottle in the back, then skipping a groove before adding another bottle in the front. That would reduce the overall capacity to 134 bottles, if your entire collection were this size but you can have bottle B in the back with bottle A in the front of each rack and still achieve the maximum capacity of 174 bottles.
  • Bottle C also works well. It is 2-3/4" wide at the base, but 3 1/4" wide at the shoulder. The grooves are spaced enough that the shoulder will touch the bottle next to it, but the height still allows you to fit the normal amount of bottles on a shelf for the full 174 bottle capacity.
  • Bottle D is wider, with a diameter of 3-1/2". They still fit on most of the shelves without having to remove a rack, but they require that a groove be skipped between the bottles which reduced the bottles per shelf to 8 on the upper shelves and 5 on the bottom shelf. That would reduce the overall capacity to 117 bottles if your entire collection were this size.

We understand that every collection is different, and we hope that providing this information will help you determine how your collection will work with this product.


UPC: 700697200744

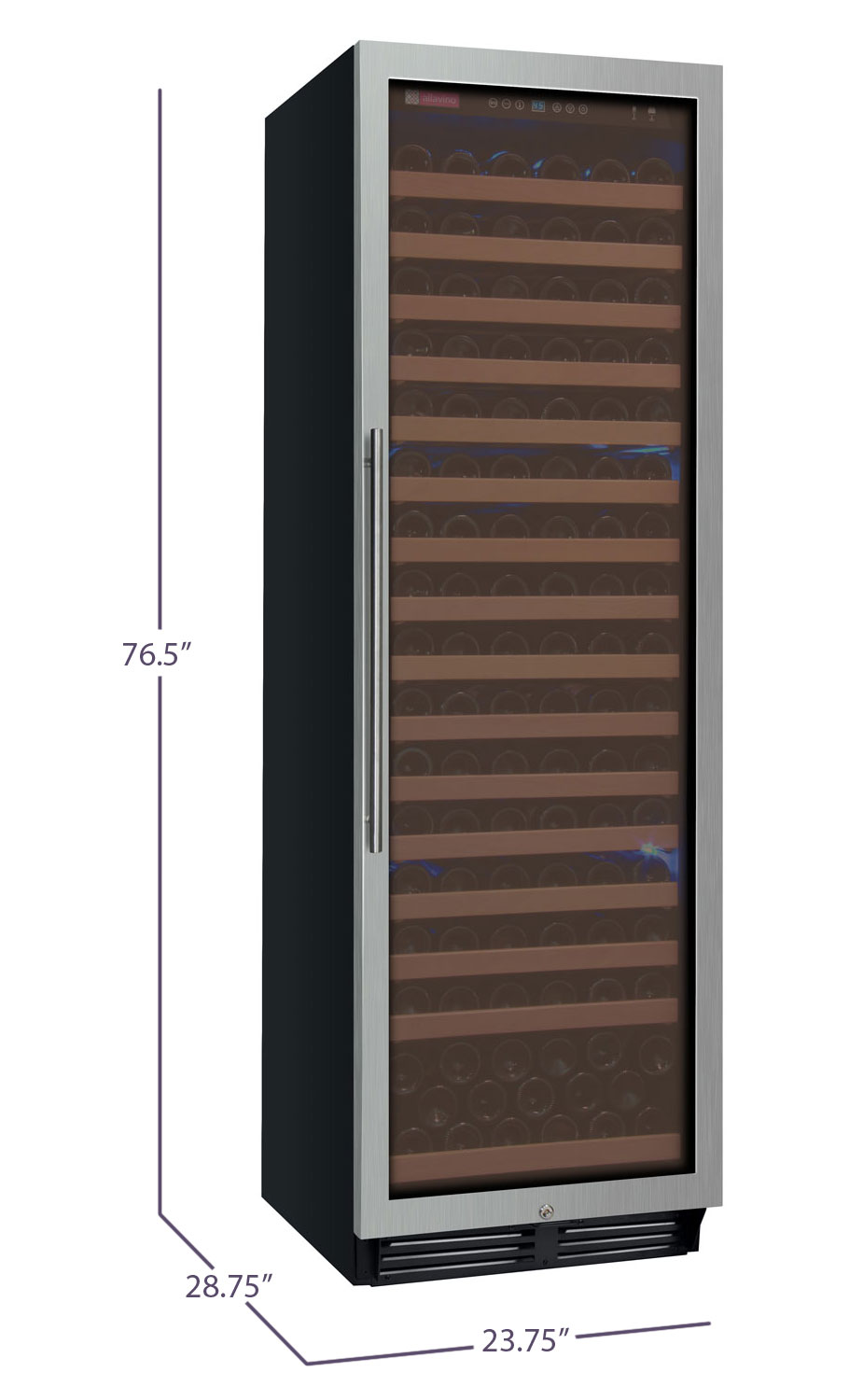

Dimensions
Height76.5"
Width23.75"
Depth27.0" (28.75" w/ handle)
Weight
Unit Weight245 lbs
Key Features
Built-in CapableYes
Security LockYes
Multiple / Dual ZoneNo
Beverage CenterNo
Cabinet Color / MaterialBlack Metal
ADA CompliantNo
Commercial UseNo
Outdoor UseNo
Energy Star RatedNo
Capacity
Wine Bottle CountUp to 174 Bottles
Controls
Adjustable ThermostatYes
DigitalYes
Cooling System
TypeCompressor
Defrost SystemAuto
Front VentilationYes
Shelving
TypeGlide-Out
Number of Shelves15
MaterialHardwood
RemovableYes
AdjustableNo
Glide-Out (Roller Assemblies)Yes
Bottles per ShelfVaries
Interior
ColorBlack
Compartments (Distinct Zones)1
LightingBlue LED
Door
TypeGlass
Number of Doors1
Color / MaterialStainless Steel Frame
Door HandleTowel Bar AND Curved
Field ReversibleNo
Tinted / UV ProtectiveYes
Self-ClosingNo
Electrical
Electrical Requirements115V/60Hz
Running Amps2.4
PDFInstruction Manual

FlexCount Classic Series 174 Bottle Single Zone Wine Refrigerator - Right Hinge Reviews

Average Customer Rating:
(4)
(based on 1 reviews)
Good but not great
by:Bruce (10-24-2016)
Park City, UT
Comments:I bought this based on the high quality racks that were advertised. This is indeed the case. The racking system works well for a variety of different bottle sizes. The wood trays work well and the ball bearing slides work well. Shelves are placed at several different increments, so that some larger 750mL bottles only fit in certain spots, but that is fine. 2 complaints: 1) it is noisier then I expected. It is louder then an ordinary refrigerator. 2) The temperature seems to fluctuate a bit. I set it to 60, but it often reads 58 or 59. Did not measure temp, but does not seem right.
Bottom Line:I would recommend this product.

Shipping Calculator
Enter Your Shipping Zip Code:
Shipping Options
Please enter a zip code.
All charges are based on a quantity of 1.
Click "Add to Cart" above to change quantities
and make actual ship method selection.
This item ships via Standard Door to Door Freight Service. Please note: Free Shipping Does Not Include White Glove Service. If you require white glove delivery service where they unpack it, and place it where you want it. It will require additional charges of $300.00. Please call us at 800.710.9939 if you would like to upgrade to white glove service.

Shipping rates apply for orders shipped to the contiguous 48 US states. For orders to Alaska, Hawaii, Puerto Rico, APO/FPO addresses and international locations, please call 800.710.9939 for current rates. Sorry, we cannot ship items to a P.O. box.

Labor - 12 Months

LIMITED ONE YEAR WARRANTY

For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in the user manual. In cases where a product cannot be repaired, Allavino will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Allavino Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

Parts - 60 Months

LIMITED SECOND THROUGH FIFTH YEAR WARRANTY:

For the second through the fifth year from date of original purchase, Allavino Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers' shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

WHAT IS NOT COVERED:
  • Content losses of food or other, due to spoilage.
  • Incidental or consequential damages.
  • Parts and labor costs for the following will not be considered as warranty:
    • Door springs, and/or frames.
    • Inner door panels, door rails and/or door supports.
    • Light bulbs and/or plastic housing.
    • Plastic cabinet liners.
    • Punctured evaporator that voids the warranty on the complete sealed system.
    • Repairs performed by unauthorized servicers.
    • Shipping and handling costs associated with the replacement of the unit.
    • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
    • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
    • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
    • Replacement of house fuses or resetting circuit breakers.
  • Failure of the product if it is used for other than its intended purpose.
  • This warranty does not apply outside the Continental USA.
