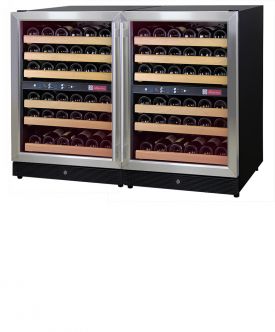

Allavino 2X-MWR-542-SS 102 Bottle Multi-Zone Wine Cellar Refrigerator - Black Cabinet with Stainless Doors

Experience the Allavino Difference.

Regular Price: $1562.49
You Save $312.50 (20%)
+ FREE Shipping
Specify Model:

Experience the Allavino Difference.

The Allavino 2X-MWR-542-SSR 102 Bottle Multi-Zone Wine Cellar is an excellent choice for anyone needing a little versatility in their wine storage. Because it is made up of two dual zone units, It's four independently controlled temperature zones effectively store white wine, red wine or both! This front-venting unit is perfect for recessing into kitchen and bar counters. It is also makes a handsome space-saver as a freestanding unit in offices and apartments.


Multi-Zone Digital Temperature Control:
Set storage and service temperatures for both red and white wine. Use the Upper Zones for white service and the Lower Zones for red and white storage, or use any combination to store reds and whites. "Red", "White," and "Sparkling" indicator lights allow you to monitor temperatures at a glance.

  • Upper Zones: The temperature setting can be adjusted between 41°F to 50°F
  • Lower Zones: The temperature setting can be adjusted between 50°F to 64°F

Easy Glide Hardwood Shelves:
10 shelves glide smoothly on ball-bearing tracks for easy access. Smartly spaced to fit 102 Bordeaux (regular) size bottles. The shelves are easily removable to accommodate larger bottles, including Pinot Noir, Chardonnay, and Champagne.

Glass Doors with Stainless Steel Trim:
To keep your wine safe, the tinted glass provides UV-protection from harmful light and the built-in key locks provide security. The sleek stainless steel finish looks great in any area of the home or office.

Built-In Versatility:
The Allavino 102 bottle wine cooler is front-venting which allows you to build it into your counter without needing any extra space on the sides for air circulation. It has a finished cabinet which also allows it to look great as a freestanding unit in any room of your home.

6 Blue LED Interior Lights:
A cool blue glow illuminates your bottles, stylishly showcasing your wine while also remaining much cooler than standard bulbs.

Rack ConfigurationsTo reach the stated bottle capacity, the sliding shelves can hold up to 9 bottles alternating the necks in the middle of the shelf, as shown in the upper image to the right. The stationary shelves at the bottom will hold 6 bottles for a total capacity of 102. With this configuration, not every bottle will be cradled between the slats so there may be some shifting when you remove a bottle from the rack.

You can fit 6 bottles across on each sliding shelf so that each bottle will be cradled between the slats and will not move. There is enough room in front of the bottles to store and additional 2 bottles, for a total of 8 per sliding shelf. The two front bottles will not be cradled and may shift as you move the shelves in and out. This configuration will reduce the overall bottle capacity to 92.

The above bottle capacities are based on the standard Bordeaux bottle. The shelves are removable so you can take one out to accommodate larger bottle sizes, however, this will also affect the overall capacity.

  • Store and Serve reds and whites from the same cellar using the multiple temperature zones.
  • Shelve Larger-Than-Average Bottles such as Pinot Noir and Champagne.
  • Capacity: Up to 102 bottles based on the bottle dimensions to the rightBottle Dimensions
  • Size: 34-1/2"H x 48"W x 26-5/8"D including handle, 24-5/8"D without the handle.
  • Weight: 226 lbs (Two Units - 113 lbs. each)
  • Warranty: 1 year on Parts & Labor, 5 years Parts Only on the Compressor
  • Temperature Range: Upper Compartments 41-50°F; Lower Compartments 50-64°F (+/- 2°F)
  • Ambient Temperature Range: 45-80°F
  • Electrical Requirements - Plugs directly into a US 110 Volt outlet on a dedicated 15 AMP line.
  • PLEASE NOTE: For Optimal Use Of This Product, The Temperature Of The Lower Cooling Zone Should Be Set At Least 4˚ F Above The Temperature Of The Upper Cooling Zone.
  • Two (2) keys
  • This appliance is designed for both free standing and built-in (fully recessed) installation.
  • Each rolling shelf can hold one row of up to 9 bottles. The bottom half shelves can hold 6 bottles each.

UPC: 608729690955
Height34 1/2"
Depth24 5/8"
Unit Weight226 lbs
Shipping Weight250 lbs
Labor1 Year
Parts1 Year
Compressor (Parts Only)5 Years
Key Features
Built-in CapableYes
Security LockYes
Multiple / Dual ZoneYes
Beverage CenterNo
Cabinet Color / MaterialBlack Metal
ADA CompliantNo
Commercial UseNo
Outdoor UseNo
Energy Star RatedNo
Wine Bottle Count102
Cooling System
Defrost SystemAutomatic
Front VentilationYes
Adjustable ThermostatYes
Compartments (Distinct Zones)4
LightingBlue LED
TypeWood presentation
Number of Shelves10
Glide-Out (Roller Assemblies)Yes
Bottles per ShelfVaries
Number of Doors2
Color / MaterialStainless Steel Frame
Door HandleTowel Bar
Field ReversibleNo
Tinted / UV ProtectiveYes
Electrical Requirements115 V / 60 Hz
PDFInstruction Manual
PDFParts Diagram

Allavino 2X-MWR-542-SS 102 Bottle Multi-Zone Wine Cellar Refrigerator - Black Cabinet with Stainless Doors Reviews

Average Customer Rating:
(based on 15 reviews)
Love It!!!!!
by:Marlene (12-20-2014)
Dublin, OH
Comments:This wine cooler is amazing. Great interior lighting. The cooler is quiet! Installed easily and the dual temperature zones are great for my reds and whites!
Bottom Line:I would recommend this product.
exactly what i was expecting!
by:Michel (11-24-2014)
Comments:everything was well packed and the cellar was
quality as i expected
Bottom Line:I would recommend this product.
Money well spent
by:Usch (10-26-2014)
Macon, GA
Comments:It has been in use in my kitchen for 1 week now and works as advertised. Of course, Chardonnay bottles barely fit in between the shelves , but the shelf width is still accommodating 8-9 bottles. Dual temp zones hold true temperatures. Only drawback is the frequent and loud compressor activity, but to
Enable in my kitchen.
Bottom Line:I would recommend this product.
Nice Wine Fridge
by:David (05-27-2014)
Boston, MA
Comments:The fridge came pretty quickly and I set it up. Seemed bigger than I thought but I measured and it is exact same dimensions as my dish washer and therefore will fit in one cabinet space if need to.
Have only had it for about 2 weeks and seems to be working as advertised. Fan kicks on about every 10 mins or so but it isn't bad. Quieter than my regular fridge but not super quiet. I had hoped it would be whisper quiet and it isn't.
Shelves look and work great. Just need more wine to fill it up now!
Bottom Line:I would recommend this product.
by:DGyo (05-05-2014)
Comments:This is the third under counter wine cooler I've owned and definitely the best! I called to ask about a "scratch and dent" and the customer service dude told me it would be cool, but only a 90 day warranty. He then offered me a NEW one at 35% off. I live in New Orleans and I was afraid it wouldn't reach the lowest temp-but it does. BTW folks who think this thing is loud must live in suburbia! Ya you right!!
Bottom Line:I would recommend this product.
