Allavino MWR-542-BR-C 51 Bottle Dual Zone Wine Cellar Refrigerator - Black Cabinet with Black Door

Free shipping on this product!

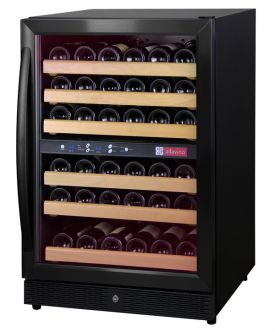

Enlarge Allavino MWR-542-BR-C 51 Bottle Dual Zone Wine Cellar Refrigerator - Black Cabinet with Black Door
Enlarge Image
Allavino MWR-542-BRBlack Door and HandleInterior LED lightssliding shelves
temperature controlsLocking Door

Allavino MWR-542-BR-C 51 Bottle Wine Cellar Refrigerator / Two-Zone Digital Temperature Control / Smooth-Rolling Hardwood Shelves / Glass Door with Black Trim / Cool Blue LED Interior Lights / Locking Door / Built-in or Free Standing / Quiet Operation / UV Protection on Glass Door

 Specify Product Model
Selected - Door Hinge on RightDoor Hinge on Right$1062.49$849.99
Select - Door Hinge on LeftDoor Hinge on Left$1062.49$849.99

List Price: $1,328.11
Regular Price: $1062.49
Sale Price: $849.99 You Save $212.50 (20%)
Shipping: This item SHIPS FREE!
Availability: IN STOCK (usually ships within 24 hours)
based on 12 Reviews

Experience the Allavino Difference.

The Allavino MWR-542-BR-C 51 Bottle Dual Zone Wine Cellar is an excellent choice for anyone needing a little versatility in their wine storage. It's two independently controlled temperature zones effectively store white wine, red wine or both! This front-venting unit is perfect for recessing into kitchen and bar counters. It is also makes a handsome space-saver as a freestanding unit in offices and apartments.


  • Dual-Zone Digital Temperature Control:
    Upper Zone: 41-50°F; Lower Zone: 50-64°F. Set storage and service temperatures for both red and white wine. Use the Upper Zone for white service and the Lower Zone for red and white storage, or use both zones to store reds and whites. "Red", "White," and "Sparkling" indicator lights allow you to monitor temperatures at a glance.
    • Upper Zone: The temperature setting can be adjusted between 41°F to 50°F
    • Lower Zone: The temperature setting can be adjusted between 50°F to 64°F
  • Easy Glide Hardwood Shelves:
    5 shelves glide smoothly on ball-bearing tracks for easy access. Smartly spaced to fit 46 bottles of Bordeaux (regular) size bottles. The shelves are easily removable to accommodate larger bottles, including Pinot Noir, Chardonnay, and Champagne.
  • Glass Door with Black Trim:
    To keep your wine safe, the tinted glass provides UV-protection from harmful light and the built-in key lock provides security. The sleek black finish looks great in any area of the home or office and the black metal doorframe with curved handle is more durable and superior in quality to the black plastic doorframes you may find on other comparable units.
  • Built-In Versatility:
    The Allavino 51 bottle wine cooler is front-venting which allows you to build it into your counter without needing any extra space on the sides for air circulation. It has a finished cabinet which also allows it to look great as a freestanding unit in any room of your home.
  • 3 Blue LED Interior Lights:
    A cool blue glow illuminates your bottles, stylishly showcasing your wine while also remaining much cooler than standard bulbs.
P>Rack ConfigurationsTo reach the stated bottle capacity, the sliding shelves can hold up to 9 bottles alternating the necks in the middle of the shelf, as shown in the upper image to the right. The stationary shelf at the bottom will hold 6 bottles for a total capacity of 51. With this configuration, not every bottle will be cradled between the slats so there may be some shifting when you remove a bottle from the rack.

You can fit 6 bottles across on each sliding shelf so that each bottle will be cradled between the slats and will not move. There is enough room in front of the bottles to store and additional 2 bottles, for a total of 8 per sliding shelf. The two front bottles will not be cradled and may shift as you move the shelves in and out. This configuration will reduce the overall bottle capacity.

The above bottle capacities are based on the standard Bordeaux bottle. The shelves are removable so you can take one out to accommodate larger bottle sizes, however, this will also affect the overall capacity.

  • Black Cabinet and Door with Curved Handle
  • Store and Serve reds and whites from the same cellar using two temperature zones. .
  • Shelve Larger-Than-Average Bottles such as Pinot Noir and Champagne.
  • Capacity: Up to 51 bottles based on the bottle dimensions to the rightBottle Dimensions
  • Size: 34-1/2"H x 23-3/4"W x 26-5/8"D including handle, 24-5/8"D without the handle.
  • Weight: 113 lbs.
  • Warranty: 1 year on Parts & Labor, 5 years Parts Only on the Compressor
  • Temperature Range: Upper Compartment 41-50°F; Lower Compartment 50-64°F (+/- 2°F)
  • Ambient Temperature Range: 65-80°F
  • Applications: Free Standing, Recessed or Built-In
  • Electrical Requirements - Plugs directly into a US 110 Volt outlet on a dedicated 15 AMP line.
  • PLEASE NOTE: For Optimal Use Of This Product, The Temperature Of The Lower Cooling Zone Should Be Set At Least 4˚ F Above The Temperature Of The Upper Cooling Zone.
  • Two (2) keys
  • Each rolling shelf can hold one row of 8 bottles. The bottom half shelf can hold 6 bottles.

UPC: 608819312910
Height34 1/2" (Min. height without legs)
Width23 3/4"
Depth24 5/8"
Unit Weight113 lbs.
Shipping Weight125 lbs.
Labor1 Year
Parts1 Year
Key Features
Built-in CapableYes
Security LockYes
Multiple / Dual ZoneYes
Beverage CenterNo
Cabinet Color / MaterialBlack
ADA CompliantNo
Commercial UseNo
Outdoor UseNo
Energy Star RatedNo
Wine Bottle Count51 Bottle
12-oz. Can CapacityNo
Cooling System
Defrost SystemAuto
Front VentilationYes
Adjustable ThermostatYes
Compartments (Distinct Zones)Yes
Number of Shelves5
Glide-Out (Roller Assemblies)Yes
Bottles per ShelfVaries per Rack
Number of Doors1
Color / MaterialBlack
Door HandleBlack
Field ReversibleNo
Accepts Custom PanelNo
Tinted / UV ProtectiveYes
Electrical Requirements115 V / 60 Hz
Running Amps1.7
PDFInstruction Manual
PDFParts Diagram

Allavino MWR-542-BR-C 51 Bottle Dual Zone Wine Cellar Refrigerator - Black Cabinet with Black Door Reviews

Average Customer Rating:
(based on 12 reviews)
Money well spent
by:Usch (10-26-2014)
Macon, GA
Comments:It has been in use in my kitchen for 1 week now and works as advertised. Of course, Chardonnay bottles barely fit in between the shelves , but the shelf width is still accommodating 8-9 bottles. Dual temp zones hold true temperatures. Only drawback is the frequent and loud compressor activity, but to
Enable in my kitchen.
Bottom Line:I would recommend this product.
Nice Wine Fridge
by:David (05-27-2014)
Boston, MA
Comments:The fridge came pretty quickly and I set it up. Seemed bigger than I thought but I measured and it is exact same dimensions as my dish washer and therefore will fit in one cabinet space if need to.
Have only had it for about 2 weeks and seems to be working as advertised. Fan kicks on about every 10 mins or so but it isn't bad. Quieter than my regular fridge but not super quiet. I had hoped it would be whisper quiet and it isn't.
Shelves look and work great. Just need more wine to fill it up now!
Bottom Line:I would recommend this product.
by:DGyo (05-05-2014)
Comments:This is the third under counter wine cooler I've owned and definitely the best! I called to ask about a "scratch and dent" and the customer service dude told me it would be cool, but only a 90 day warranty. He then offered me a NEW one at 35% off. I live in New Orleans and I was afraid it wouldn't reach the lowest temp-but it does. BTW folks who think this thing is loud must live in suburbia! Ya you right!!
Bottom Line:I would recommend this product.
Love It!!
by:Beth (03-20-2014)
San Diego
Comments:We have had this installed under cabinet for almost a year now. Very quiet, and maintains great temperature. The shelves accomodate different size bottles. It is very attractive installed in our kitchen. We live in San Diego so we were able to go to the store and pick ours up. The sales people there were very helpful.
Bottom Line:I would recommend this product.
llove how the shelves glide out
by:Joyce (02-25-2014)
Lady Lake, FL
Comments:bought this wine refrigerator for the glide out shelves they work great!!!
Bottom Line:I would recommend this product.
