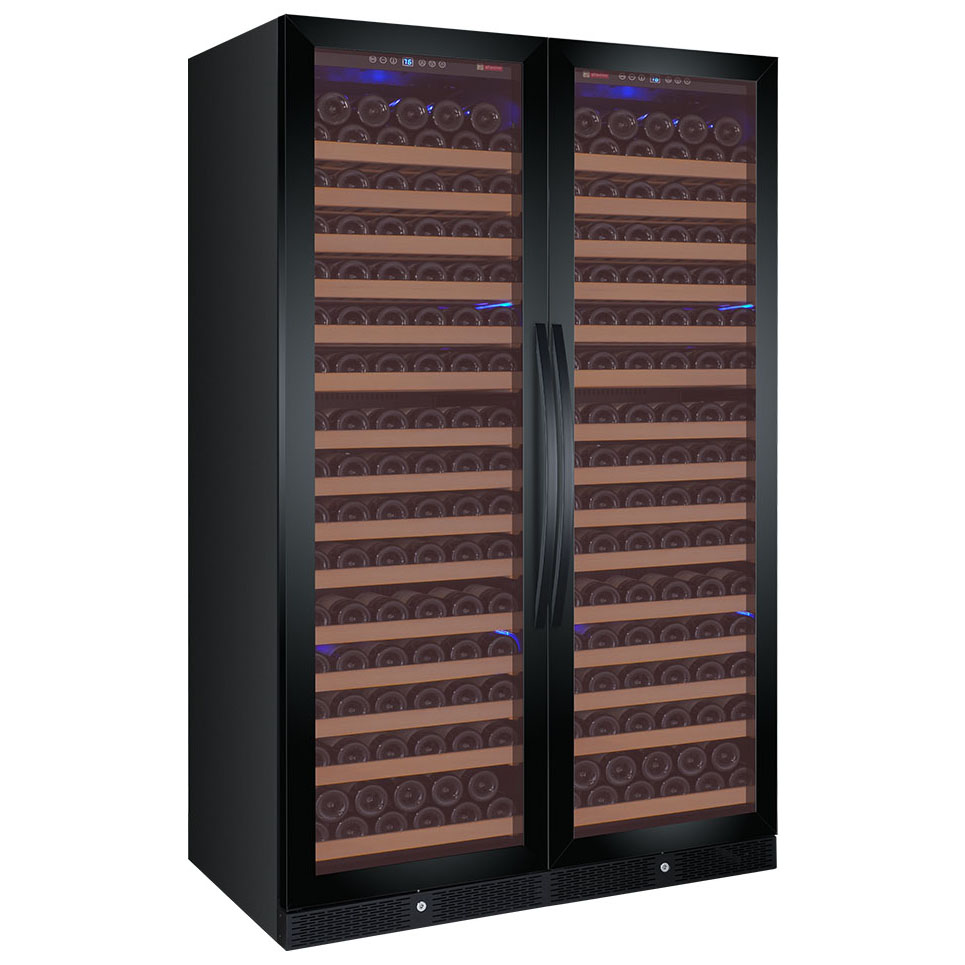

FlexCount Classic 348 Bottle Dual Zone Wine Refrigerator - Black Doors

Regular Price: $3124.99
You Save $625.00 (20%)
+ FREE Shipping
Specify Model:

Allavino has specially designed this Flex Count Series 2X-YHWR174-1BW 348 Bottle Wine Refrigerator with wine enthusiasts in mind! It features sophisticated styling and a convenient dual-zone design that makes it perfect for storing large and diverse collections of red and white wine in their ideal conditions. It is made up of two single-zone wine coolers with opposite hinged doors placed side-by-side, giving you two independently controlled temperature zones that can each be set low enough to store white wine or high enough to store red wine. Outside, the stunning showcase has a sleek black cabinet and matching black framed French doors with UV protected dual pane glass, while inside exciting features like wooden wine racks on full-extension rollers, cool blue LED display lighting, and digital temperature displays with push-button controls help you care for your prized collection in style.

Allavino YHWR174-1BWRT Wine Refrigerator Features

Two Temperature Zones

This wine refrigerator's dual zone design gives you the freedom to store both red and white wines simultaneously at their ideal temperature, letting you age them according to their individual needs. Both zones can be set between 40-65 degrees Fahrenheit, and feature internal fans that direct cool air to where you need it most and a state-of-the-art compressor that has been specially designed to meet strict California Department of Energy consumption guidelines while still providing superior cooling.

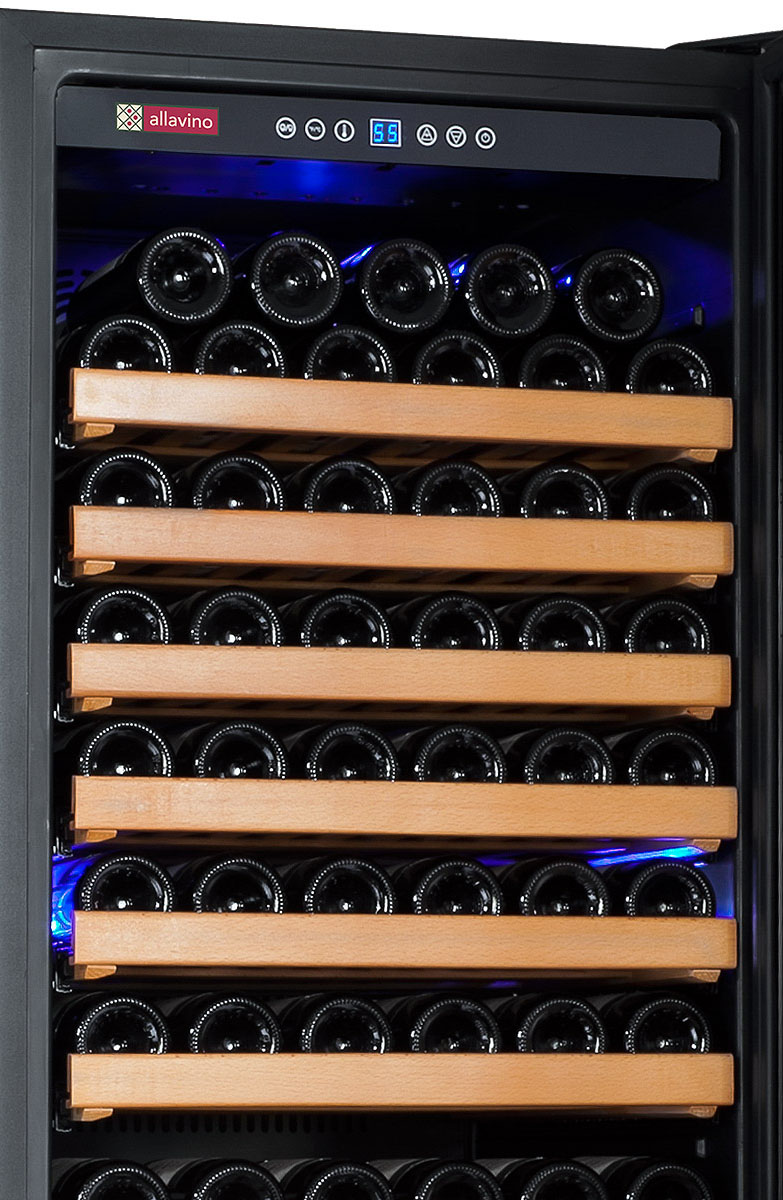

Digital Controls

Each zone's temperature can be individually controlled using it's own intuitive and easily accessible digital display with push button controls. The temperature can be set and adjusted in precise one degree increments with the simple push of an up or down arrow. To allow you to easily monitor how the unit is performing, the LED display shows the set temperature during adjustments, and then displays the current temperature. The powerful control panels also allow you to turn the lights on or off, change the temperature display from Fahrenheit to Celsius, or turn off the power to the appliance with the push of a button.

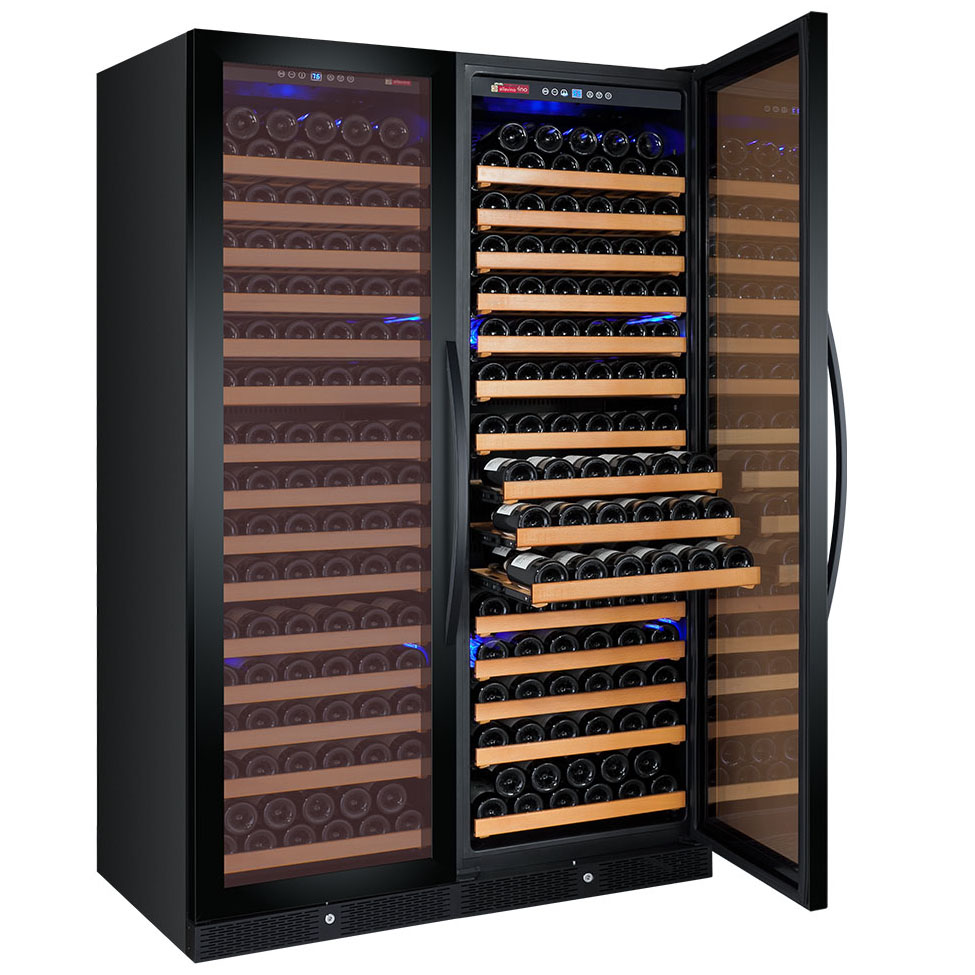

Glide-Out Wooden Shelves

30 durable wood wine shelves gently cradle your bottles, helping to reduce harmful vibration that might upset your wine's sediment during long-term storage. These shelves extend out on telescoping roller assemblies to make it easy for you to view and access every bottle in your collection - even those normally hard-to-reach rear bottles!

Beautiful Styling

The finished black cabinet allows this wine refrigerator to be used as a stylish freestanding unit, while the front-venting design gives you the option to build it into your cabinetry so that only the black framed glass doors and toe kick are visible. Cool blue LED interior lighting and refined wooden shelves further add to this appliance's eye-pleasing aesthetic.

  • Up to 348 bottle capacity
    This bottle count is an estimate based on 3" diameter standard wine bottle. If you have larger bottle diameters, you may hold less bottles per rack or you can remove racks to accommodate the larger bottle sizes.
  • Black Cabinets and Black Framed Glass Doors (one right hinge door and one left hinge door - doors are not field reversible)

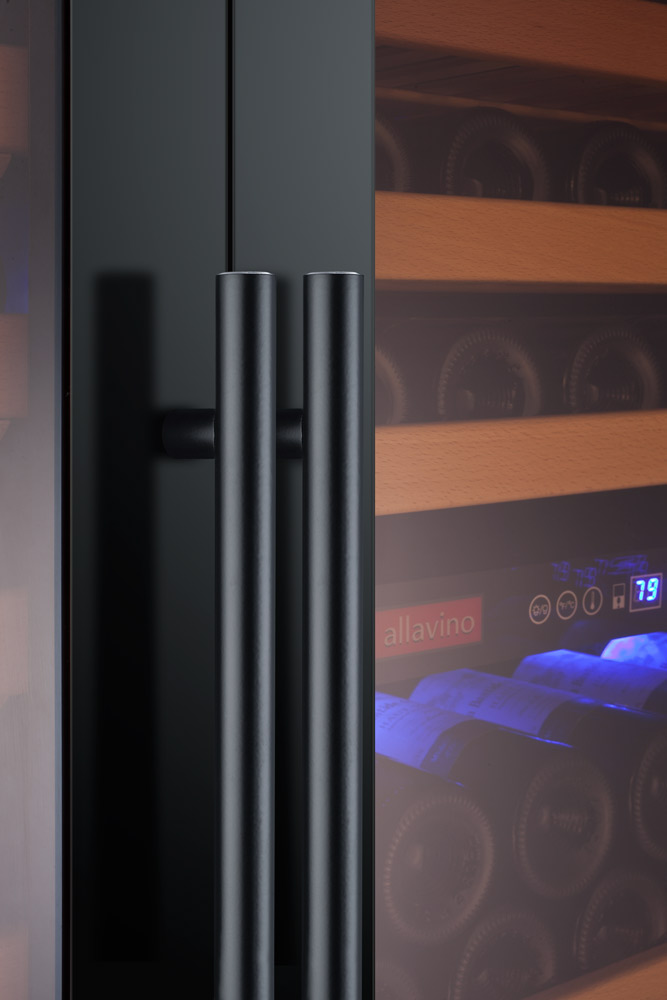

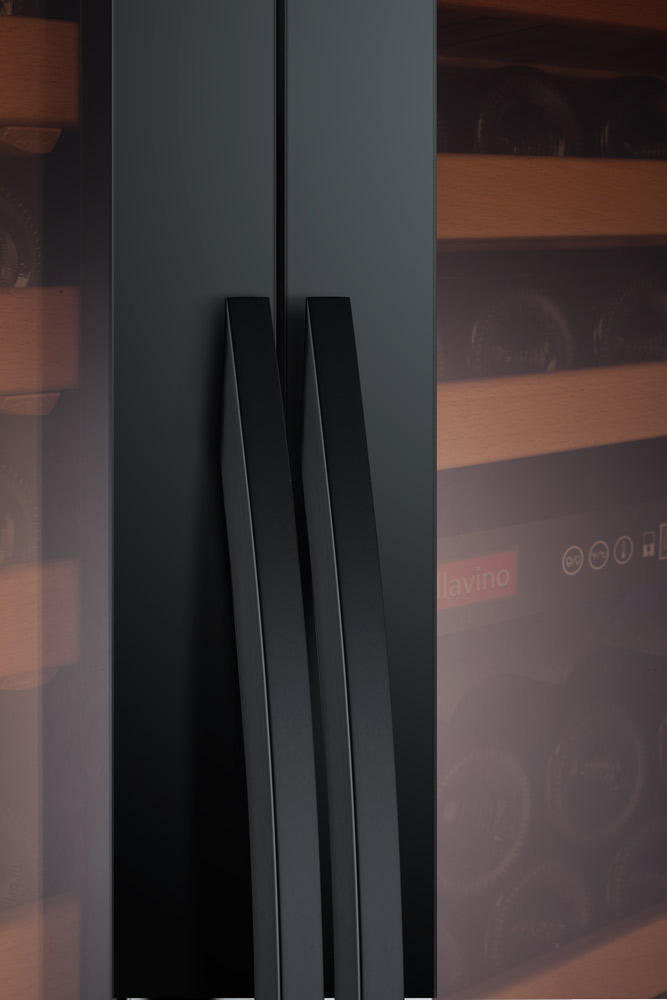

  • Black Curved AND Towel Bar Handles
  • Two temperature zones allow you to store red and white wine simultaneously
  • Each zone can be set between 40 and 65 degrees Fahrenheit
  • Maximum Ambient Temperature: 90 degrees Fahrenheit
  • Minimum Ambient Temperature: The lowest temperature you want to store your wine at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
  • LED Temperature Displays
  • Temperature can be displayed in Fahrenheit or Celsius
  • Push button controls
  • Fan-forced cooling for even temperature distribution
  • Cool blue interior lighting
  • Beautiful hardwood shelves
  • Beveled shelf slats securely cradle wine bottles to reduce vibration
  • Telescoping roller glides extend shelves far enough to access rear bottles
  • Security Locks
  • Dual Paned Glass Doors with UV Protection
  • Built-in or Freestanding use

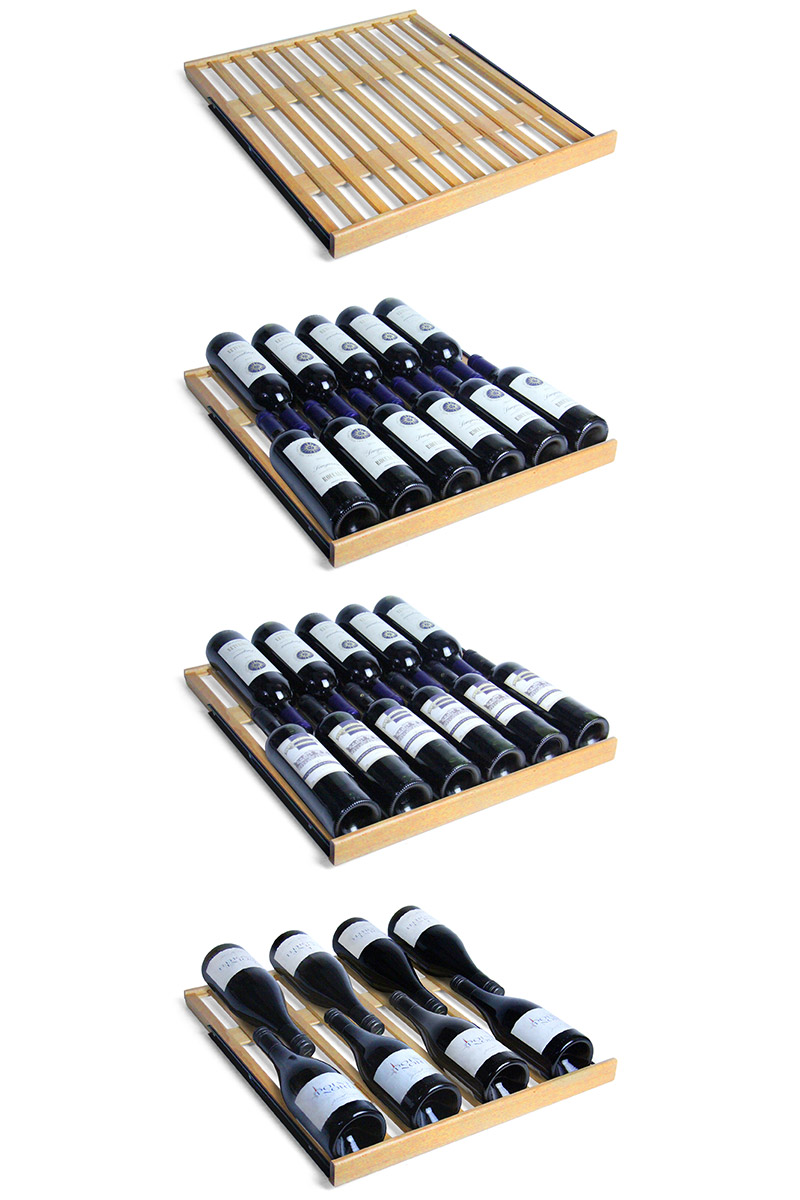

Wine Bottle Dimensions

We realize that there is no "standard" bottle size anymore. Here is a small sample of bottle size variations and how they can affect your overall bottle capacity. Each of these bottles have varying widths and heights.

  • Bottle A is the ideal bottle size. The bottles are just short enough that the neck of the back bottles fit between the shoulders of the front bottles without touching and the 2-15/16" diameter allows plenty of room between bottles. This allows you to fit 20 bottles on the top rack in each zone and 11 bottles on the other racks with a total capacity of 348 bottles.
  • Bottle B is taller than the average bottle at both the top and the shoulder. If only using this size bottle, the top of the rear bottles on the rack would hit the shoulder of the front bottles on the rack and push them too far to either side to have bottles all the way across the front of the rack. We were able to fit 11 bottles on the top shelf in each zone and the very bottom shelves by putting 6 bottles across in the grooves with 5 bottles stacked on top of them. On each of the remaining shelves, we were able to get 8 bottles per shelf with one bottle in front and another bottle in the back, then skipping a groove before adding another bottle in the front. That would reduce the overall capacity to 242 bottles, if your entire collection were this size but you can have bottle B in the back with bottle A in the front of each rack and still achieve the maximum capacity of 348 bottles.
  • Bottle C also works well. It is 2-3/4" wide at the base, but 3 1/4" wide at the shoulder. The grooves are spaced enough that the shoulder will touch the bottle next to it, but the height still allows you to fit the normal amount of bottles on a shelf for the full 348 bottle capacity.
  • Bottle D is shorter and wider, and the bigger diameter will not allow you to stack bottles on the bottom shelf. This reduces the overall capacity by 10, for a maximum capacity of 338 bottles if your entire collection were this size.
  • Bottle E is even wider, with a diameter of 3-1/2". They still fit on most of the shelves without having to remove a rack, but they require that a groove be skipped between the bottles which reduced the bottles per shelf to 8 on the upper shelves and 5 on the bottom shelves in each zone. That would reduce the overall capacity to 218 bottles if your entire collection were this size.

We understand that every collection is different, and we hope that providing this information will help you determine how your collection will work with this product.

UPC: 700697202526

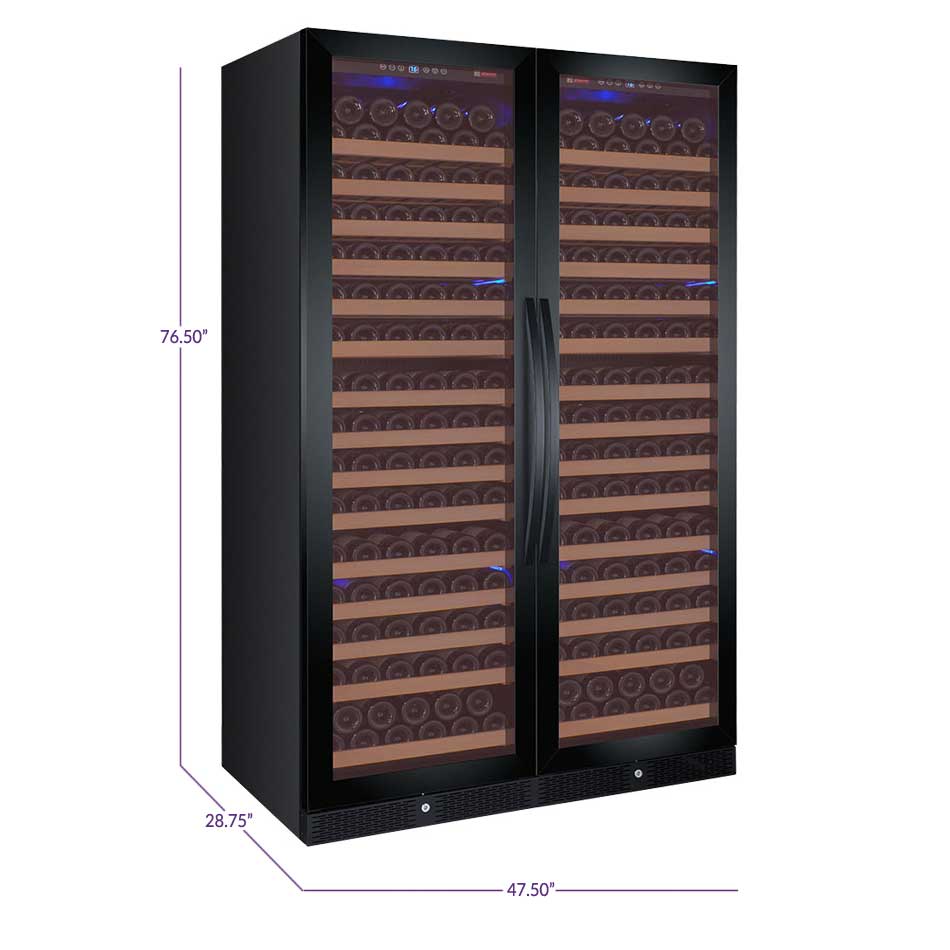

Depth27.0" (28.75" w/handles)
Unit Weight490 lbs.
Shipping Weight571 lbs.
Key Features
Built-in CapableYes
Security LockYes
Multiple / Dual ZoneYes
Beverage CenterNo
Cabinet Color / MaterialBlack Metal
ADA CompliantNo
Commercial UseNo
Outdoor UseNo
Energy Star RatedNo
Wine Bottle CountUp to 348 Bottles
Adjustable ThermostatYes
Cooling System
Defrost SystemAuto
Front VentilationYes
Number of Shelves30
Glide-Out (Roller Assemblies)Yes
Bottles per ShelfVaries
Compartments (Distinct Zones)2
LightingBlue LED
Number of Doors2
Color / MaterialBlack Frame
Door HandleBOTH Towel Bar AND Curved
Field ReversibleNo
Tinted / UV ProtectiveYes
Electrical Requirements115V/60Hz
Running Amps2.4
PDFInstruction Manual
PDFEnergy Guide

FlexCount Classic 348 Bottle Dual Zone Wine Refrigerator - Black Doors Reviews

Average Customer Rating:
(based on 1 reviews)
My wine collection has a new home!!
by:Brenda (03-01-2017)
San Clemente, CA
Comments:This attractive and functional wine cooler makes a very welcome addition to my wine tasting room.
Bottom Line:I would recommend this product.
Shipping Calculator
Enter Your Shipping Zip Code:
Shipping Options
Please enter a zip code.
All charges are based on a quantity of 1.
Click "Add to Cart" above to change quantities
and make actual ship method selection.

This item ships via Standard Door to Door Freight Service.

Please note: Free Shipping does not include White Glove Service. If you require White Glove Delivery service where they unpack it, place it where you want it, and remove the packing materials, it will require additional charges of $300.00. Please call us at 800.710.9939 if you would like to upgrade to White Glove Service.

Shipping rates apply for orders shipped to the contiguous 48 US states. For orders to Alaska, Hawaii, Puerto Rico, APO/FPO addresses and international locations, please call 800.710.9939 for current rates. Sorry, we cannot ship items to a P.O. box.

Labor - 12 Months


For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in the user manual. In cases where a product cannot be repaired, Allavino will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Allavino Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

Parts - 60 Months


For the second through the fifth year from date of original purchase, Allavino Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers' shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

  • Content losses of food or other, due to spoilage.
  • Incidental or consequential damages.
  • Parts and labor costs for the following will not be considered as warranty:
    • Door springs, and/or frames.
    • Inner door panels, door rails and/or door supports.
    • Light bulbs and/or plastic housing.
    • Plastic cabinet liners.
    • Punctured evaporator that voids the warranty on the complete sealed system.
    • Repairs performed by unauthorized servicers.
    • Shipping and handling costs associated with the replacement of the unit.
    • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
    • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
    • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
    • Replacement of house fuses or resetting circuit breakers.
  • Failure of the product if it is used for other than its intended purpose.
  • This warranty does not apply outside the Continental USA.
