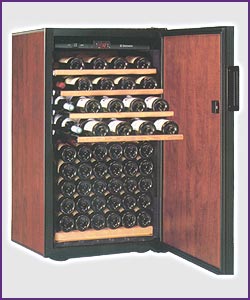

 Silent Cellars™ Wine Cellar CS 110D will keep your wines in the best possible conditions, those of a traditional wine cellar. Wines are best stored at a regulated temperature, in a dark and humid place without vibrations. The recommended temperature is 55° F, and with a hygrometry level between 50 and 70%. All models have a digital setting of the temperature. The absorption technology guarantees storage without vibrations. The carbon filter will act as a natural barrier on any odors that may have adverse affects on the wine. Silent Cellars™ CS 110D comes equipped with 1 storage shelf and 1 sliding shelf, with optional extra fitted or sliding shelves to obtain a customized cellar. Thanks to Dometic, you will be able to keep your wines in the best possible conditions, those of a traditional wine cellar. Dometic wine cellars, thanks to the exclusive absorption principle invented by Electrolux, doesn't use a motor or compressor, doesn't generate vibrations and therefore functions in complete silence. It's a Dometic exclusivity. There are no moving parts and this ensures your cellar with an exceptional lifespan. OPTIMAL STORING CAPACITY
Standard fitted shelves: 1 sliding + 1 storage  Learn More Capacity: 110 bottles Max. number of sliding shelves: 9 Capacity with full shelves: 70 bottles You loose approximately 5.7 bottles per sliding shelf added. Bottle capacities are approximate and will vary depending upon bottle shape. THE SECRET OF SILENT & VIBRATION-FREE COOLING
 A proprietary solution is heated and pumped into the absorber. The vapor is cooled in the condenser into a fluid, which runs into the low temperature evaporator, where it evaporates into a weak coolant atmosphere. As it evaporates, the heat transfer solution absorbs the heat and produces cold. This principle does not use a motor or compressor, generates no vibrations and operates with complete silence and efficiency.
ADDITIONAL FEATURES
Solid Door Control panel: Electronic. Chosen temperature maintained all year round with electronic regulation. Learn More Thermometer: Digital Regulation of temperature: F 45° - 65° Door closing: Lockable Learn More Door hanging: Right Interior light: No Feet: 4 screw jacks adjustable in height Anti-odor filter: Active carbon Cartridge Learn More Vibration Free Operates in Complete Silence Easy to Use & Energy Efficient Maintains Ideal Humidity Level Total darkness. Protects against UV lights. Humidity between 50 and 70% Sliding and Storage Shelves Selected Temperature maintained year round You can customzie your cellar by mixing storage and sliding shelves at your convenience. When building your wine cellar, there are specific ventilation requirements that must be met to ensure efficient performance. Please refer to installation diagrams in insructions. Evaporator with fins. Thanks to is original evaporator design, the Dometic wine cellar uses a large fin package, which prevents ice build up. The natural air circulation loads itself with condensaion humidity when passing through the fins. MATERIAL
 | | | | | | Dimensions & Specifications | | | | | | | | Height: 42.5" | | | | | Width: 23.5" | | | | | Depth: 29.5" | | | | | Bottle Capacity: 110 | | | | | | | | |
Insulation: Polyurethane foam Min. thickness of insulation: in 2 Exterior material: Isoplast Interior material: Pre-painted galvanized metal sheet Weight when empty: lbs (wooden door) 139
OPERATION
Cooling unit power: W 220 Cooling unit voltage: V 110 Average consumption*: kWH/24 h 1,47 Heating element voltage: V 110 Heating element power: W 230 Cord length: ft 6
*Average consumption in 24 h at 77°F mean ambient annual temperature according to ISO standards. We reserve the right to change technical specifications without prior notice. SHIPPING
Cellars are shipped Freight Collect via white glove service by a moving company who will deliver, install and level the cabinet in the desired location and remove all dunnage. It is your responsiblity to ensure that there is enough clearance for proper delivery and installation in the desired location of wine storage unit. |
