WineMate 6500SSD Split System Wine Cooling Units - 1500 Cu. Ft. Wine Cellar

We will beat any Price on this Model Call us at 1-800-710-9939.

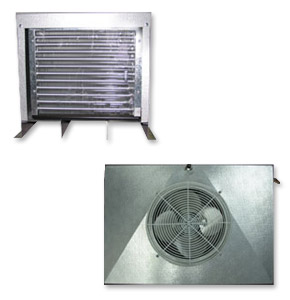

Enlarge WineMate 6500SSD Split System Wine Cooling Units - 1500 Cu. Ft. Wine Cellar
Enlarge Image
FancoilCondenserFancoil DiagramCondenser Diagram

WineMate 6500SSD Split Cooling System / For Enclosure Up to 1500 Cu. Ft. / Ceiling Mounted Design / Condensing Unit Can Be Placed Up to 50 Feet Away From the Wine Room / Uses Environmentally Friendly R134a Refrigerant / Energy Efficient

List Price: $6,639.06
Regular Price: $5311.25
Sale Price: $4,249.00 You Save $1062.25 (20%)
based on 0 Reviews

WineMate manufactures state-of-the-art cooling systems specially designed for wine cellars, cabinets, wine rooms and walk-in vaults using the best quality components and craftmanship. WineMate cooling units ensure that the ideal humidity (50%-70%) and temperature (55°F-58°F) are maintained for the proper preservation and maturation of wines. All WineMate wine cooling units are tested and calibrated to ensure their reliability, longevity and durability. Energy efficient and quick chilling, these units use only environmentally friendly R134a refrigerant.

Split systems offer a solution to unusual site problems and provide the flexibility needed to create an ideal installation. With the WineMate 6500SSD split system, the exhaust (condensor) module can be placed up to 50 feet away from the wine cabinet, while the cooling (evaporator) module feeds cold air into the enclosure through a copper pipe. The 6500SSD is a ceiling-mounted wine cooling system that runs at 6500 BTU and can cool a volume of 1500 cubic feet (6500-bottle capacity).

  • Rated Capacity of 6500 BTU/hr
  • For Enclosure Up to 1500 Cu. Ft. or Approximately 6500 Bottles
  • Ceiling Mounted Design
  • Designed and Used to Provide a Stable Temperature Between 55°F~65°F for a Properly Insulated Room at a Normal Environment
  • Maintains Humidity of 50~70% RH Even When the Environment Becomes Dry or Humid
  • Temperature and Humidity Optimized for Long Term Storage of Wine, Fur and Tobacco
  • Condensing Unit Can Be Placed Away From the Wine Room as Far as 50 Feet, Which Will Bring an Extremely Quiet Operation
  • Uses Environmentally Friendly R134a Refrigerant
  • Copper Tubing Not Included
  • ETL and NSF Listed (Fancoil)
  • UL Listed (Condenser)
  • Warranty: 1-Year Parts and Labor

UPC: 657433001441
Enclosure Volume1500 cu ft
Labor1 Year
Parts1 Year
Key Features
Fancoil (Split Systems)
Weight66 lbs.
Electrical Requirements115V / 60Hz, 1.5A
Condenser (Split Systems)
Weight90 lbs.
Electrical Requirements115V / 60Hz, 12A, UL listed
PDFUse & Care Guide
PDFInstallation Guide
PDFDigital Control Manual

WineMate 6500SSD Split System Wine Cooling Units - 1500 Cu. Ft. Wine Cellar Reviews

Average Customer Rating:
(based on 0 reviews)
No customer reviews available. Be the first to write a review!
Shipping Calculator
Enter Your Shipping Zip Code:
Shipping Options
Please enter a zip code.
All charges are based on a quantity of 1.
Click "Add to Cart" above to change quantities
and make actual ship method selection.


HUMIDITY & INSTALLATION: By the nature of their operation, wine cooling units will maintain a stable humidity level, lower than the relative ambient humidity. In situations where the ambient humidity is high, the cooling unit will lower the humidity to desirable storage levels. In situations where the ambient relative humidity is very low, the desired enclosure relative humidity may not be achieved without adding moisture. To add moisture to the enclosure only use slow, natural evaporation from a small porous water container. Do not use a humidifier.

TEMPERATURE & INSTALLATION: These wine cellar cooling units are designed to cool 25 degrees less than the ambient temperature of the venting side of the unit. In some cases, improper placement or installation may cause the unit's performance to be degraded. The condensing unit must have a constant supply of fresh air, less than 85 degrees F. If the condensing unit is located in a confined area with poor ventilation, the unit will not be able to reject the heat it is removing from the enclosure and a malfunctioning unit will be suspected, even though the unit is mechanically sound. Call us to discuss your installation concerns.
