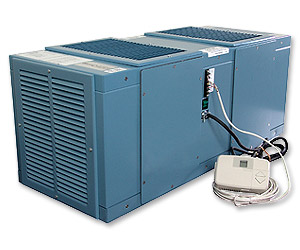

CellarMate 050 1500 Cu. Ft. Wine Cooling System
CellarMate is a self contained, easy to install wine cellar climate control system incorporating features typically found in more expensive systems. It is exceptionally reliable and provides levels of security and peace of mind sufficient to satisfy the most ardent wine collector.
Knowledge coupled with the expertise of a well known manufacturer of high-tech cooling systems for computer environments, led to the development of CellarMate - unique in design, unparalleled in its ability to provide trouble free performance, ETL tested to 1995 UL/CSA standards.
The CellarMate 050 offers a maximum cooling capacity of 5600 BTUs for wine cellars up to 1500 cubic feet in size. It features a room mounted, 12-volt thermostat control for precision temperature adjustment, accurate to +/-2°F.
Both the evaporator and the condensor fans are motorized impeller plug fans with permanently lubricated direct drive motors that require no maintenance. Pre-filters on the inlet prevent dust and dirt from fouling the evaporator and condensor coils. Each unit has at least three discharge outlets on both the evaporator and condenser coils to facilitate custom installations. An external drain removes excess moisture and prevents it from being reintroduced into the cellar or ambient space.
CellarMate wine cellar cooling systems come in corrosion-resistant 16-gauge aluminum housing with a blue powder-coat finish.
STANDARD FEATURES
| Dimensions & Specifications | ||||||||||||
|
- Color: Blue
- Corrosion-Resistant Powder Coat Finish
- 16 Gauge Aluminum Cabinet
- Adjustable Thermostat Controls
- Motorized Impeller Plug Fans for Both Evaporator and Condensor
- Thermal Expansion Valve to Control Flow of Refrigerant into Evaporator Coil
- Filter Dryer to Keep Refrigerant Clean and Free of Contaminants
- Sight Glass to Observe Refrigerant Level
- Automatic Low Pressure Switch Prevents Low Suction Pressure and Frost Formation on Coil
- Manually Reset High-Pressure Switch on Discharge Protects Compressor from High Pressures
- Environment-Friendly Refrigerant (R-134a)
- Rotary, Self-Lubricating, Hermetic Reciprocating-Type Compressor
- Internal Overload Protection and Capacitor Start for Compressor
- Built-in Condensate Drain Trap
- No External Trap Required
- Removable Access Panels Facilitate Maintenance, Duct Connections and Access to Wiring Components
- ETL Conforms to UL/CSA Standards

OPTIONAL ACCCESSORIES
- Built-in Heating Coil
The optional heating coil is built-in and requires no additional power source. The electric heating option is factory installed and includes primary and secondary over-temperature protection devices per UL and NEC. It is located between the evaporator coil and the blower inside the transition duct. It contains the heating element and high-temperature limit switches. The heating coil is wired to work in conjunction with the thermostat. Since the thermostat prevents the heating and cooling circuits from being on at the same time, no additional power wiring is needed. Set the auto mode on the thermostat so it can automatically switch from heating to cooling.
No maintenance is required for the heating coil. To test the heating coil operation, set the thermostat on heat and set the temperature above the cellar temperature. The supply air temperature should rise above the return air. - Humidifier
The humidifier is designed for field installation and can be retrofitted onto existing CellarMate units. Each humidifier model is furnished with an electronic digital humidistat to control the humidity in the cellar. The humidifier mounts onto the CellarMate unit using the common drain, and requires a hot water supply. No additional external power is required.
The CellarMate humidifier uses a 10" wide x 11" high x 2" thick pad. The rated output capacity for wine cellars at 55°F is 1.62.3 gallons per day (gpd) with 760°F water supply, 34.57 gpd with 950°F water, and 7.45.1 gpd with 120°F water. Weight of operating humidifier is 10 lbs. - Flexible Ducting
The flexible ducting is a 25’ foot length of 10" insulated ducting for the CM050, CM088, and CM200 and 8" insulated ducting for the CM025. - Accessory Kit
An accessory kit consists of two duct collar adaptors (one of each size panel) and one 25' length of flexible ducting. Accessory kits come in both 10" and 8" diameters.
WARRANTY INFORMATION
- 1-Year Parts and Labor.
- Optional Extended Warranty: 5 Years Compressor, 1 Year Parts and Labor.
SHIPPING INFORMATION
- CellarMate wine cooling units are special order items. Please allow 4 to 6 weeks to ship.
