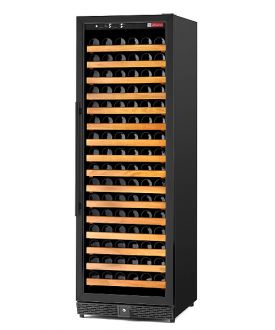

Allavino MWR-1681-BR 170 Bottle Wine Cellar Refrigerator - Black Cabinet & Door - Right Hinge - Straight Handle

The Allavino MWR-1681-BR Single-Zone Wine Cellar Refrigerator is the most complete option for in-home wine storage on the market today. It incorporates all the most popular features in one wine cabinet, such as slide out racks on easy glide rollers, durable wood shelves that can hold up to 11 bottles each, digital temperature display and push-button controls, cool blue lighting and one digital controlled temperature zone. It can be built-in or used as a free standing unit and can be hinged on the right or left to fit in any location.

Single-Zone Digital Temperature Control:
The digital zone functionality allows you to set storage between 41°F to 60°F. Lighted display allows you to monitor your temperature at without having to open the door.

Includes all Easy Rolling Hardwood Shelves:
All 16 shelves glide smoothly on ball-bearing tracks which allows easy access to your entire collection. Each shelve will hold 11 regular size bottles for a total capacity of up to 170 bottles of Bordeaux, Pinot Noir, Chardonnay, and Champagne. If you have larger diameter bottles, you can remove a shelf to accomodate them, but that will affect your overall bottle capacity.

Glass Door with Lock:
The UV-protected glass keeps harmful light away from your wine. The sleek black door frame has a straight handle and the built-in key lock keeps your collection secure. Two keys are provided so you will have a back-up.

Built-In Versatility:
The unit is front venting, which allows it to be built-in with zero clearance necessary on the sides and back of the unit for that flush look. It also has finished sides and top for free standing applications. The unit can be ordered with the hinge on the right or the left, making it a perfect fit no matter what your needs.

7 Blue LED Interior Lights:
The cool blue LED lighting illuminates the interior. They are very low-heat so they can be left on to showcase your wine or set to only come on when you open the door.

• Built-in wine cellar with up to 170 bottle capacity*
  This bottle count is an estimate based on 3" diameter standard wine bottle. You can fit up to 11 bottles on each wine rack with that diameter. If you have larger bottle diameters, you will hold less bottles per rack or you can remove racks to accommodate the larger bottle sizes.
• Black Cabinet with Black Frame glass door and straight handle. Hinge is on the right. Door is not field reversible.
• Security Lock
• All black interior emulates the traditional wine cellar
• Roller-glide shelves extend effortlessly minimizing agitation to the wine
• Important Note: To reach the stated bottle capacity, the bottles must be the size of the bottle to the right. Larger bottles will decrease the bottle capacity.
• Blue LED lighting beautifully illuminates the interior without the heat created by an incandescent bulb. Easily set for continuous display
• Size: 72"H w/hinge x 23-3/4"W x 27"D
• Weight: 287 lbs.
• Warranty: 1 year on Parts & Labor
• Ambient Temperature Range: 45-80°F (If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate.
• Electrical Requirements - Plugs directly into a US 110 Volt outlet on a dedicated 15 AMP line.

We realize that there is no "standard" bottle size anymore. Here is a small sample of bottle size variations and how they can affect your overall bottle capacity. Each of these bottles are 2 3/4" at the base but have varying shoulders and overall heights.

• Bottle A is slightly taller than the average bottle at both the top and at the shoulder. This causes the top of the rear bottle on the rack to hit the shoulder of the front bottles on the rack so that the bottles do not settle into the grooves as well. We were able to remove one bottle from the back row, reducing the bottles per shelf to 10 and the overall capacity to 156, and still have the shelves operate smoothly.
• Bottle B is taller than the average bottle at both the top and the shoulder. This causes the top of the rear bottle on the rack to hit the shoulder of the front bottles on the rack and push them too far to either side to have bottles all the way across the front of the rack. We were able to fit 8 bottles on a shelf, with one bottle in front and another bottle in the back, then skipping a groove before adding another bottle in the front. With 8 bottles per shelf, it reduces the overall capacity to 126 bottles, if your entire collection were this size.
• Bottle C is the ideal bottle size. The bottles are just short enough that the neck of the back bottles fit between the shoulders of the front bottles without touching. This allows you to fit 11 bottles on the top 15 racks with a total capacity of 170 bottles.
• Bottle D also works well. It is 2 3/4" wide at the base, but 3 1/4" wide at the shoulder. The grooves are spaced enough that the shoulder will touch the bottle next to it, but the height still allows you to fit all 11 bottles on a shelf for the full 170 bottle capacity.

We understand that every collection is different, and we hope that providing this information will help you determine how your collection will work with this product.

Dimensions
Height	71 5/8"
Width	23 5/8"
Depth	26 3/4"
Weight
Unit Weight	287 lbs.
Warranty
Labor	1 Year
Parts	1 Year
Compressor (Parts Only)	5 Year
Key Features
Built-in Capable	Yes
Security Lock	Yes
Multiple / Dual Zone	No
Beverage Center	No
Cabinet Color / Material	Black
ADA Compliant	No
Commercial Use	No
Outdoor Use	No
Energy Star Rated	No
Capacity
Wine Bottle Count	Up to 170 Bottles
12-oz. Can Capacity	No
Cooling System
Type	Compressor
Defrost System	Auto
Front Ventilation	Yes
Controls
Adjustable Thermostat	Yes
Digital	Yes
Interior
Color	Black
Compartments (Distinct Zones)	1
Lighting	Yes
Shelving
Type	Wood Presentation
Number of Shelves	16
Material	Hardwood
Removable	Yes
Adjustable	No
Glide-Out (Roller Assemblies)	Yes
Bottles per Shelf	Varies
Door
Type	Glass
Number of Doors	1
Color / Material	Black frame
Door Handle	Straight
Field Reversible	No
Accepts Custom Panel	No
Tinted / UV Protective	Yes
Self-Closing	No
Electrical
Electrical Requirements	115V / 60 Hz
