WineMate manufactures state-of-the-art cooling systems specially designed for wine cellars, cabinets, wine rooms and walk-in vaults using the best quality components and craftmanship. WineMate wine cooling units ensure that the ideal humidity (50%-70%) and temperature (55°F-58°F) are maintained for the proper preservation and maturation of wines. All WineMate cooling units are tested and calibrated to ensure their reliability, longevity and durability. Energy efficient and quick chilling, these units use only environmentally friendly R134a refrigerant.

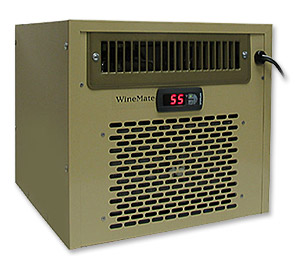

The WineMate 2500HZD features four high-speed fans and is capable of cooling a volume of 250 cubic feet. This wine cooling unit comes with an adjustable temperature control with a range of 50°F to 65°F and a digital read-out display. It is designed for use in wine cabinets with 1200-bottle capacities or medium closet conversions into wine rooms.
Rated Capacity of 2500 BTU/hr
For Enclosure Up to 250 Cu. Ft. or Approximately 1200 Bottles
Digital Temperature Control to Provide Subtle Cooling at 50°F~65°F
LED Digital Temperature Display
Oversized and Bottom Feeding Evaporator for Humidity Maintenance
Horizontal Cold Air Discharge for Best Cooling in Wider Wine Cabinets or Rooms
Rear Hot Air Exhaust - Top Exhaust Available
High Efficiency Ball-Bearing Fans for Both Condenser and Evaporator
Extra Insulation for Both Thermal and Noise Isolation
Removable Grill for Easy Cleaning
Self-Contained, Ready for Use and Easy to Install
Uses Environmentally Friendly R134a Refrigerant
1-Year Limited Warranty
5-Year Warranty on Parts
250 Cu Ft
Digital Temperature Display
Digital Control Manual
You may need to download Adobe Acrobat Reader to view and print PDF's. Click the link below to download Adobe Acrobat Reader for free. Download Adobe Reader
How much does it cost to run the 250 cubic foot capacity winemate
by Alan Jon January 30, 2020
There are many variables with the cooling units to say how much energy it will use
by Erikaon February 10, 2020
HUMIDITY & INSTALLATION: By the nature of their operation, wine cooling units will maintain a stable humidity level, lower than the relative ambient humidity. In situations where the ambient humidity is high, the cooling unit will lower the humidity to desirable storage levels. In situations where the ambient relative humidity is very low, the desired enclosure relative humidity may not be achieved without adding moisture. To add moisture to the enclosure only use slow, natural evaporation from a small porous water container. Do not use a humidifier.
TEMPERATURE & INSTALLATION: These wine cellar cooling units are designed to cool 25 degrees less than the ambient temperature of the venting side of the unit. In some cases, improper placement or installation may cause the unit's performance to be degraded. The condensing unit must have a constant supply of fresh air, less than 85 degrees F. If the condensing unit is located in a confined area with poor ventilation, the unit will not be able to reject the heat it is removing from the enclosure and a malfunctioning unit will be suspected, even though the unit is mechanically sound. Call us to discuss your installation concerns.
