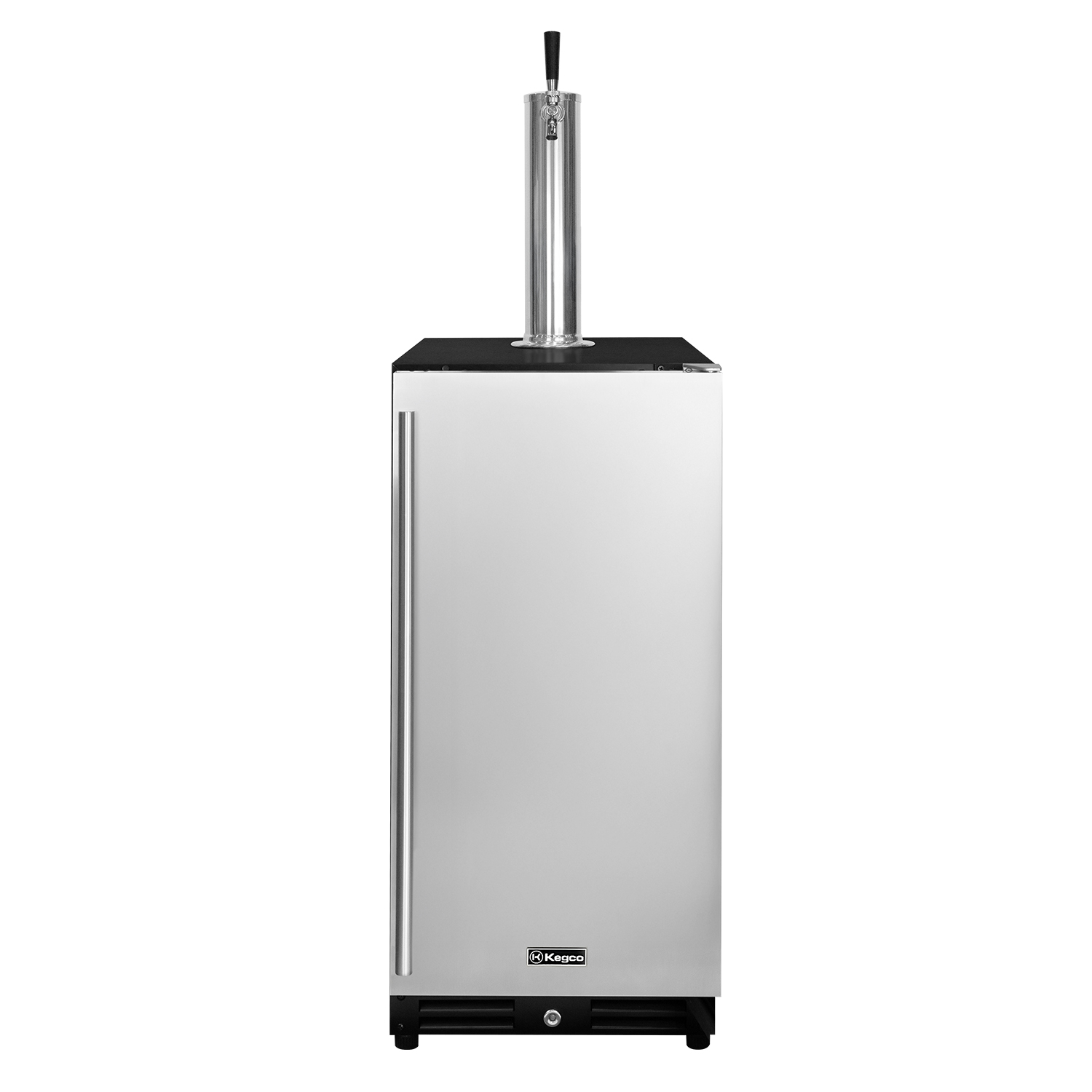

Kegco 15" Wide Cold Brew Undercounter Stainless Steel Door Built-In Right Hinge Kegerator

• Designed for the unique requirements of dispensing iced coffee on tap from a coffee keg

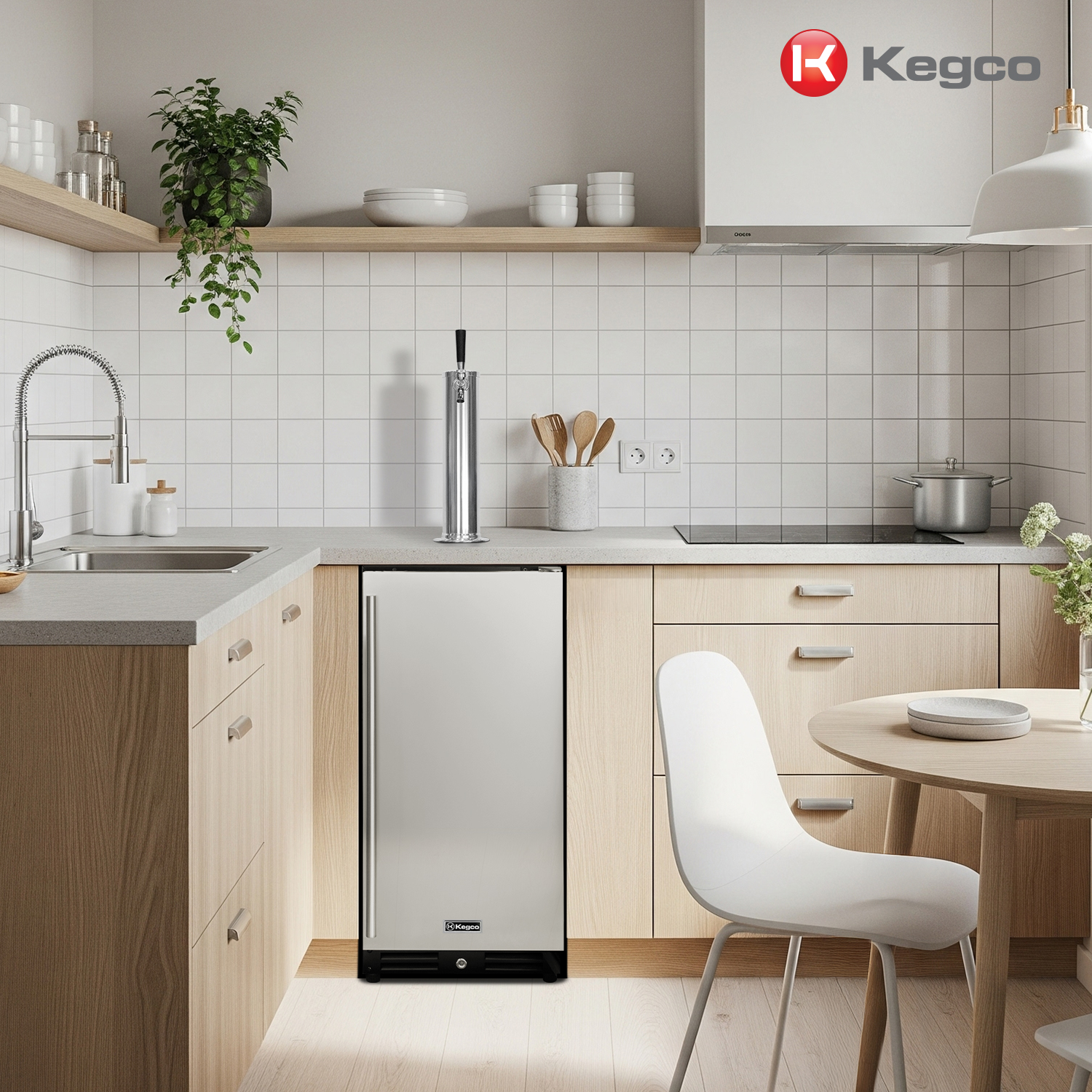

• Features a convenient 15" wide undercounter design that makes it the perfect built-in kegerator
• Compact design that is capable of accommodating 7.75 gallon quarter slim kegs as well as 5 gallon sankey or homebrew kegs
• Utilizes forced air refrigeration all the way up to the tower to ensure that every drop is served ice cold
• Dimensions: 15" W x 34" H x 23 5/8" D (25 1/2" w/ handle)

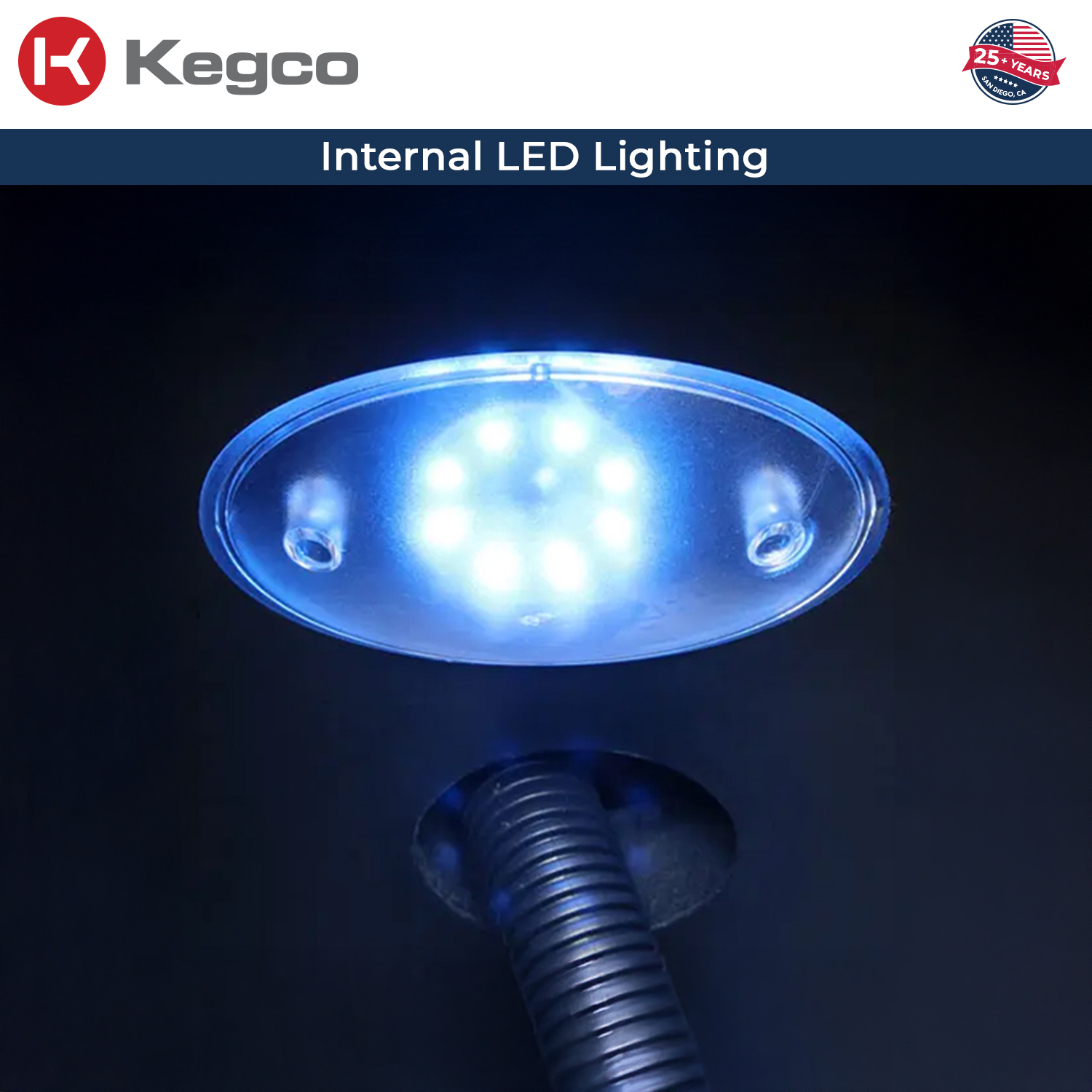

Customizable LED Lights

Internal colored LED lights give you 8 different color options to illuminate the interior of your kegerator. Unlike incandescent lighting, LED lighting does not give off heat allowing your kegs to cool faster. The LED light strips are flush with the wall interior allowing more storage space.

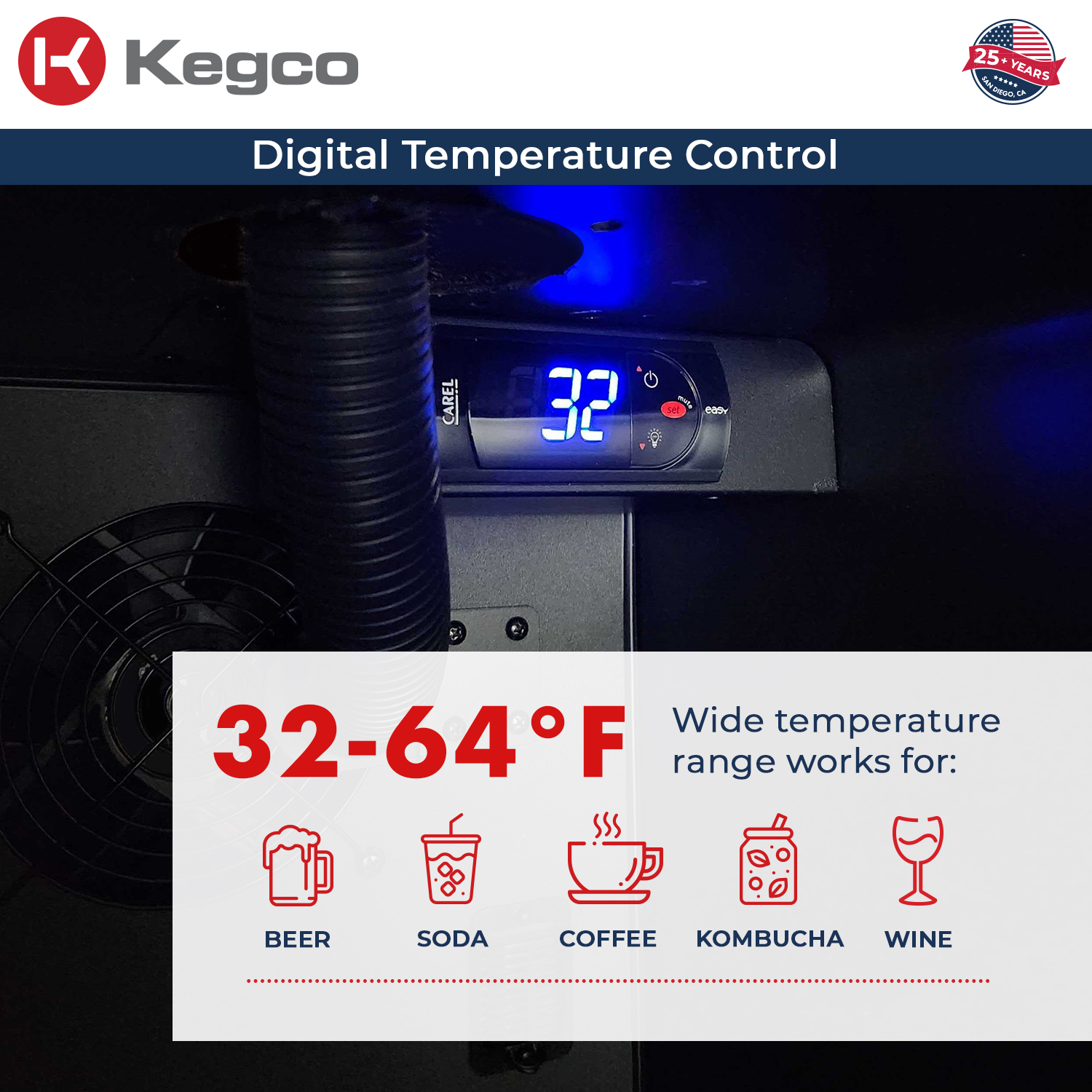

Digital Temperature Display

Easily set and monitor your internal temperature at the push of a button! The digital control panel allows you to set the temperature in 1 degree increments, toggle from Fahrenheit to Celsius and choose from 8 different color LED lights.

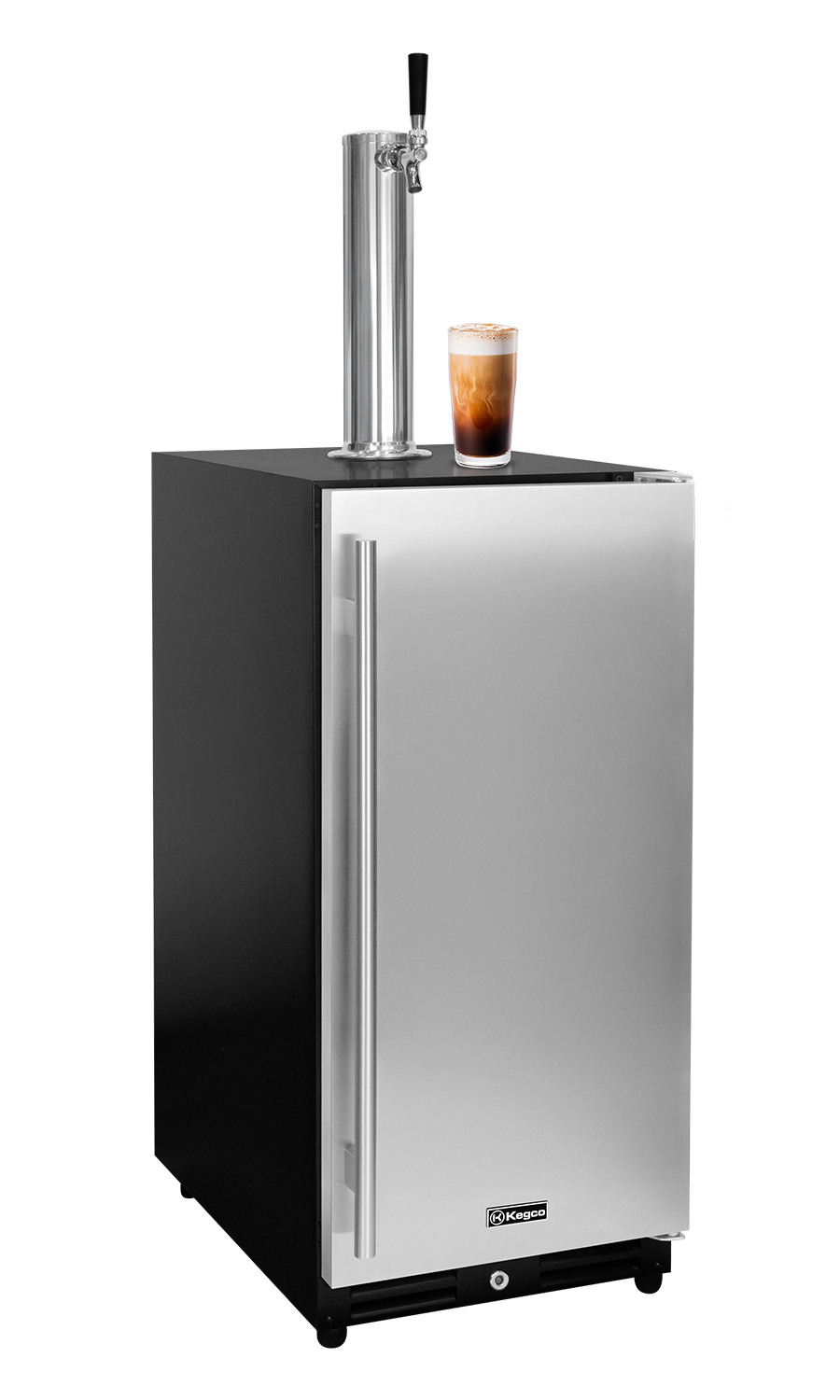

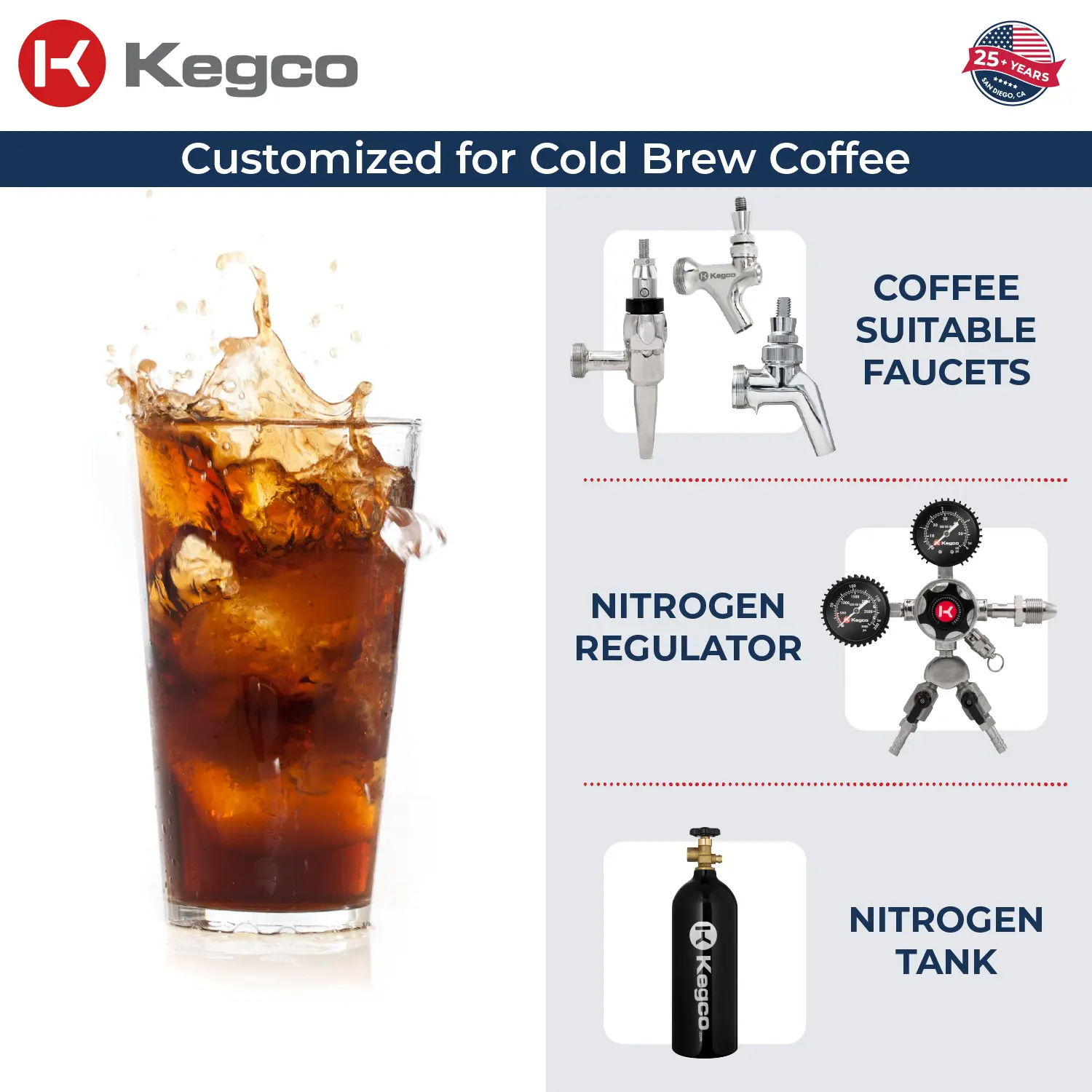

Customized for Cold Brew Coffee

Designed for the unique requirements of dispensing iced coffee on tap from a coffee keg. The cold brew configuration comes with ETL sanitation listed and NSF compliant parts to dispense from Cornelius home brew kegs so your beverage is fresh from keg to tap.

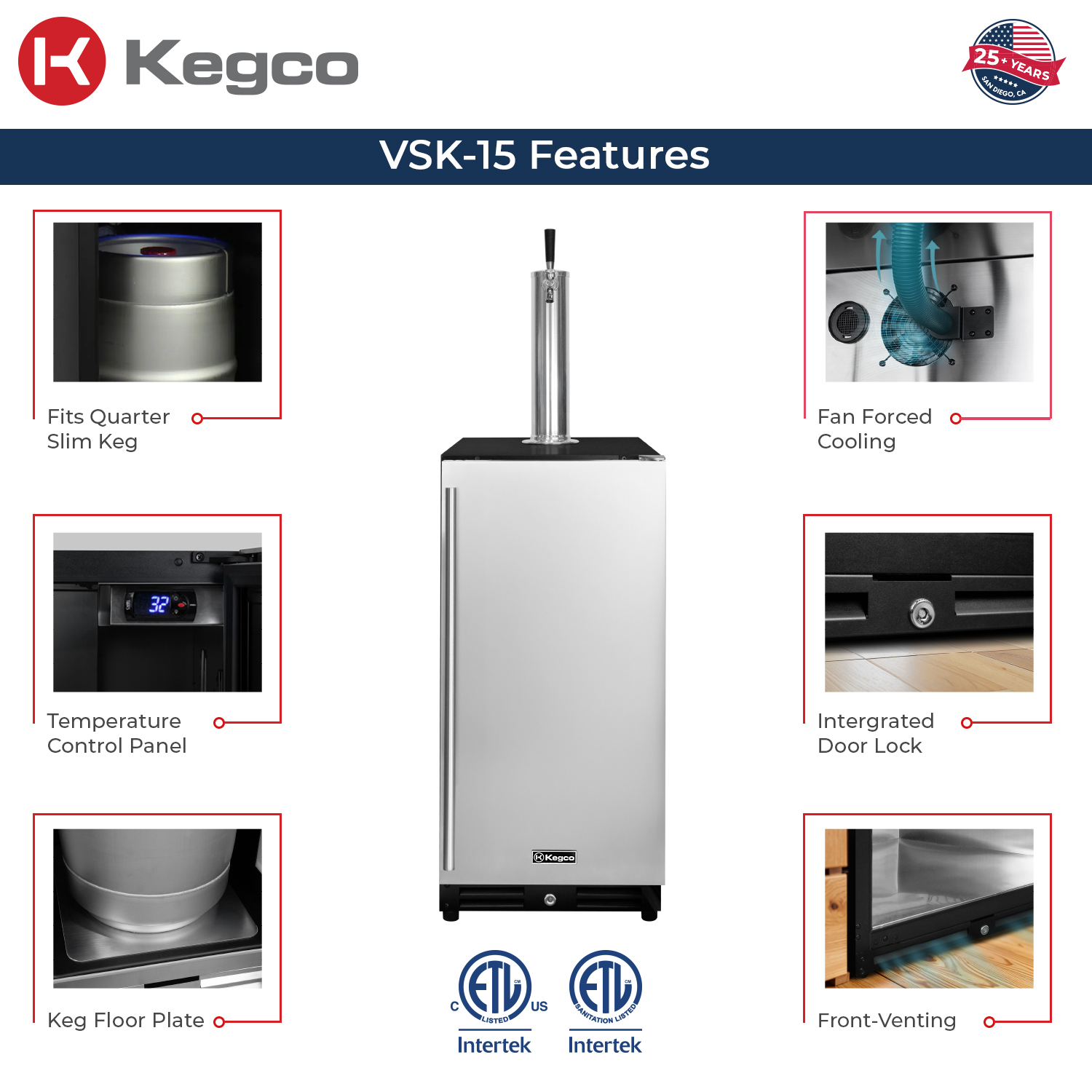

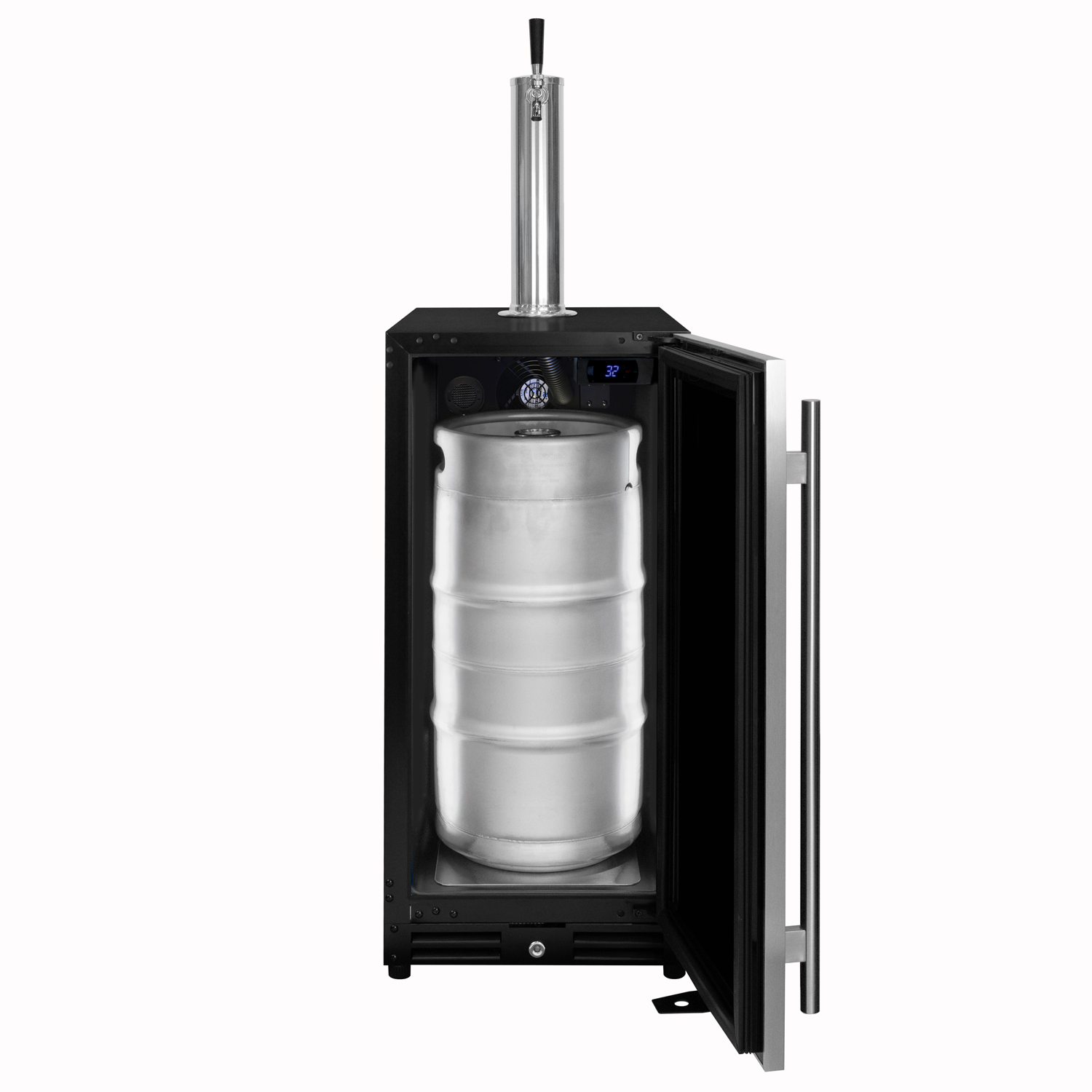

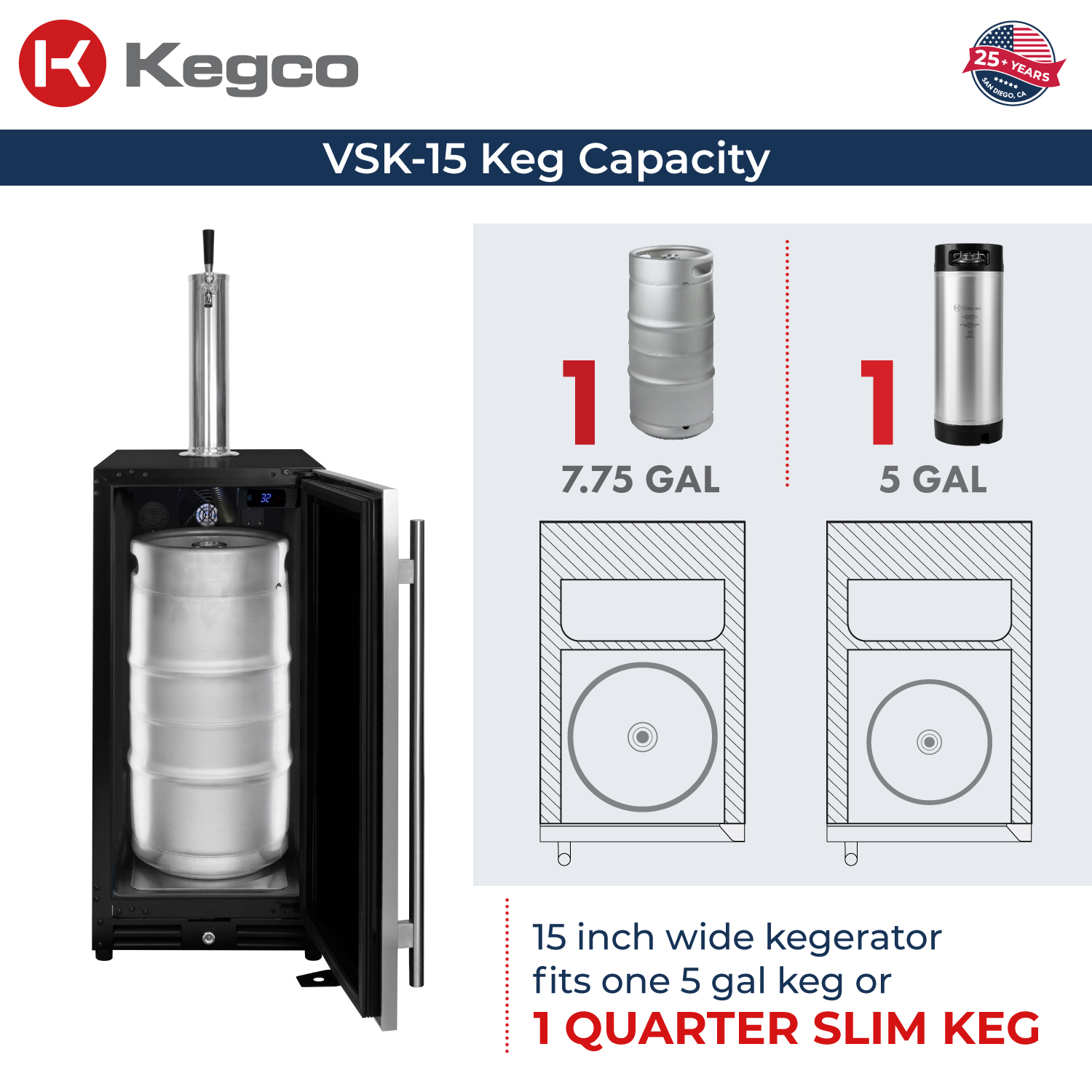

Fits Quarter Slim Keg

Even with it's slim, space-saving design, this keg cooler can house up to a 7.75 gallon quarter slim keg. It also works equally well with 5 gallon Sankey kegs or 5 gallon ball lock home brew kegs, so you'll be sure to find a beer you enjoy!

Tower Flange

The kegerator dispense kit comes with a tower flange that works as a conduit between the kegerator and countertop. Use the tower flange to seal the gap in your built-in configuration and prevent cold air from escaping as it cools the beer tower.

Removable Floor Plate

The stainless steel floor plate protects the interior of the cabinet from scratches, dents, and other damage that can occur when sliding a keg in or out. The removable plate allows you to easily take it out and clean any sticky beer residue.

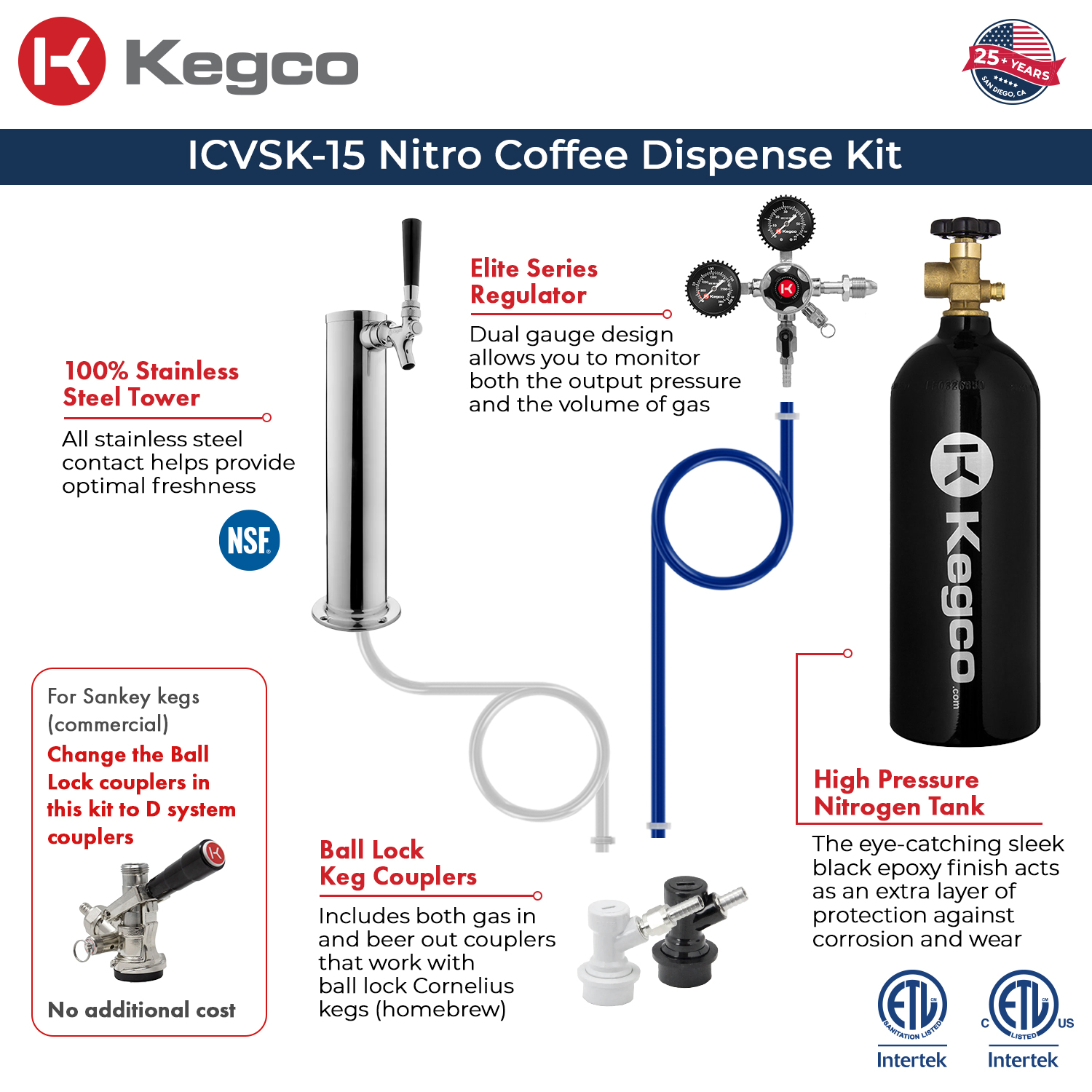

• Includes a 15 cu. ft. Aluminum Nitrogen Tank with Sleek Black Epoxy Finish
  This tank is produced from high strength, corrosion-resistant aluminum alloy 6061-T6. The eye-catching sleek black epoxy finish acts as an extra layer of protection against corrosion and wear, and the aluminum construction is lighter weight than steel tanks and does not rust. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with required U.S. Department of Transportation and Transport Canada Markings. The 580 Valves are CGA approved, and have a female thread for Nitrogen Regulators. (5.5" diameter, 18.25" Height).
• Includes a Dual Gauge Nitrogen Regulator
  This commercial grade dual gauge regulator is compatible with nitrogen cylinders with CGA 580 valves and features a double gauge design that measures both PSI and the volume of nitrogen gas in the tank. The durable regulator body is constructed of forged brass with all brass connections and components, an integral safety pressure relief valve that releases at 45 PSI, and a shut-off valve that allows you to instantly shut off pressure to the keg. A large pressure adjustment knob makes it easy to adjust the pressure by hand without requiring a screwdriver.
• Includes 5 feet of 5/16" I.D. Air Line Assembly with 2 Snap Clamps
  Standard 5 foot length of 5/16" I.D. Blur Air/Nitrogen tubing made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. This air line assembly comes with two plastic snap clamps with a reusable clamp design.
• Includes Ball Lock Home Brew Keg Couplers
  This set includes both a gas in and beer out coupler that works with ball lock Cornelius Pepsi kegs. The gas in features a 1/4" thread for a flare fitting. This connector already has attached the special 1/4" nut that has a 5/16" hose barb attached. The couplers are made of food grade plastic which will not corrode. There is an option to upgrade to all stainless steel ball lock couplers.
• Includes a Kegco Exclusive 14" tall, 3" diameter Stainless Steel Draft Tower
  The tower is a commercial grade single column, single faucet, 3" diameter stainless steel draft tower with 100% stainless steel contact. The stainless steel contact is necessary for good sanitation. This tower comes complete with a stainless steel faucet and 5 feet of 3/16" I.D. clear tubing. This tower is mounted using the gasket and four screws that are included. The faucet can be upgraded to a Perlick faucet, which has less internal surface area and prevents the faucet knob from sticking. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers.
• All dispensing accessories are UL recognized components
• Digital temperature control keeps temperature in range of 32°-75°F (cold enough to dispense and warm enough to ferment)
• Maximum Ambient Temperature: 90 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• Fan-forced cooling provides even temperatures throughout the cabinet and helps with quick temperature pulldown on a warm keg
• Blower hose direct cold air into the draft beer tower so every drop is kept cool
• Tower extension is provided to bridge the gap between the top of the kegerator and the bottom of the countertop in undercounter applications
• LED interior lighting
• Security lock
• Included towel bar handle
• Stainless steel interior floor plate for long lasting durability and easy glide of beer keg

Labor - 12 Months

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers’ shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
