72" Wide Triple Tap Black Commercial Kegerator
Model:XCK-2472B
Highlights
- Continuous cold air is channeled to the towers to ensure beer is dispensed ice cold
- Self-closing doors feature locks for added security and magnetic gaskets to provide a positive door seal
- Internal lighting conveniently illuminates the cabinet to make adjustments to your dispense system effortless
- Two knockkouts allow you to mount your CO2 or nitrogen tank remotely
- ETL listed commercial-grade unit is 25% more energy efficient to save you money every month
The Kegco XCK-2472B Commercial Kegerator is perfect for pubs, bars, restaurants and events. This beer dispenser has enough interior space to house three full-size kegs or a combination of smaller kegs. With the ability to mount two draft arms, the keg cooler can be outfitted to serve from 2 up to 8 kegs at once! Forced air refrigeration keeps the beer in the kegs ice cold and and hoses direct cold air into each beer tower to ensure the line is cooled all the way to the faucet. This beer dispenser includes two heavy duty adjustable shelves, providing the ultimate in versatility. You can store cans and bottles or keep mugs frosty on one side while dispensing multiple 5 gallon kegs from the other side! Built-in drip trays catch any drops after you fill a glass and route to an external drain, making daily maintenance a breeze.
The durably built XCK-2472B is designed to withstand the demands of commercial use. Featuring sturdy steel construction with a smooth black exterior finish and an attractive stainless steel top, stainless steel interior walls and ceiling and a rubber floor mat that reduces the shock of the heavy kegs on the stainless steel floor, it is sure to provide reliable performance for years. Internal lighting conveniently illuminates the cabinet to make adjustments to your dispense system effortless. The hoses inside the cabinet that direct cool air into the draft arm and drain beer from the drip tray to an external drain are efficiently tucked out of the way. The cooling unit is servicable from the front of the kegerator, allowing the kegerator to be used in both freestanding and built-in applications.
This kegerator can fit three Full Size or Pony Kegs, up to six Quarter Slim Kegs, and up to eleven 5 gallon kegs (with an external CO2 tank. View the Features tab for possible keg configurations. Due to the versatility of the storage area inside the kegerator, we have set up custom addons below for you to customize your dispense system. If your beer distributor will be providing your dispense kit, simply choose the tower option that works for you.
Keg Storage Capacities: - Three (3) Full Size / 1/2-Barrel (15.5 Gal.)
- Three (3) Pony Size / 1/4-Barrel Short (7.75 Gal.)
- Seven (7) 1/4-Barrel Slim (7.75 Gal.) or
- Eleven (11) 1/6-Barrel (5.23 Gal.)
- 3-Door Design
- Digital Temperature Display
- Continuous Cold Air Channeled Through Tower to Ensure Cold Product
- Heavy-Duty Stainless Steel Top
- Two Built-In Drip Trays with External Drains
- Stainless Steel Interior Walls and Ceiling
- Rubber Floor Mat reduces shock on cabinet interior
- Magnetic Gaskets Provide Positive Door Sealing
- Self-Closing Doors with Locks
- Interior Lighting
- Refrigeration System Utilizes Ozone Friendly R134a Refrigerant
- CFC-Free Foamed-in-Placed Polyurethane Insulation
- Designed for Built-in or Freestanding Use
- Refrigeration System accessible from the front
- Two knockouts for remote CO2 or Nitrogen tank
- Black Finish
- 25% More Energy Efficient Design Saves You Money Each Month!
- ETL Listed for Commercial Use
- Maximum Ambient Temperature: 90 degrees Fahrenheit
- Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
Some configurations require external tank mount.
| Dimensions | |
| Height | 36.2" |
| Width | 72" |
| Depth | 24.5" |
| Warranty | |
| Labor | 1 |
| Parts | 1 |
| Compressor (Parts Only) | 5 |
| Key Features | |
| Built-in Capable | Yes |
| Security Lock | Yes |
| Keg Coupler | No |
| Regulator | No |
| CO2 Tank | No |
| Cleaning Kit | No |
| Outdoor Use | No |
| Commercial Use | Yes |
| Keg Storage Capacities | |
| Full Size / 1/2-Barrel | 3 |
| Pony Size / 1/4-Barrel | 3 |
| 1/4-Barrel Slim | 7 |
| 1/6-Barrel | 11 |
| Exterior | |
| Cabinet | Black |
| Drip Tray | Yes |
| Guard Rail | No |
| Casters | No |
| Draft Beer Tower | |
| Diameter | 3" |
| Door | |
| Color / Material | Black |
| Number of Doors | 3 |
| Door Handle | Yes |
| Field Reversible | No |
| Accepts Custom Overlay Panel | No |
| Cooling System | |
| Type | Compressor |
| Defrost System | Automatic |
| Front Ventilation | Yes |
| Controls | |
| Adjustable Thermostat | Yes |
| Digital | Yes |
| Electrical | |
| Electrical Requirements | 120 V |
 | Instruction Manual |
| Dispense Kit Assembly Manual |

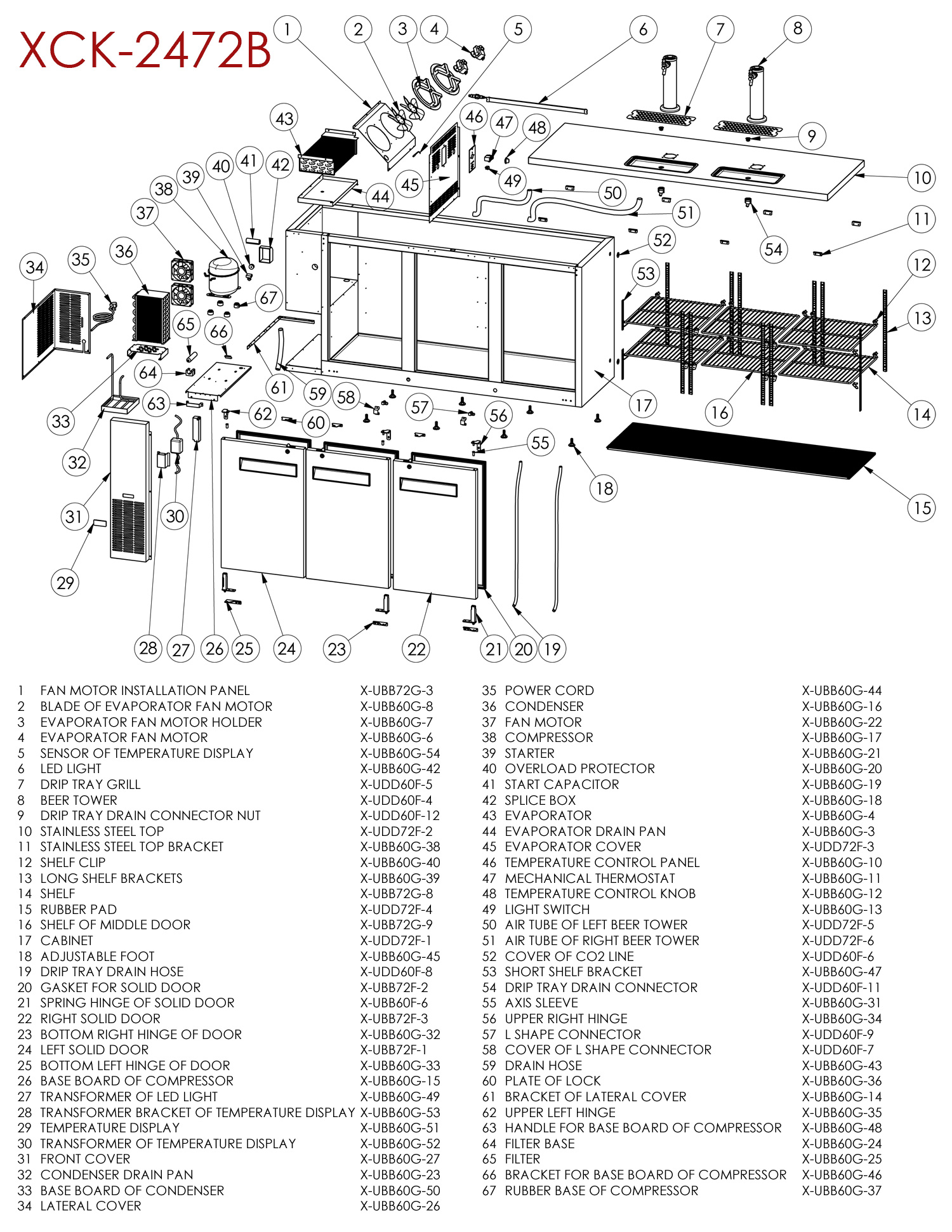

| Parts Diagram |
| Energy Guide |
| Temperature Controller Manual |
| Material Safety Data Sheet |
| Print- Left Door Template |
| Print - Right Side Template |
| Print - Right Door Template |
| Print - Left Side Template |
| Print - Middle Door Template |
| Print - Left Front Panel |
You may need to download Adobe Acrobat Reader to view and print PDF's. Click the link below to download Adobe Acrobat Reader for free.
Download Adobe Reader
72" Wide Triple Tap Black Commercial Kegerator Reviews
| Average Customer Rating: | (4) |
| (based on 4 reviews) |
| Awesome Piece | |
| by: | Michael (03-08-2018) Panama city |
| Comments: | Dont forget the wheel measurments, but other than that it kicks butt the way you need it too! |
| Bottom Line: | I would recommend this product. |
| Works great - One thing needed | |
| by: | Berry (07-28-2016) Lincoln, NE. |
| Comments: | Temperature control, dispensing, racks and the room inside is great. I have had no troubles with mine. Only reason it is getting 3 stars is it doesn't have heater to keep condensation off the outside of the unit. It will sweat around the doors in the summer time. All this product needs is a door heater to solve the problem. Other than that it would of been a 5 star rating. |
| Bottom Line: | I would recommend this product. |
| It's great but the drains could use help | |
| by: | Ron (07-20-2016) Idaho |
| Comments: | So far this is a very good unit. Only a couple issues: 1. I ordered a four valve Co2 set but there is an issue in mounting it. Shouldn't that come with some sort of instruction and location options. I ended up using Gorilla glue and Velcro. 2. The two drain pans installed at the factory do not drain all of the liquid. The drain hole located in the center of the pan is the highest point!!! |
| Bottom Line: | I would recommend this product. |
| Drain Pans could be better | |
| by: | Ron (07-18-2016) ID - Idaho |
| Comments: | I recently purchased my new 3 keg, kegco refer. The only concerning issue is that the drain in the center of the drain pan is not the low point. Not sure how this got by them. |
| Bottom Line: | I would recommend this product. |
There are many variables in answering this question. If you would like to give us a call we can try to determine if your unit is operating normally.
Thanks,
