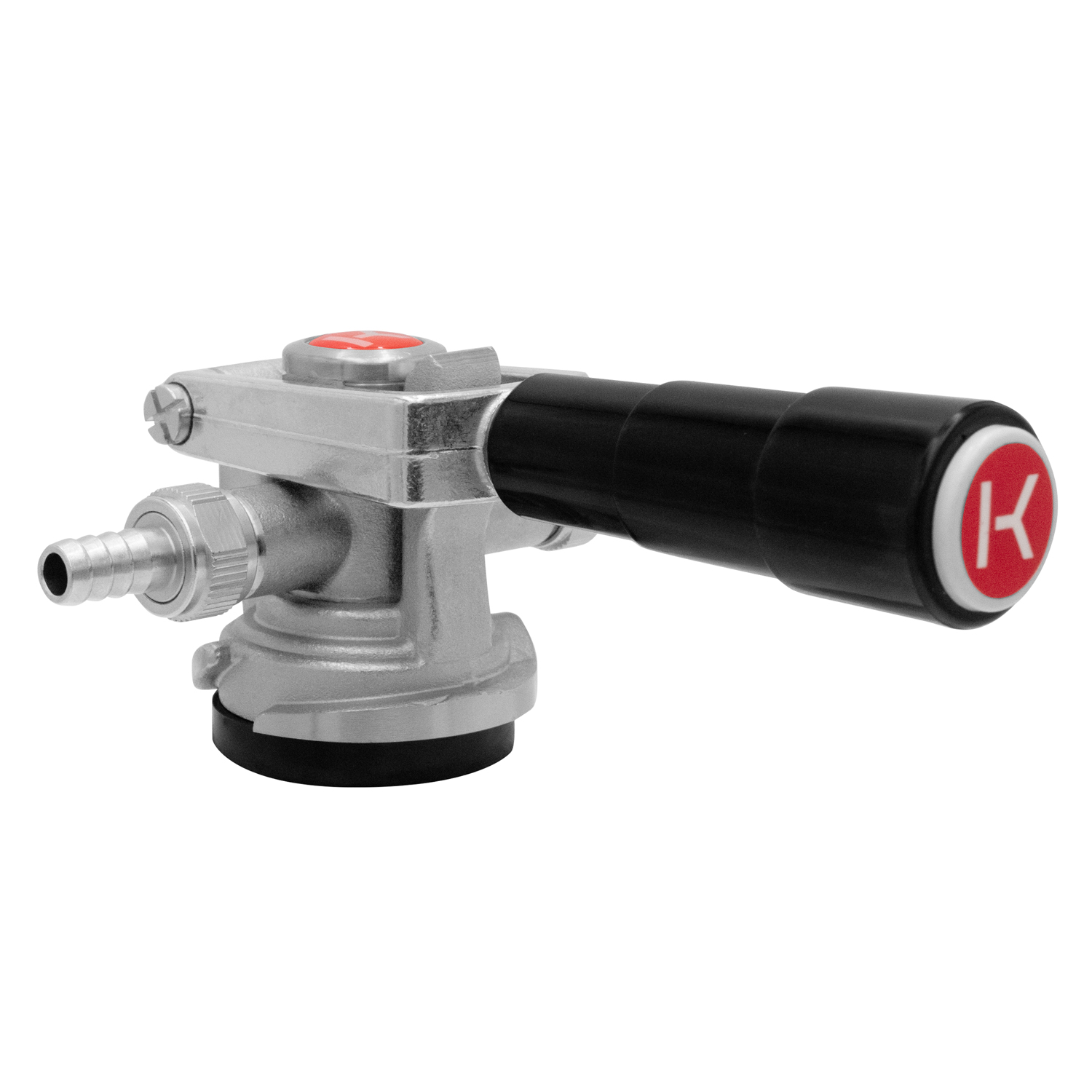

Kegco Low Profile D System Keg Tap Coupler

Model: KT41D-LP
6 Reviews
$82.99SAVE 45% - $37.35

90 Day Money Back Guarantee
Select Model:
IN STOCK (usually ships within 24 hours)
  • Kegco's Low Profile Sankey Coupler significantly reduces the vertical space necessary to tap a keg
  • Both the air input and the beer output come off the side of the coupler, reducing the necessary space for the beer line by about 4" over standard lever handle couplers
  • NSF approved keg coupler features a durable nickel-plated forged brass body with a sanitary stainless steel probe
  • Lever handle is easier to use than other twist-type keg couplers
  • Features a 55-psi pressure relief valve to remove excess pressure from the system

The Kegco Low Profile 2-3/8" tall coupler is the perfect keg tapping solution for space challenged places where you need to tap a keg. The short design requires 4" less space than standard lever handle couplers. It is compatible with all domestic brand "D" system Sankey kegs and is easy to use - to tap, simply pull out and then down on the lever handle. This coupler features a nickel-plated forged brass body with a sanitary stainless steel probe, a 1/4" I.D. beer outlet barb, and a 3/8" I.D. gas input barb. A 55-psi pressure relief valve allows over-pressurized gas to escape before it can enter your keg.

Warning WARNING: This product has Brass components. Brass alloys are known to contain trace amounts of Lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to
Kegco D System Low Profile Keg Coupler
UPC: 850004652046


Worth the work!

First, as a first time kegerator buyer, I was very disappointed to find out how tight, vertically, kegs are in my kegerator with the couplers supplied in the kit from the Beverage Factory. They really should explain that the included tap couplers are not ideal. These handles, however, worked out very well. Now my lines are compressed / kinked at the top of the kegerator with even an inch or so to spare. It was a physical challenge getting the beer line onto to the barb (lots of heating the rubber with hot water and working it to be pliable then using a LOT of straining), but once I got them on, it was ideal.


Just what I ordered

Works as expected.


Excellent Product

I bought this product because I had a low clearance in my home kegging system. This product worked perfectly. was easy to install and is easy to clean. Highly recommended


Great solution for commercial 5.15 ga ke

This helps solve the issue of using comercial sixtels in a kegerator. Very low profile leaving room to get those comercial kegs into the kegerator without kinking the beer line. I wish it had an MFL connectors instead of barbed. Swapping between comercial and home brew (ball lock or pin lock) is easier with MFL connectors. Overall, a great product.


Necessary for 5gal kegs undercounter

I recently did a remodel in my kitchen and we installed a Kegco under-counter kegerator as part of the install. Well, little did I know that even though it said 5 gal kegs fit, they don't fit when the standard tap coupler is installed because the beer line goes straight up for 5 inches or so.

These solved the problem. The gas and beer lines go laterally out so they sit just above the top of the keg and everything fits neatly inside. Setting it up was quite easy, just needed to pick up a cord cutter from the hardware store to cut cleanly through the beer lines (which had the screw type permanently attached to them from the factory) and a couple of small clamps to secure the lines (SAE size 4 clamps - 1/4" to 5/8" - are perfectly sized).

TL;DR: If you have a standard counter height (36" total) kegerator that you plan to put 5 gallon kegs in, you will almost certainly need these to couple with them, so you might as well buy them now.

Showing Reviews 1-6 of 6
 1 2
Is it possible to convert this to use ball lock quick disconnects?
by Chris on June 18, 2019
Please give us a call at 1-800-710-9939 and choose to speak with a technical adviser. We will be able to assist you.
by Ben on June 19, 2019
Staff Answer
Do you sell an outlet barb for 3/8" beer line that would fit this coupler?
by BeerGeek on July 16, 2019
No, but can add that if you sourced a 1/4th NPT Male Thread with 3/8th barb and took the one out of the coupler.
by Dave on August 10, 2019
Staff Answer
What size is the barb on the low profile D system keg tap coupler
by Doug on August 25, 2019
The liquid side is 1/4" ID and the gas is 3/8" ID.
by Jake on August 29, 2019
Staff Answer
What is the best way to clean a line attached to this coupler?
by Johnny G on November 24, 2019
Keg pumps are best cleaned by soaking in cleaning solution and using coupler brushes to get into the moving parts. Then rise with water.
by Nick on August 17, 2020
Staff Answer
What size beer line does this fit? Compatible with 3/16" clear beer tubing?
by G on May 26, 2022
Yes, this is compatible with 3/16" clear tubing. We would recommend heating up that line to make it easier to feed over the barb.
by Jake on May 27, 2022
Staff Answer
Showing Questions 1-6 of 6
