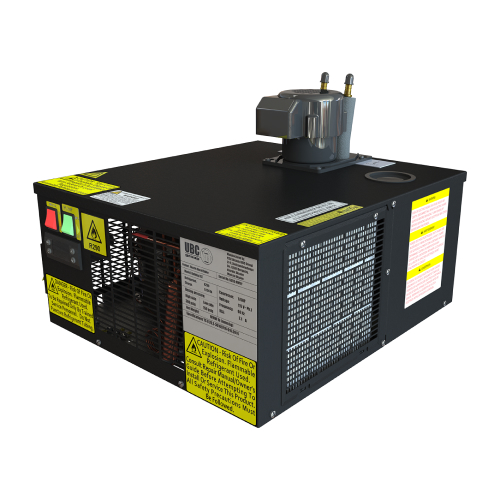

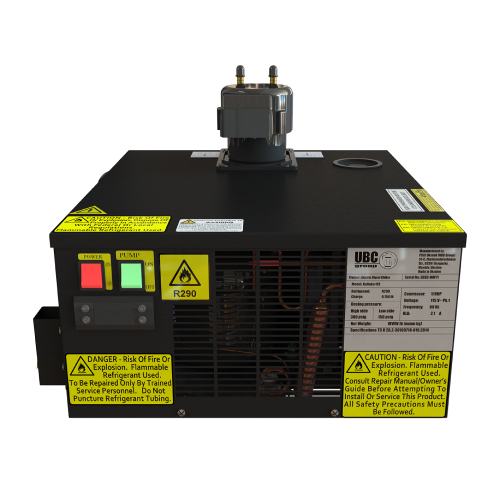

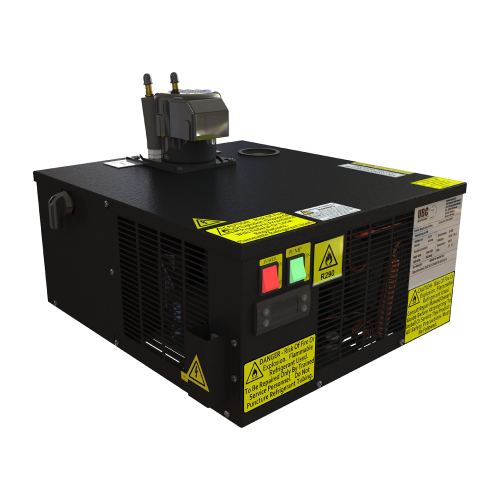

This small Chillpro 1150H Glycol Chiller is an optimal solution for cooling beer lines with a 25 ft. maximum distance. Glycol chillers are refrigeration units made specifically for cooling draft beer lines. They use a mix of water and food-grade propylene glycol to cool beer as it travels from the keg to the tap.

Benefits of UBC Glycol Chillers

There are numerous advantages to using a glycol chiller, including:

1. Constant temperature that can be regulated on a digital thermostat, ensuring that your beer is always served at the right temperature and tastes great.
2. Increased efficiency: Glycol chillers consume less energy to maintain a constant temperature, which results in lower energy bills and operating expenses.
3. Increased lifespan: By keeping the trunk line cool, glycol chillers can help increase the lifespan of your draft beer dispensing equipment. This means lower repair expenditures and less maintenance in the long run.

1/6 hp Glycol Chiller CHILLPRO 1150 Installation Instructions

It is important to note that to be eligible for a product return and/or warranty coverage, this item must be installed by a qualified draft beer system installer or company.

When choosing a glycol chiller, several aspects should be considered, including:

1. Size: It depends on the number of beer lines and the distance between the chiller and the tap. Longer runs require a larger chiller.
2. Capacity: The more beer you plan to serve, the larger capacity chiller you will need.
3. Configuration: It depends on the layout of your establishment and your specific requirements.

Important information regarding Prop. 65 for CA residents.

• Part Number: CP1150H
• Maximum Distance: 25 ft.
• Capacity: 1150 BTU
• Glycol Tank Capacity: 2 gal.
• Dedicated Circuit: 15 A
• Compressor Power: 1/6 HP
• Pump Type: SPC17/4
• Glycol Mixture: 40% Glycol and 60% Water
• Optional Additional Pump: N/A
• Thermostat: Digital
• Refrigerant: R290
• Legs (optional): 6"
• Dimensions: 17"W x 18"D x 13"H
• Net Weight: 45 lbs.
• Gross Weight: 70 lbs.

Labor - 12 Months

Parts - 12 Months

Compressor - 72 Months
