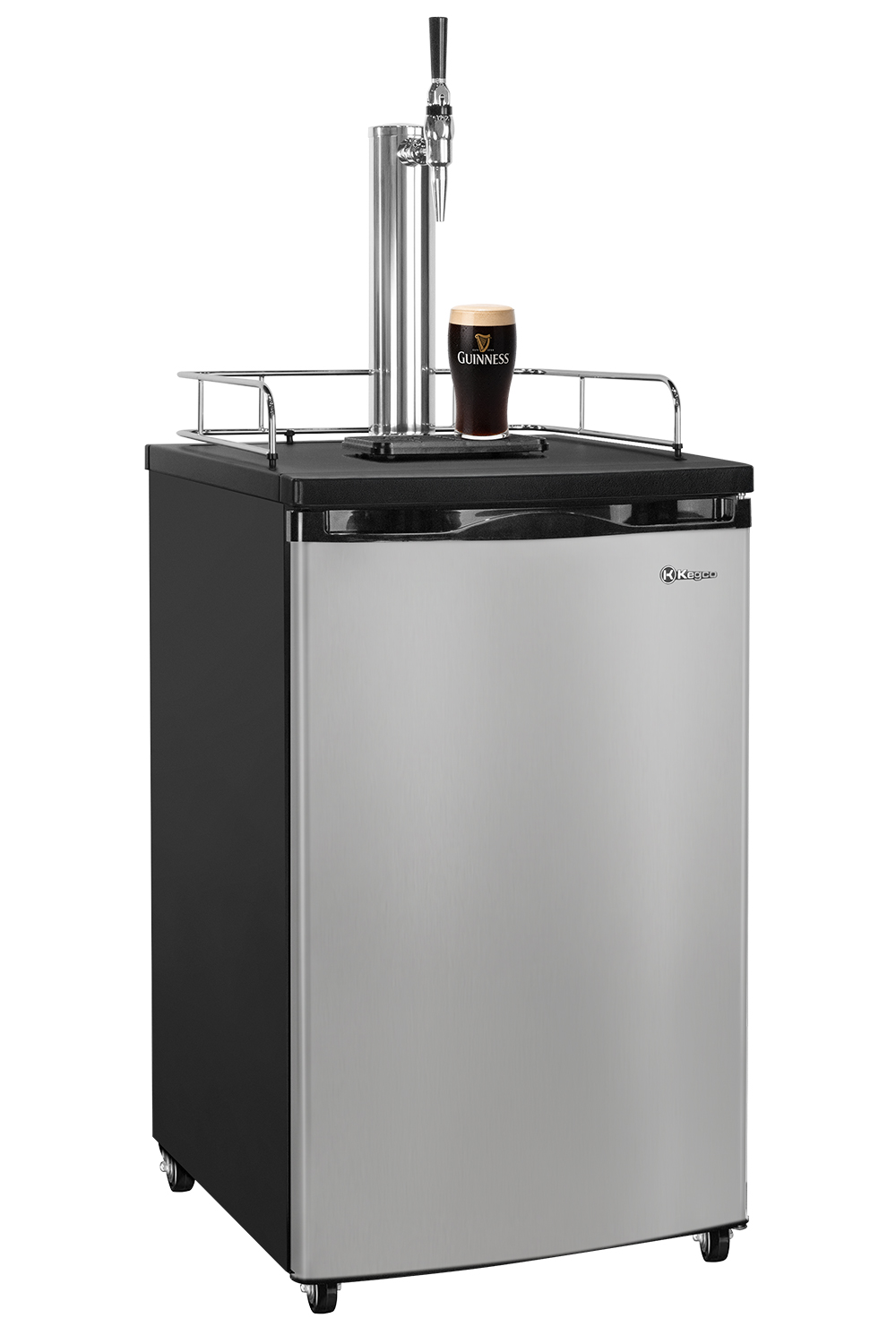

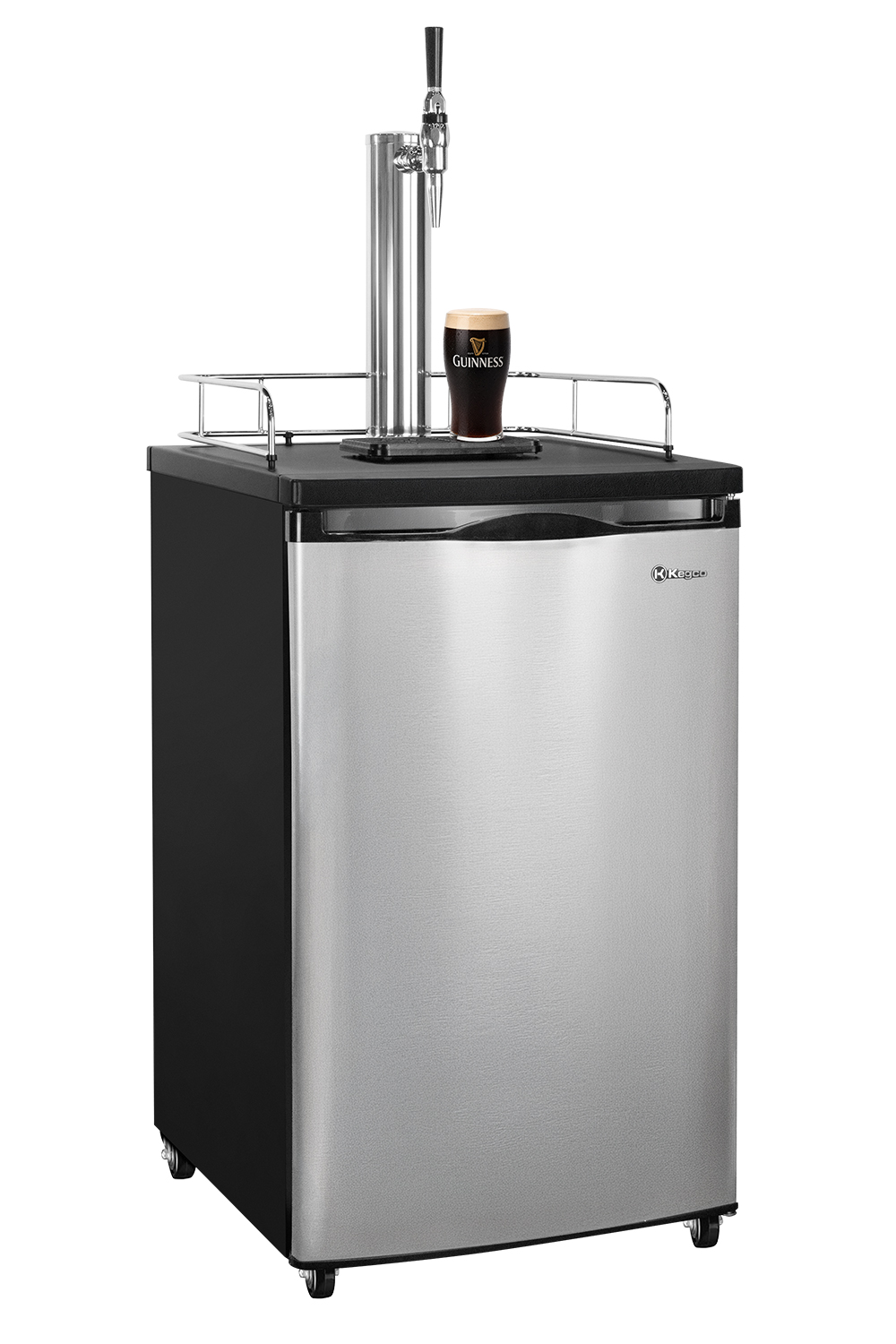

Kegco 20" Wide Guinness® Stainless Steel Single Tap Kegerator

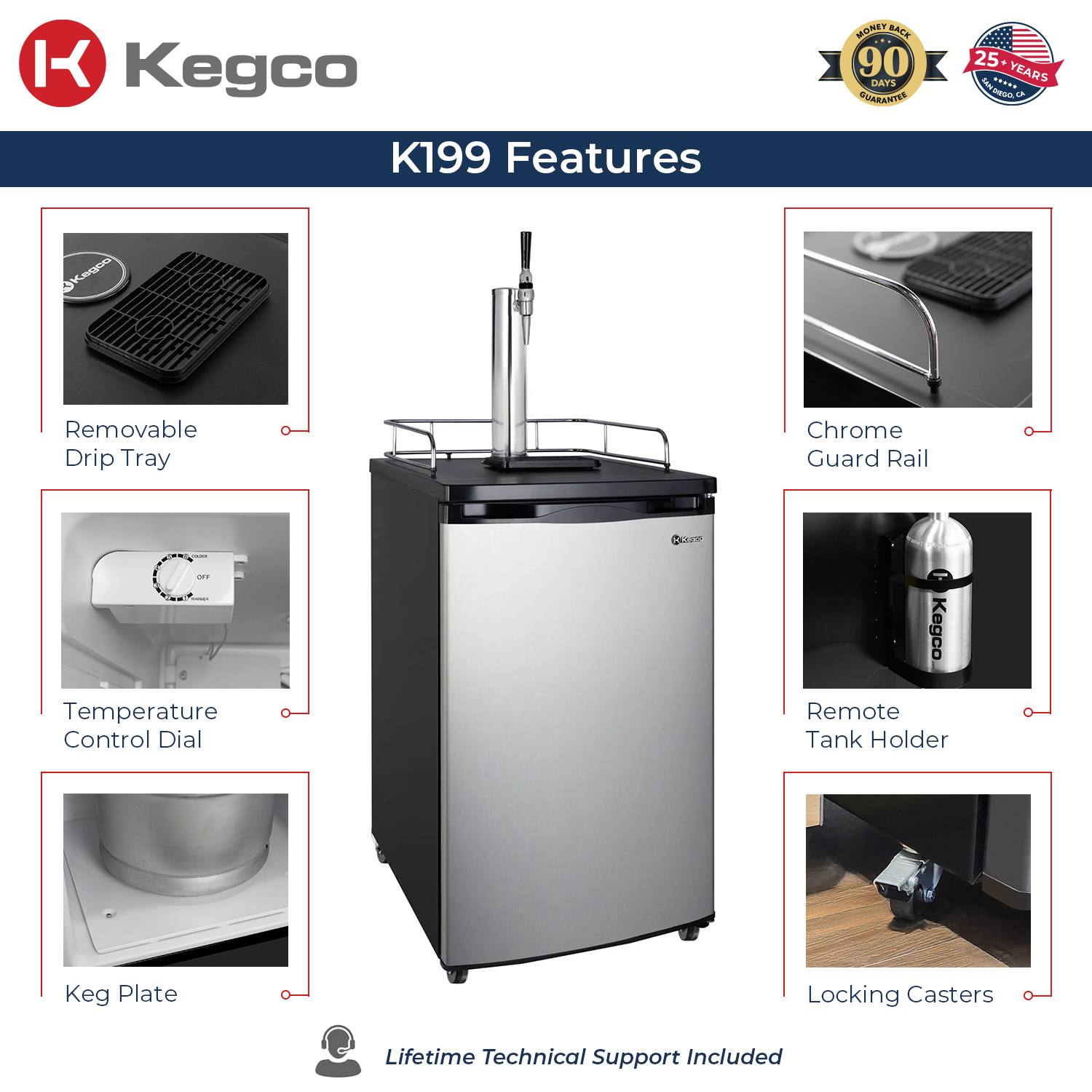

• Stylish black cabinet with reversible stainless steel door, removable drip tray, chrome guard rail, and textured serving countertop
• Can be converted into an all-refrigerator using the 2 included adjustable shelves for additional refrigerated storage
• Steel interior floor mat provides long-lasting durability and allows beer kegs to glide smoothly in and out
• Spacious interior can accommodate full-size kegs (15.5 gallon), 1/4 beer barrels (7.75 gallon), and 5 gallon kegs
• Includes a draft tower with a chrome-plated Guinness® dispensing stout beer faucet to achieve the perfect pour

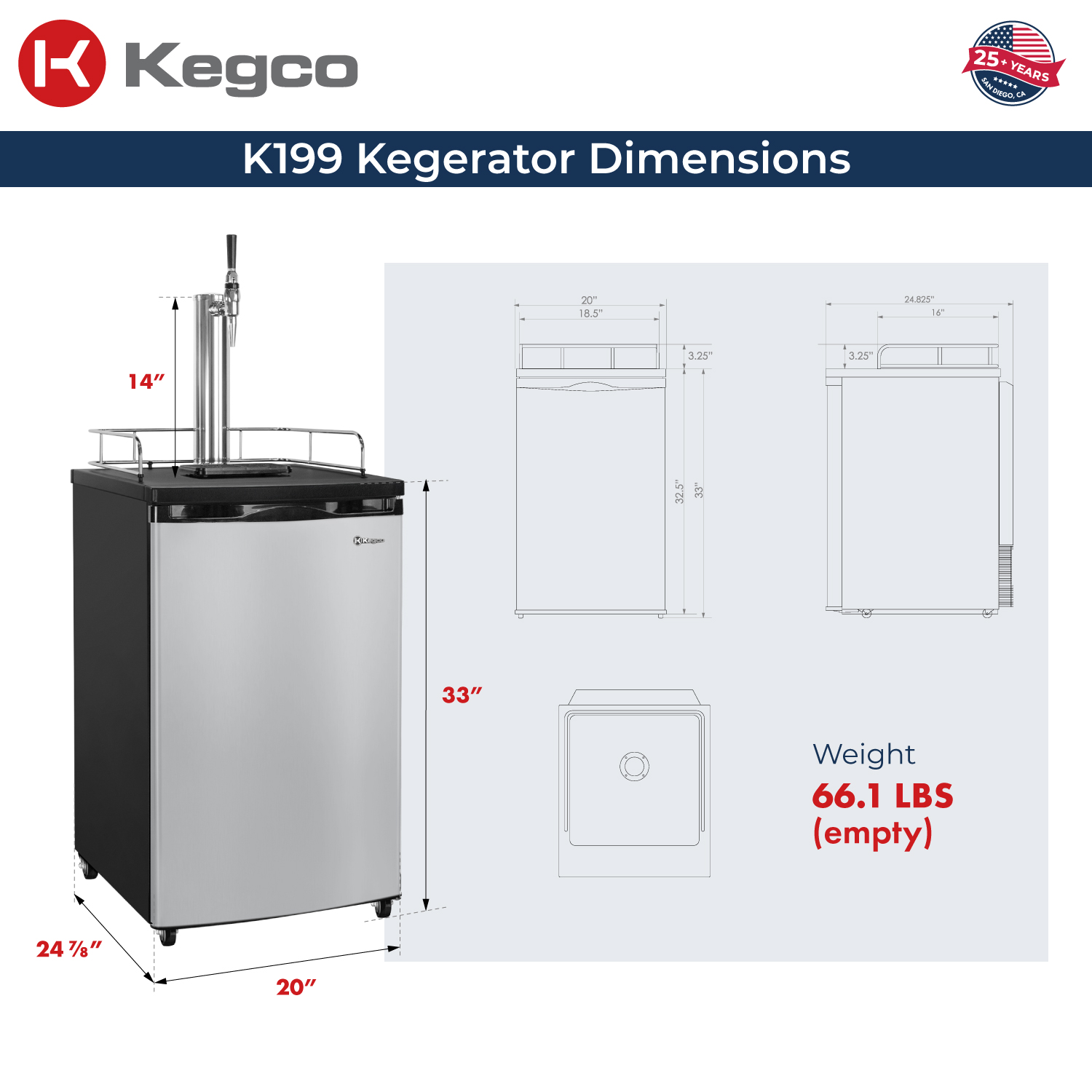

  Dimensions: 33" H x 20" W x 25.5" D

Built for Guinness®

Configured with an all stainless contact stout beer faucet to help achieve that perfect cascading pour when dispensing Guinness® kegs or other stout beers.

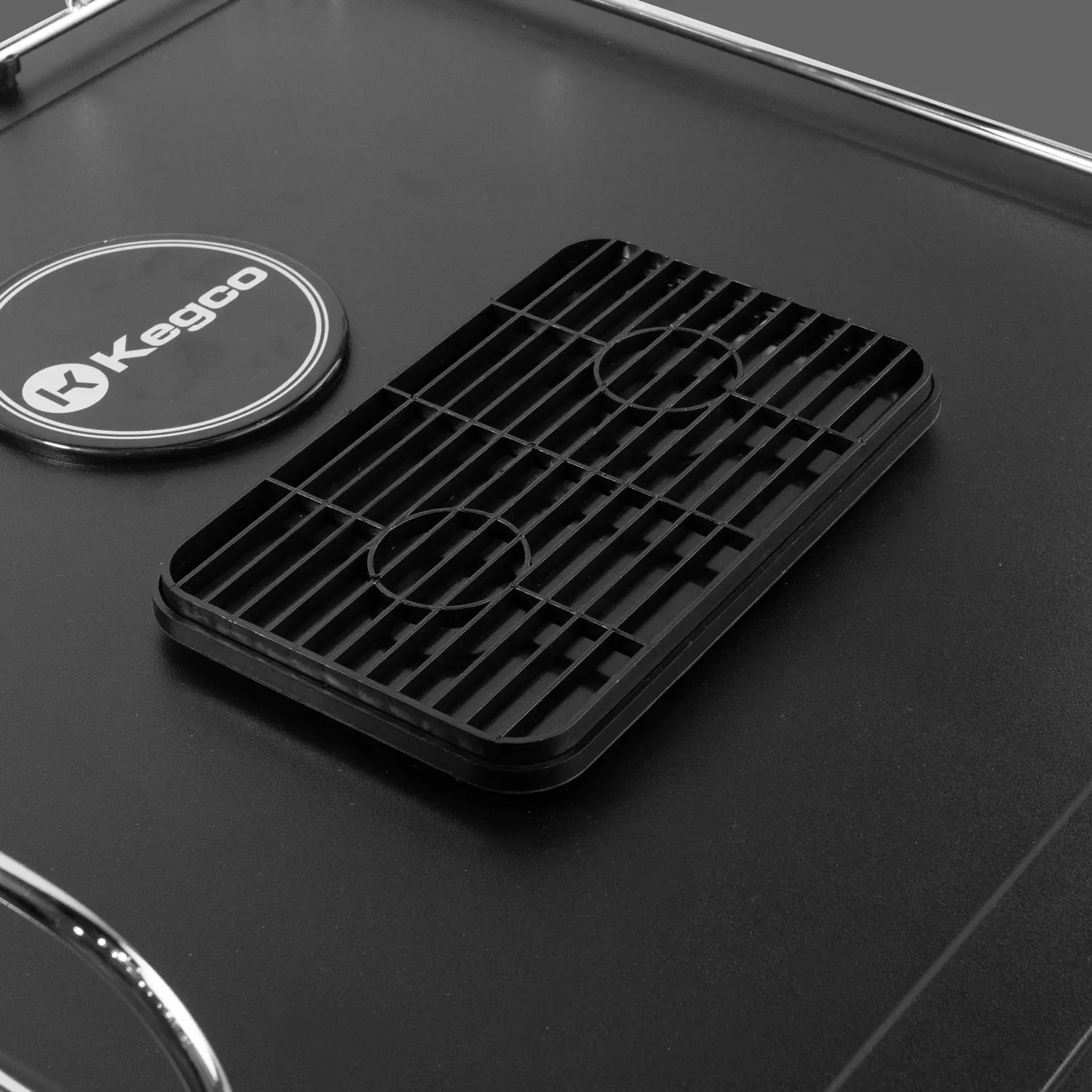

Removable Drip Tray

Easy-to-clean removable drip tray collects drips and spills to keep cleaning to a minimum. The 8" x 5" drip tray comes with a detachable grill that can be removed for quick and easy cleaning.

Guard Rails

An attractive metal safety rail keeps your glasses and beer mugs from sliding off, providing an added layer of security. Prevent spills, breakage, and wasted beverages.

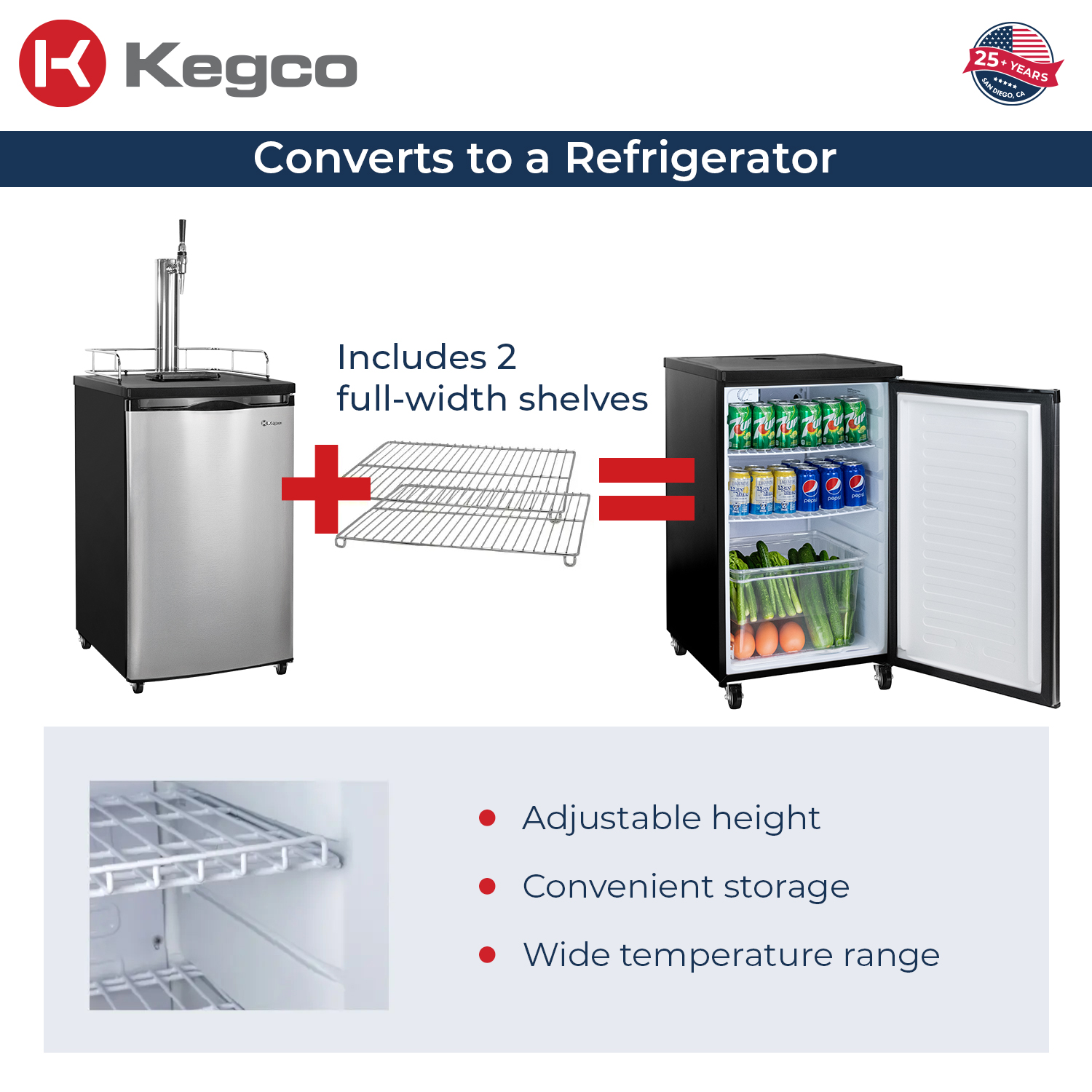

Converts to a Refrigerator

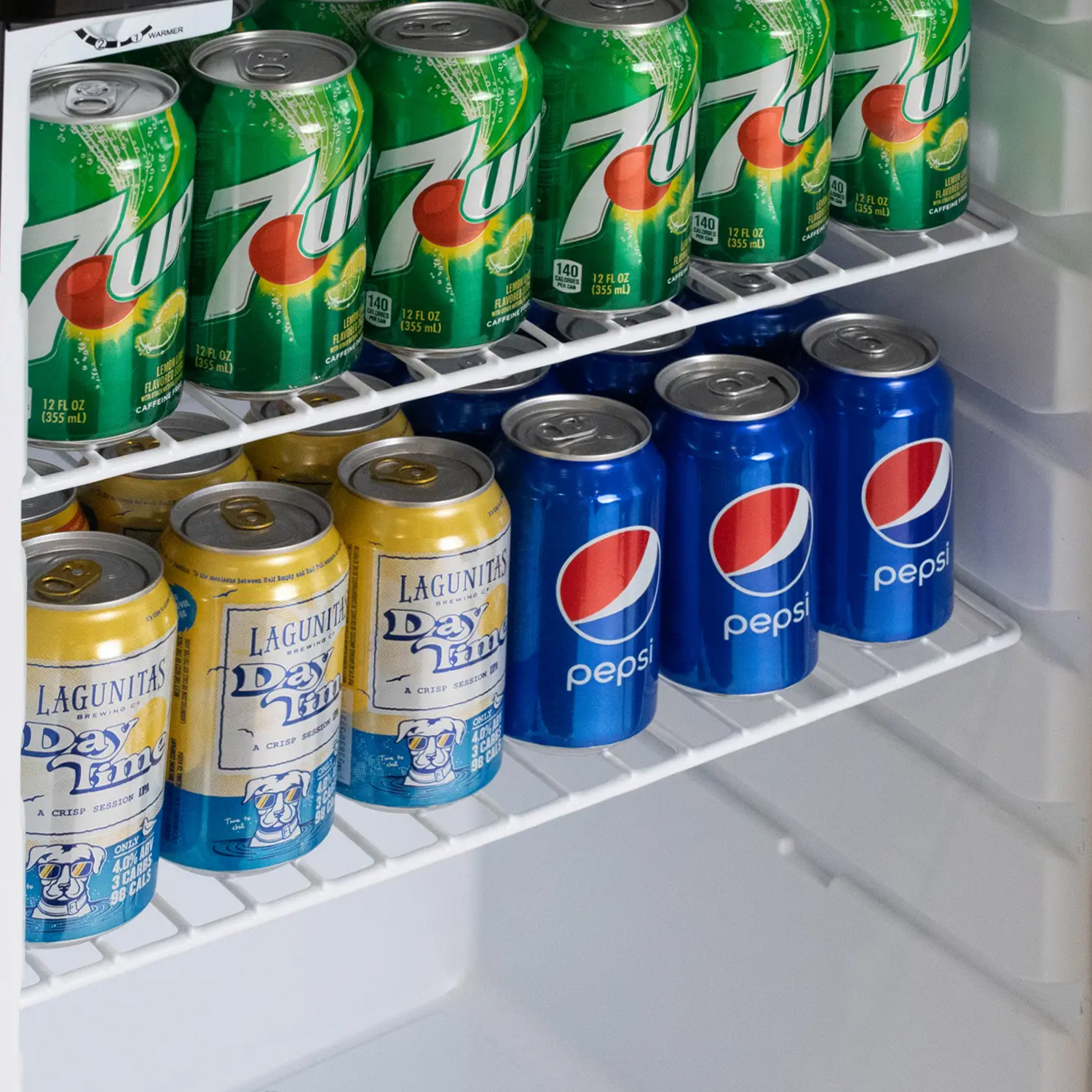

Can be easily converted into an all-refrigerator or beverage center for when you need extra cold storage. Comes with two adjustable shelves that can be spaced far enough apart to hold gallon jugs or 2-liter bottles.

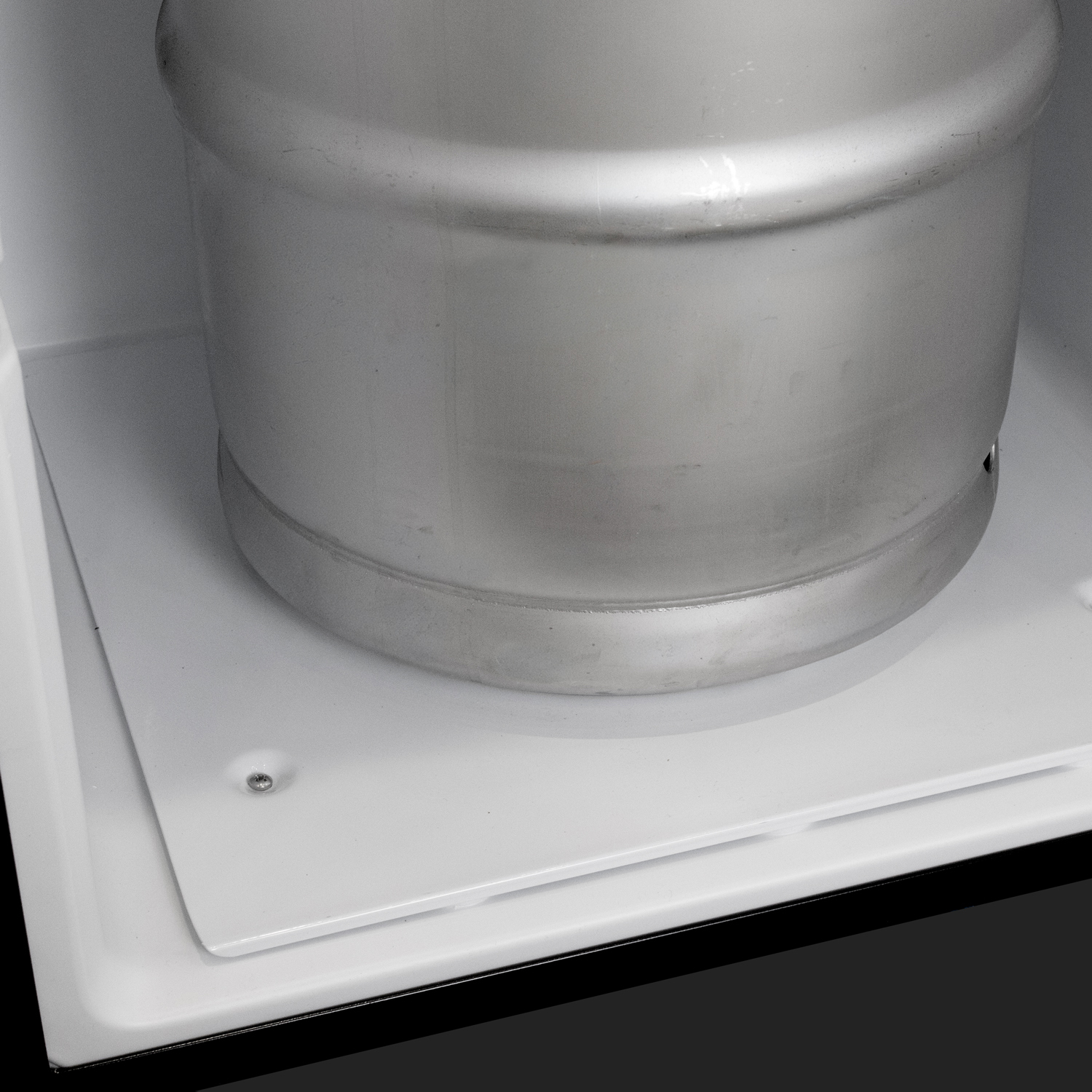

Keg Plate

A steel floor plate protects the interior of the cabinet from scratches, dents, and other damage that can occur when sliding a keg in or out of the cabinet. The removable plate allows you to easily take it out and clean any sticky beer residue.

Locking Casters

Includes easy-roll casters that make it easy to enjoy your beverage in any room of your home! Once the keg dispenser is in position, these casters can be easily locked so that your kegerator won't move again until you want it to.

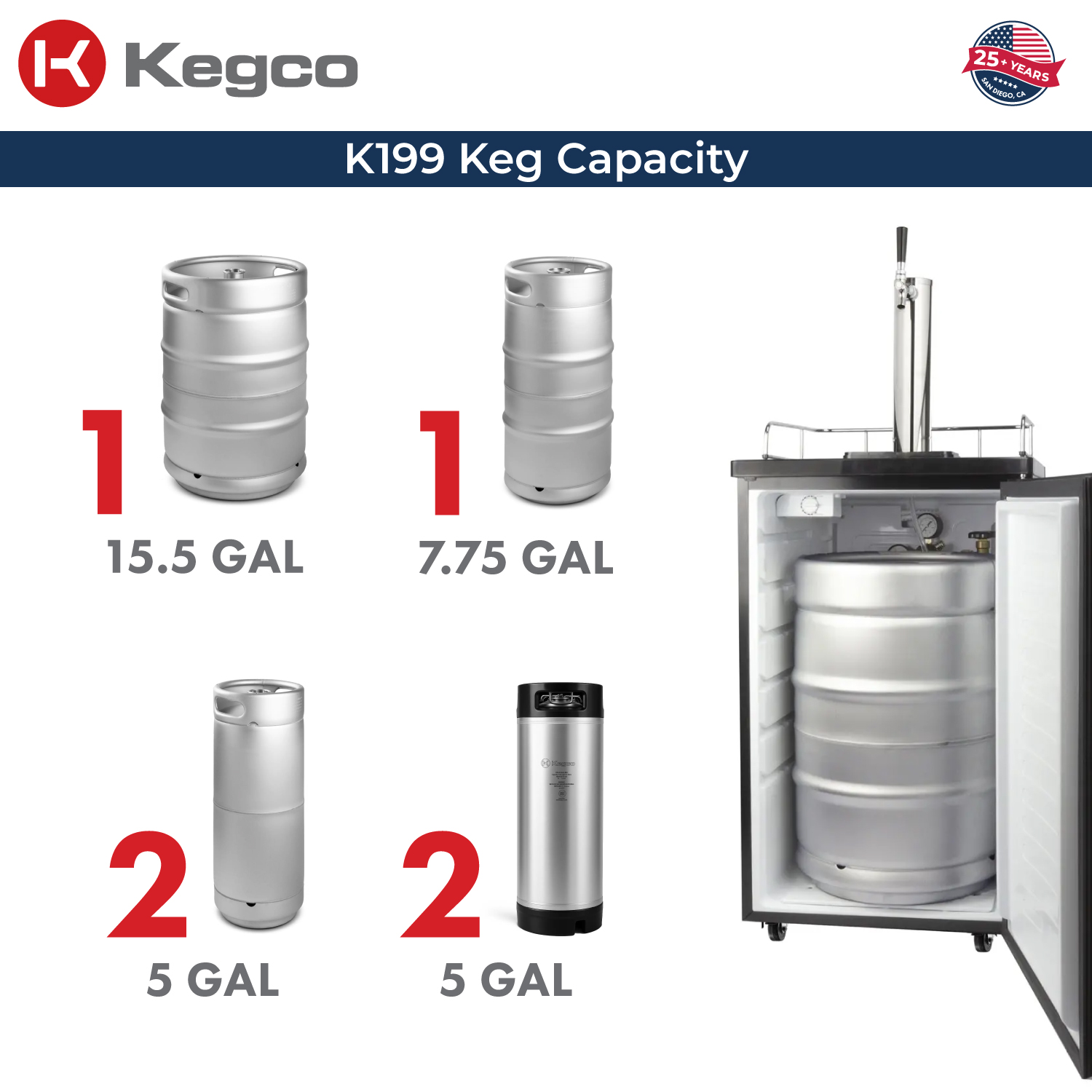

This keg cooler can accommodate one full size, straight pony, or quarter slim keg, or up to two sixth slim, strap handle, or rubber home brew kegs.
PLEASE NOTE: It will not fit bevel or rubber kegs that are wider in the middle than at the top or bottom. These are commonly used by Coors and Miller brewing companies.

• MDK-199SS-01 Kegerator with Draft Tower and Guinness® Dispensing Faucet
• Black Cabinet with a Reversible Stainless Steel Door

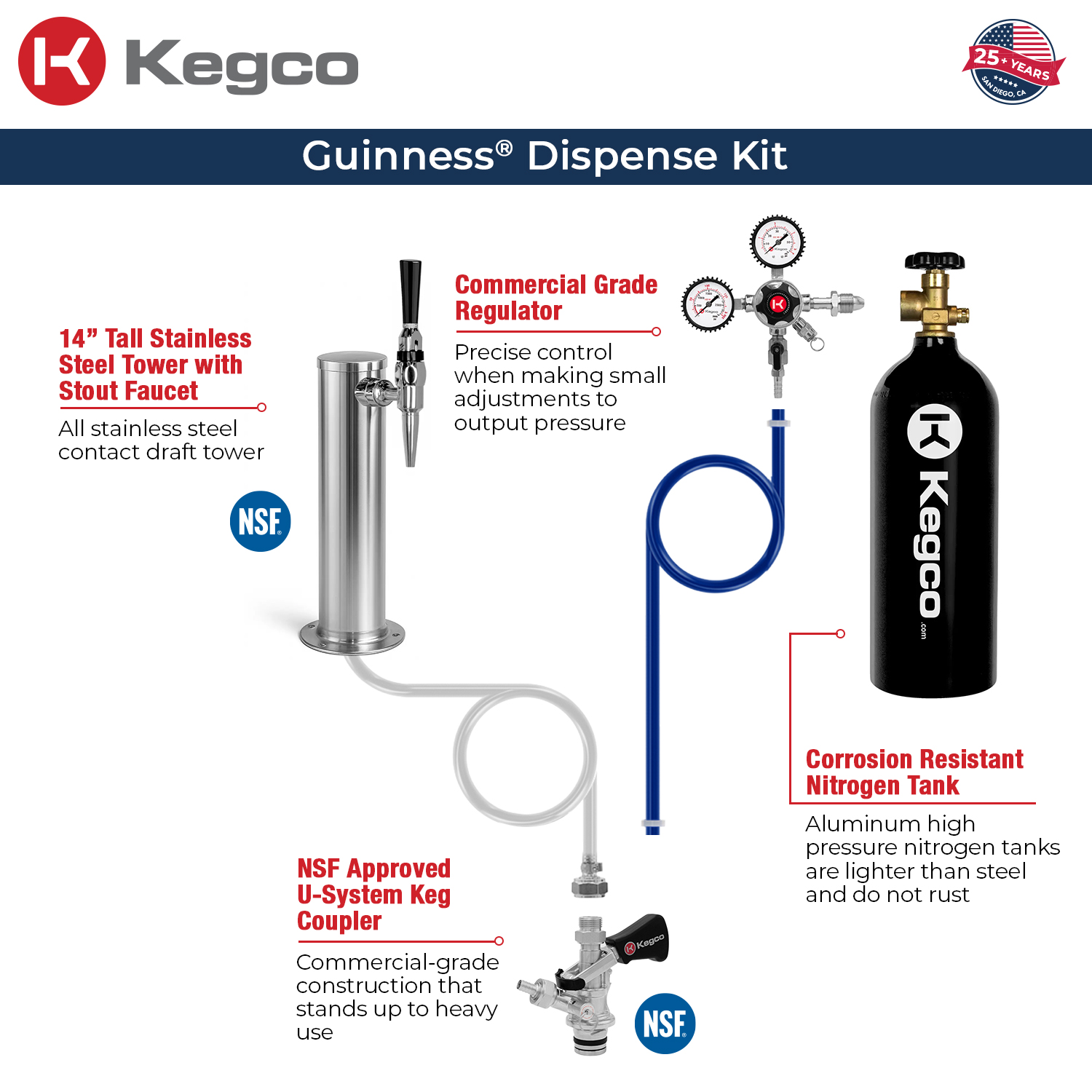

• Includes a 3" Diameter Polished Stainless Steel Draft Tower

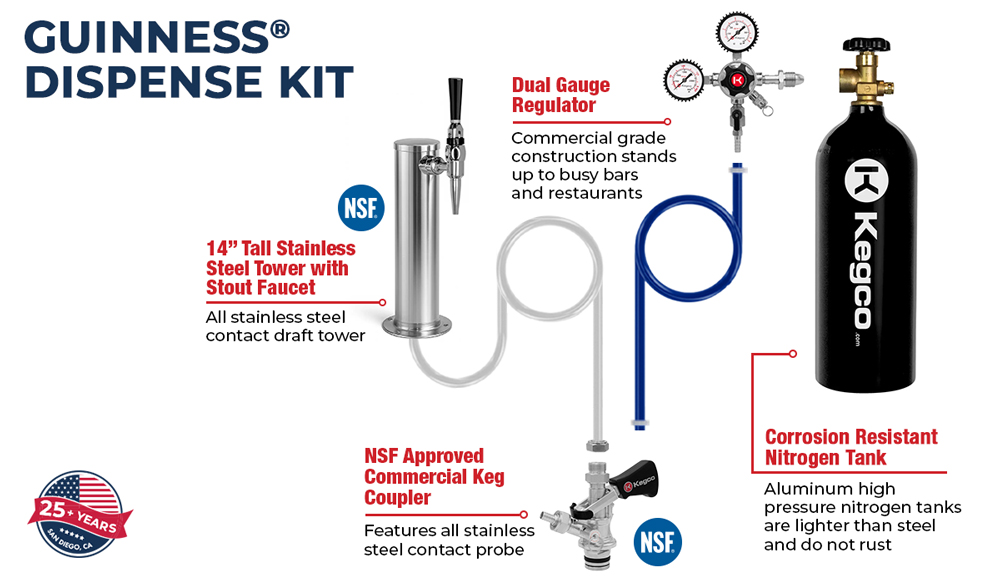

  The tower is a commercial grade single column, single faucet, 3" diameter stainless steel draft tower. This tower comes complete with a chrome plated stout faucet and 5 feet of 3/16" I.D. clear beer tubing that ends in a nozzle and hex nut assembly that connects to all standard keg couplers. This tower is mounted using the gasket and four screws that are included.
• Includes a Chrome Plated Stout Beer Faucet
  A specialty European Stout Beer Faucet is required to properly pour Guinness® and achieve the famous and unique head on the beer. The faucet operates by pulling forward and then down on the tap handle. In addition, this economy stout faucet features a restricted spout that contains a tiny disc. The restrictor disc helps slow down on the pour and allows the beer to pour properly. If you need to pour regular beer with this faucet, just remove the restrictor disc.
• Comes with 2 full-width wire shelves and a hole plug that allow you to convert the kegerator into a compact refrigerator
• Holds full-size kegs (15.5 gallon), 1/4 beer barrels (7.75 gallon), and 5 gallon kegs
• Maximum Ambient Temperature: 100 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• Removable drip tray with grill collects spills
• Chrome guard rail prevents your mugs and glasses from sliding off
• Metal interior floor mat ensures long-lasting durability and smooth keg loading
• Textured serving countertop
• Measures 33" H x 20" W x 25.5" D

Warranty Information:

• 1 Year Parts and Labor
• 5 Years on Compressor (parts only)

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	3	3	3	3
Kegco K309	1	1	1	3	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3

* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

Labor - 12 Months

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges.

Additional Details

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
