- Red 28-quart cooler utilizes Ultratherm foam insulation for superior cold retention
- Removable lid provides easy access to the interior
- Recessed drain plug allows for fast drainage of excess water
- 70 feet of 5/16"I.D. stainless steel coil makes this jockey box far superior for cooling than "cold plate" style jockey boxes
- Includes chrome-plated brass faucet with brass lever, black faucet knob, shank, and ice box coupler assembly

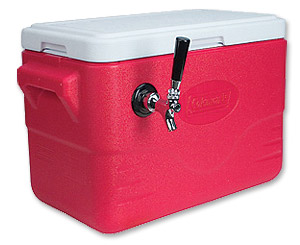

This single faucet 70' coil jockey box is offered in a red colored 28-quart cooler with Ultratherm foam insulation for superior cold retention. The removable lid provides easy access to the interior, while a recessed drain plug allows for the drainage of excess water. The jockey box includes a chrome-plated brass faucet with a brass lever, black faucet knob, shank, 70 feet of 5/16"I.D. stainless steel coil and an ice box coupler assembly. The cooler measures 21-1/4"L x 11-1/4"W x 14-1/4"H.
A stainless coil is far superior for cooling than the "cold plate" style jockey box.
OPTIONAL ACCESSORIES TO COMPLETE YOUR SETUP
To complete your Jockey Box set up, you will need to add the following products if you do not already have them:
1. CO2 Tank
CO2 cylinders house the CO2 gas that is used to push beer from the keg through the beer line and out of the faucet. The bigger the tank, the more kegs you can dispense before needing to refill it. Generally speaking, it takes about a pound of CO2 to dispense a full size keg.
2. CO2 Regulator
A CO2 regulator helps you control the flow of gas from your CO2 tank to the keg. We have a wide variety of both single gauge regulators, which only display the CO2 output pressure, and dual gauge regulators, which display both CO2 output pressure and volume.
3. Air Line Assembly
The air line assembly (made up of one length of 5/16" blue air tubing and two plastic air line clamps) allows the CO2 to flow from the regulator into the keg, pushing beer out to the faucet. We have different lengths of air line to choose from.
4. Keg Coupler
Whether you plan on tapping an American D System keg or a European Import keg, you can choose from our selection of keg couplers to find the correct coupler to fit your needs.
5. Jumper Line Assembly
The jumper line assembly (made up of 5' of 3/8" Thermoplastic (Super Vinyl) beer tubing and your choice of wing nut or hex nut fittings) connects the top of the keg coupler to the inlet on the back of the jockey box. It is necessary to get the beer from the keg into the jockey box.
6. Flusher Line
The flusher line can be hooked up to a water spigot, allowing you to rinse the coil out with clean water to help keep it clean.
7. Cleaning Kit
For deep cleaning to remove the protein and mineral deposits that beer leaves behind, there is no substitute for a cleaning kit with beer line cleaner. The 5L Pressurized Cleaning Kit gives you enough pressure to easily clean the long draw of a coil. You can try using a hand pump system, but the resistance in the coil would make it a long, arduous process.
- 120' coil - 10"dia. X 11"h
- 70' coil - 6.5"dia x 8.5"h
- 50' coil - 5.5 dia x 8.5"h
