Summit 15" Wide Single Tap Built-In Panel Ready Overlay Kegerator

The Summit SBC15IF features a versatile design that meets NSF-7 and UL-471 commercial standards but is also approved for residential applications. Sized at 15" wide, it features a front-breathing design for built-in installation under counters and a fully finished cabinet for freestanding use. The sealed back allows for easy cleaning of the unit. The door comes with an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 30" H x 15 1/8" W at 3/4" thick). Users provide their own handle to complete the look. This unit ships with a right hand door swing. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. Four included casters (two are locking) make movement of the unit easy. A factory-installed lock provides added security.

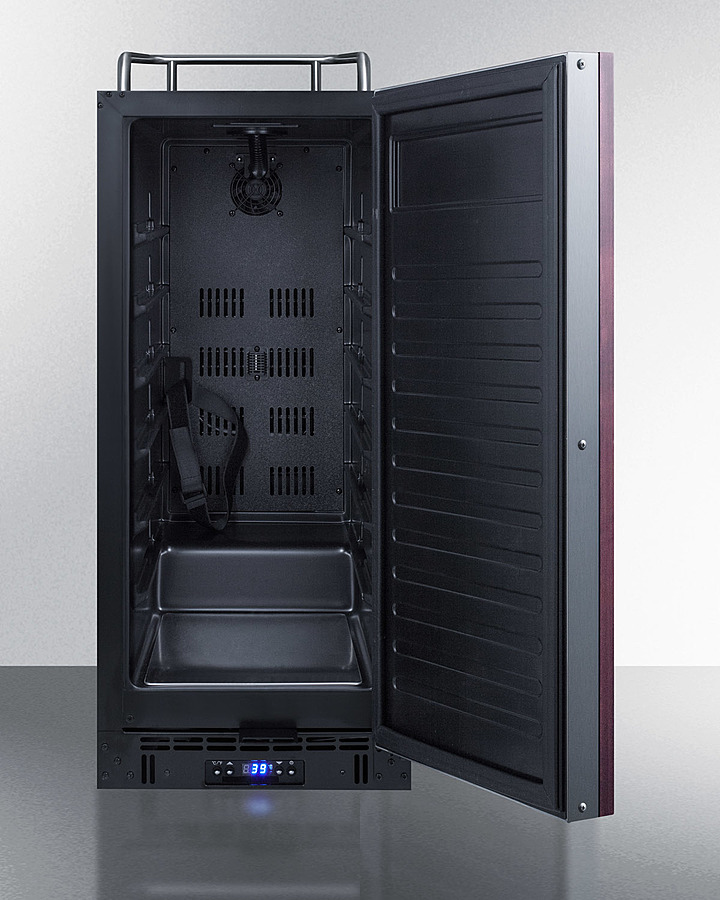

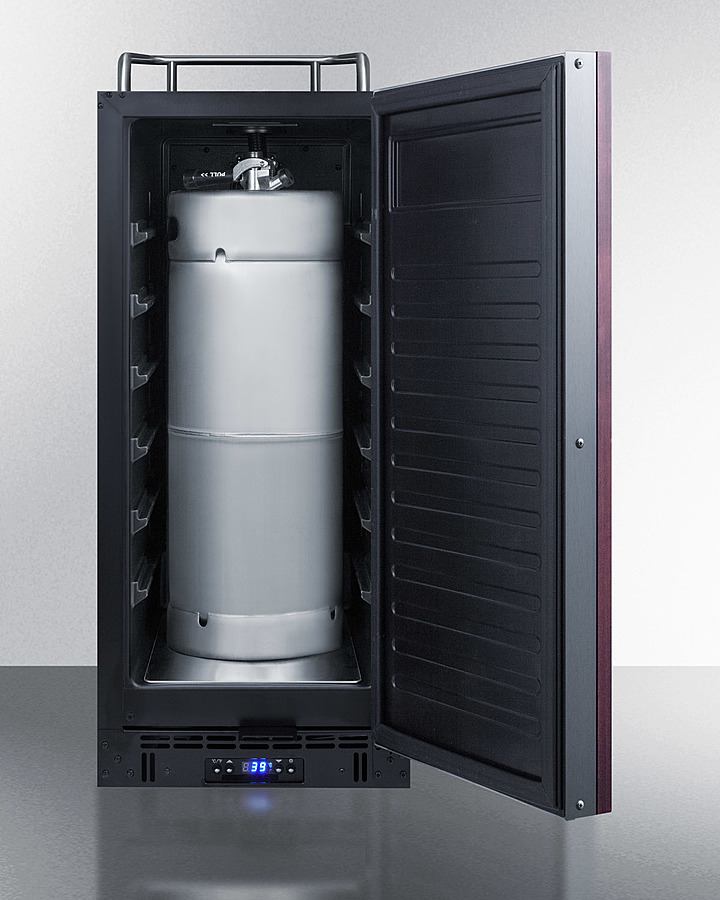

Inside, the 2.9 cu. ft. interior can hold a 1/6 (sixtel) or mini keg. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the Co2 tank in place. A stainless steel floor plate provides added protection when placing and removing kegs.

Note: Due to its door design, the SBC15IF requires an additional 1/4" of width for the door to open to a full 90 degrees. If placing this unit against a right angle wall, be sure to accommodate this extra space.

Important information regarding Prop. 65 for CA residents.

• 15" wide design
  Slim-fit design complements smaller commercial and residential spaces
• Commercially approved
  ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
• Built-in capability
  Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Versatile kegerator
  2.9 cu.ft. interior can accept a 1/6 (sixtel) barrel keg or a corny keg; compatible with beer, wine, coffee, or kombucha tap systems
• Panel-ready door
  Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design
• Automatic defrost
  Reduced user maintenance with auto defrost operation
• Digital thermostat
  Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
• Tap cool system
  Keeps cold air flowing to the tower for consistently cold beer
• Stainless steel floor cover
  Interior includes steel cover to protect the floor when loading kegs
• Top guard rail (ships unassembled)
  Attractive chrome guard rail helps to reduce spills and neaten service
• Stainless steel drip tray
  Removable two-piece drip tray catches spills to help contain the mess
• Ideal beer temperature
  Operates between 34-50 degrees Fahrenheit to keep a variety of beers stored at just the right serving temperature
• Wire shelves
  2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator
• Factory-reversible door swing
  Factory-reversible door swing makes it easy to best accommodate your setting (unit comes with RHD but can be converted to LHD upon request at the time of purchase)
• Factory installed lock
  Keyed lock for a secure interior, with 2 keys included
• Casters included (ship unassembled)
  To make the beer dispenser portable, install this set of 4 1/2" high casters (2 locking)
• Fully finished black cabinet
  Allows the beer dispenser to be used freestanding
• Sealed back
  Space saving design with easier cleanability
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant
  Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	3	3	3	3
Kegco K309	1	1	1	3	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3

* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

Labor - 12 Months

Parts - 12 Months

Compressor Parts Only - 60 Months
