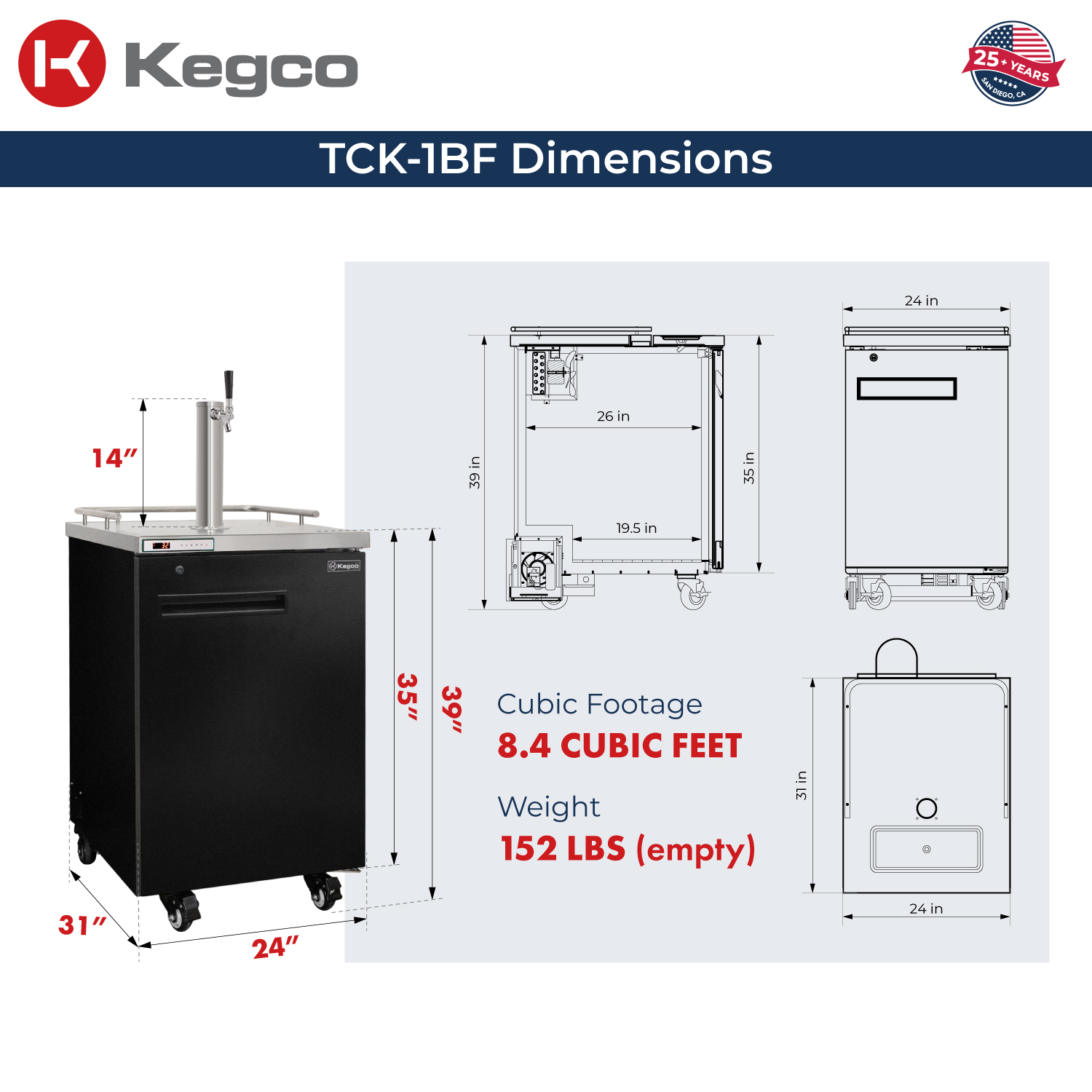

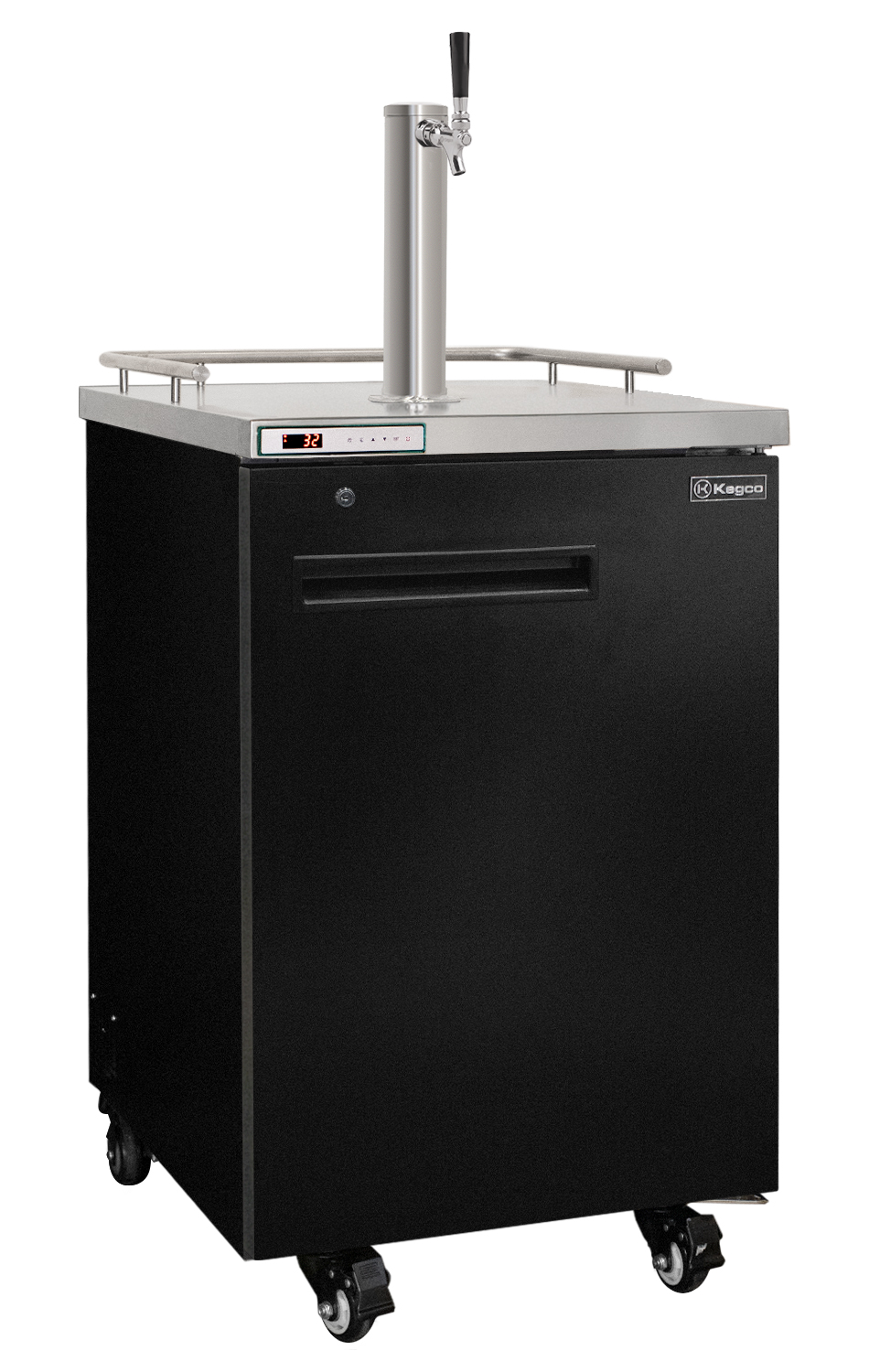

Kegco 24" Wide Single Tap Commercial Black Kegerator

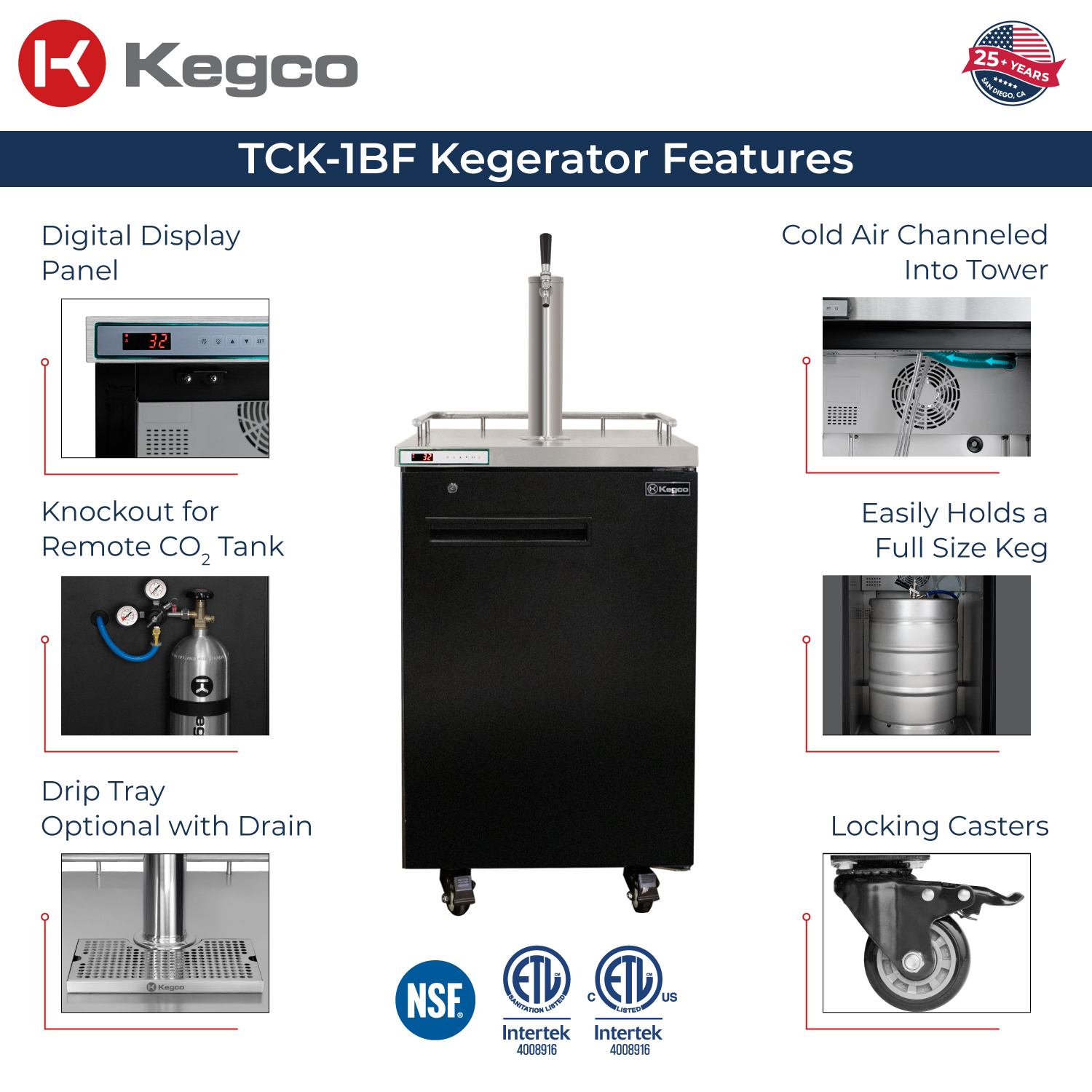

• Ideal for busy restaurants, pubs, bars and tasting rooms!
• Durable steel construction with Stainless Steel top and built-in drip tray to collect spills
• Easily holds a full size keg or multiple smaller kegs
• Customize the draft beer dispense system to suit your particular needs
• NSF compliant and ETL sanitation listed for commercial use

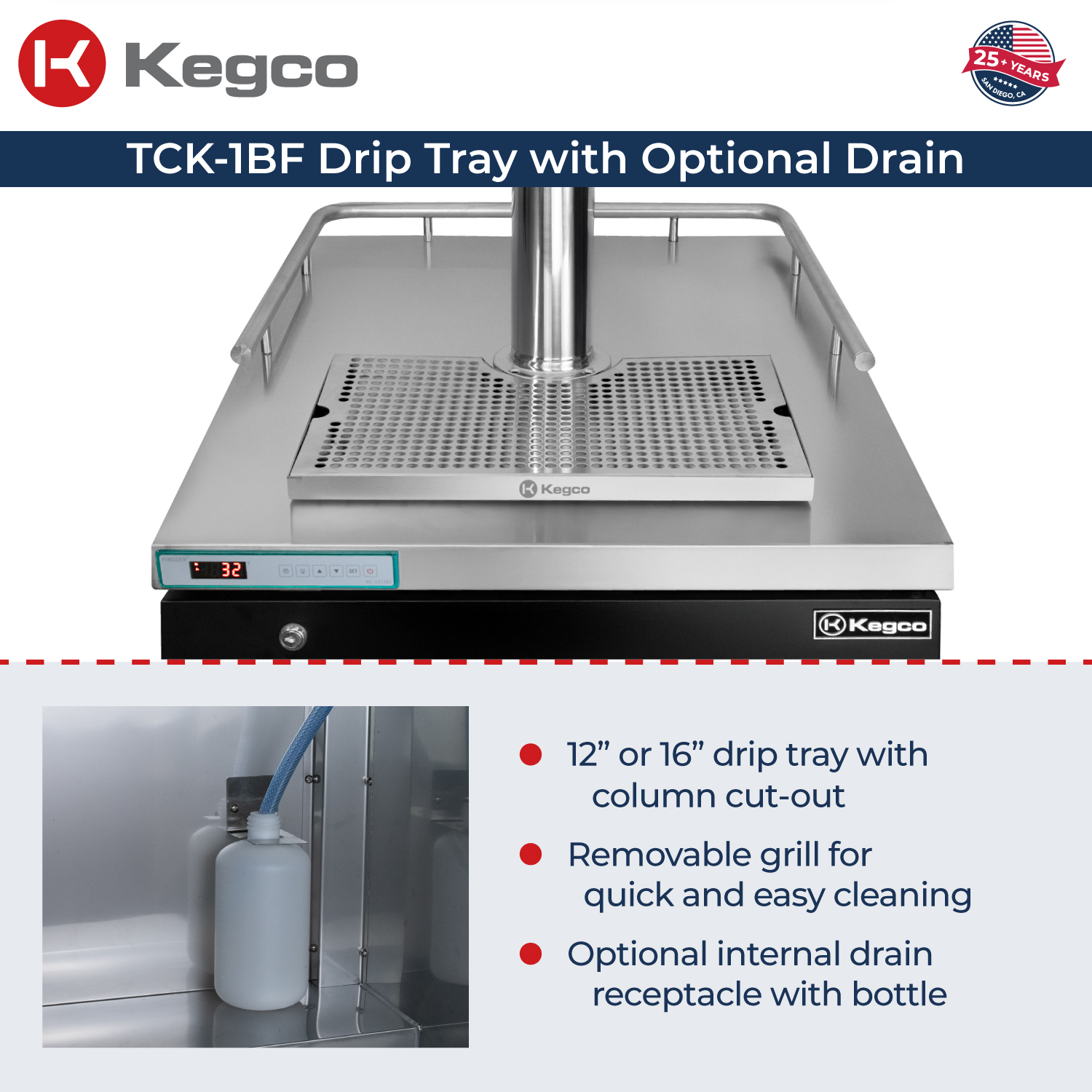

Drip Tray w/ Optional Drain

Drip tray comes in standard 12" x 7" or a large 16" x 10" sizes with a column cut out. An internal drain receptacle can be configured to catch any spills from the faucet that are directed into a spill bottle to be easily removed and emptied out.

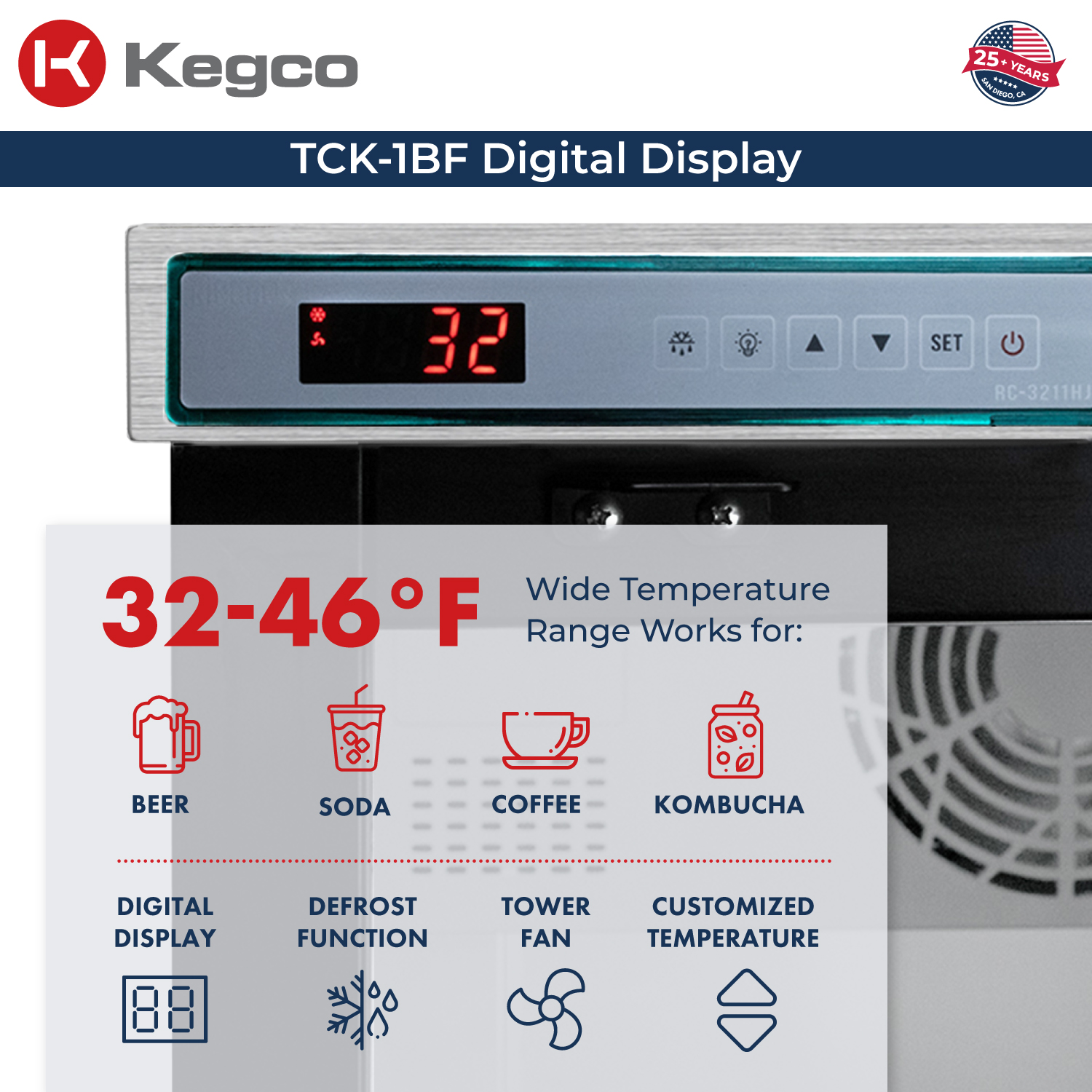

Digital Temperature Control

Easily view and adjust the set temperature with the push of a button. The control panel comes equipped with a programmable defrost function and an alarm to alert you of any notifications if you kegerator may need any attention.

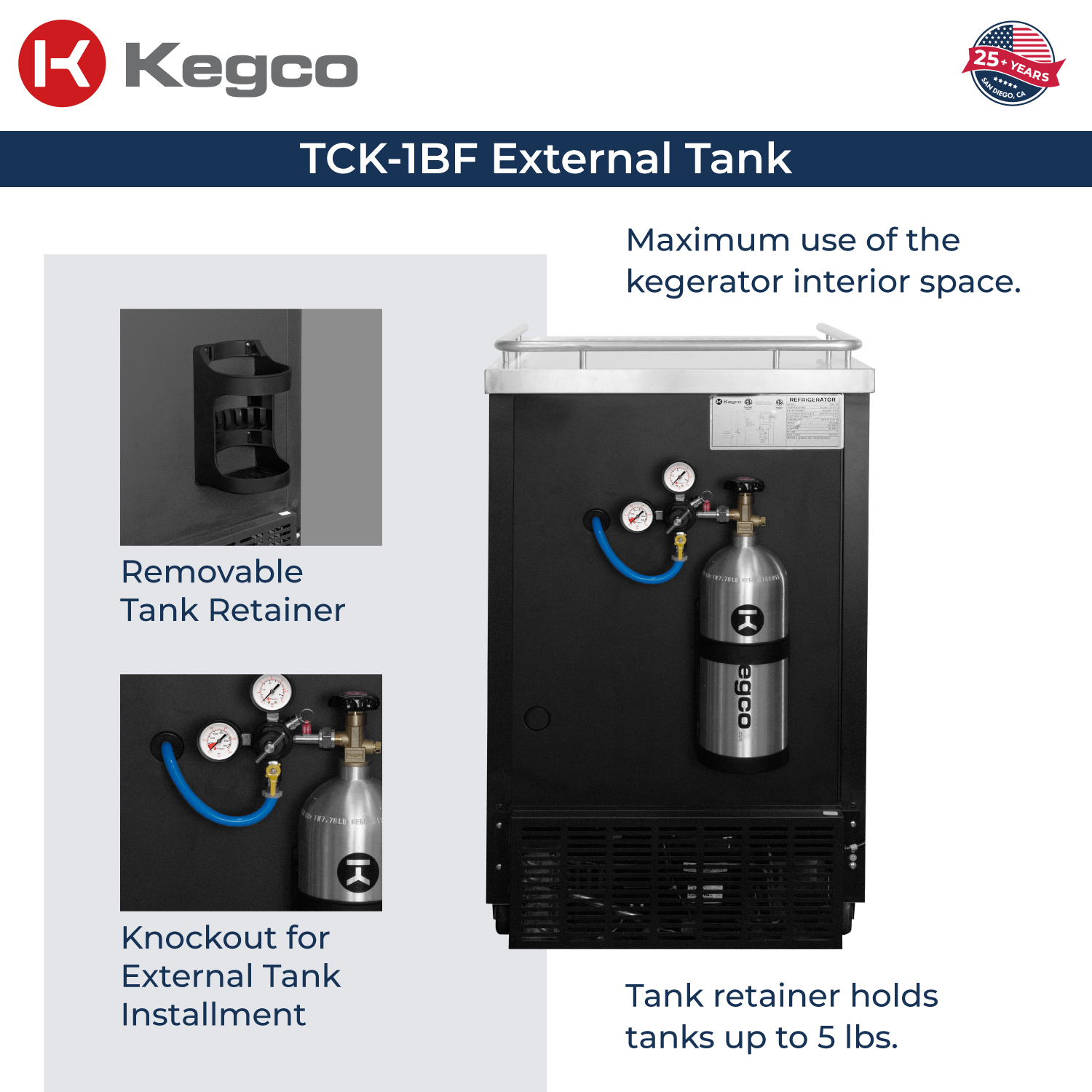

Knockout for External Tank

A knockout for external tank installment allows for more interior space for your kegs. Minimize internal clutter and maximize your kegerator space for four 5 gal kegs. The removable tank retainer holds CO2 or Nitrogen tanks up to 5 lbs.

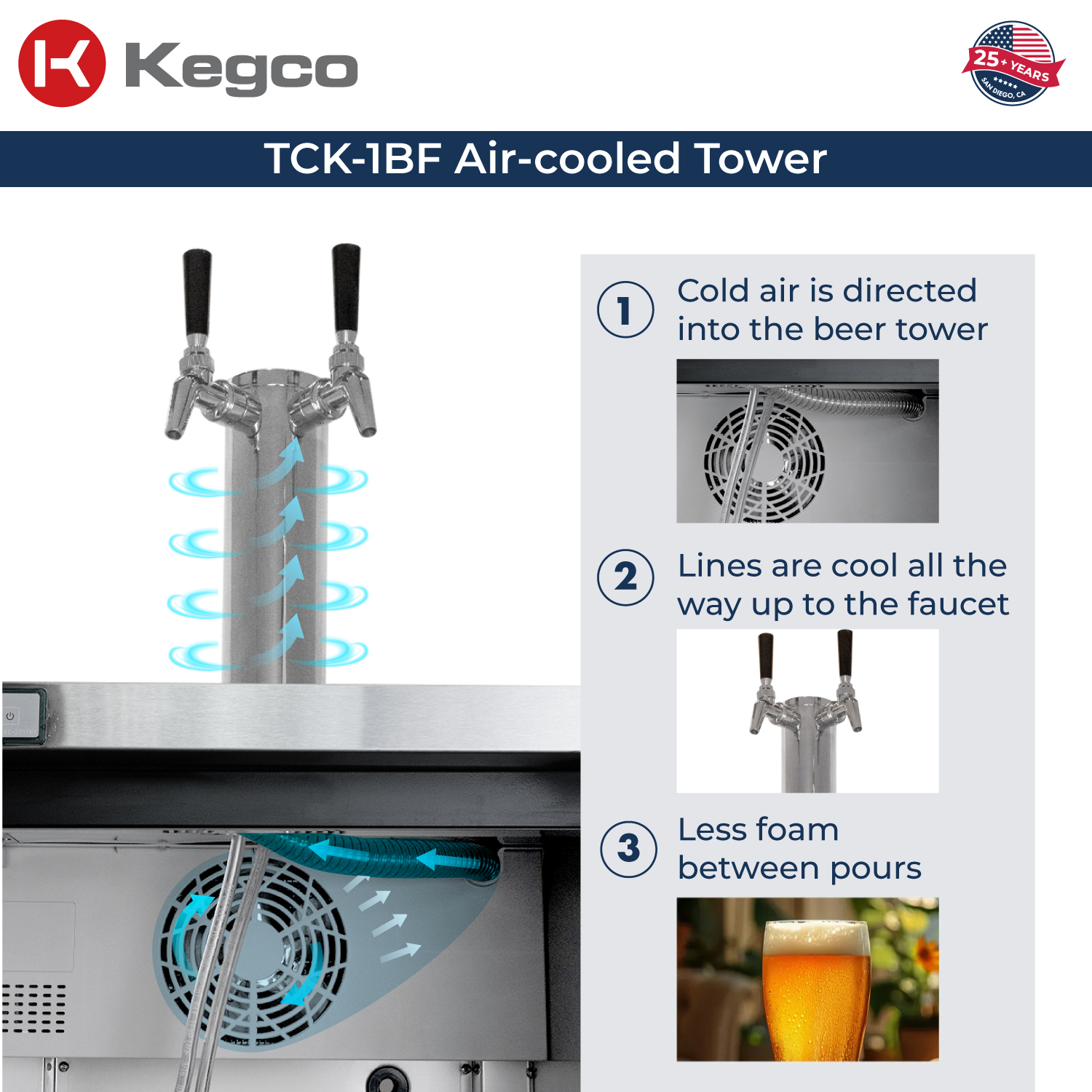

Air Cooled Tower Prevents Foam

Forced air refrigeration ensures that cold air is evenly distributed throughout the cabinet so there are no hot spots. Cold air is directed into the beer tower, ensuring that the lines are cool all the way up to the faucet so there's less foam between pours.

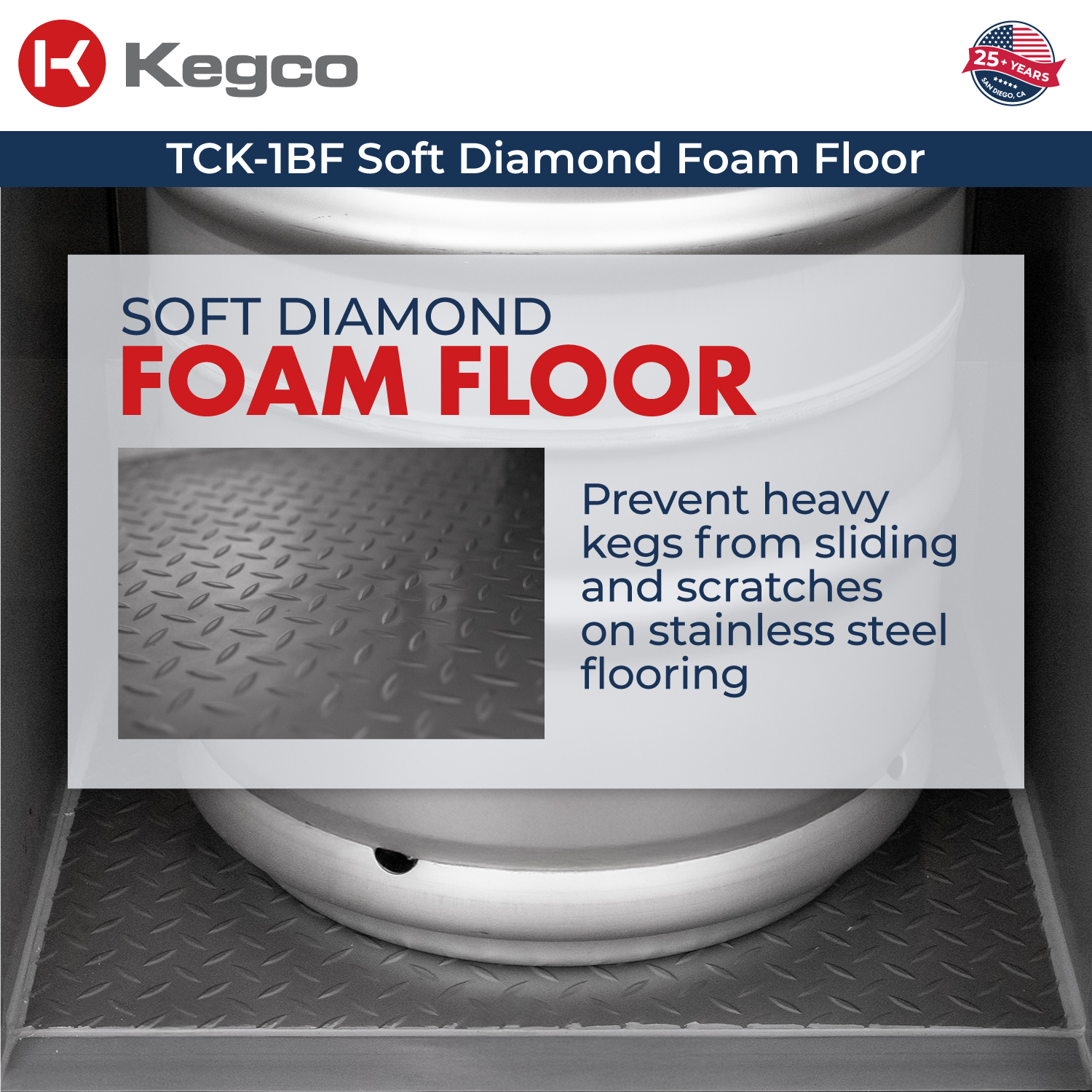

Soft Foam Floor

The kegerator comes with a soft diamond plated, non-slip foam floor that helps reduce the shock of heavy kegs on stainless steel, helping to prevent both your kegs and kegerators' floor from any scratches or damage.

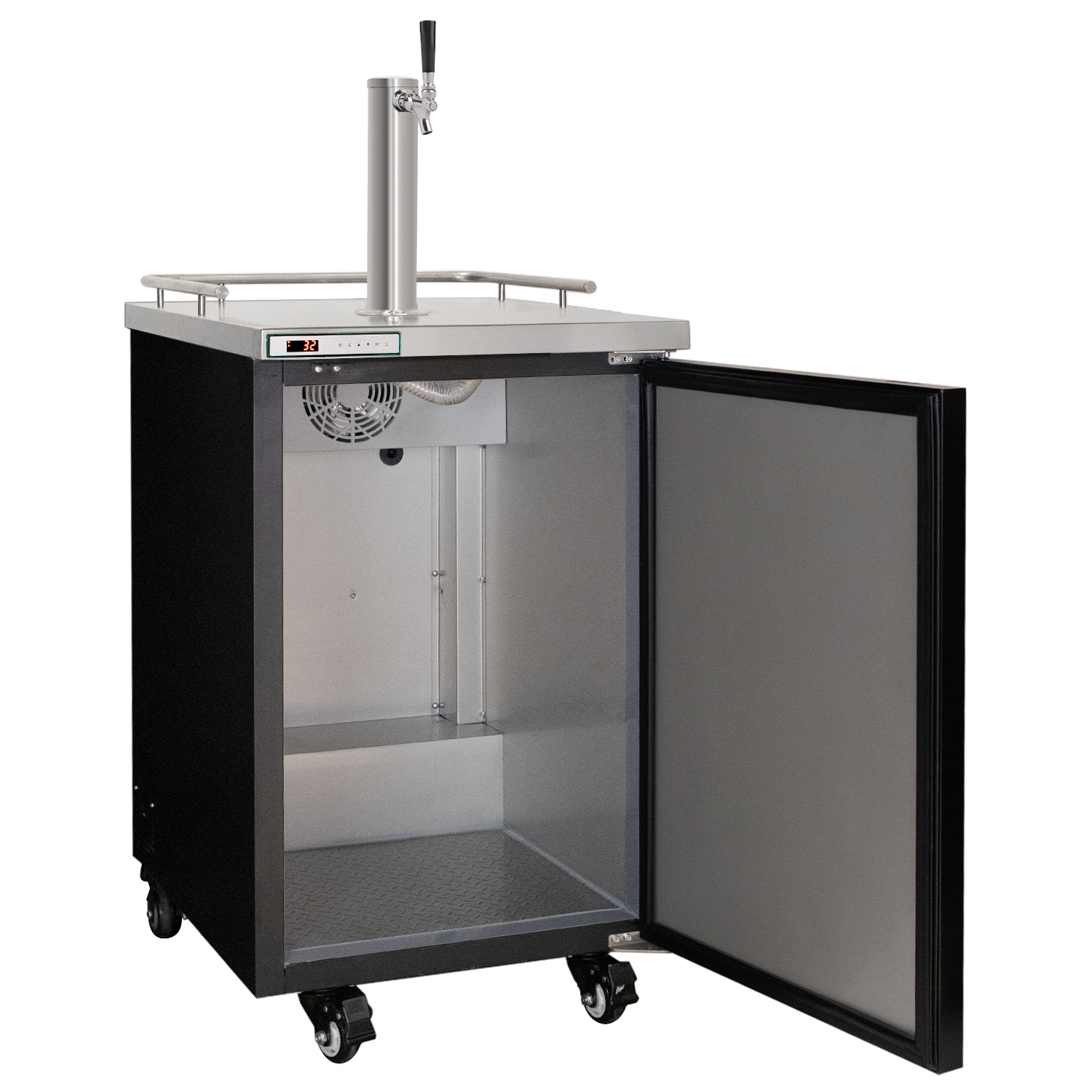

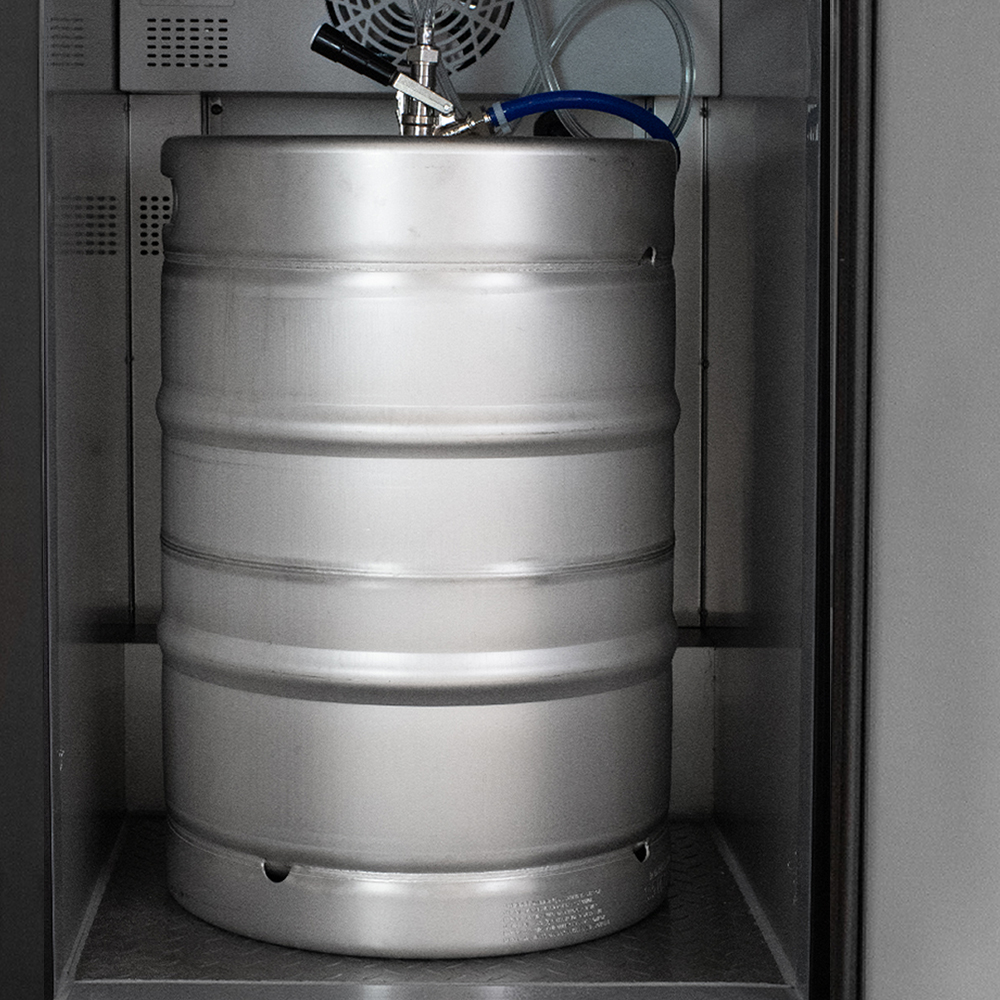

Large Interior

Spacious interior can easily hold any full-size keg or up to four 5 gallon D system and Cornelius ball lock home-brew kegs, allowing you to dispense more than one type of beer at a time.

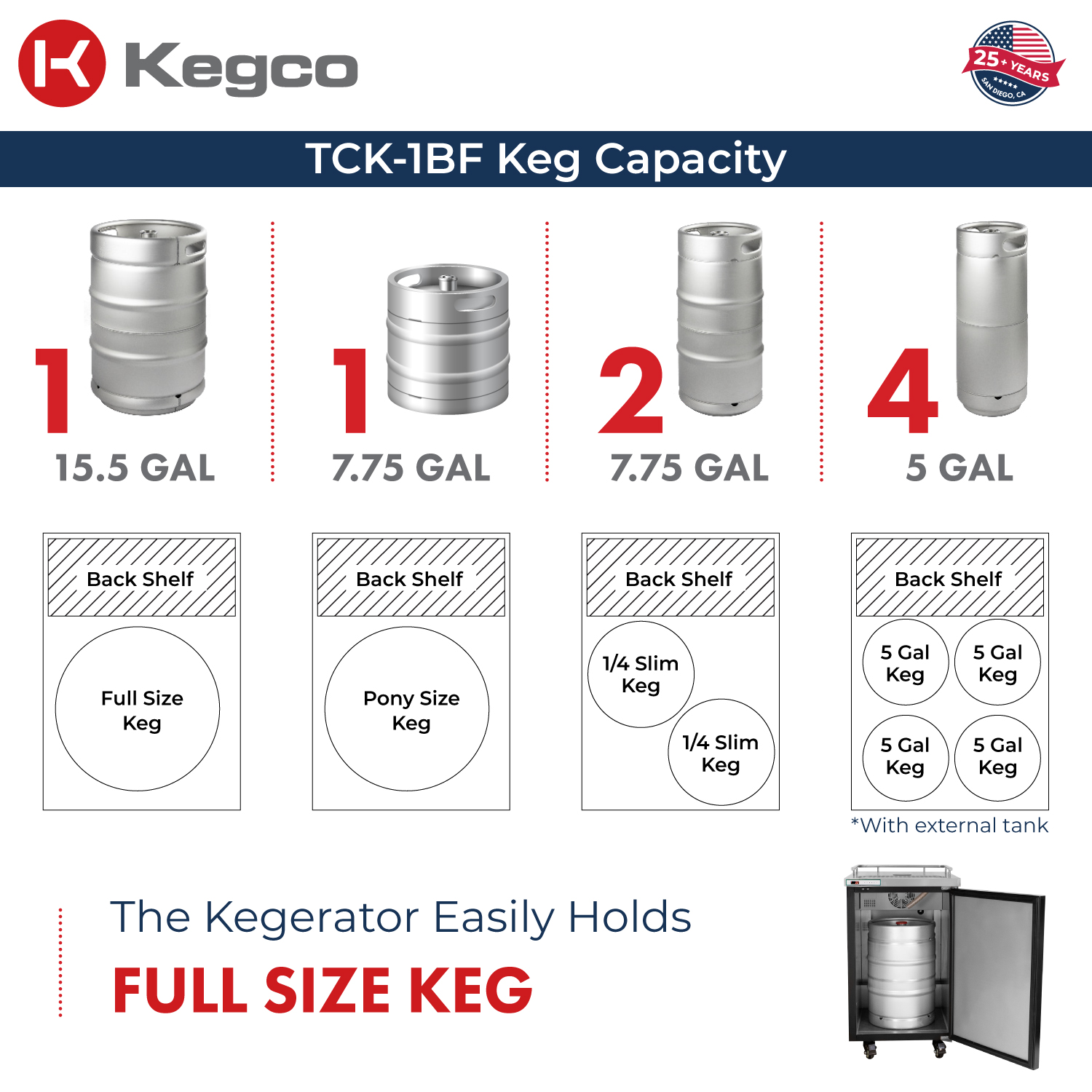

• Keg Storage Capacities:
• One (1) Full Size / 1/2-Barrel (15.5 Gal.)
• One (1) Pony Size / 1/4-Barrel Short (7.75 Gal.)
• Two (2) 1/4-Barrel Slim (7.75 Gal.) or
• Four (4) 1/6-Barrel (5.23 Gal.)
• Maximum Ambient Temperature: 90 degrees Fahrenheit
• Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
• Continuous Cold Air Channeled Through Tower to Ensure Cold Product
• Heavy-Duty Stainless Steel Top
• Built-In Drip Tray with Drain
• Stainless Steel Interior Walls and Ceiling
• Refrigeration System Utilizes Ozone Friendly R134a Refrigerant
• Knockout for Remote CO₂ or Nitrogen Tank
• Black Finish
• ETL and ETL Sanitation Listed for Commercial Use

Keg Configurations:

Some configurations require external CO₂ Tank mount.

Brand	Full Size	Pony Size	Quarter slim	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	1	1	1	2	2	2	2
Kegco K209	1	1	1	3	3	3	3
Kegco K309	1	1	1	3	3	3	3
Kegco VSK-15	0	0	0	1	1	1	1
Kegco SLK-15	0	0	0	1	1	1	1
Kegco Z163	1	1	1	2	3	2	3
Kegco HK38	1	1	2	3	3	3	3
Kegco XCK-1	1	1	2	4	4	4	4
Summit SBC677	1	1	1	2	3	2	3
Summit SBC635	1	1	1	2	3	3	3
Haier Kegerator	1	1	2*	2	3	3	3
Danby Kegerator	1	1	1	2	3	2	3
All Marvel Kegerators	1	1	1	2	3	3	3
Perlick HP15T	0	0	0	1	1	1	1
Perlick HP24T	0	1	0	2	2	1	2
Perlick HC24T	0	1	0	2	2	1	2
UBC Kegmaster	1	1	2	4**	3	4**	4**
Beverage Air BM23	1	1	2	3	4	4	4
Everest EBD1	1	1	1	2	3	3	3

Brand	Full Size	Pony Size	Quarter slim
Kegco K199	1	1	1
Kegco K209	1	1	1
Kegco K309	1	1	1
Kegco VSK-15	0	0	0
Kegco SLK-15	0	0	0
Kegco Z163	1	1	1
Kegco HK38	1	1	2
Kegco XCK-1	1	1	2
Summit SBC677	1	1	1
Summit SBC635	1	1	1
Haier Kegerator	1	1	2*
Danby Kegerator	1	1	1
All Marvel Kegerators	1	1	1
Perlick HP15T	0	0	0
Perlick HP24T	0	1	0
Perlick HC24T	0	1	0
UBC Kegmaster	1	1	2
Beverage Air BM23	1	1	2
Everest EBD1	1	1	1

Brand	5 Gallon D System	5 Gallon Ball Lock	5 Gallon Pin Lock	5 Gallon Strap Handle
Kegco K199	2	2	2	2
Kegco K209	2	3	3	3
Kegco K309	2	3	3	3
Kegco VSK-15	1	1	1	1
Kegco SLK-15	1	1	1	1
Kegco Z163	2	3	2	3
Kegco HK38	3	3	3	3
Kegco XCK-1	4	4	4	4
Summit SBC677	2	3	2	3
Summit SBC635	2	3	3	3
Haier Kegerator	2	3	3	3
Danby Kegerator	2	3	2	3
All Marvel Kegerators	2	3	3	3
Perlick HP15T	1	1	1	1
Perlick HP24T	2	2	1	2
Perlick HC24T	2	2	1	2
UBC Kegmaster	4**	3	4**	4**
Beverage Air BM23	3	4	4	4
Everest EBD1	2	3	3	3

* - Using Wood riser for front keg

** - With external CO2 tank (3 with internal CO2 tank)

Labor - 12 Months

For one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished.

Parts - 60 Months

For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers’ shop and back to the user's home, as may be required, are the user's responsibility.

Additional Details

• Content losses of food or other, due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
  • Door springs, and/or frames.
  • Inner door panels, door rails and/or door supports.
  • Light bulbs and/or plastic housing.
  • Plastic cabinet liners.
  • Punctured evaporator that voids the warranty on the complete sealed system.
  • Repairs performed by unauthorized servicers.
  • Shipping and handling costs associated with the replacement of the unit.
  • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
  • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
  • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
  • Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.
