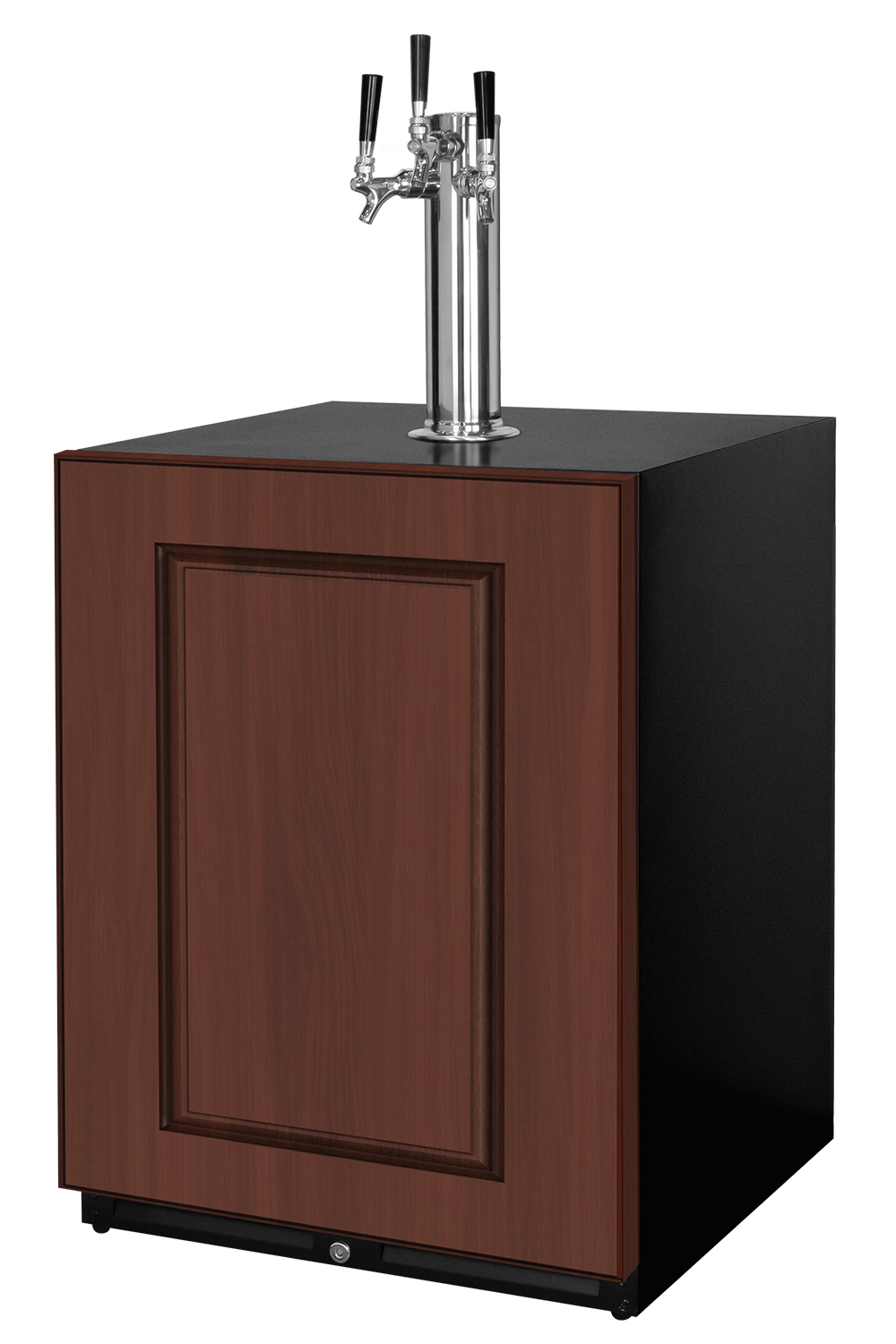

Kegco 24" Wide Homebrew Triple Tap Panel Ready Overlay Commercial Built-In Left Hinge Kegerator

Model: HBV24UPRL-3
0 Reviews
$3,707.27SAVE 45% - $1668.27
$2,039.00

+ FREE SHIPPING

90 Day Money Back Guarantee

Exterior

Black w Stainless Steel Door
$1,775.80
All Stainless Steel
$1,819.25
Panel Ready
$2,039.00

Taps

1 Tap
$1,899.00
2 Tap
$1,948.00
3 Tap
$2,039.00

Hinge

Right Hinge
$2,069.25
Left Hinge
$2,039.00
IN STOCK (usually ships within 24 hours)
DESCRIPTION
SPECS
INFO & GUIDES
REVIEWS
Q&A

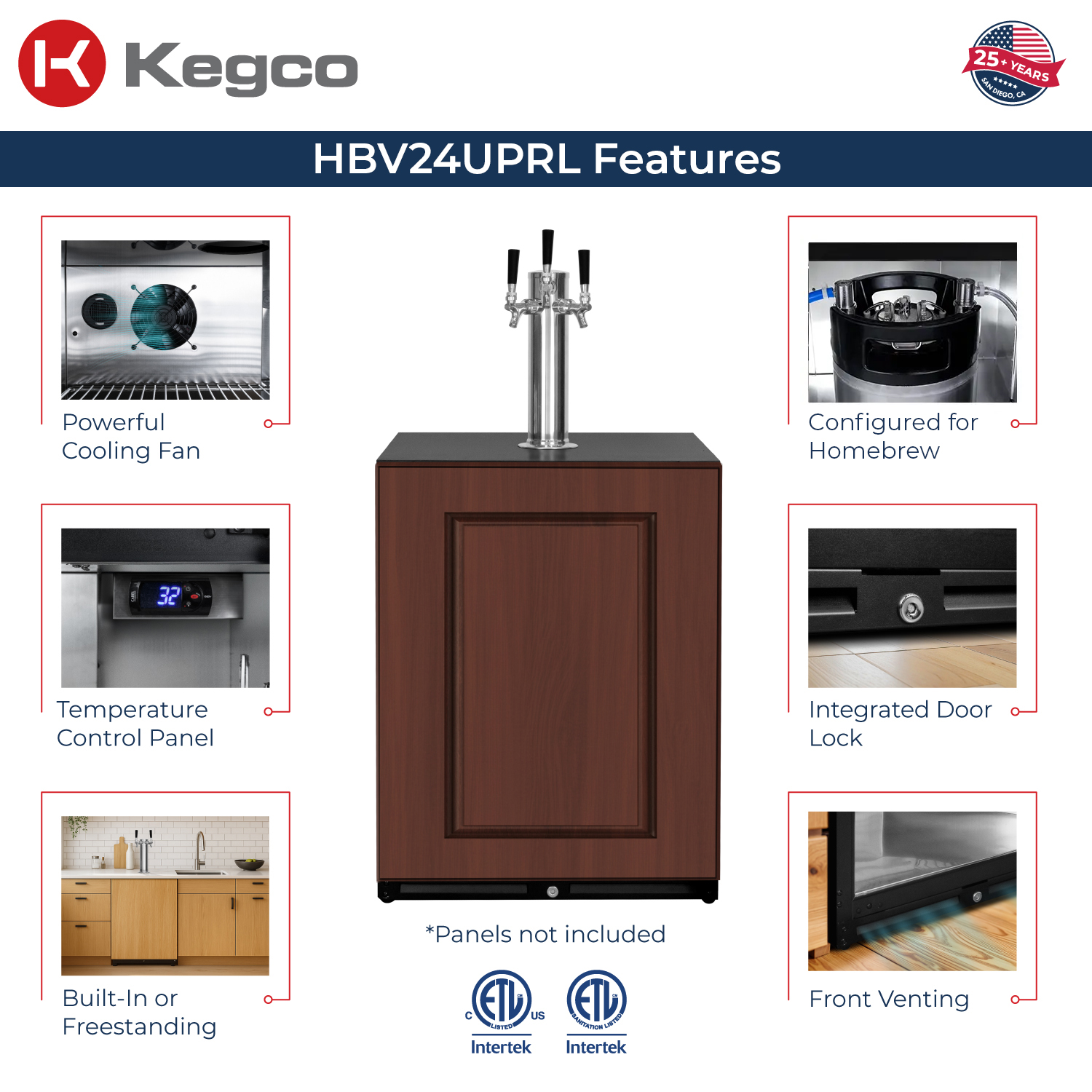

  • Specially designed to meet the unique requirements of dispensing home brew beer from a ball lock keg

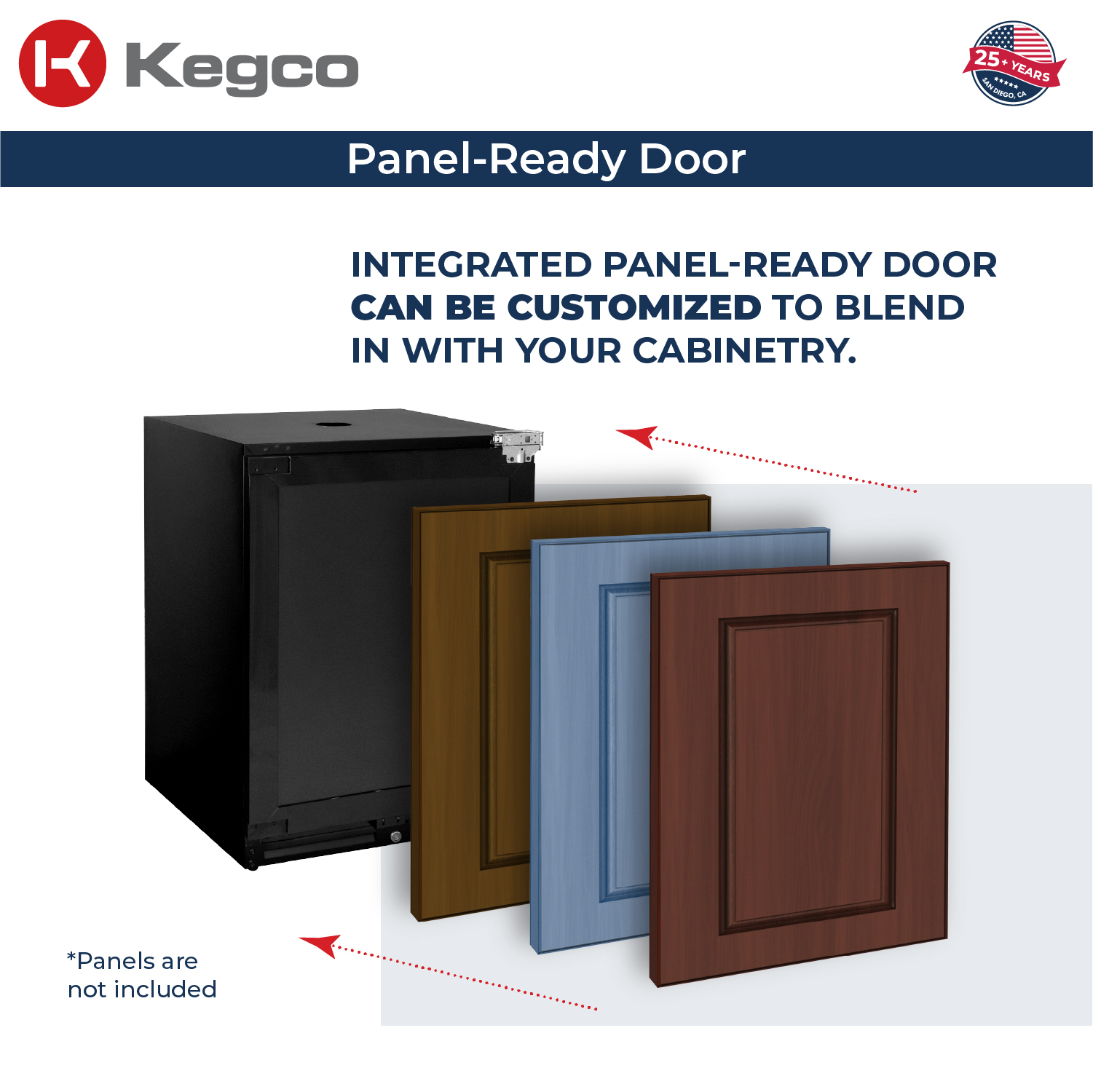

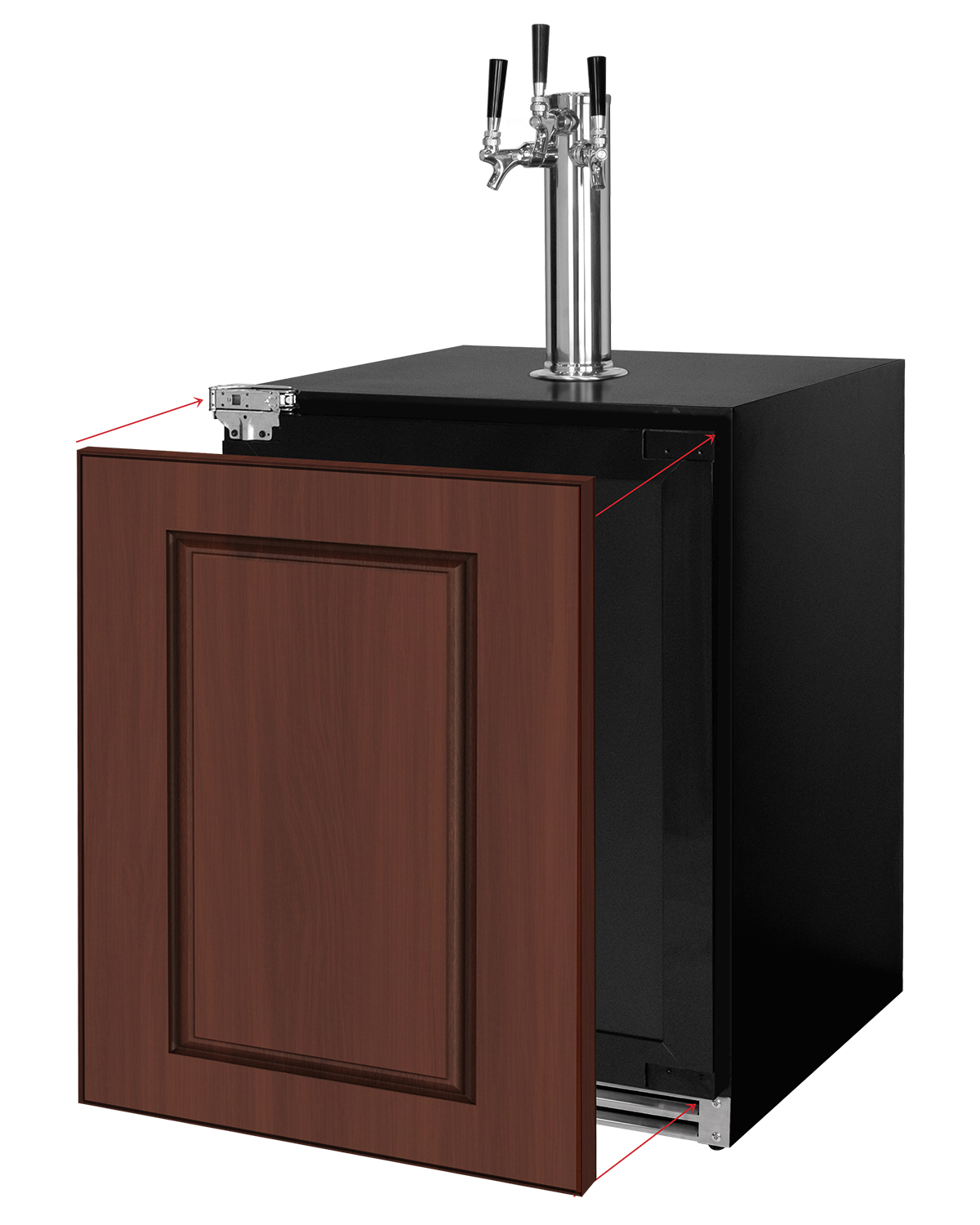

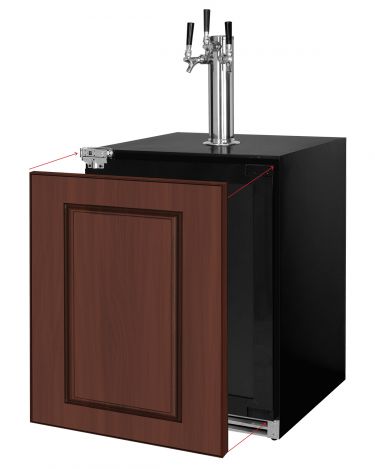

  • 24 inch wide kegerator with panel-ready doors can be built in undercounter to provide a seamless look to match your cabinetry
  • Engineered to fit full-size kegs, quarter slim kegs, or 5-gallon ball lock kegs - maximizing flexibility in tight spaces
  • Utilizes forced air refrigeration for even cooling ensures that every drop is served ice cold
  • Premium dispense components include a 100% stainless steel contact tower, a premium dual gauge regulator and a corrosion-resistant CO2 tank

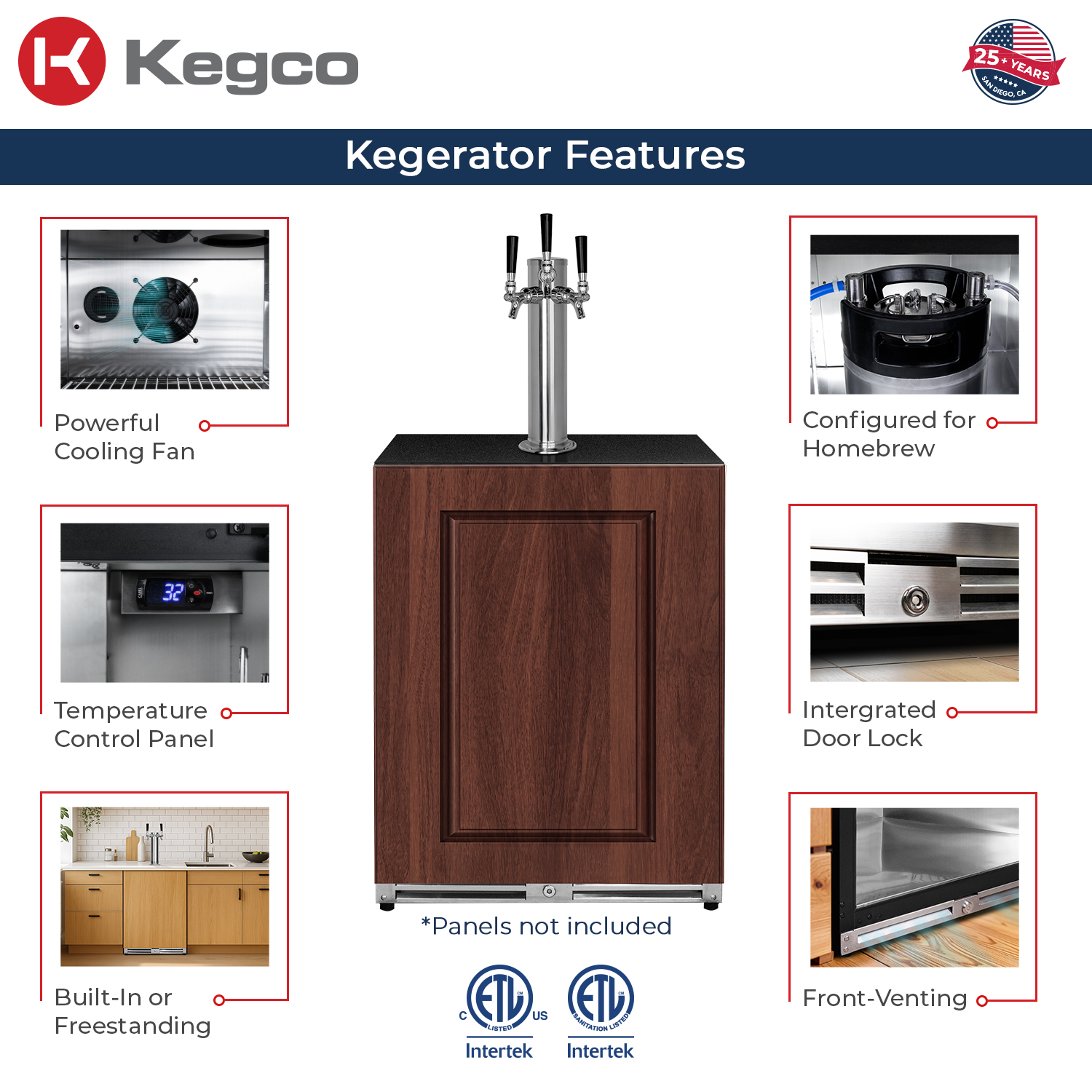

front venting for built-in or freestanding use

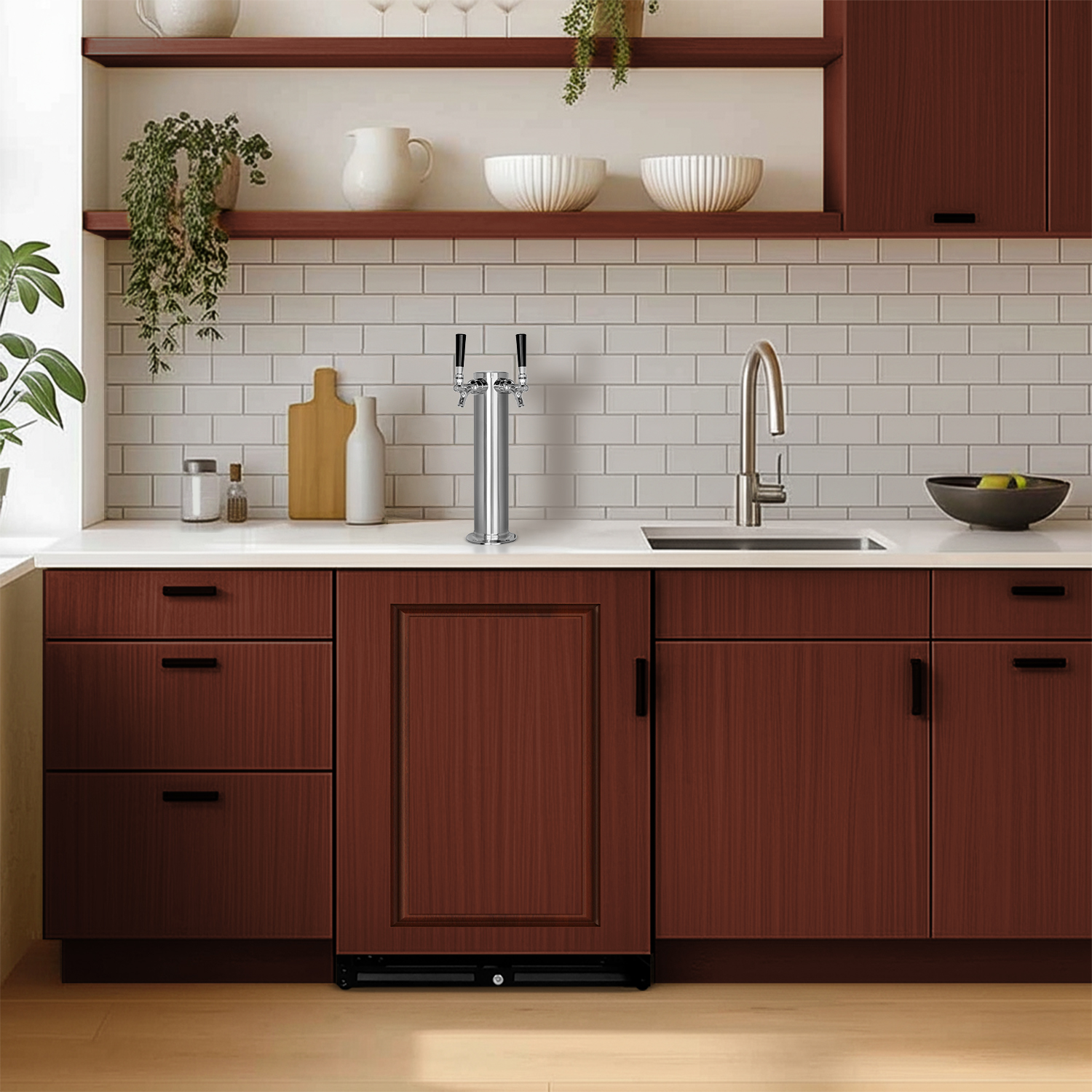

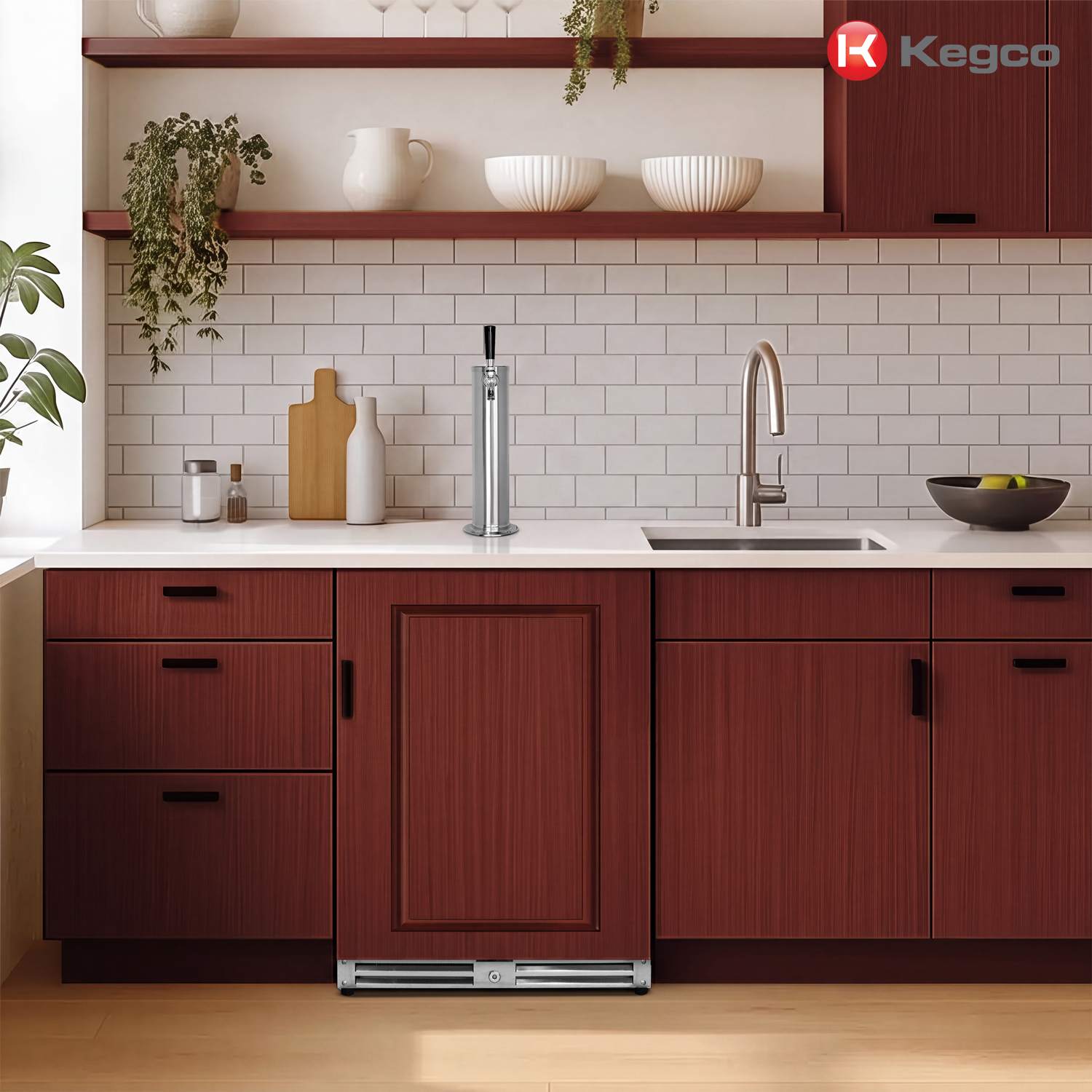

Built-In or Freestanding Use

The front-venting design allows you to build this kegerator into cabinetry for a seamless look that is easy to maintain and provides more floor space. An integrated tap in your countertop gives you immediate access to fresh, cold beverages.

digital display temperature control

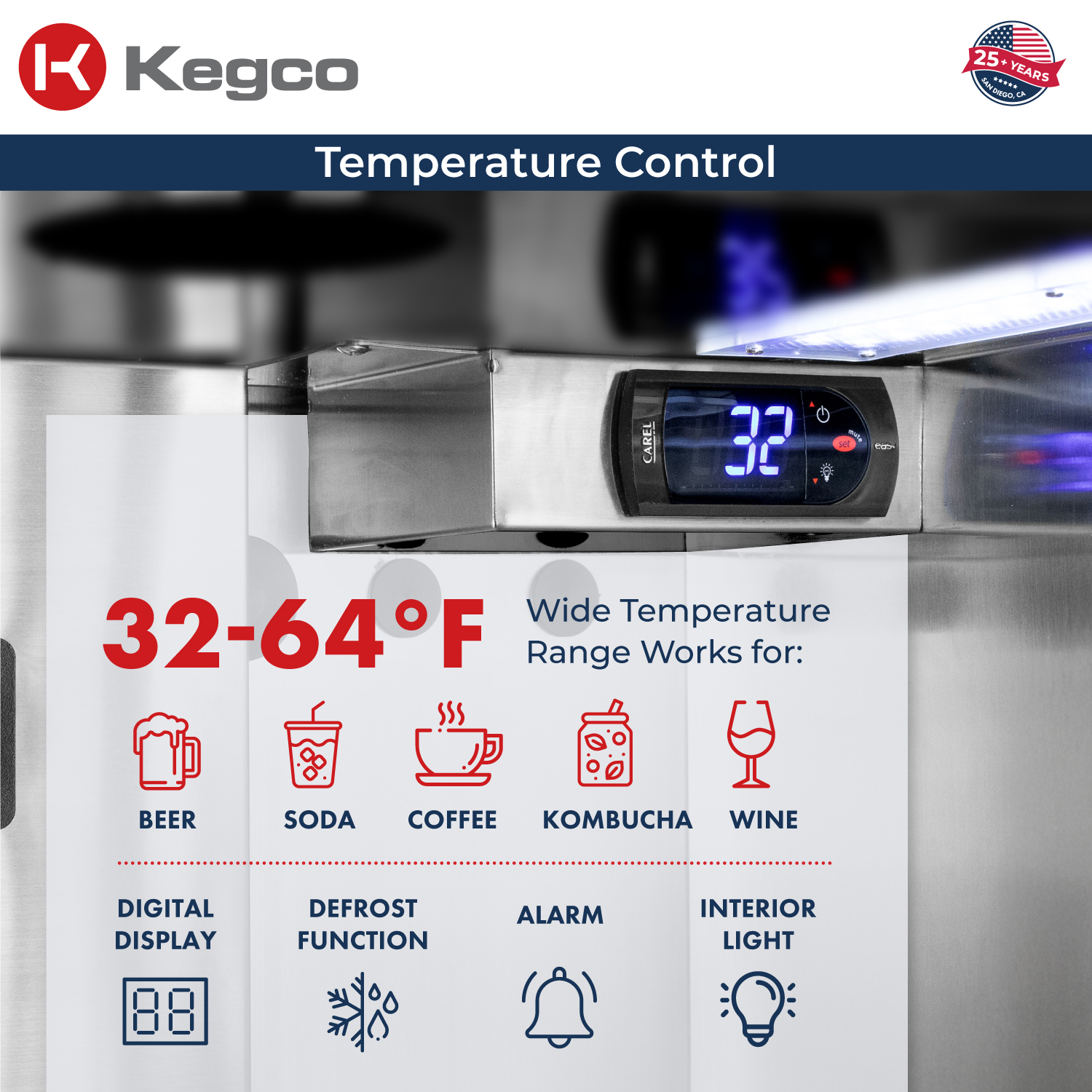

Digital Temperature Display

Easily adjust and view the set temperature, toggle between Celsius and Fahrenheit, or turn the interior light on and off with the push of a button. The temperature can be set between 32-64 degrees Fahrenheit to serve beer, wine, kombucha, or coffee.

customized to work with homebrew ball lock kegs

Homebrew Ball Lock Keg

Comes with a set of ball lock barb connectors that meet the unique requirements of dispensing home brew beer. Includes both a gas in and beer out coupler that works with ball lock Cornelius Pepsi kegs.

fan forced cooling

Fan Forced Cooling

Forced air refrigeration evenly distributes cold air throughout the cabinet, so there are no hot spots. This keg refrigerator also utilizes automatic defrost to help ensure easy maintenance.

locking stainless steel door

Integrated Door Lock

The unit features a robust lock to reliably keep your valuable contents secure. It comes with an equipped door alarm that will sound if the door is inadvertently left open for an extended period, providing an extra layer of protection and peace of mind.

keg capacity

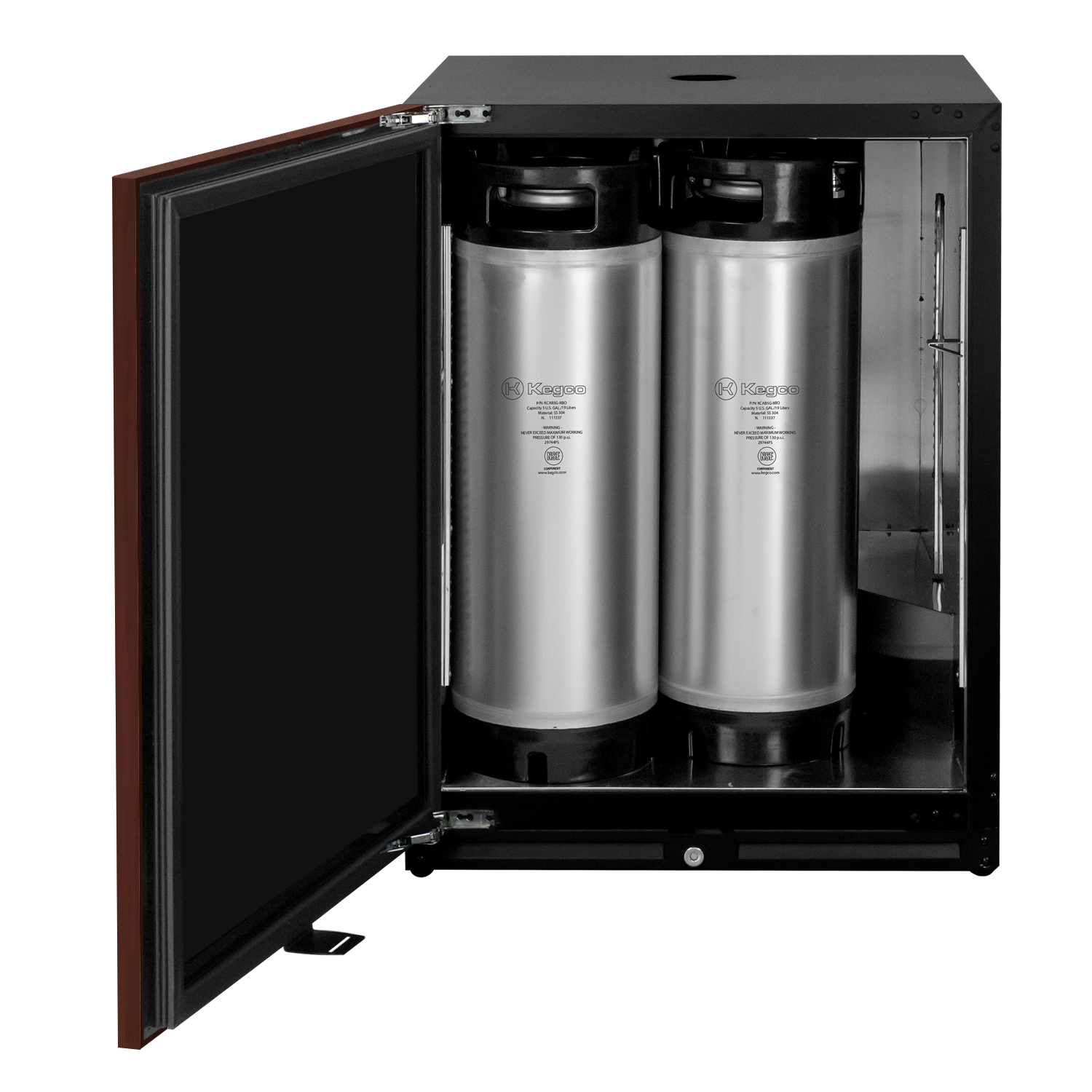

Fits Variable Kegs

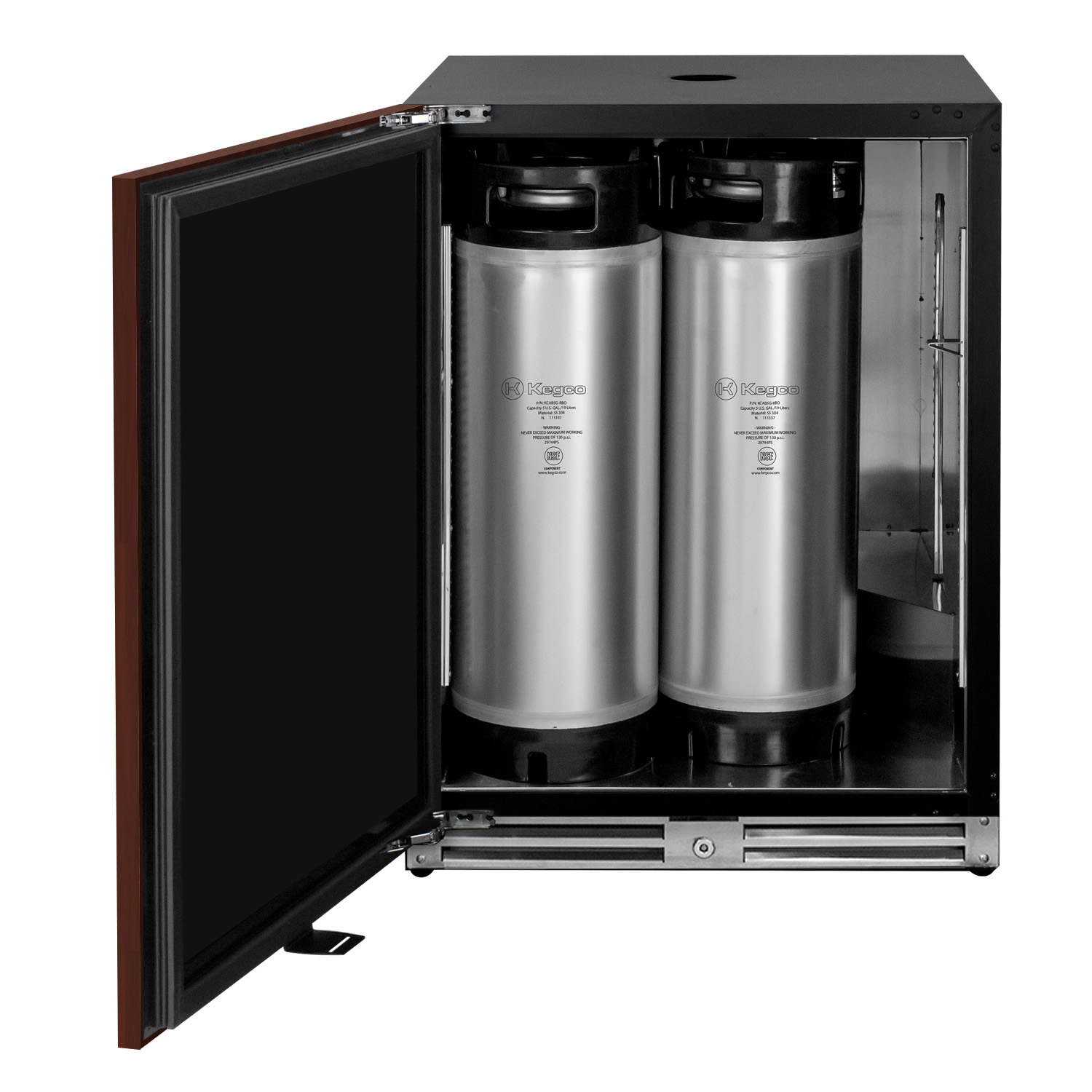

Accommodates a full-size, 7.75 gallon and 5-gallon kegs, giving you maximum beverage flexibility without sacrificing space. The smart layout makes it ideal for environments where every inch counts.

The back panel includes three knockouts: one measuring 1" and two measuring 5/8", providing flexible routing options for your setup.

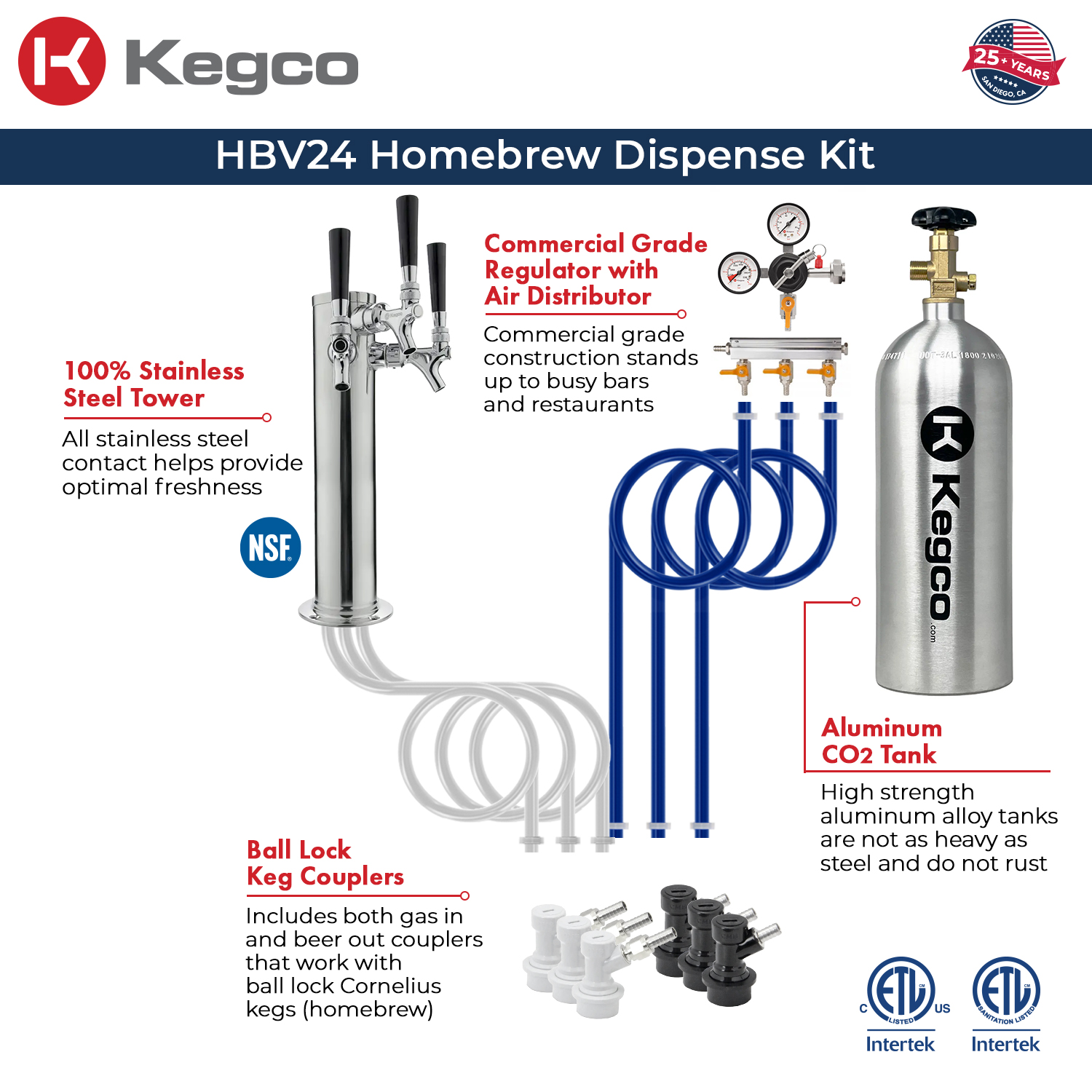

Dispense System includes tower, regulator, homebrew keg coupler, and CO2 tank

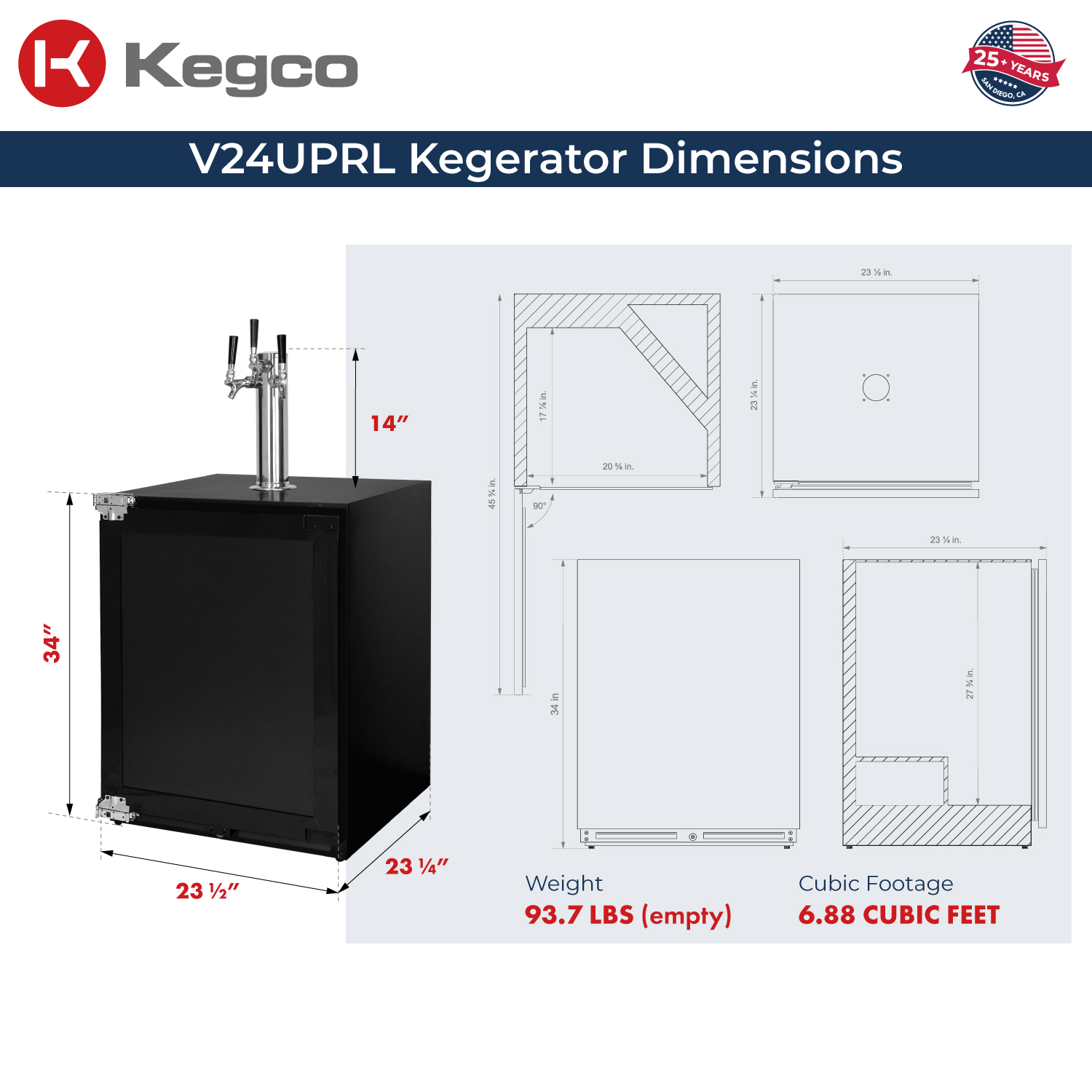

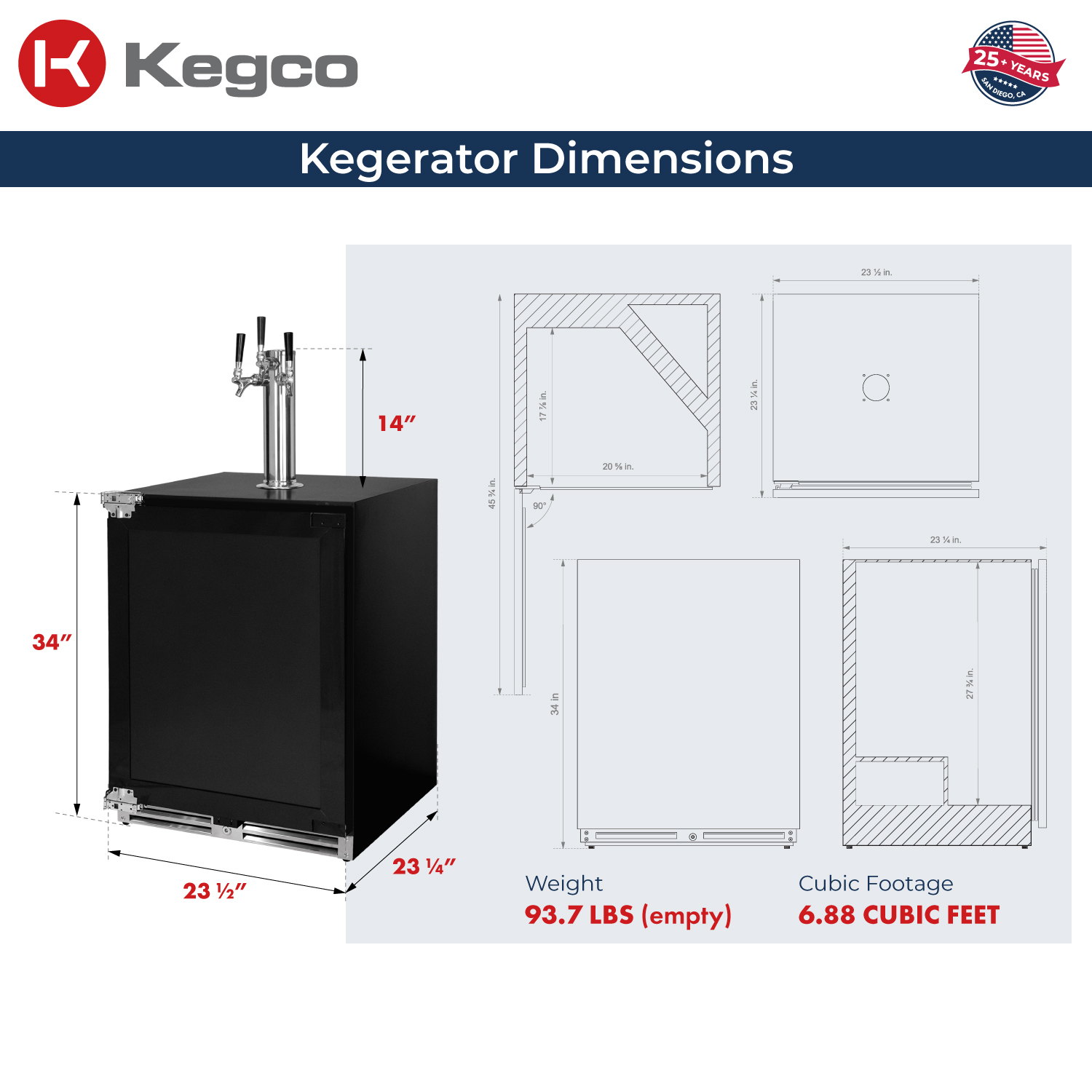

Dimensions
Height34"
Width23.5"
Depth23.25"
Capacity6.88 cu.ft.
Weight
Unit Weight93.7 lbs.
Warranty
Labor1 Year
Parts1 Year
Compressor (Parts Only)5 Years
Key Features
Built-in CapableYes
Door SwingLeft Hinge
Keg CouplerYes
Security LockYes
RegulatorYes
CO2 TankYes
Cleaning KitOptional Add-On
Outdoor UseNo
Commercial UseYes
Tap KitYes
Number of Taps3

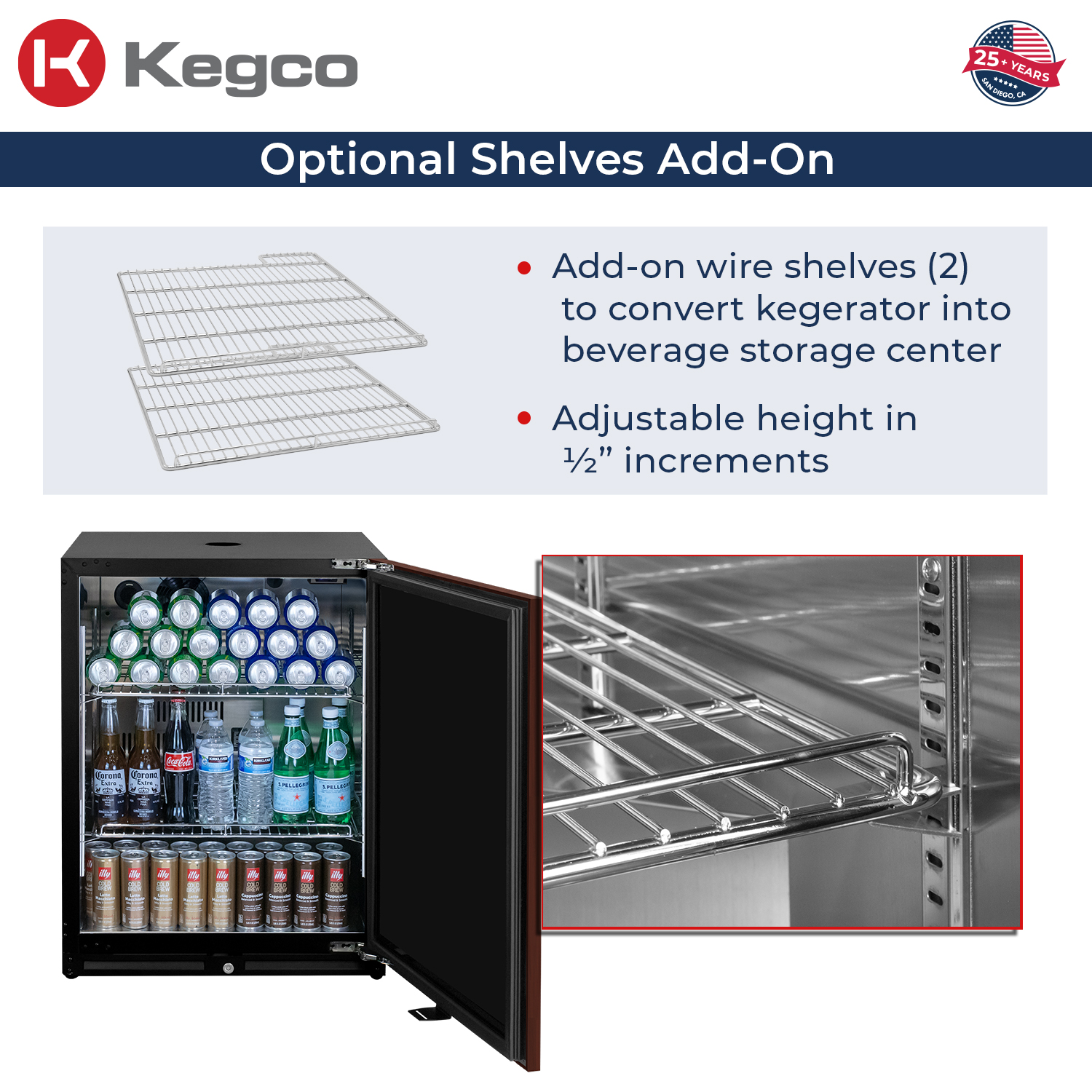

Adjustable ShelvesOptional Add-On
Shelf TypeWire
Interior LightYes

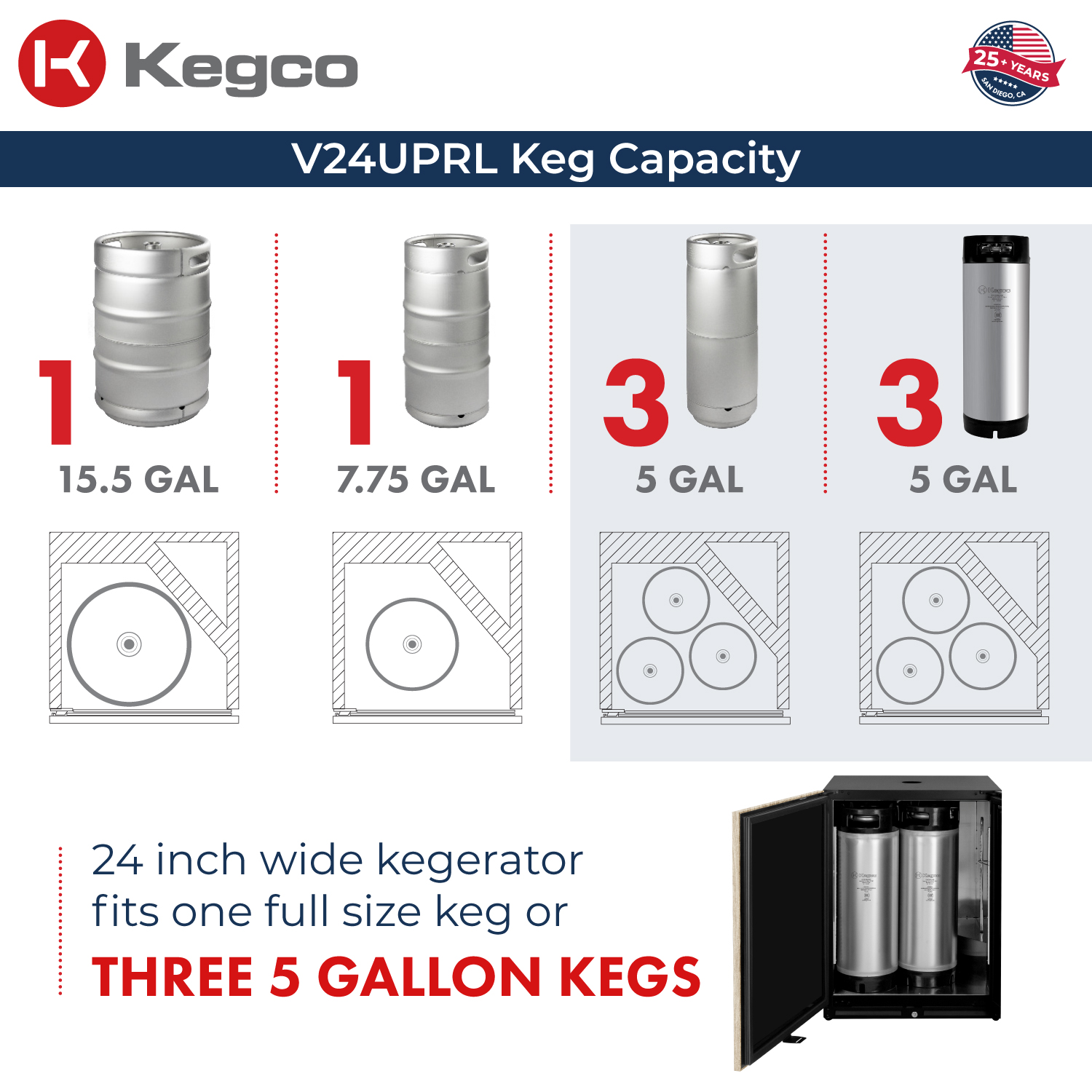

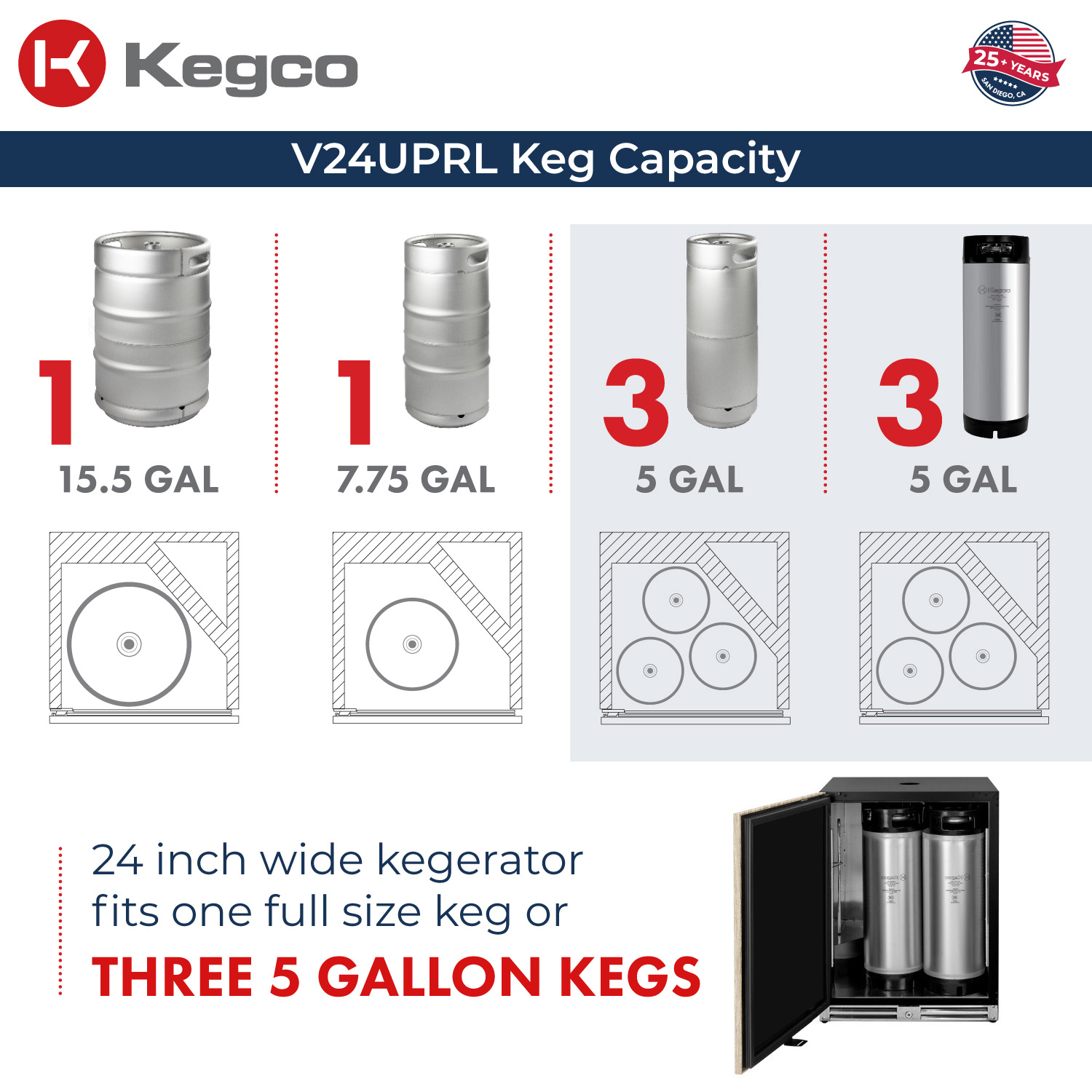

Keg Storage Capacities
Full Size / 1/2-BarrelHolds 1
Pony Size / 1/4-BarrelHolds 1
1/4-Barrel SlimHolds 1
1/6-BarrelHolds 3
5 gal. Ball/Pin Lock KegHolds 3
Exterior
CabinetBlack
Drip TrayNo
Guard RailNo
CastersNo
Draft Beer Tower
Number of Faucets3
MaterialStainless Steel
Height14"
Diameter3"
Door
Number of Doors1
Door HandleNo
Field ReversibleNo

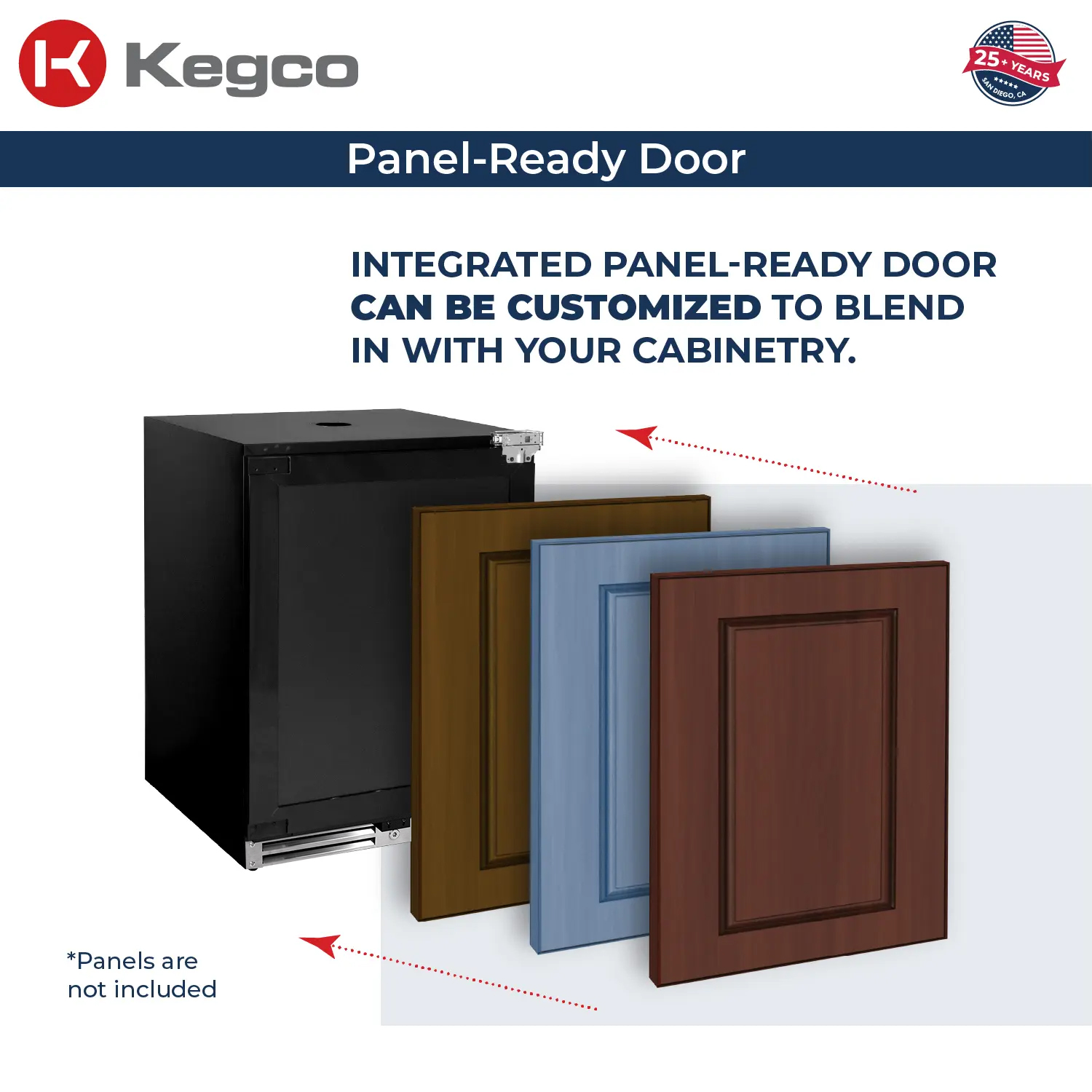

Accepts Custom Overlay PanelYes
Cooling System
TypeCompressor
Defrost SystemAutomatic
Front VentilationYes
RefrigerantR600a
Refrigerant Amount1.41 oz.
Temperature Range32-64 degrees Fahrenheit
Controls
Adjustable ThermostatYes
DigitalYes
Electrical
Electrical Requirements110v/60hz
Running Amps1.28 A
Instruction Manual Panel Ready Door Installation Spec Sheet
