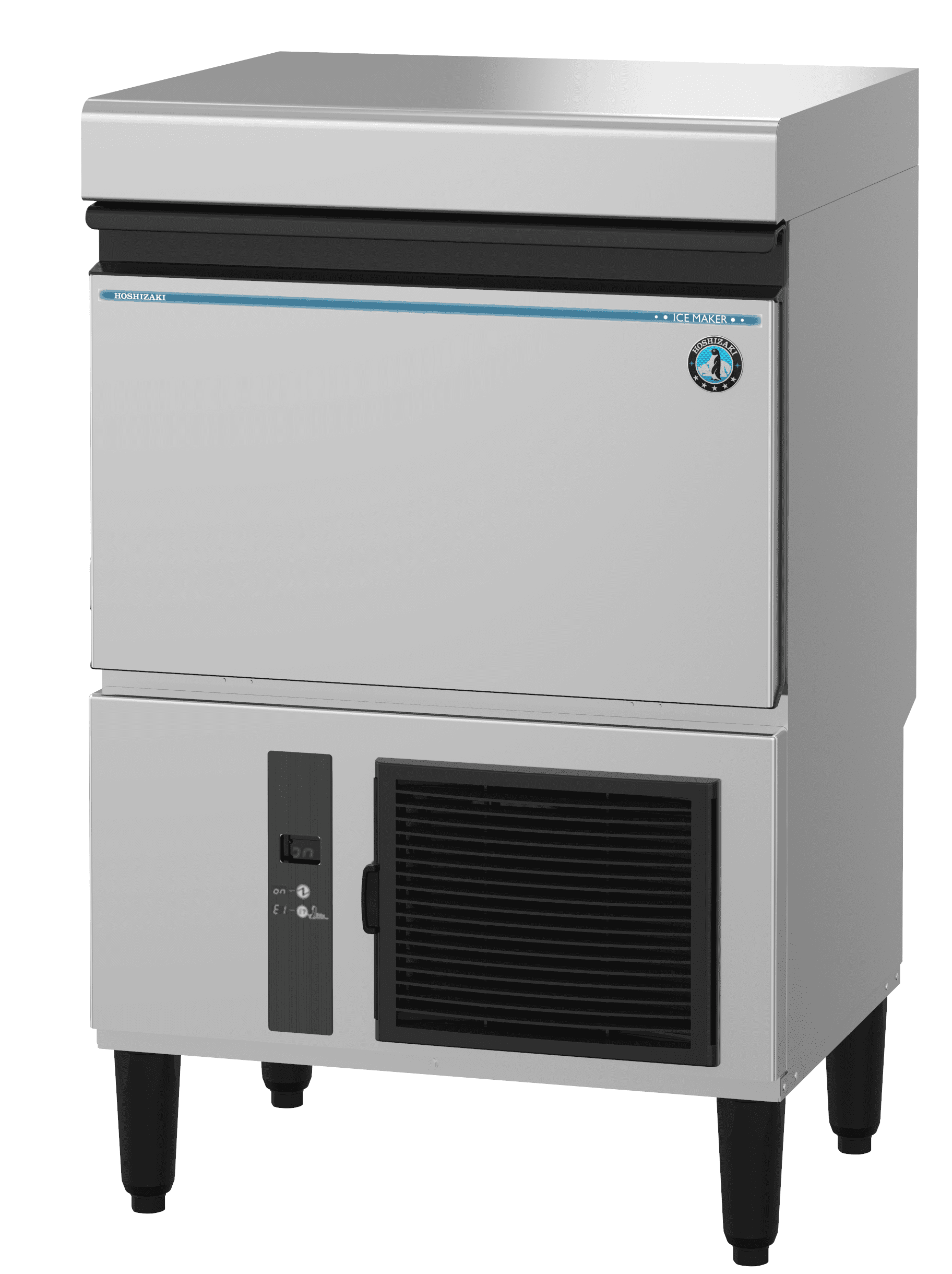

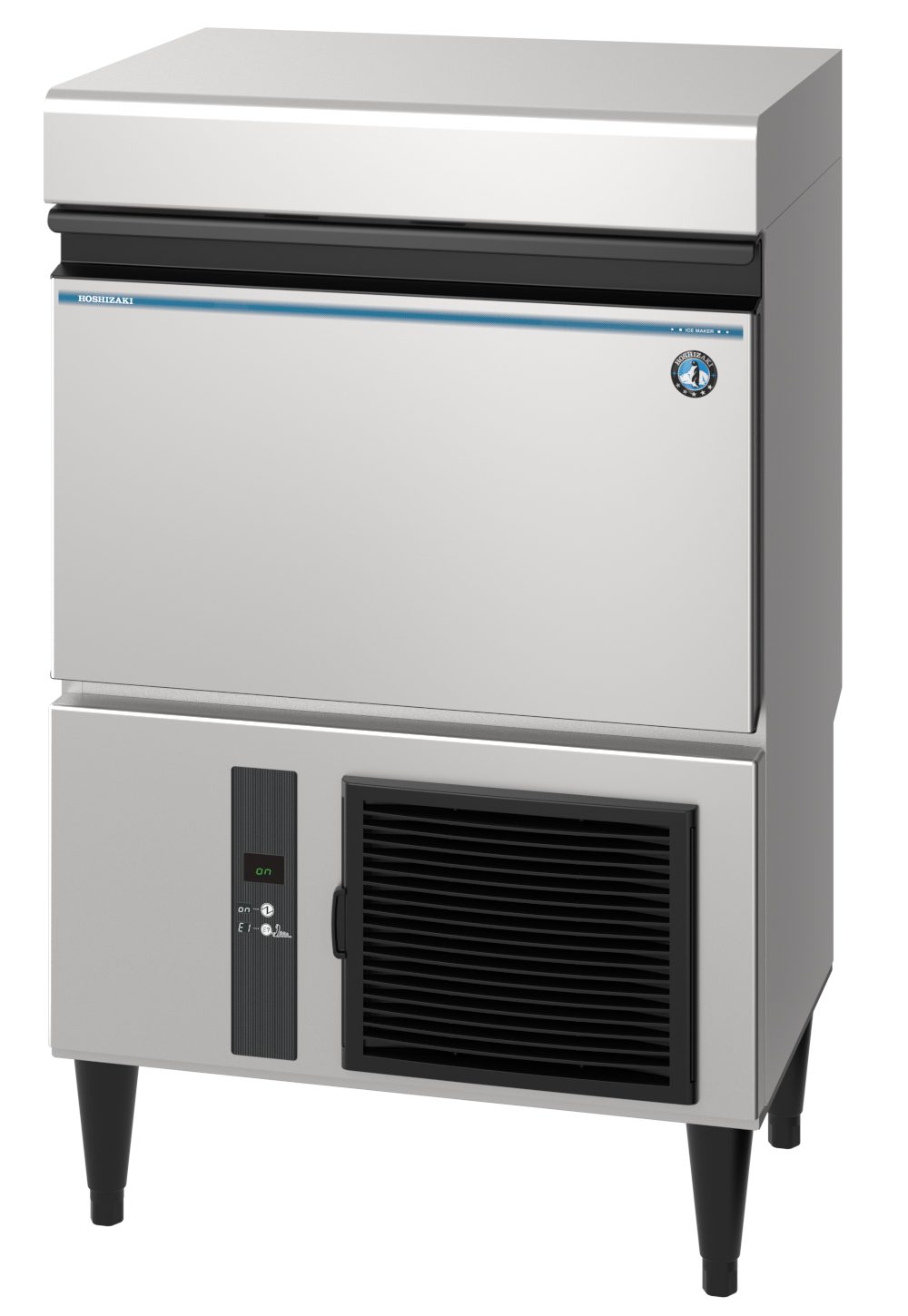

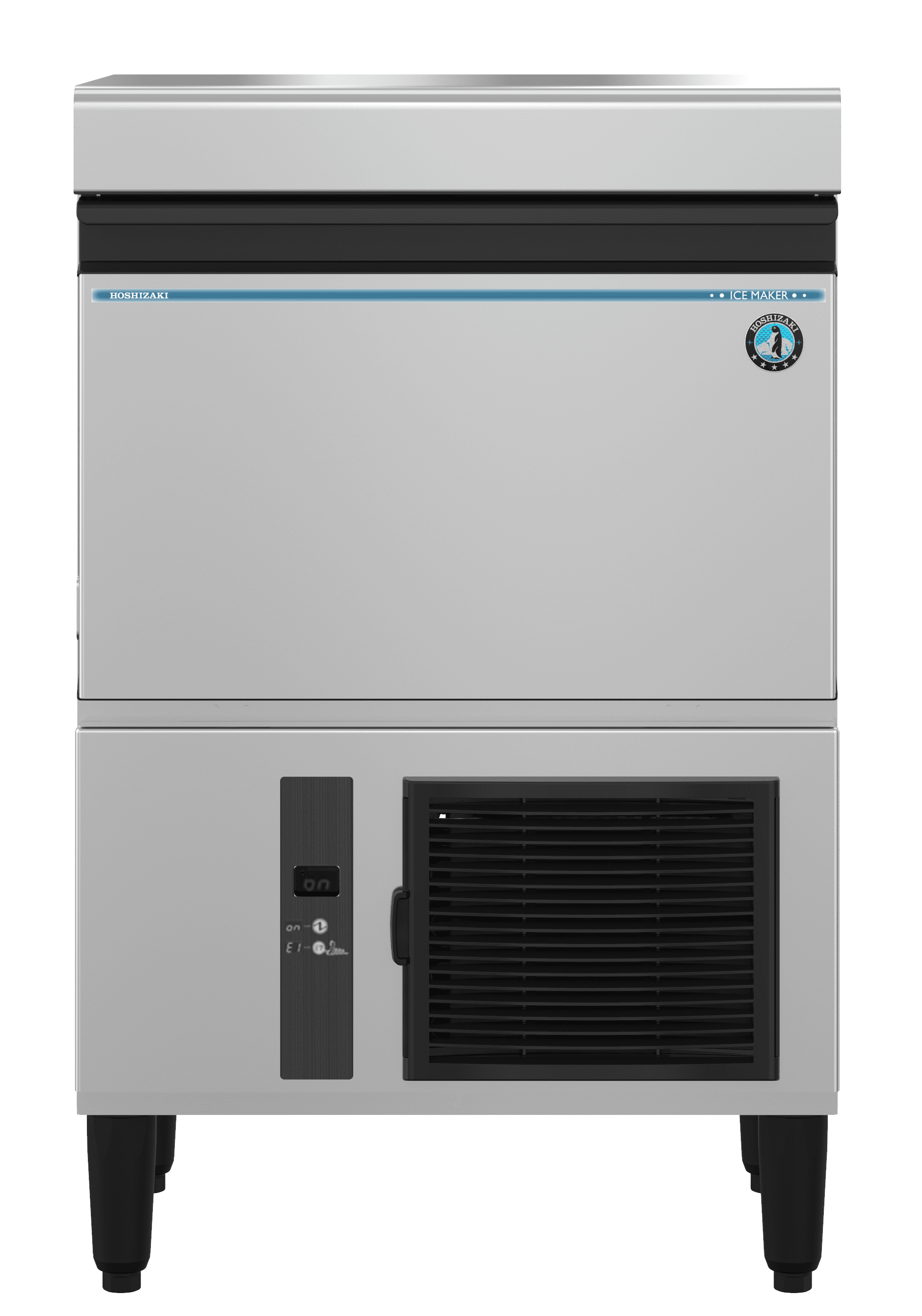

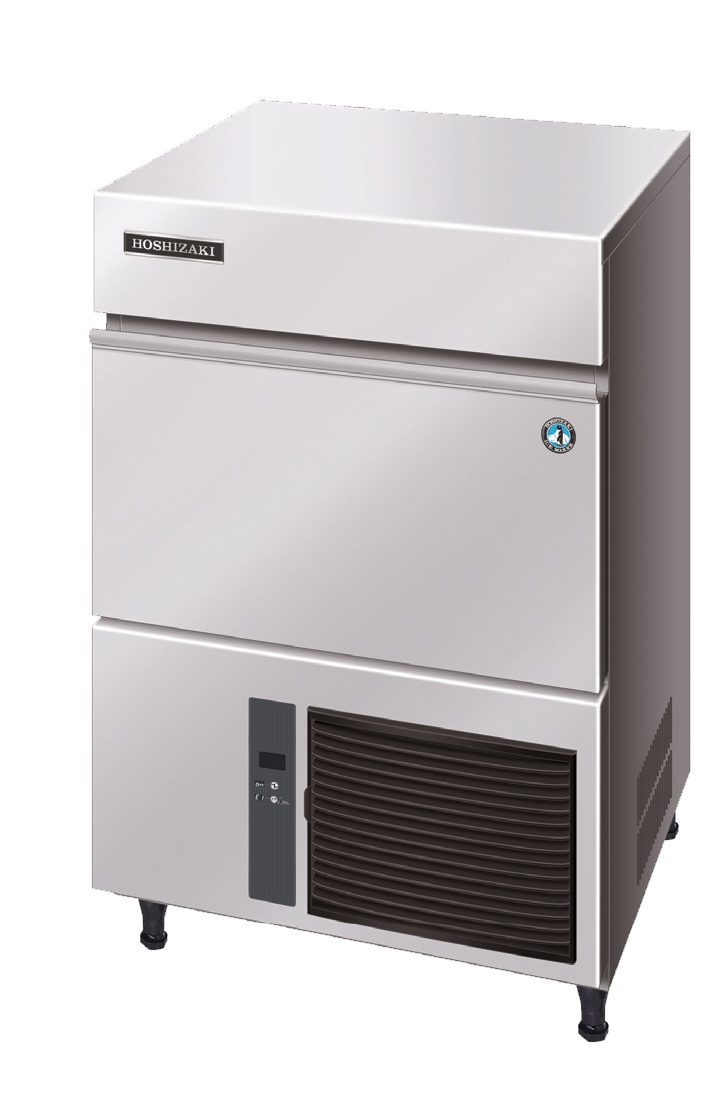

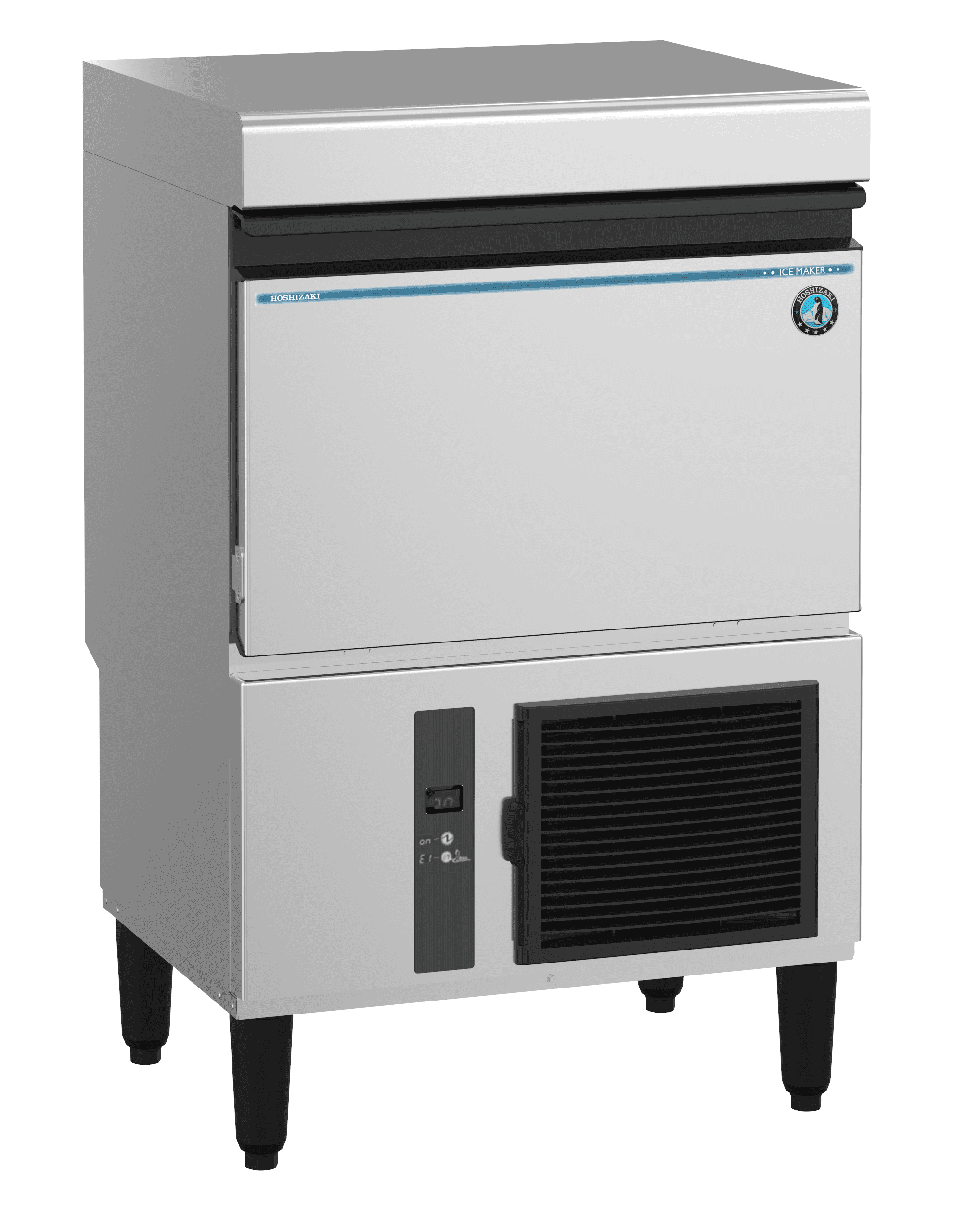

Hoshizaki Air-Cooled Sphere Cube Icemaker w/Built-In Storage Bin

The Hoshizaki IM-50BAA-Q is capable of producing approximately 50 lbs. of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution.

This Air-cooled, Built in Storage Bin icemaker features Up to 36 lbs. of built-in storage capacity (ft3)*. The IM-50BAA-Q is a Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz. / 201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the Specification Sheet for additional details.

*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb./ft3 average density of ice. IMD-50B50BAAPFAS Warning: This product contains PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl)oxy]-, polymer with 1,1,2,2-tetrafluoroethene.

Electrical Specs
Single phase, 115v/60/1, 6' 5" ft cord with NEMA 5-15 plug, Amperage: 5, Max Fuse/HACR Breaker: 15 A

Operating Limits
Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 1500 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g)

Plumbing Specs

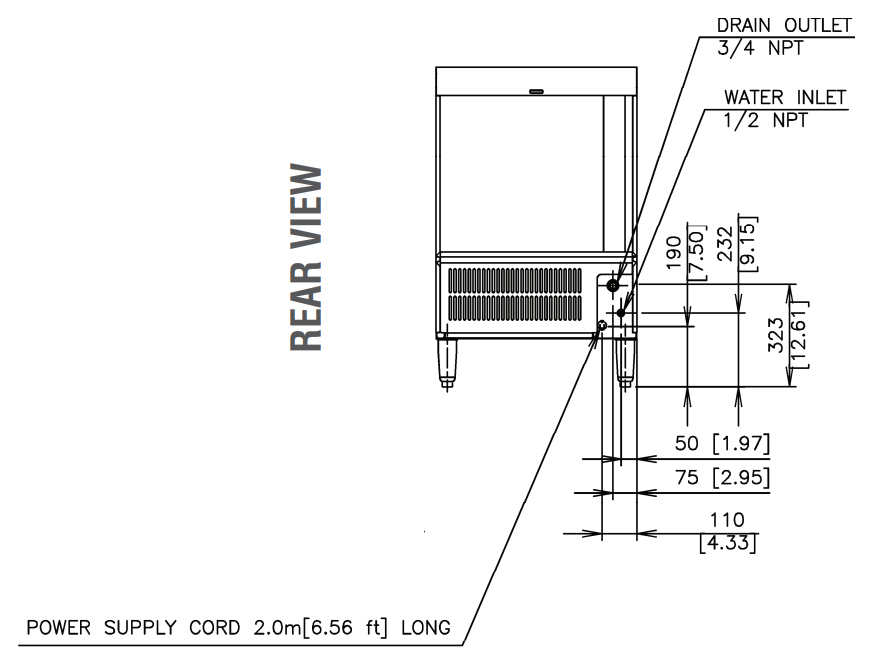

1/2" FPT Inlet, Minimum 1/2" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent

Utility Consumption
15.7 kWh per 100 lbs @ 90/70, 69 gal of Potable Water per 100 lbs @ 90/70

Warranty
Three Years: Parts & Labor warranty on entire machine.

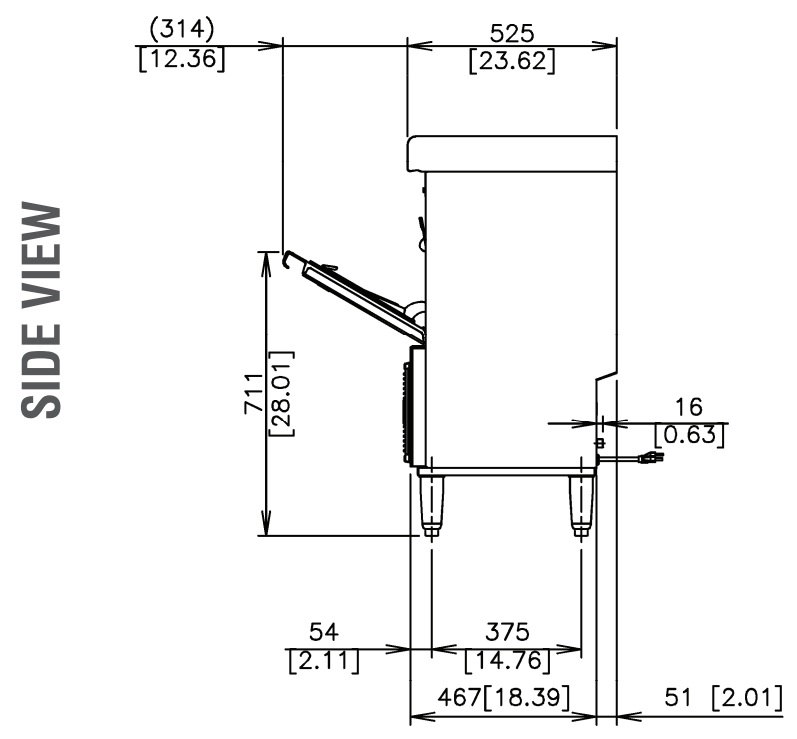

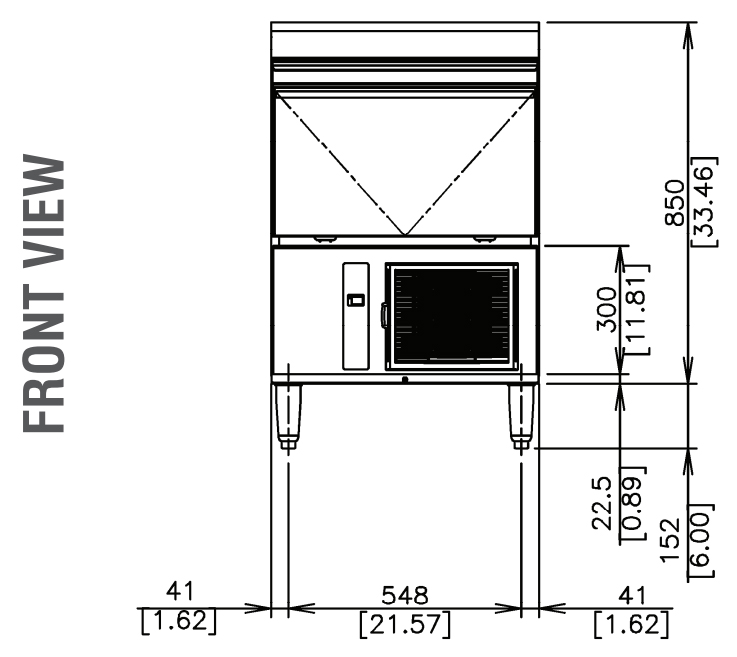

• Dimensions: 24-3/4" W x 20-3/4" D x 39-1/2"
• Up to 50 lbs or 500 spheres of ice produced per 24 hours
• Up to 36 lbs of built-in storage capacity (ft3)

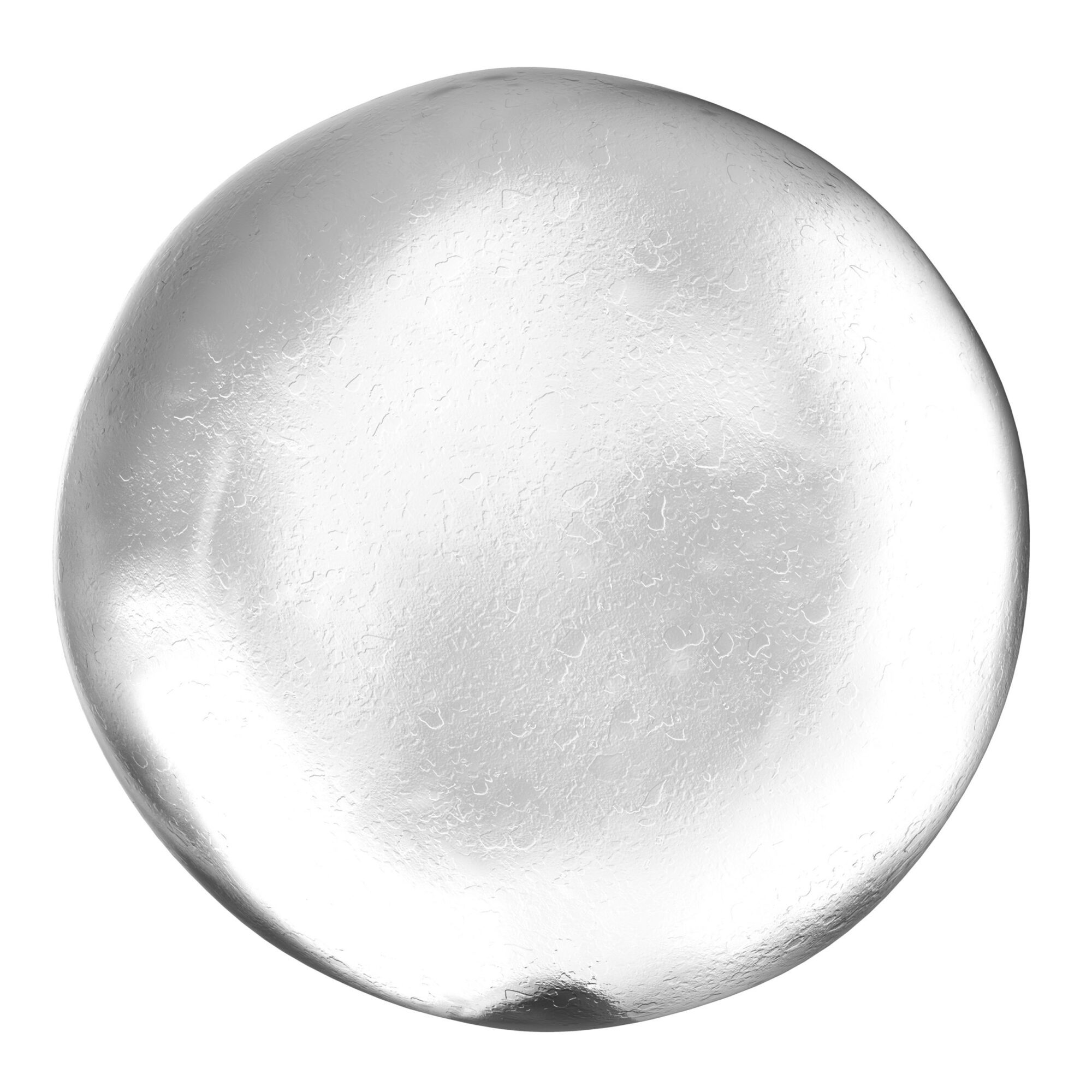

• Produces individual sphere cubes
• Durable stainless steel exterior

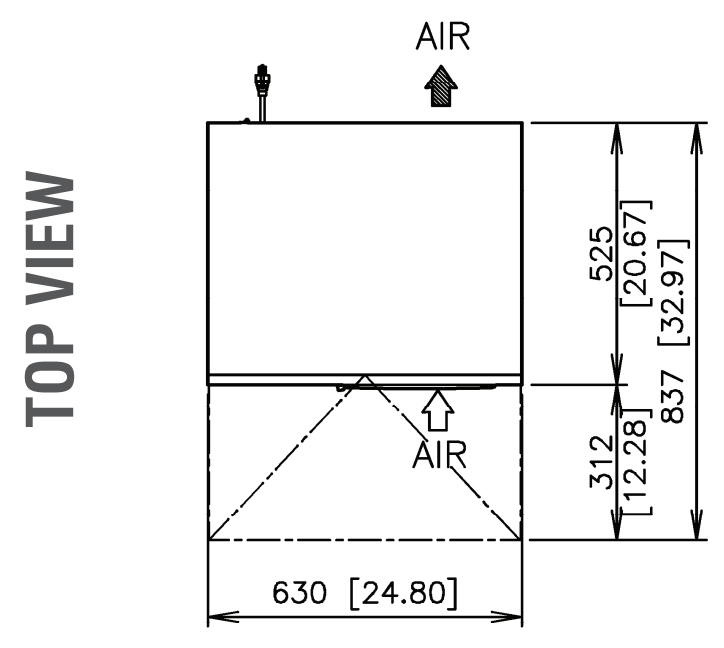

• Front in, back out airflow
• Ice scoop included
• Foam injected polyurethane for insulation (HFC free)
• Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
• R-134a refrigerant (7.1 oz. / 201 g)
• Heat Rejection:1500 BTU/hr
• Ambient temperature range: 45 - 100°F
• Water temperature range: 45 - 90°F
• Water pressure: 7 - 113psig
• Voltage range: 104 - 127V
• 5 amps (15 Amp Max fuse)
• 15.7 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span
• Three Years: Parts & Labor warranty on entire machine
• Five Years: Parts warranty on Compressor, air-cooled condenser coil
