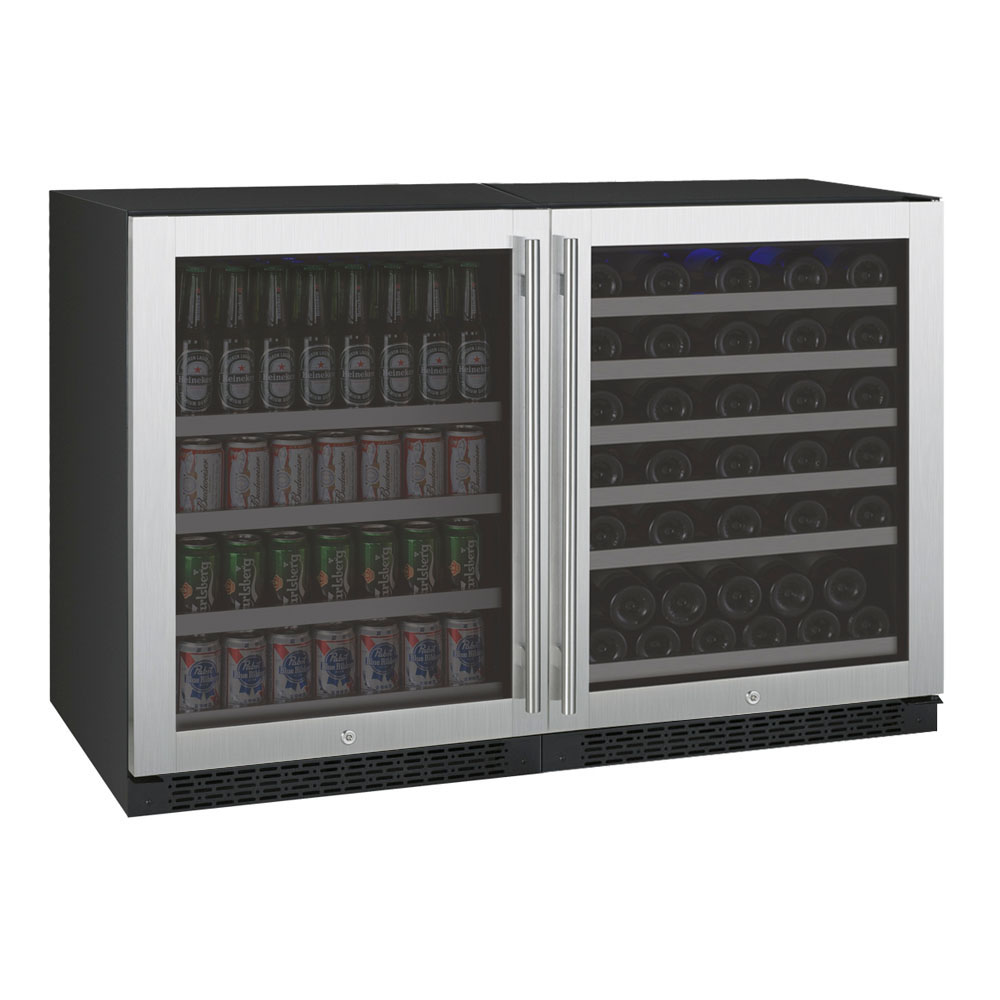

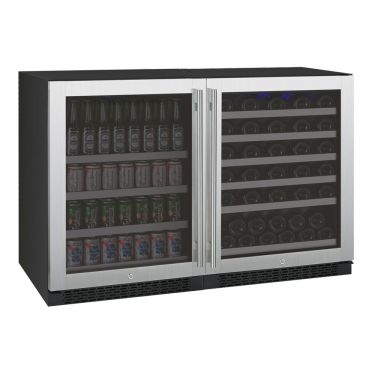

Whether your guests prefer beer, wine, or soda, you can easily have a variety of beverage options available for any party with Allavino's new 3Z-VSWB24-2SS FlexCount Series Side-by-Side Wine and Beverage Center! Made up of one wine cooler and one beverage cooler with opposite hinged doors, it provides plenty of refrigerated beverage storage for up to 56 wine bottles and 154 standard 12 oz. cans, or up to 56 wine bottles, 42 standard beer bottles, and 112 standard 12 oz. cans. Intelligently designed for maximum versatility, this beverage center is suitable for both built-in and freestanding use, and comes with both curved and towel bar handles to allow you to match it to your existing decor. It also features Allavino's revolutionary FlexCount shelving, which gives you the freedom to store more bottle types than any other wine fridge.
The beverage storage zone has 3 shelves that can hold up to 42 standard 12 oz. cans each and a bottom shelf that can hold up to 28 standard 12 oz. cans for a total storage capacity of 154 standard 12 oz. cans. The top shelf can also store up to 42 standard beer bottles for a total capacity of 42 standard beer bottles and 112 standard 12 oz. cans.
The wine storage zone has 5 shelves that can hold up to 9 bottles each and a bottom shelf that can hold 11 bottles for a maximum bottle capacity of 56 bottles. The maximum capacity is based on the standard Bordeaux size bottle.
This is the standard 750 mL bottle, which most wine refrigerators are configured around as it is the most popular size on the market. It measures 11-1/2" tall with a 2-15/16" diameter and the shoulder tapers up from 7-3/4" to 8-1/2". This wine refrigerator can easily store 9 of these bottles on each of the upper shelves and 11 more on the bottom shelves for a total of 112 bottles.
This bottle is taller than the standard 750 mL bottle. It measures 12-1/16" tall with a 2-15/16" diameter and the shoulder tapers up from 8" to 9". The taller shoulder and top would normally wreak havoc on your wine storage because the necks would touch, making the overall length of the bottles too tall for most shelves or pushing the outside bottles out, causing them to hit the sides of the wine refrigerator. Generally, you would have to remove a shelf to accommodate these bottles, but with the extra space available on these shelves, they fit just fine and do not affect the overall capacity.
This bottle has the same diameter at the base, but the shoulder is wider, which would generally push it out of the grooves and make it rub on the shelf above. It measures 11-7/8" tall with a 2-15/16" diameter at the base and the shoulder tapers up from 7-1/2" to 8-1/4" with a 3-1/16" diameter. Due to the smart spacing on these shelves, these bottles fit with room to spare, preventing rubbing and allowing the maximum bottle capacity to stay the same.
This bottle is wider and shorter than the standard 750 mL bottle. It measures 10-5/8" tall with a 3-1/4" diameter and the shoulder tapers up from 5-1/2" to 8". Bottles this wide don't usually fit in wine refrigerators and if they do, they have issues with rubbing on the shelf above and scuffing your labels. This wine refrigerator has no issues with this type of bottle so once again, your maximum capacity will not be affected if you have them in your collection.
Until now, you wouldn't dream of fitting a Pinot bottle in an undercounter built-in wine refrigerator without drastically reducing the overall capacity. It measures 11-5/8" tall with a whopping 3-1/2" diameter and the shoulder tapers up from 5-1/2" to 8-1/4". On this model, only the bottom shelf is slightly affected. You can fit 6 bottles comfortably in the grooves by alternating the necks. So even if your ENTIRE COLLECTION was made up of Pinot bottles, your total capacity would only be reduced to 102 bottles!
Champagne bottles are too big to fit on the upper shelves, but you can still store up to 6 on the bottom shelves. They measures 12-1/4" tall with a 3-3/4" diameter and the shoulder tapers up from 5-1/2" to 7-3/4". Most wine refrigerators this size would not be able to store any Champagne bottles without removing a shelf.
Perhaps there are people out there that only drink one type of wine, all the time. Most wine connoisseurs with a diverse palate are going to have varying bottle sizes in their collection, so having the ability to store all those varying bottle sizes without having to reconfigure and reduce your storage makes this the wine refrigerator of choice.
Dimensions | |
Height | 33.9" |
Width | 46.8" |
Depth | 23.6" |
Weight | |
Unit Weight | 238.1 lbs. (combined weight) |
Shipping Weight | 319.00 lbs. (combined weight) |
Key Features | |
Built-in Capable | Yes |
Security Lock | Yes |
Multiple / Dual Zone | Yes |
Beverage Center | Yes |
Cabinet Color / Material | Black Metal |
ADA Compliant | No |
Commercial Use | Yes |
Outdoor Use | No |
Energy Star Rated | No |
Capacity | |
Wine Bottle Count | 56 |
12-oz. Can Capacity | 154 |
Controls | |
Adjustable Thermostat | Yes |
Digital | Yes |
Cooling System | |
Type | Compressor |
Defrost System | Auto |
Front Ventilation | Yes |
Shelving | |
Type | Glide Out |
Number of Shelves | 10 |
Material | Metal |
Removable | Yes |
Adjustable | No |
Glide-Out (Roller Assemblies) | Yes |
Interior | |
Color | Black |
Compartments (Distinct Zones) | 2 |
Lighting | Yes |
Door | |
Type | Glass |
Number of Doors | 2 |
Color / Material | Stainless Steel Frame |
Door Handle | Towel Bar AND Curved |
Field Reversible | No |
Accepts Custom Panel | No |
Tinted / UV Protective | Yes |
Self-Closing | No |
Electrical | |
Electrical Requirements | 115v / 60 Hz |
Running Amps | 2.3 A |
