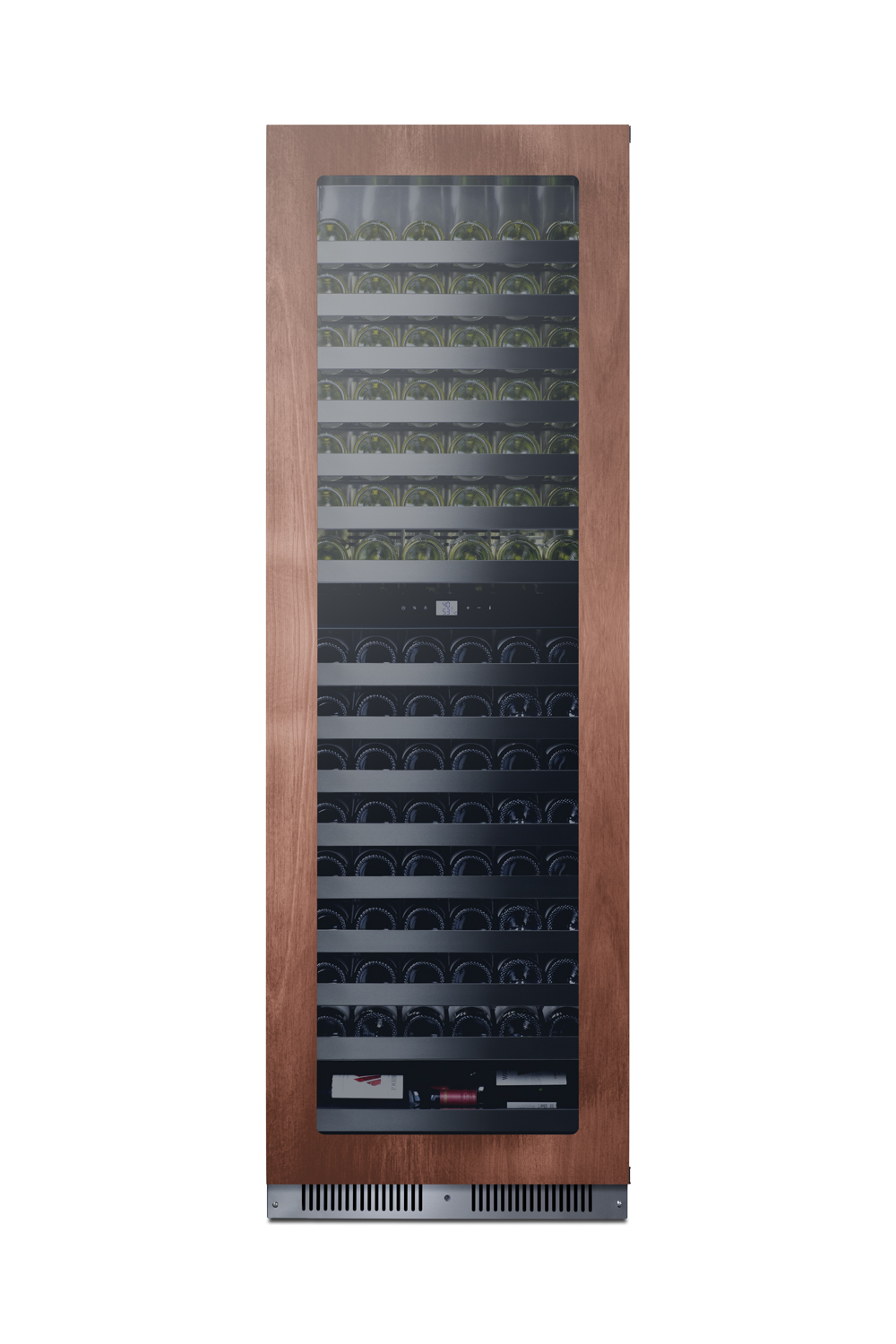

Summit Shallow 18" Depth 98 Bottle Dual Zone Built-In Overlay Panel Ready Wine Cellar

• Built-in dual zone 98-bottle wine cooler for residential or commercial storage in shallow cutouts
• 18" depth offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit

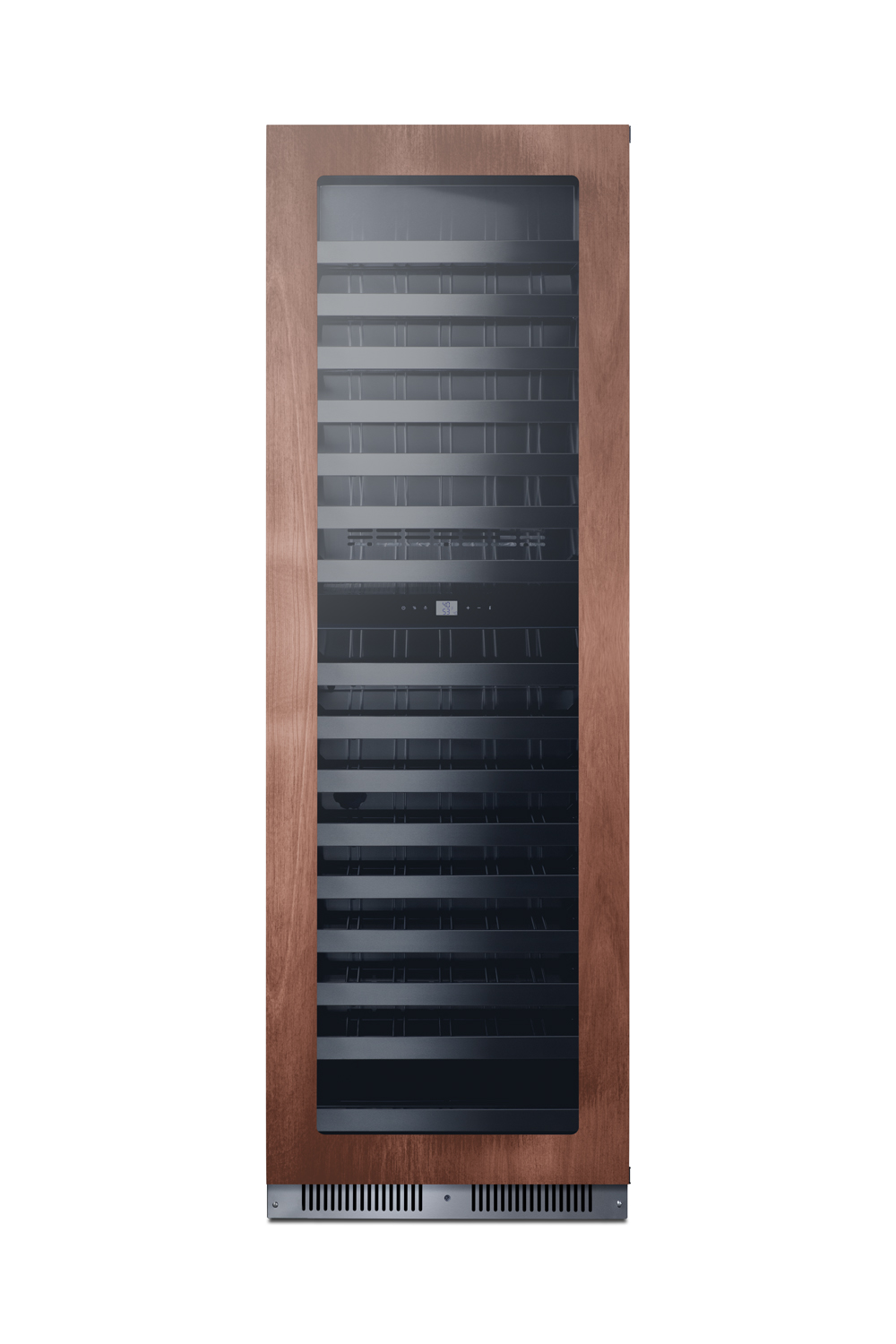

• Panel-ready door trim lets you customize your wine cellar to blend into your cabinetry
• Rotate your presentation style with a choice of blue, white, or amber LED lighting
• ETL-S listed to NSF-7 Standards for use in commercial establishments

  Dimensions: 71.75" H x 23.5" W x 18" D

Summit's collection of premium wine cellars brings full functionality, convenience, and elevated style to kitchens and home bars with unique space limitations.

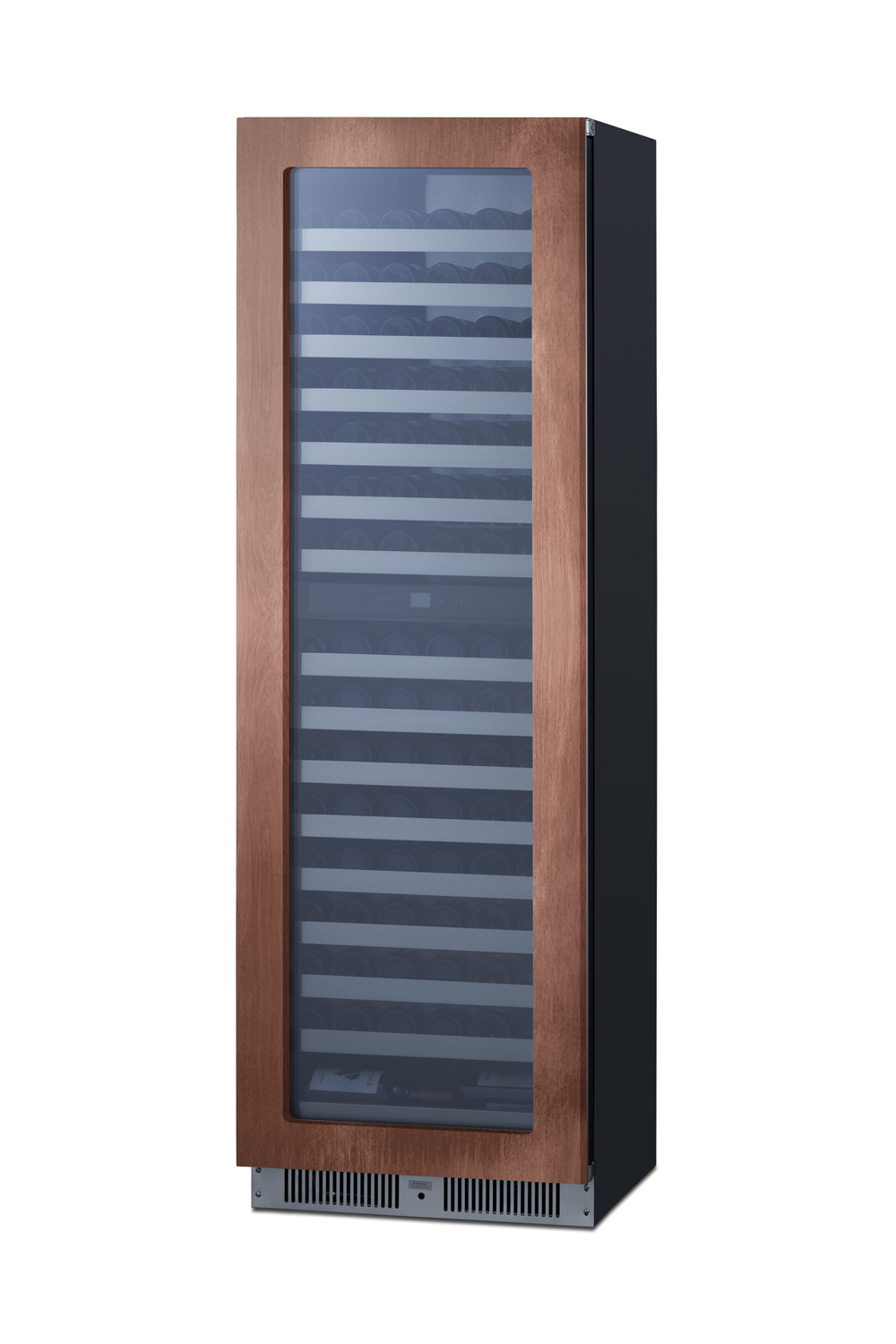

The SDHWC98PNR is a 24" wide dual zone wine cellar that features a front-breathing design for built-in installation. Sized at just 18" deep, this wine cellar offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, restaurants with limited real estate, or other spots where you can't fit a full-depth unit. The reversible double pane tempered glass door features a fully articulating European-style hinge design to ensure a smoother opening. It includes a 2-piece bracket kit that allows easy installation of your own custom door trim to match or complement adjacent cabinetry. This unit has a sealed rear and right-angle cord for a better fit. A lock is located in the kickplate for added convenience and security.

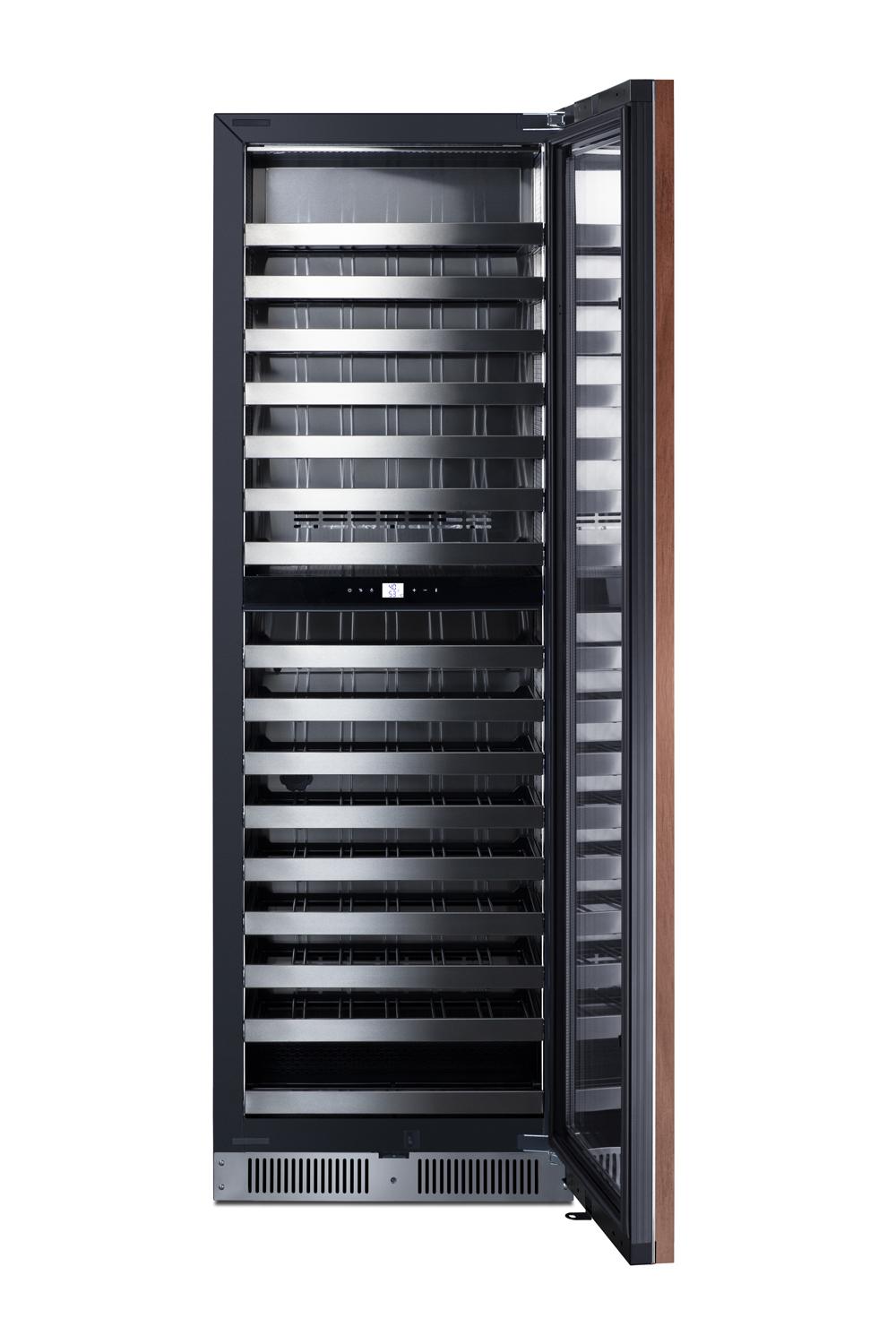

Inside, model SDHWC98PNR includes a stainless steel rear wall for improved durability and sanitation. Tri-colored LED lighting featuring amber, blue, and white options offers elegant display conditions with dimmable levels that let you create the perfect presentation. The easy-to-use digital control panel allows you to manage the upper temperature chamber between 41 and 50 degrees Fahrenheit for white or sparkling wine, while the lower zone is designed to store red wine between 50 and 64 degrees Fahrenheit. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit comes with 15 commercial grade shelves in a black wire finish with stainless steel front trim. The shelves are full-extension and set on ball-bearing glides for smooth loading. Optimal storage capacity accommodates up to 98 standard 750ml Bordeaux or Burgundy style bottles (note: your capacity may vary depending on the bottle style).

Model SDHWC98PNR has two different running modes: Silent mode, which minimizes vibrations to lower noise emissions and creates a more stable storage environment, ideal for preserving your wine's quality. The second, DynaClima mode, optimizes both temperature and humidity distribution for long-term wine storage, mimicking the conditions of a traditional wine storage cabinet.

Additional features include a temperature memory function to restore set temperature in the case of power loss and Sabbath mode, which disables certain functions during periods of religious observance. A built-in alarm audibly warns if the door is left ajar or if the unit rises or falls out of the recommended temperature range.

This model is commercially approved to NSF-7 standards for use in restaurants, bars, and other foodservice establishments. With its uniquely shallow depth, elegant design, and premium features, the SDHWC98PNR brings true luxury to residential and commercial kitchen spaces.

PLEASE NOTE: Due to its unique size, this unit should not be used freestanding. To prevent tipping, install the anti-tip bracket included in your packaging when setting up the product.

• 24" Wide Premium Wine Cellar
  Built-in dual zone 98-bottle wine cooler for residential or commercial storage in shallow cutouts
• Shallow depth
  18" depth offers slim-fitting elegance, perfect for narrow home bars and kitchen corners, converted spaces, or other spots where you can't fit a full-depth unit
• Built-in design
  Front-breathing cooling system to allow seamless integration inside cabinetry (recommended opening: 72" H x 24" W x 20" D)
• Dual zone storage
  Upper zone operates between 41 and 50 degrees Fahrenheit for chilled white and sparkling wine storage, while the lower zone can be set between 50 and 64 degrees Fahrenheit to best preserve red wine
• Commercially approved
  ETL-S listed to NSF-7 Standards for use in commercial establishments

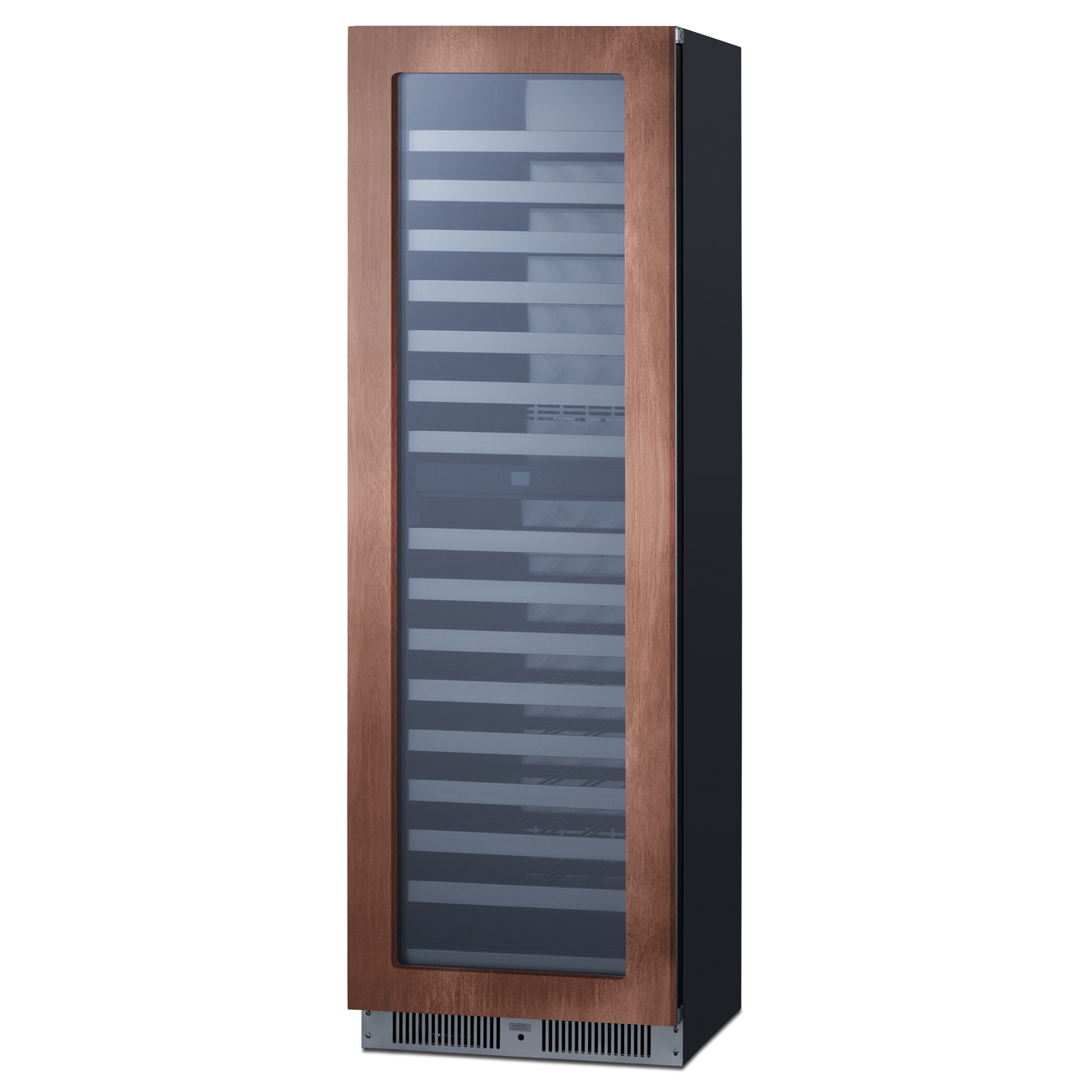

• Panel-ready door trim
  Customize your wine cellar to blend into your cabinetry; recommended panel dimensions: 3/4" thickness at 67-3/4" H x 23-3/4" W with a 3-1/4" H x 3-1/4" W inner frame
• Easy panel installation with included 2-piece bracket kit
  Enhanced panel execution allows the unit to be flush with cabinets
• Fully articulating style hinge
  European style hinge design ensures a flush fit and allows for a smoother opening
• Unbranded exterior
  Allows for seamless integration with other appliances
• Gently tinted glass door
  Attractive glass door provides a complete but protected display of stored contents
• Professional handle
  Stainless steel look for added elegance
• Automatic defrost
  No-frost operation for minimum user maintenance
• Deluxe wine shelving
  Removable commercial grade wire shelving in black with stainless steel from trim for an elegant, modern look

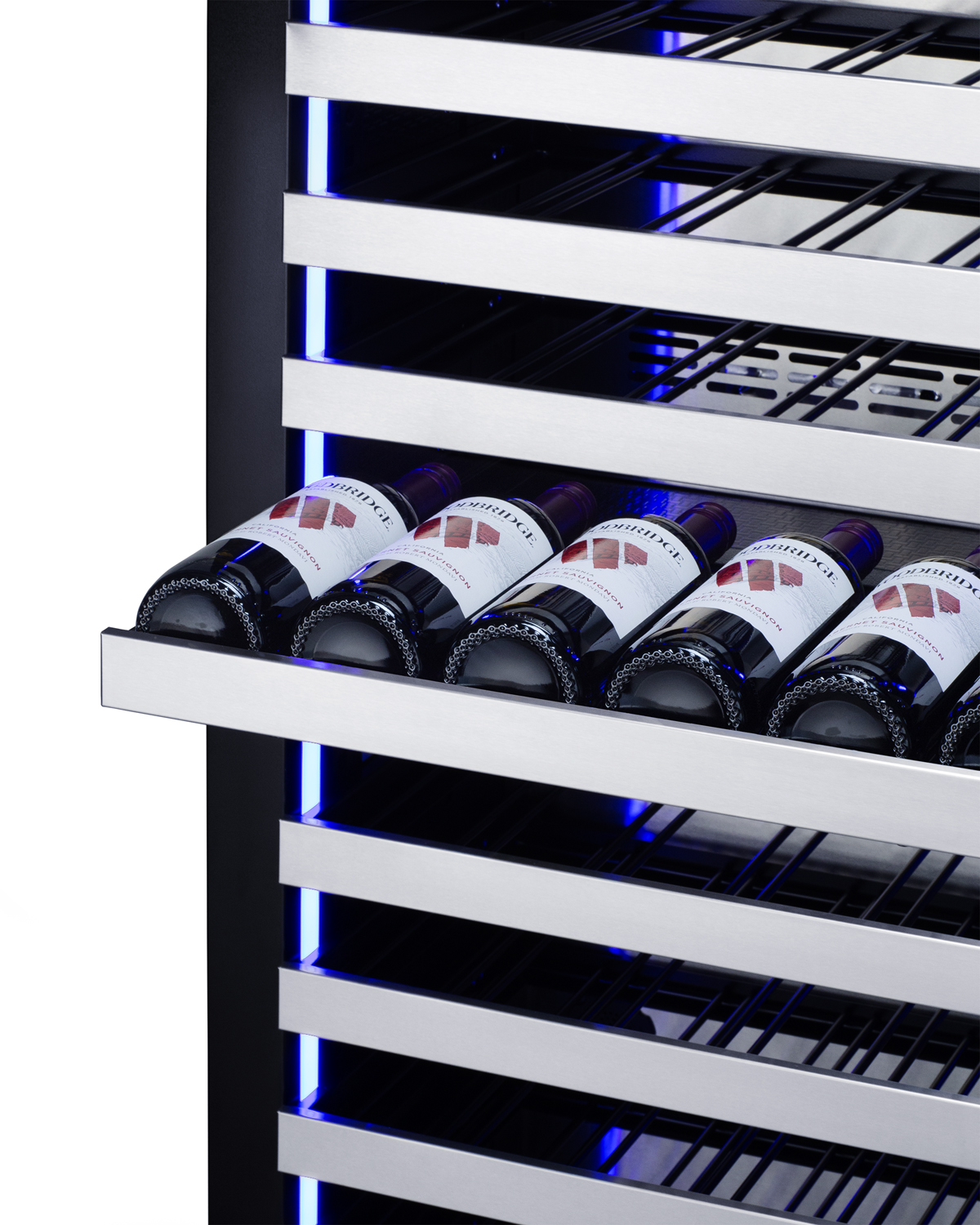

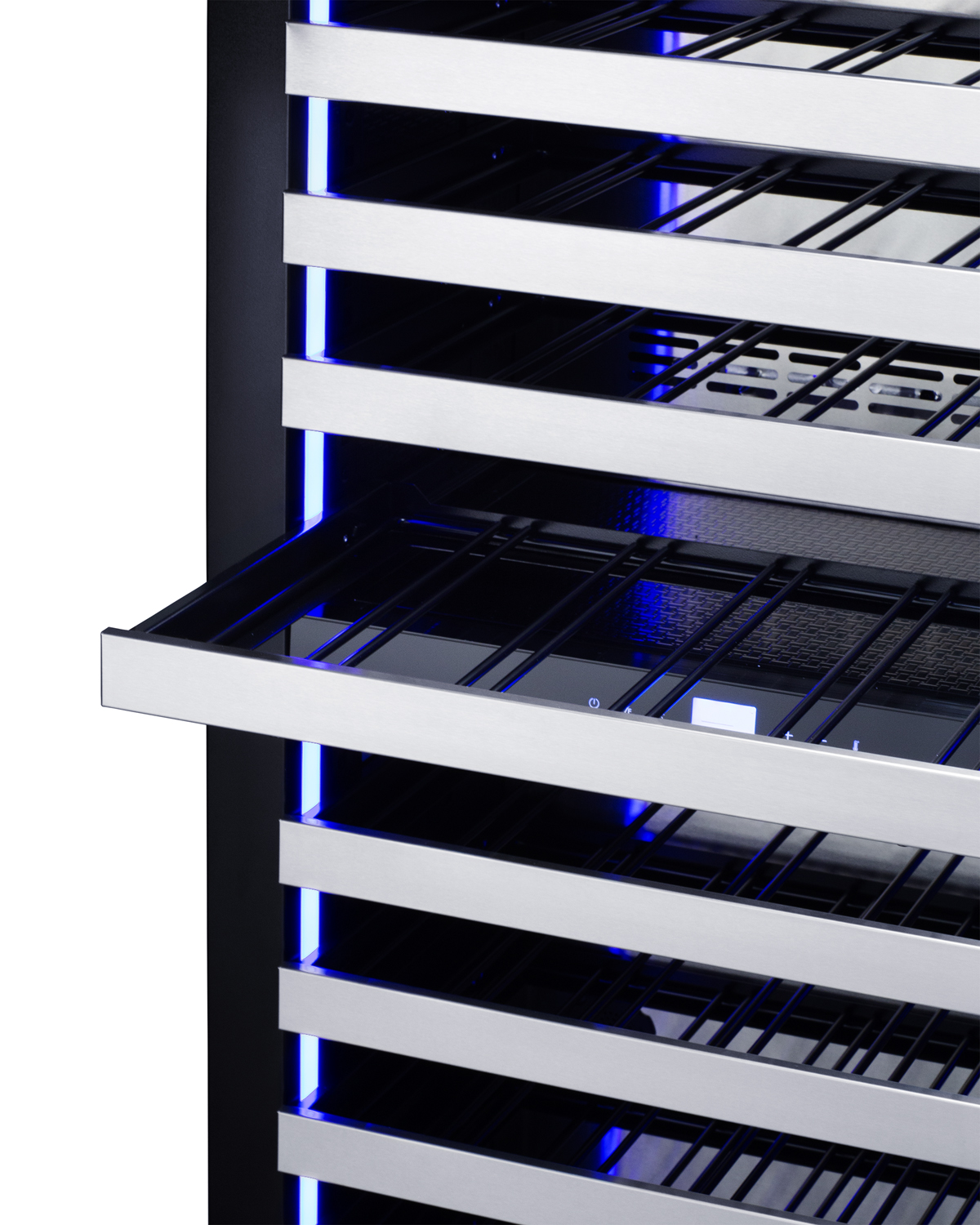

• Full-extension shelving
  16 shelves on ball-bearing glides glide out smoothly for easier loading and optimum capacity
• Vibration-free
  Inverter compressor ensures minimal vibration to uphold and protect the integrity of each bottle

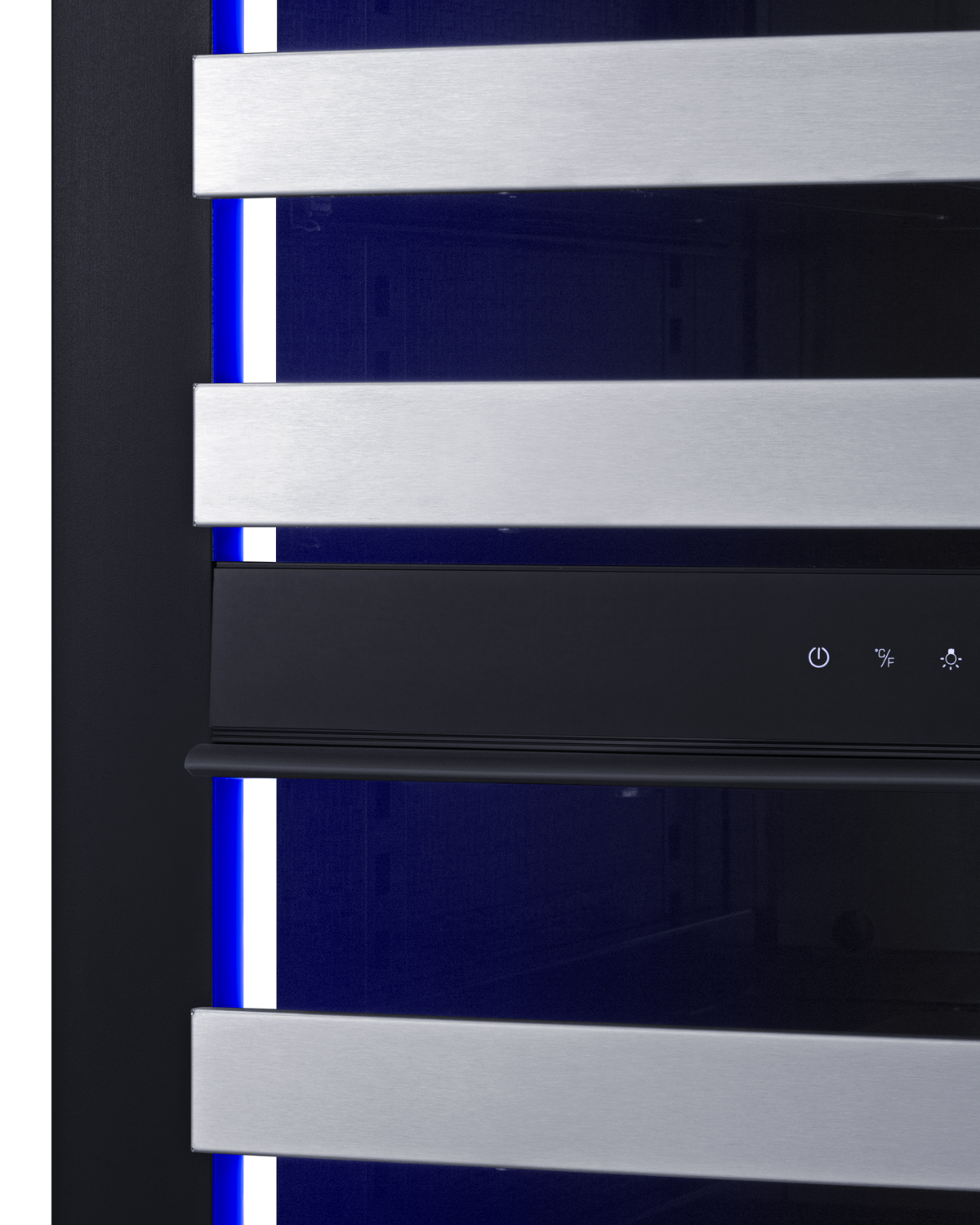

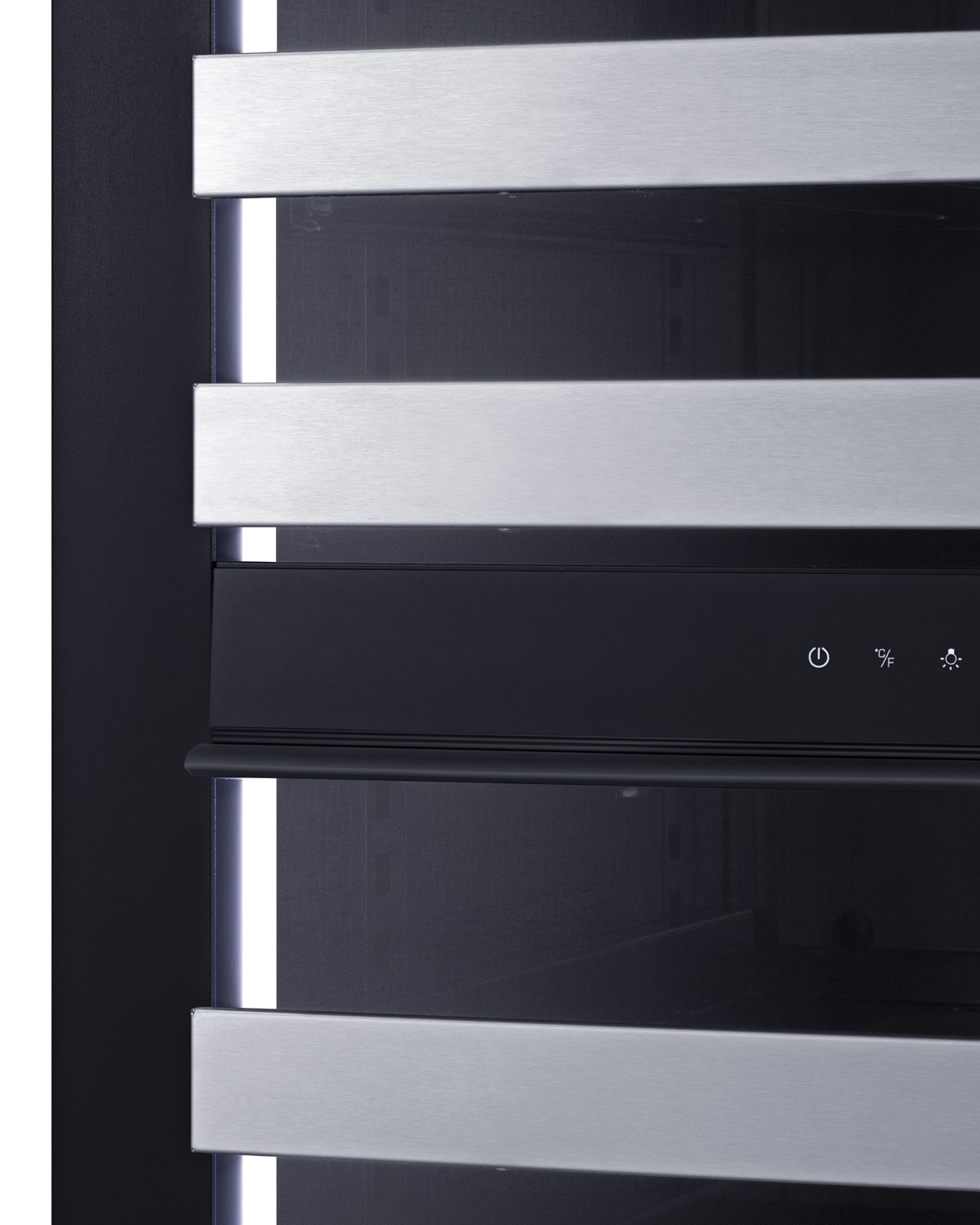

• Tri-colored LED lighting
  Rotate your presentation style with a choice of blue, white, or amber LED lighting

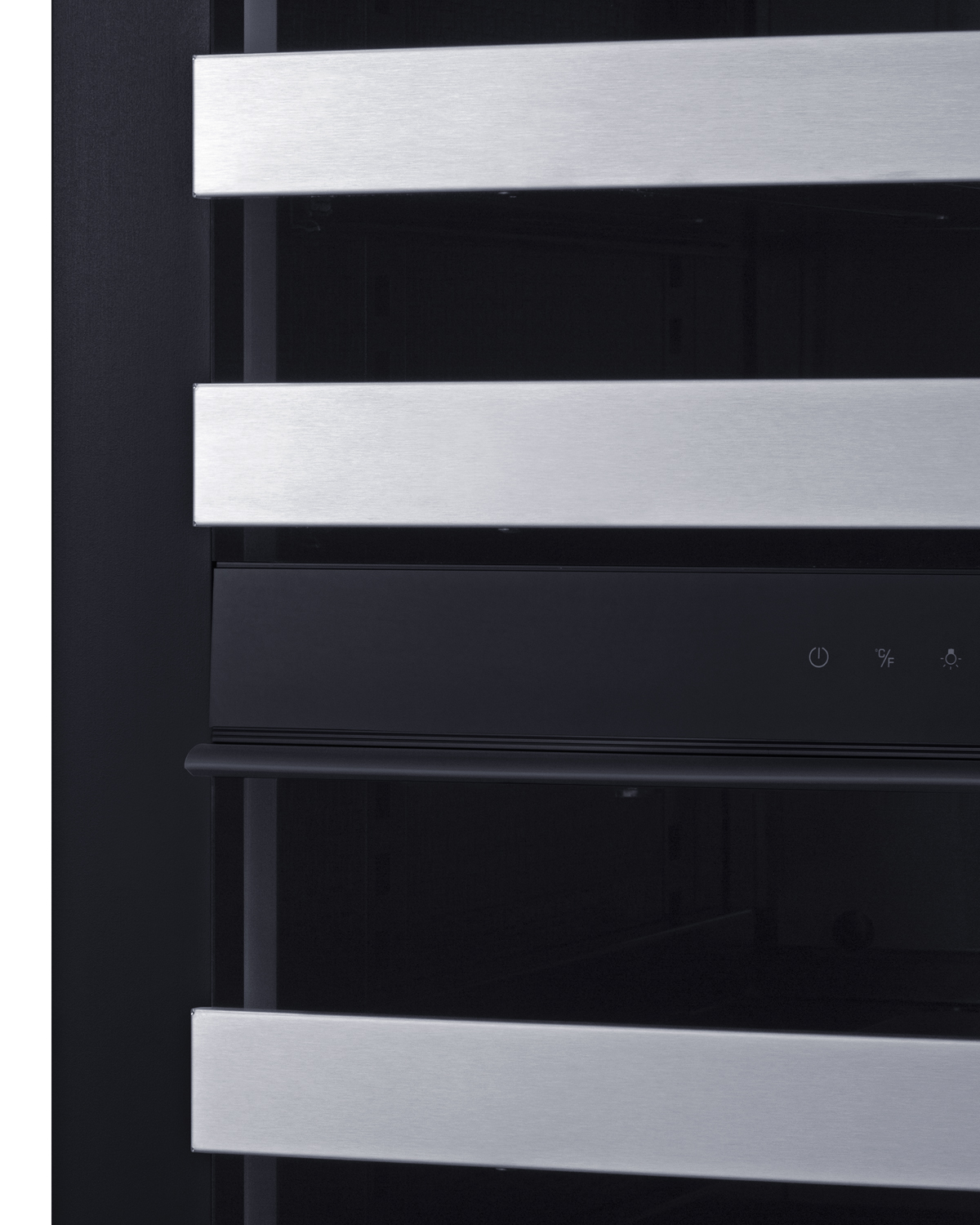

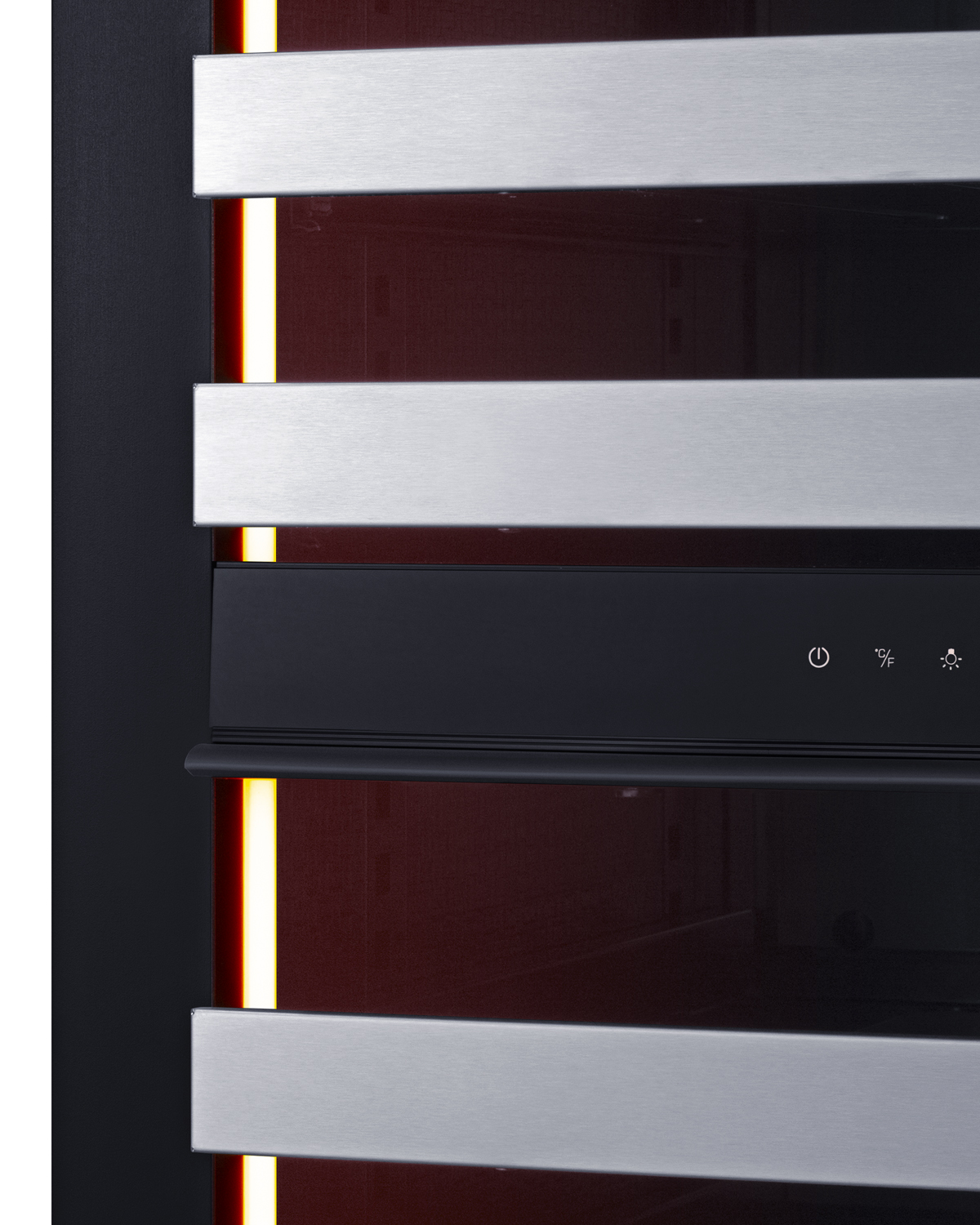

• Digital thermostat
  Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
• Digital temperature display
  Temperature readout can be shown in Celsius or Fahrenheit
• Sabbath mode setting
  Optional setting lets you disable the lighting and alarm for up to 96 hours
• Stainless steel interior rear wall
  Stainless steel rear wall protects the unit's integrity and is easier to clean
• Factory-installed lock
  Keyed lock located in the kickplate for added security as needed
• Sealed back
  Space-saving design with no exposed coils that offers easier cleanability
• Stainless steel kickplate
  Complete luxury down to the toe kick
• Right angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Anti-tip bracket
  Bracket included and must be installed to prevent tipping
• Quiet operation
  Inverter compressor ensures a whisper quiet operation, measured in our testing facilities at just 32.2 dB
• Reversible door
  User-reversible door swing for added flexibility to best accommodate your setting
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Labor - 12 Months

Parts - 12 Months

Compressor Parts Only - 60 Months
