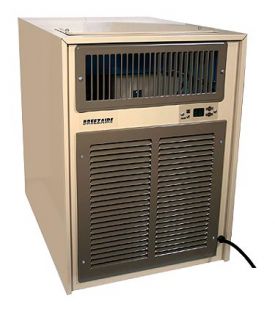

The WKL Series is the advanced system of choice for standard applications ranging from under 100 to 2000 cubic feet. WKL Series systems are compact, self-contained units. Their performance speaks for itself. This series is equipped with the BREEZAIRE's affordable Sentry III control system. This system offers more features that others offer in their higher-grade models.
Units are shipped from the factory fully charged and ready for use when mounted in a wall and connected to 115 AC volt source.
SENTRY III CONTROL SYSTEM FEATURES
Large, easy to read, cool green LED display
Accurate, easy to adjust temperature set points with continuous display of cabinet temperature.
Power outage protection.
Blocked airflow protection, which shuts down unit and protects wine in case of high temperatures caused by condenser blockage or fan failure.
Controls temperature by enclosure (cellar) air sensors or optional bottle probe.
HUMIDITY & INSTALLATION: By the nature of their operation, wine cooling units will maintain a stable humidity level, lower than the relative ambient humidity. In situations where the ambient humidity is high, the cooling unit will lower the humidity to desirable storage levels. In situations where the ambient relative humidity is very low, the desired enclosure relative humidity may not be achieved without adding moisture. To add moisture to the enclosure only use slow, natural evaporation from a small porous water container. Do not use a humidifier.
TEMPERATURE & INSTALLATION: These wine cellar cooling units are designed to cool 25 degrees less than the ambient temperature of the venting side of the unit. In some cases, improper placement or installation may cause the unit's performance to be degraded. The condensing unit must have a constant supply of fresh air, less than 85 degrees F. If the condensing unit is located in a confined area with poor ventilation, the unit will not be able to reject the heat it is removing from the enclosure and a malfunctioning unit will be suspected, even though the unit is mechanically sound. Call us to discuss your installation concerns.
Adjustable Temperature
The ideal temperature for storing and aging wine is between 50° and 60° Fahrenheit. Each BREEZAIRE system includes an adjustable thermostat that makes it possible for the user to precisely control the conditions in the wine cellar. When initially bringing the temperature down to the desired level and in maintaining the target temperature, the system produces a gentle stream of cool air - never a blast of cold air that could subject the wine to abrupt temperature changes.
Automatic Humidity Control
Humidity must be present in the wine cellar to prevent cork and label deterioration. The gentle cooling action of the BREEZAIRE system maintains the relative humidity in the 50% to 75% range, eliminating excess moisture but never allowing the air to become dry enough to create an undesirable condition. (Additional moisture may be required in extreme dry climates.)
Vibration-Free Operation
All BREEZAIRE systems are engineered to be vibration free, hand assembled, and tested to ensure that they meet the most exacting standards. The elimination of vibration levels that may be undetectable to the owner results in wines that have greater clarity and brilliance.
Ultra Quiet Operation
BREEZAIRE systems perform their task quietly and unobtrusively to preserve the atmosphere of isolation from the outside world that makes a visit to a wine cellar an unique experience.
Ease of Installation
BREEZAIRE's most popular systems are completely self-contained modules that are simply mounted in a wall and connected to a standard 115V AC source. No plumbing, complicated wiring or special procedures including the on-site installation of refrigerant are required.
Uncompromising Quality
All BREEZAIRE systems are designed to deliver superior performance. Constructed using only the highest quality components, and hand assembly by skilled craftsmen in BREEZAIRE's U.S. production facilities.
Comprehensive Warranty Coverage
Owners enjoy the security of warranty coverage that reflects BREEZAIRE's high standards.
Full Factory Support
Support in the form of expertise in system selection, enclosure design, and problem solving in the highly specialized area of creating and maintaining an ideal environment for delicate products.
UPC: 608938442796
Dimensions
Height
19.75"
Width
14.25"
Depth
21.63"
Capacity
Enclosure Volume
Up to 650 Cu. Ft.
Weight
Weight
76 lbs.
Warranty
Labor
1 Year
Parts
5 Years
Key Features
Electronic Controls
Yes
Digital Temperature Display
LED Readout
Humidity Control
Automatic
Defrost System
Automatic
Exhaust Direction
Rear
Electrical
Electrical Requirements
115 V, 60 Hz - 5 A
Installation Instructions
Warranty Policy
You may need to download Adobe Acrobat Reader to view and print PDF's. Click the link below to download Adobe Acrobat Reader for free. Download Adobe Reader
Wine Cooling Unit (650 Cu.Ft. Capacity) - Beige Reviews
Average Customer Rating:
(4.5)
(based on 4 reviews)
Breezair WKL3000 model
by:
tom (08-01-2018) Southern California
Comments:
This is my third unit. Two smaller units provided cumulative 24 years of service. The current unit is larger with 650 cu ft of cooling. It has been installed less than a month so durability and potential service life is unknown and the rating is meaningless. This is a model with reported problematic operating history. My experience with Previous units required minimum repairs and parts. The condenser on the Last unit, a 2200 model, expired almost within 10 years to the date it was installed. After 9 years of operation this unit only required replacement of the SentryIII control system (thermostat), A $175 part;very easily installed.
Bottom Line:
I would recommend this product.
Repeat Customer of the Beverage Factory
by:
Steve (05-15-2016) Austin, TX
Comments:
We bought a Breezaire WKL series Wine Cooling Unit from the Beverage Factory a little over six years ago and were well pleased with it. Unfortunately, it started leaking Freon recently and it made no sense to try to repair a six year old machine. We ordered a new one from the Beverage Factory and, as before, their Customer Service and Sales Departments gave us excellent service. We wouldn't shop anyplace else.
