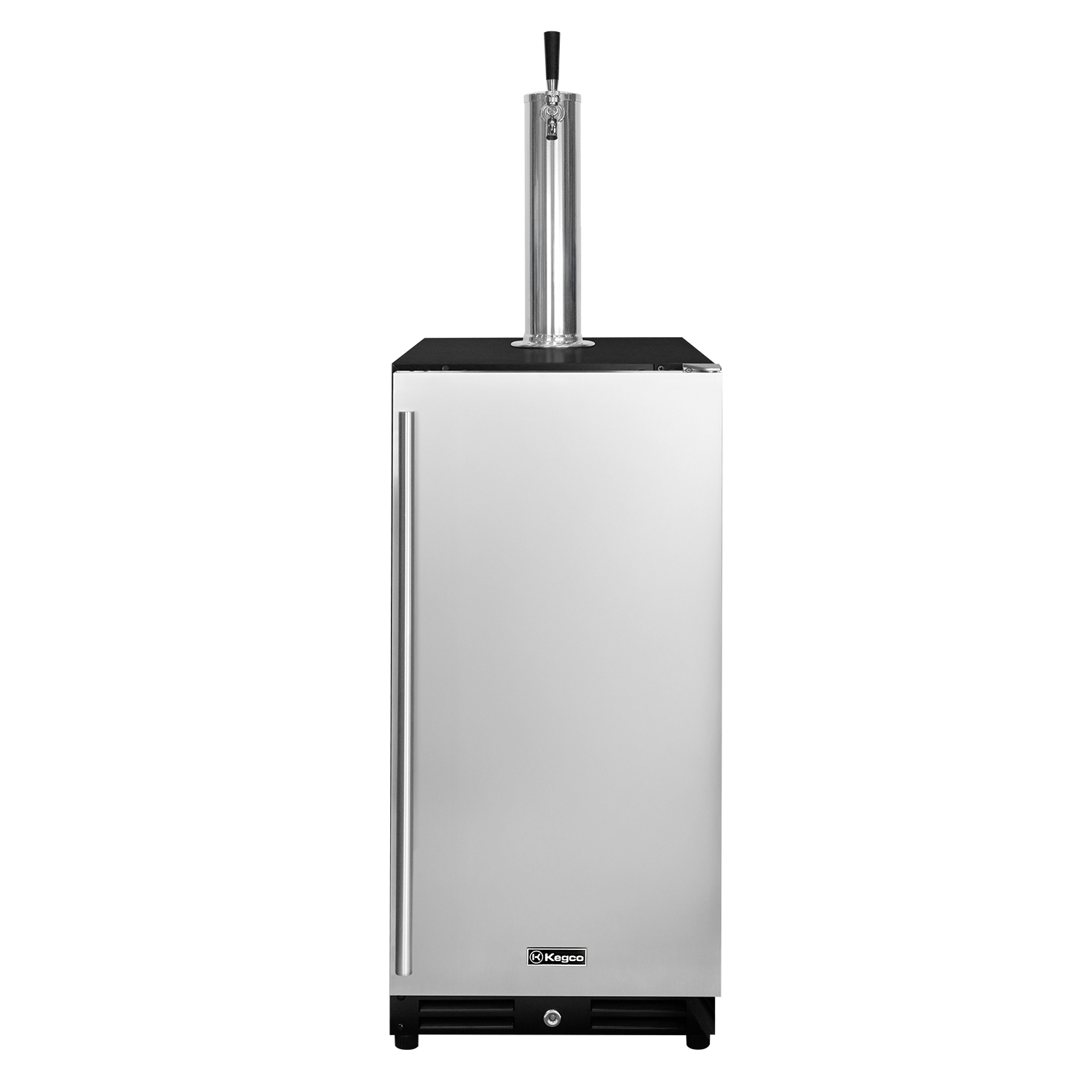

15" Wide Single Tap Stainless Steel Built-In Right Hinge Kegerator
Model:VSK-15SR20
Highlights
Features a convenient 15" wide undercounter design that makes it the perfect built-in kegerator for space-challenged environments
Exclusive PowerTemp cooling technology is energy efficient and delivers cold beer
Even with it's compact design, this keg dispenser is capable of accommodating 7.75 gallon quarter slim kegs as well as 5 gallon sankey or homebrew kegs
Kegerator comes complete with a single tap draft dispense system with 100% stainless contact components
PLEASE NOTE: Drip tray is not included but is available as an optional add-on
Dimensions: 14.9" W x 33.5" H x 23.75" D (25.25" D to end of handle)
Enjoy ice-cold beer on tap without taking up a ton of space in your home with the new Kegco VSK15-SR20 Kegerator! This durably built beer dispenser has been designed with a slim 15" width that allows it to be built in undercounter in a very thin footprint - the perfect option to replace that old trash compactor you're not using anymore!
This Kegco kegerator features Allavino Tru-Vino cooling technology, the latest in beverage storage technology by Allavino. Tru-Vino Temperature Control Technology allows for near zero temperature fluctuation for the perfect pour every time, and utilizes the most energy efficient compressor on the market with ultra-low vibration and quiet operation.

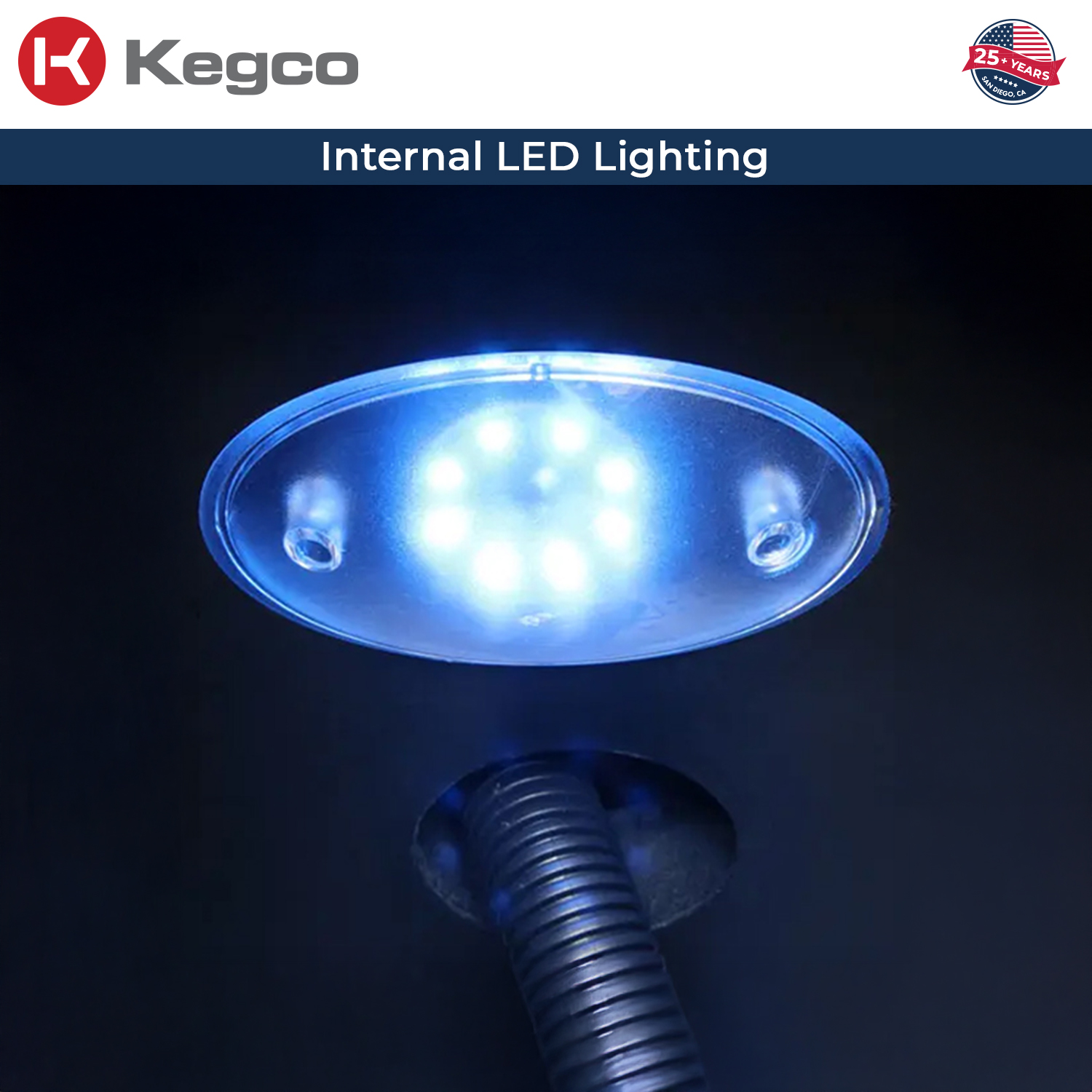

Interior light
A cool blue LED lighting panel illuminates the contents of the kegerator, making it easy to adjust your CO2 pressure or configure your keg coupler. The low-heat lights do little to affect the temperature inside the beer referigerator.

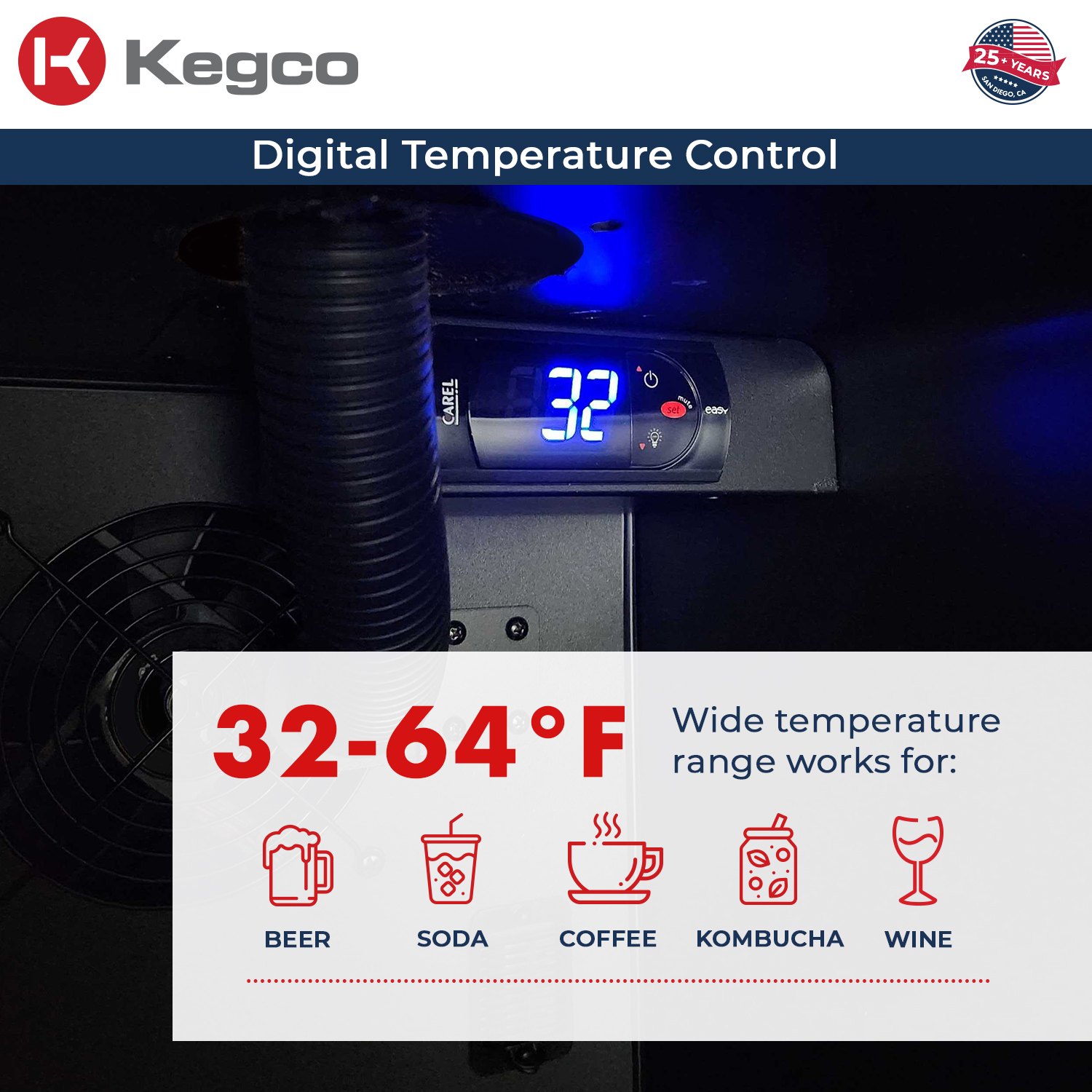

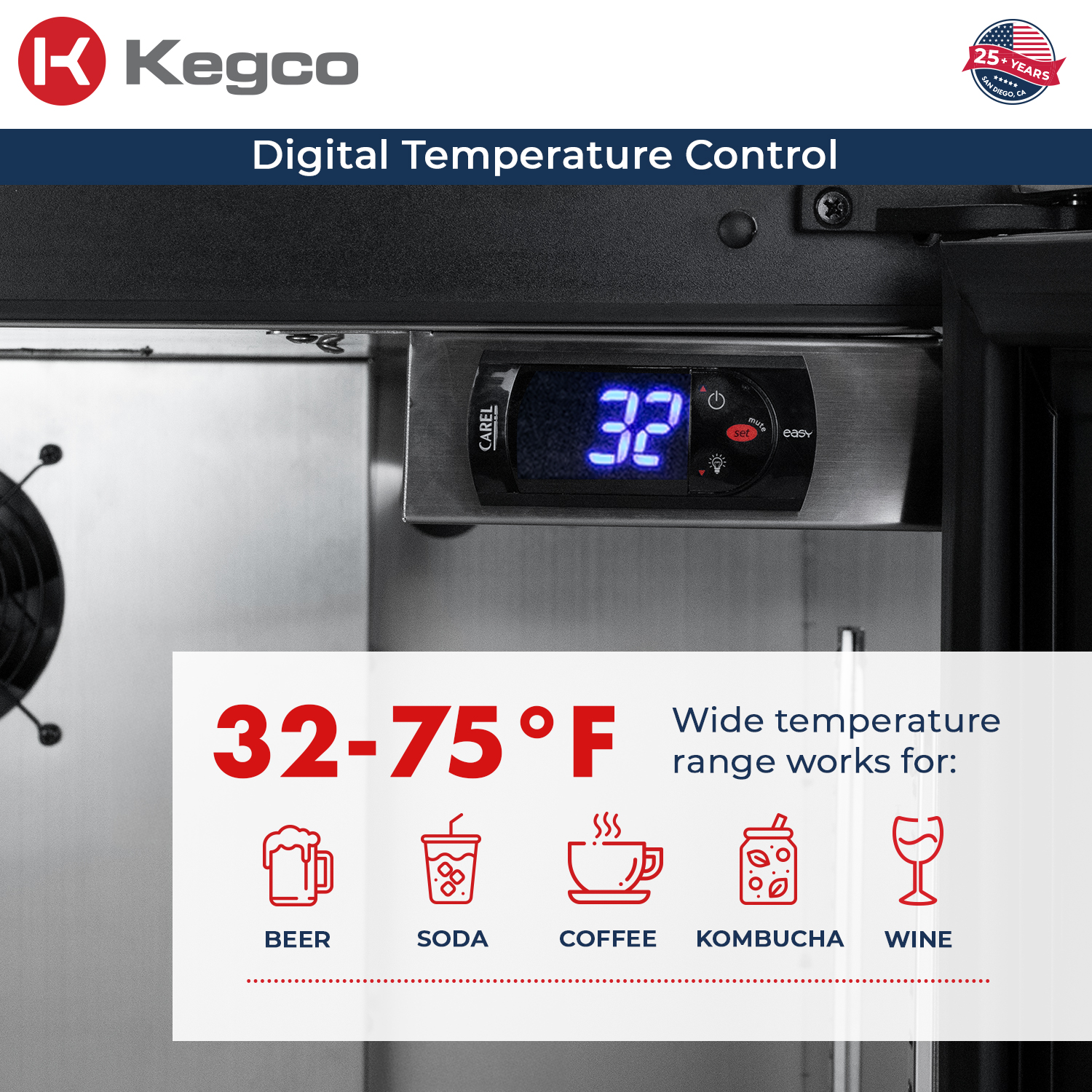

Digital Controls
Easily set and monitor your internal temperature at the push of a button! The intuitive control panel allows you to turn the light on and off, change the temperature from Fahrenheit to Celsius and adjust the temperature in 1 degree increments.

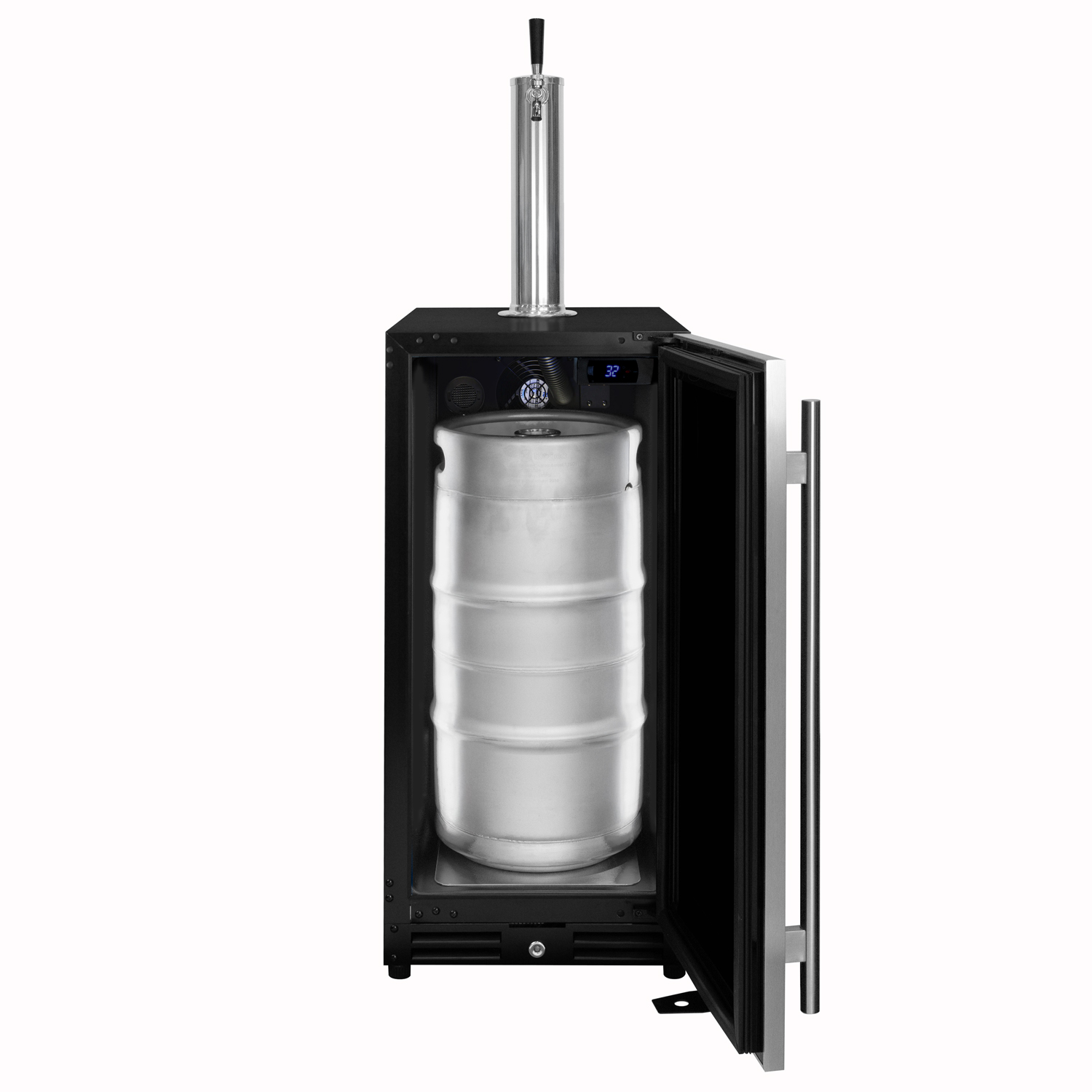

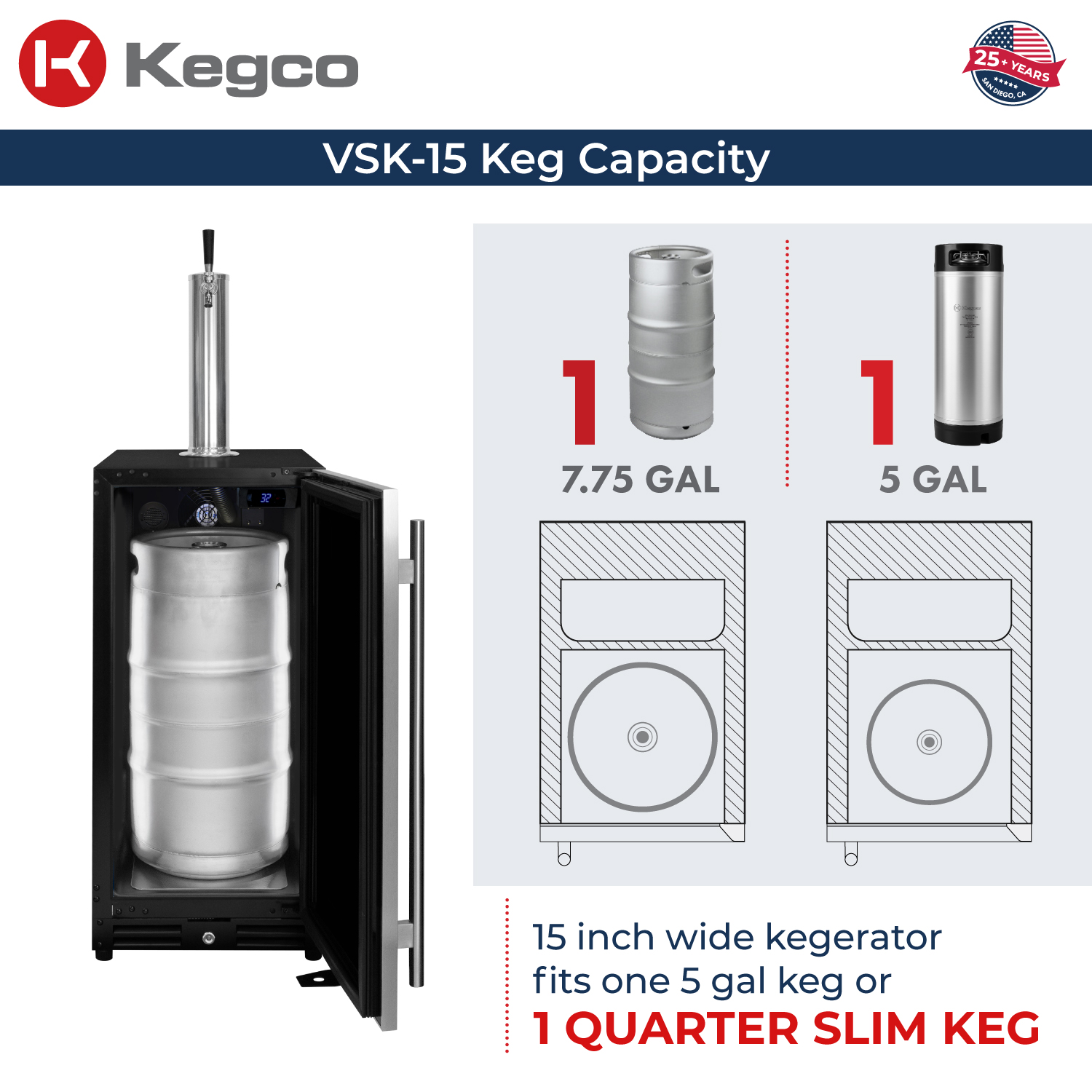

Fits Quarter Slim Keg
Even with it's slim, space-saving design, this keg cooler can house up to a 7.75 gallon quarter slim keg. It also works equally well with 5 gallon Sankey kegs or 5 gallon ball lock home brew kegs, so you'll be sure to find a beer you enjoy!
Customizable Dispense Kit
This unit comes with a single tap draft dispense system with 100% stainless contact components, and optional upgrades are available to help you build a draft beer dispense kit to your exact specifications.
Wide Temperature Range
The Kegco VSK-15SR20 boasts the widest temperature range available on the market. Dispense your beer at an ice-cold 32°F or turn the temperature up high enough to use the cabinet as a fermentation chamber. With an adjustable range of 32-75°F, you're sure to find the setting that suits your tastes.
Includes a brand new 5 lb. Aluminum CO2 Tank This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada markings. The 320 valves are CGA approved, and have a male thread for CO2 regulators. An average fill is good for 5-6 kegs depending upon your fill.
Includes Commercial Grade Dual Gauge CO2 Regulator The regulator works with any CO2 tank with a CGA-320 valve and measures PSI, as well as the volume of the CO2 gas in the cylinder. It has a pressure release valve and a large hand control which makes it easy to adjust the pressure inside the keg.
Includes 5 feet of 5/16 Inch I.D. Blue Air Line Assembly with 2 Snap Clamps This standard length 5 foot 5/16" I.D. blue air/CO2 tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. The air line assembly comes with two plastic snap clamps with a reusable clamp design.
Includes D system lever handle keg coupler that can tap all domestic kegs This commercial grade lever handle keg coupler works with all American "D" system Sankey kegs. It features a 55-psi pressure relief valve and a nickel-plated forged brass body. To tap a keg, simply pull out and then down on the lever handle.
Includes a 3" Diameter Polished Stainless Steel Draft Tower This NSF-approved tower is a 3" diameter single faucet metal draft tower made of polished stainless steel and includes 5 feet of 3/16" I.D. clear beer tubing. The faucet, shank, and fittings are all made of 304 grade stainless steel for the ultimate in sanitation. This tower is mounted using the gasket and four screws that are included.
Matte black cabinet with stainless steel door
Digital temperature control keeps temperature in range of 32°F-75°F (cold enough to dispense and warm enough to ferment)
Maximum Ambient Temperature: 90 degrees Fahrenheit
Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
Fan-forced cooling provides even temperatures throughout the cabinet and helps with quick temperature pulldown on a warm keg
Blower hose direct cold air into the draft beer tower so every drop is kept cool
Tower extension is provided to bridge the gap between the top of the kegerator and the bottom of the countertop in undercounter applications
LED interior lighting
Security lock
Includes both Towel Bar and Curved door handles so you can choose the version that best matches your decor
Stainless steel interior floor mat for long lasting durability and easy glide of beer keg
A perfect option for dispensing beer, soda, kombucha or wine
25% more energy efficient design saves you money each month!
Plugs into standard home outlet
This kegerator can fit one quarter slim keg, one 5 gallon commercial keg or one 5 gallon home brew keg.
UPC: 810033767036
Dimensions
Height
33 1/2"
Width
14 7/8"
Depth
23 3/4" (25 1/4" w/ handle)
Weight
Shipping Weight
175 lbs.
Warranty
Labor
1 Year
Parts
1 Year
Compressor (Parts Only)
5 Years
Key Features
Built-in Capable
Yes
Security Lock
Yes
Keg Coupler
D System
Regulator
Dual Gauge
CO2 Tank
5 lb.
Cleaning Kit
Optional Add-On
Outdoor Use
No
Commercial Use
No
Keg Storage Capacities
Full Size / 1/2-Barrel
0
Pony Size / 1/4-Barrel
0
1/4-Barrel Slim
1
1/6-Barrel
1
5 gal. Ball/Pin Lock Keg
1
Exterior
Cabinet
Black
Drip Tray
Yes
Guard Rail
No
Casters
No
Draft Beer Tower
Number of Faucets
1
Material
Stainless Steel
Height
12"
Diameter
3"
Door
Color / Material
Stainless
Number of Doors
1
Door Handle
Towel Bar or Curved
Field Reversible
No
Accepts Custom Overlay Panel
No
Cooling System
Type
Compressor
Defrost System
Automatic
Front Ventilation
Yes
Controls
Adjustable Thermostat
Yes
Digital
Yes
Electrical
Electrical Requirements
115 V / 60Hz
Running Amps
2.3
Instruction Manual
Material Safety Data Sheet
Energy Guide
You may need to download Adobe Acrobat Reader to view and print PDF's. Click the link below to download Adobe Acrobat Reader for free. Download Adobe Reader
15" Wide Single Tap Stainless Steel Built-In Right Hinge Kegerator Reviews
Average Customer Rating:
(0)
(based on 0 reviews)
No customer reviews available. Be the first to write a review!
Do you sell under counter kegerators with front tap?
by Jimon July 17, 2020
Answer:
Hello Jim, we currently do not have any with this option, but if you give us a call at 800-710-9939, we'd be happy to walk you through some options to make this happen.
by Dakotaon July 17, 2020
Staff Answer
Question:
Are there instructions somewhere on how to install this under a countertop and have the beer tap mounted on top of the counter?
by Emilyon October 08, 2020
Answer:
Hello, we do not have printed instructions for this installation as every circumstance is different, but if you call our toll free line (800-710-9939) and press 3 for tech support, someone can assist you with this installation process.
