47" Wide FlexCount Series 112 Bottle Three Zone Black Side-by-Side Wine Refrigerator

Regular Price: $2737.49
You Save $547.50
+ FREE Shipping
Specify Model:

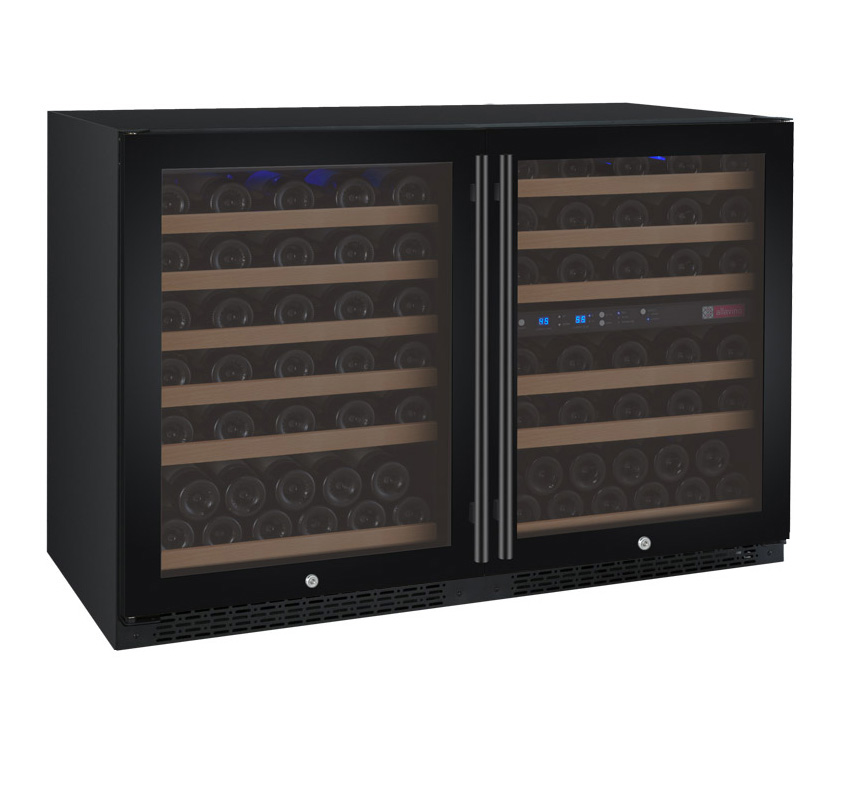

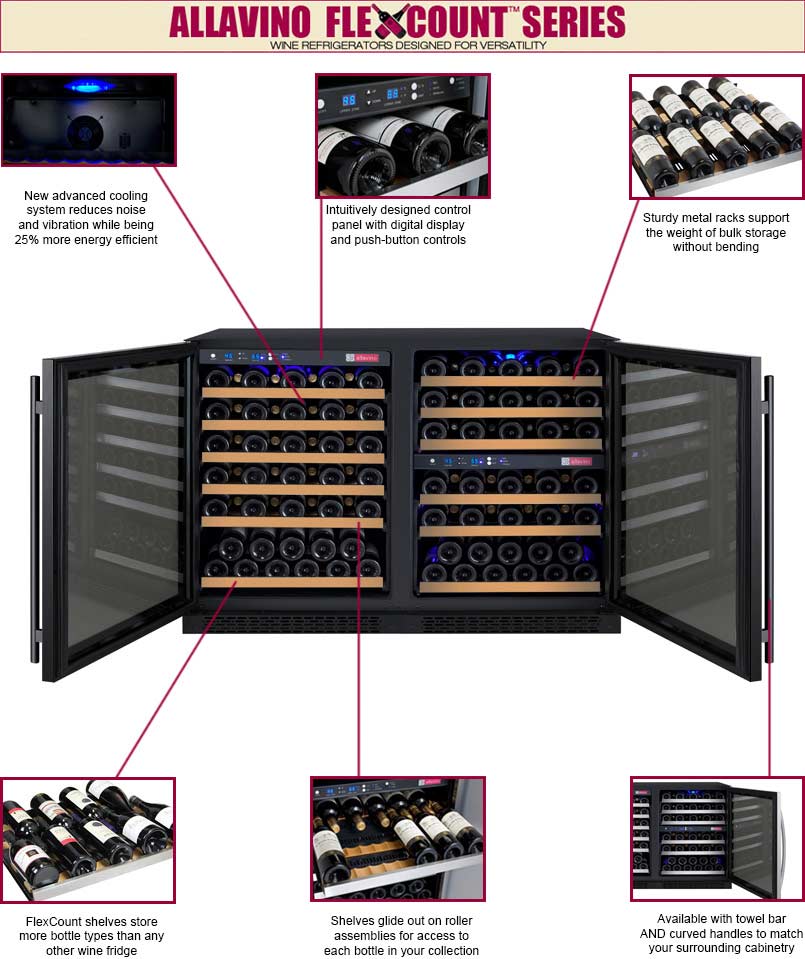

Made up of one single-zone 56 bottle unit and one dual-zone 56 bottle unit, Allavino's FlexCount Series 3Z-VSWR5656-BWT Three-Zone Wine Cooler Refrigerator makes it easy to store up to 112 wine bottles of all shapes and sizes. Allavino's new cutting-edge shelving is constructed from durable metal to be strong enough to provide reliable stability and prevent sagging, yet thin enough to allow more space between shelves to accommodate larger diameter bottles. This allows you to store larger bottles without sacrificing bottle capacity, making it perfect for wine enthusiasts with diverse collections. FlexCount shelves also feature beautiful wood fronts that can be stained to match the surrounding decor and wood slats that gently cradle your bottles to help minimize harmful vibration. The 3Z-VSWR5656-BWT has three distinct temperature zones that can each be independently monitored and adjusted using the two digital displays with intuitive push-button controls, giving you the freedom to store red, white, and sparkling wines all at the same time. Thanks to the front-venting design and finished top and sides, this unit can be used built-in or freestanding.

  • 3Z-VSWR5656-SSC Features112 Bottle Capacity:
    The 3Z-VSWR5656-BWT has 10 shelves that can fit 9 bottles each and two bottom shelves that can fit 11 bottles, allowing you to store a maximum of 112 bottles.

  • Digital Displays and Controls:
    Set and monitor each zone's temperature quickly and easily using the clear digital displays with user-friendly push button controls. Cool blue LED lighting can be turned on or off with just the push of a button for an elegant showcase.

  • Innovative New Shelf Design:
    Allavino's leading edge FlexCount Series incorporates revolutionary metal shelves that are thin enough to maximize available storage space while remaining tough enough to prevent sagging. Each shelf features wood slats that effectively cradle your bottles to prevent harmful vibration from disturbing sediment.

  • Shelves Extend Effortlessly:
    Each FlexCount shelf glides out smoothly on ball-bearing tracks to give you easy access to every bottle in your collection.

  • Security Locks:
    Built-in door locks help keep your collection secure, and each lock comes with two keys so that you can always have a backup on hand.

  • Built-In Versatility:
    This front-venting unit can be built into your cabinetry for a seamless look that does not require extra space on the sides for air circulation. It has finished a finished top and sides that also allow it to be used free-standing. This unit comes with both curved and towel bar handles to match your surrounding decor.
  • Black Cabinets with Black Frame Glass Doors
  • Curved and Towel Bar Handles included
  • All black interior emulates the traditional wine cellar
  • Blue LED lighting beautifully illuminates the interior without the heat created by an incandescent bulb
  • Roller-glide shelves extend effortlessly, minimizing agitation to the wine
  • Internal fans circulate air for even cooling and faster cooldown
  • Three independently controlled temperature zones
    Note: The lower zone must be set at least 4° and no more than 12° higher than upper zone. It is normal for there to be a 3-5° variance between the top and bottom of a zone.
  • Maximum Ambient Temperature: 90°F
  • Minimum Ambient Temperature: The lowest temperature you want to store your wine at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
  • Dimensions: 33.9"H x 46.8"W x 23.6"D
  • Weight: 247 lbs. (each unit weighs 123.5 lbs.
  • Please Note: The handles are not attached to the unit during shipping, and will need to be installed when the unit arrives. The zones may be on opposite sides depending on what models are in stock when you place your order. If you need a specific configuration, please call to place your order.

    Wine Racks

    This wine cellar has 10 shelves that can hold up to 9 bottles each and two bottom shelves that can hold 11 bottles each for a maximum bottle capacity of 112 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles, making this the ideal unit for diverse wine collections.

    Allavino FlexCount Series Wine Refrigerators

    Standard 750 mL bottle configuration

    This is the standard 750 mL bottle, which most wine refrigerators are configured around as it is the most popular size on the market. It measures 11-1/2" tall with a 2-15/16" diameter and the shoulder tapers up from 7-3/4" to 8-1/2". This wine refrigerator can easily store 9 of these bottles on each of the upper shelves and 11 more on each of the bottom shelves for a total of 112 bottles.

    Tall bottle configuration

    This bottle is taller than the standard 750 mL bottle. It measures 12-1/16" tall with a 2-15/16" diameter and the shoulder tapers up from 8" to 9". The taller shoulder and top would normally wreak havoc on your wine storage because the necks would touch, making the overall length of the bottles too tall for most shelves or pushing the outside bottles out, causing them to hit the sides of the wine refrigerator. Generally, you would have to remove a shelf to accommodate these bottles, but with the extra space available on these shelves, they fit just fine and do not affect the overall capacity.

    Wide Shoulder bottle configuration

    This bottle has the same diameter at the base, but the shoulder is wider, which would generally push it out of the grooves and make it rub on the shelf above. It measures 11-7/8" tall with a 2-15/16" diameter at the base and the shoulder tapers up from 7-1/2" to 8-1/4" with a 3-1/16" diameter. Due to the smart spacing on these shelves, these bottles fit with room to spare, preventing rubbing and allowing the maximum bottle capacity to stay the same.

    Wide bottle configuration

    This bottle is wider and shorter than the standard 750 mL bottle. It measures 10-5/8" tall with a 3-1/4" diameter and the shoulder tapers up from 5-1/2" to 8". Bottles this wide don't usually fit in wine refrigerators and if they do, they have issues with rubbing on the shelf above and scuffing your labels. This wine refrigerator has no issues with this type of bottle so once again, your maximum capacity will not be affected if you have them in your collection.

    Pinot bottle configuration

    Until now, you wouldn't dream of fitting a Pinot bottle in an undercounter built-in wine refrigerator without drastically reducing the overall capacity. It measures 11-5/8" tall with a whopping 3-1/2" diameter and the shoulder tapers up from 5-1/2" to 8-1/4". On this model, only the bottom shelves are slightly affected. You can fit 9 bottles on each of the bottom shelves without them being properly cradled in the grooves or fit 6 comfortably in the grooves by alternating the necks. So even if your ENTIRE COLLECTION was made up of Pinot bottles, your total capacity would only be reduced to 102 bottles at the lowest!

    Champagne bottles

    Champagne bottles are too big to fit on the upper shelves, but you can still store up to 6 on each of the bottom shelves. They measures 12-1/4" tall with a 3-3/4" diameter and the shoulder tapers up from 5-1/2" to 7-3/4". Most wine refrigerators this size would not be able to store any Champagne bottles without removing a shelf.

    Mixed bottle configuration

    Perhaps there are people out there that only drink one type of wine, all the time. Most wine connoisseurs with a diverse palate are going to have varying bottle sizes in their collection, so having the ability to store all those varying bottle sizes without having to reconfigure and reduce your storage makes this the wine refrigerator of choice.

    UPC: 700697201048
  • Dimensions
    Unit Weight247 lbs. (2 units - 123.5 lbs. each)
    Shipping Weight326 lbs. (2 units - 163 lbs. each)
    Labor1 Year
    Parts1 Year
    Compressor (Parts Only)5 Years
    Key Features
    Built-in CapableYes
    Security LockYes
    Multiple / Dual ZoneYes
    Beverage CenterNo
    Cabinet Color / MaterialBlack Metal
    ADA CompliantNo
    Commercial UseYes
    Outdoor UseNo
    Energy Star RatedNo
    Wine Bottle CountUp to 112 Bottles
    Adjustable ThermostatYes
    Cooling System
    Defrost SystemAutomatic
    Front VentilationYes
    Number of Shelves12
    MaterialMetal with Wood Slats
    Glide-Out (Roller Assemblies)Yes
    Bottles per Shelf9
    Compartments (Distinct Zones)3
    LightingBlue LED
    Number of Doors2
    Color / MaterialBlack Frame
    Door HandleTowel Bar AND Curved
    Field ReversibleYes
    Tinted / UV ProtectiveYes
    Electrical Requirements115 V / 60 Hz
    PDFVSWR56-1 Manual
    PDFVSWR56-2 Manual
    PDFEnergy Guides

    47" Wide FlexCount Series 112 Bottle Three Zone Black Side-by-Side Wine Refrigerator Reviews

    Average Customer Rating:
    (based on 3 reviews)
    Beautiful but much noisier then I expect
    by:Judy (08-07-2018)
    Rancho Santa Fe, CA
    Comments:they are beautiful and hold lots of wine but much noisier then I expected and the glass keeps fogging up on the white side... I bought then cause my others were old and did not hold as many and I wanted more energy efficiency. I hope they are and my electric bill goes down?? we shall see...
    Bottom Line:I would recommend this product.
    Very nice
    by:Brett (07-03-2018)
    Phoenix, AZ
    Comments:It does what it’s supposed to. Units appear well built and are easy to use. Couple things to note. This is 2 separate units, so there is a seam along the top when you push them together. Doesn’t look bad, but not exactly the credenza I was replacing. Also, the units run a bit on the loud side. You can hear them from across the room.

    Given the relatively low cost, they are well worth it. They even come with 2 sets of handles so you can pick the look you want. The temperatures are consistent and the 3 zones are very convenient.
    Bottom Line:I would recommend this product.
    Exceeded expectations
    by:Bill (11-16-2016)
    Punta Gorda, Florida
    Comments:Very happy to replace a thrmoelectic cooler with a compressor model. The cabinet is well-crafted and the shelves are amazing. There is plenty of room for a significant wine collection.

    One downside is that even though the bottom shelves are wider, it is hard to fit the advertised number of sparking bottles.
    Bottom Line:I would recommend this product.

    Be the first to ask a question.

    This item ships via Standard Door to Door Freight Service.

    Please note: Free Shipping does not include White Glove Service. If you require White Glove Delivery service where they unpack it, place it where you want it, and remove the packing materials, it will require additional charges of $300.00. Please call us at 800.710.9939 if you would like to upgrade to White Glove Service.

    Shipping rates apply for orders shipped to the contiguous 48 US states. For orders to Alaska, Hawaii, Puerto Rico, APO/FPO addresses and international locations, please call 800.710.9939 for current rates. Sorry, we cannot ship items to a P.O. box.

    Labor - 12 Months


    For one year from the date of purchase by the original owner, Allavino will, at its option, repair or replace any part of theunit, which proves to be defective in material or workmanship under normal use. During this period Allavino will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in the user manual. In cases where a product cannot be repaired, Allavino will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Allavino Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

    Parts - 60 Months


    For the second through the fifth year from date of original purchase, Allavino Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers' shop and back to the user's home, as may be required, are the user's responsibility.

    Additional Details

    • Content losses of food or other, due to spoilage.
    • Incidental or consequential damages.
    • Parts and labor costs for the following will not be considered as warranty:
      • Door springs, and/or frames.
      • Inner door panels, door rails and/or door supports.
      • Light bulbs and/or plastic housing.
      • Plastic cabinet liners.
      • Punctured evaporator that voids the warranty on the complete sealed system.
      • Repairs performed by unauthorized servicers.
      • Shipping and handling costs associated with the replacement of the unit.
      • Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
      • Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
      • Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
      • Replacement of house fuses or resetting circuit breakers.
    • Failure of the product if it is used for other than its intended purpose.
    • This warranty does not apply outside the Continental USA.
