Kegco 24" Wide Dual Tap Stainless Steel Commercial/Residential Digital Kegerator
Model: Z163S-2NK
- This digital kegerator is CSA certified to conform to NSF/ANSI 7, making it suitable for both commercial and residential use
- Intuitive digital controls and a clear LED display give you precise control over the internal temperature, which can be set between 32 and 75 degrees Fahrenheit
- Store one full size, pony, or quarter slim keg, two 5 gallon commercial kegs, three ball lock kegs, or two pin lock kegs in this keg cooler's spacious 5.8 cu.ft. interior
- When you aren't storing and dispensing kegs, you can use the three included wire shelves to convert the unit into a regular all-refrigerator
- Comes complete with a dual tap draft dispense system that features 100% stainless steel contact

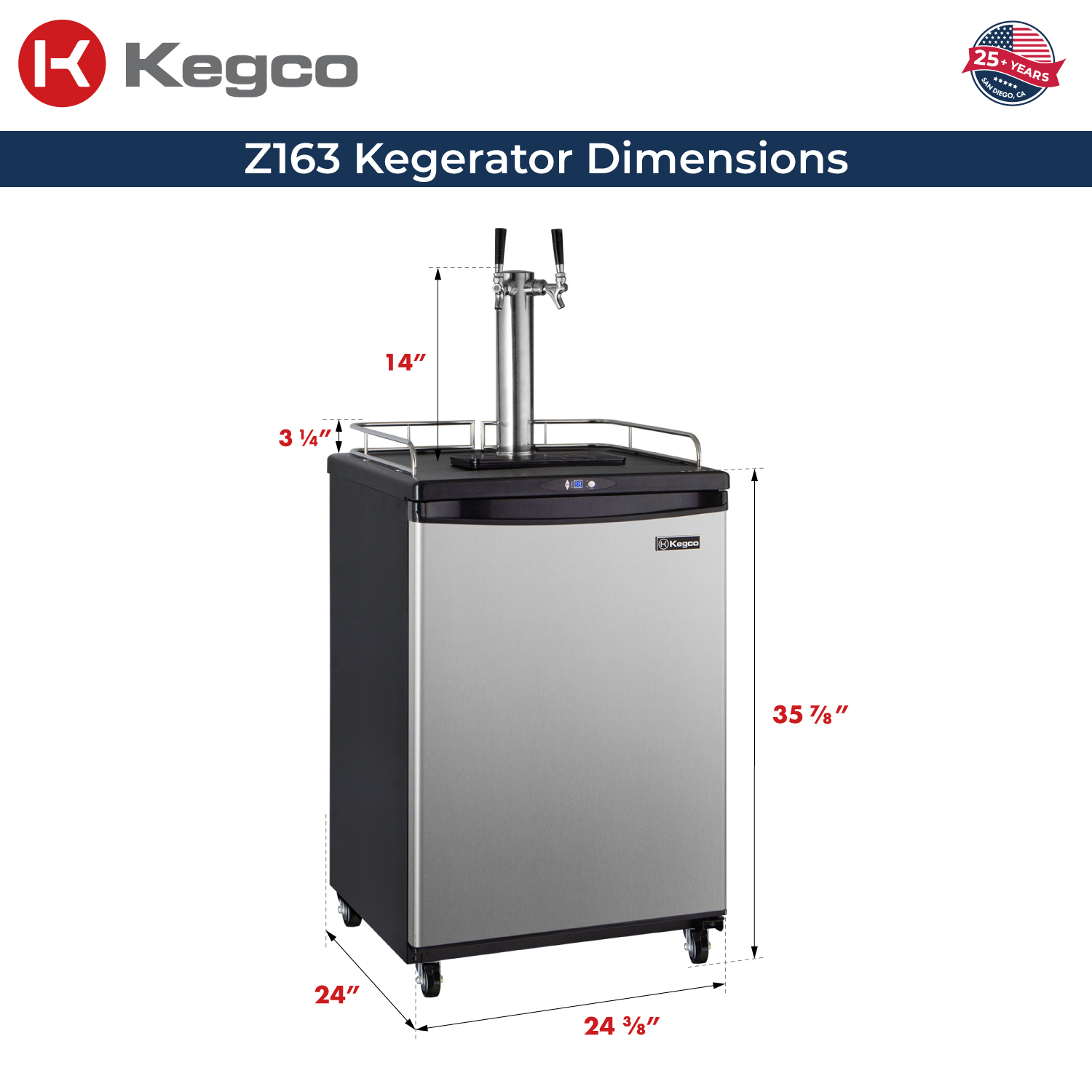

Dimensions: 35.875" H x 24.375" W x 24" D
What is the Z163S?
For personal and professional beer dispensing, there's no better choice than Kegco's Z163S-2NK Two Faucet Digital Kegerator! This keg dispenser is quiet and energy efficient enough for use in the home, and its durability and high-performance power make it perfect for use in busy commercial environments like bars, restaurants, and tasting rooms.
Elegant Look
The keg refrigerator's freestanding black cabinet and beautiful field-reversible stainless steel door are a stylish addition to any home or business. This kegerator cabinet comes with a double tap draft dispense system that features 100% stainless contact.

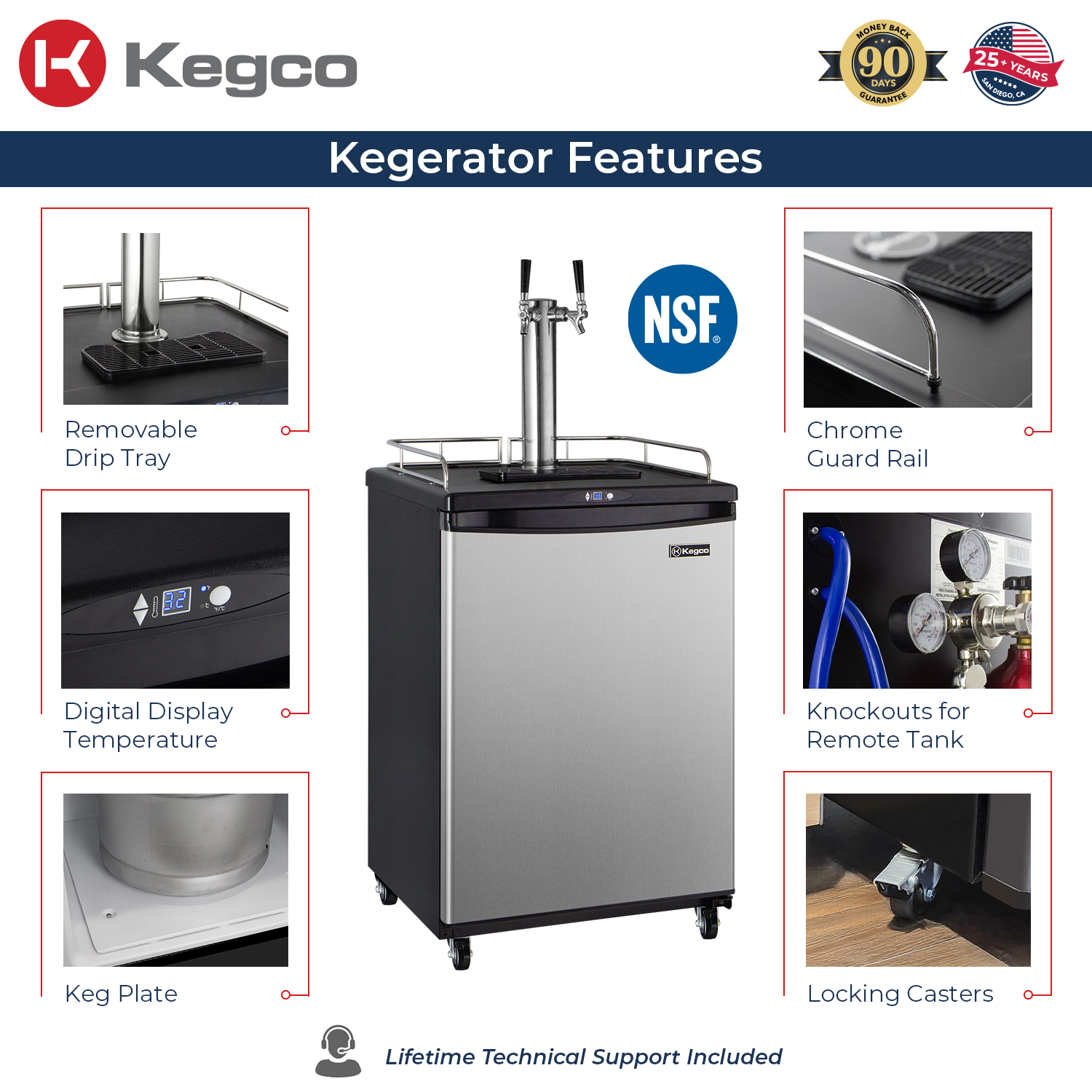

Useful Features
From the removable built-in drip tray that catches drips and spills to the easy-roll casters that provide convenient mobility, Kegco has packed the Z163S-2NK with handy features for a superior keg dispensing experience. The countertop also includes a chrome guard rail that helps prevent mugs and glasses from sliding off.
Why the Z163S?
Thanks to the spacious 5.8 cu.ft. interior, you can store one full size, pony, or quarter slim keg, two 5 gallon commercial kegs, three ball lock kegs, or two pin lock kegs in this beer keg cooler. The dual tap design allows you to store and dispense from two different 5 gallon kegs at the same time.
Durability & Functionality
The Z163S-2NK's durable construction is tough enough to withstand frequent use by friends and customers. It features a steel interior floor mat that evenly distributes the weight of your kegs to ensure long-lasting dependability. When you aren't storing and dispensing kegs, you can convert the keg cooler into a regular all-refrigerator using the three included wire storage shelves.
How is the Performance?
Unlike other kegerators that rely on an imprecise dial to adjust the internal temperature, the Z163S-2NK utilizes powerful digital controls and a clear LED display to give you precise temperature control. It boasts one of the widest temperature ranges of any keg refrigerator on the market today, allowing you to dispense kegs, ferment beer, or store other food and beverages between 32 and 75 degrees Fahrenheit.

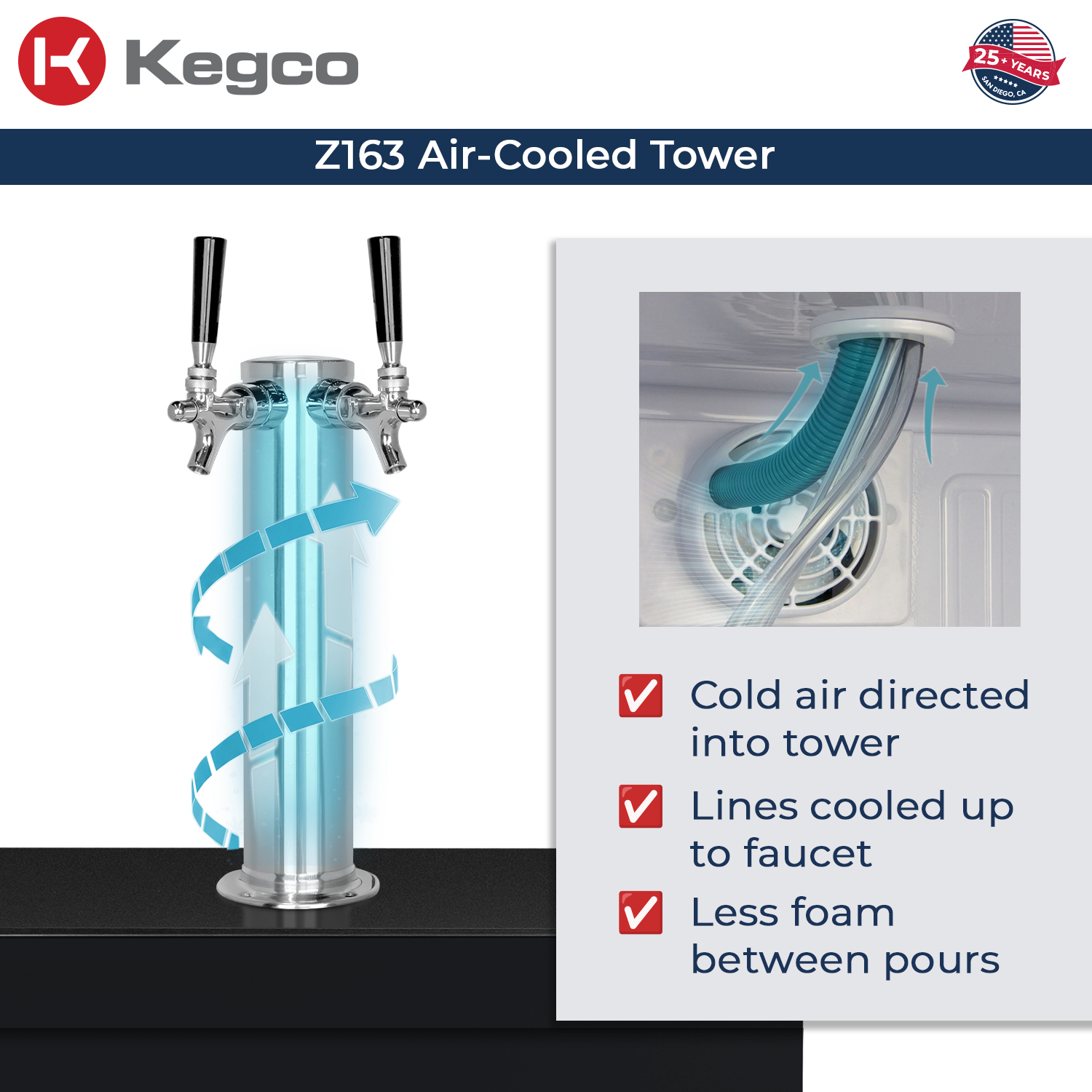

Fan Forced Cooling
To ensure that your beer stays ice cold from the keg to your glass, this beer keg dispenser has been designed with fan-forced cooling and an air cooled draft tower. The kegerator also features automatic defrost for added convenience.

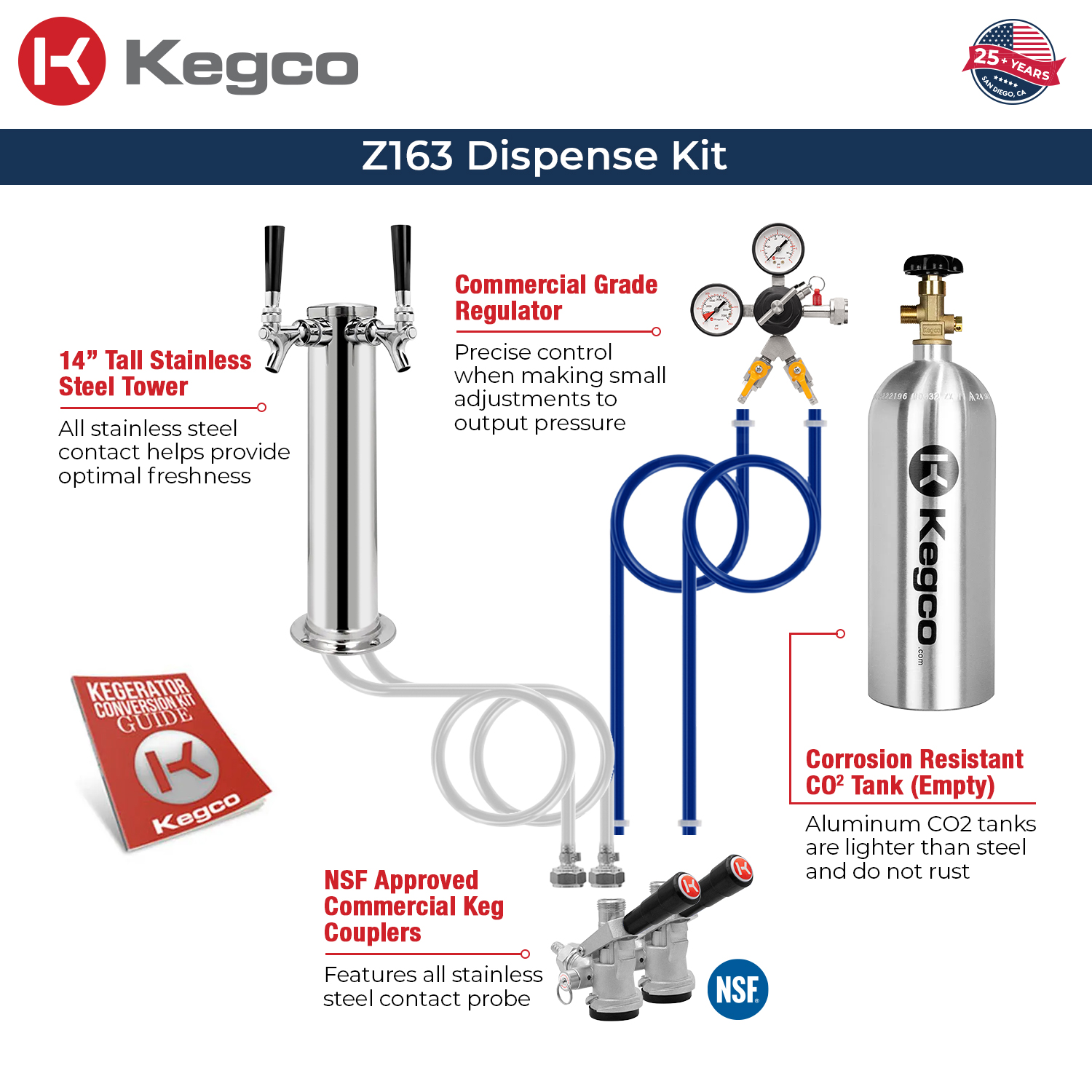

- Includes a brand new 5 lb. Aluminum CO2 Tank
This tank is produced from high strength aluminum alloy 6061-T6, a highly corrosion-resistant material. The service pressure is up to 1800 PSI/124 BAR with a test pressure of 3000 PSI/207 BAR. These cylinders are stamped with the required U.S. Department of Transportation and Transport Canada markings. The 320 valves are CGA approved, and have a male thread for CO2 regulators. An average fill is good for 5-6 kegs depending upon your fill. - Includes Commercial Grade Dual Gauge Two Product CO2 Regulator
The regulator works with any CO2 tank with a CGA-320 valve and measures PSI, as well as the volume of the CO2 gas in the cylinder. It has a pressure release valve and a large hand control which makes it easy to adjust the pressure inside the keg. - Includes two 5 foot lengths of 5/16 Inch I.D. Blue Air Line Assembly with Snap Clamps
These standard 5 foot lengths of 5/16" I.D. blue air/CO2 tubing is made of thermoplastic vinyl hose (Super Vinyl). This tubing will not rot, swell, or dry out, and is unaffected by normal cleaning compounds. Each air line assembly comes with two plastic snap clamps with a reusable clamp design. - Includes two D system lever handle keg couplers
These commercial grade lever handle keg couplers work with all American "D" system Sankey kegs. They feature 55-psi pressure relief valves and nickel-plated forged brass bodies. To tap a keg, simply pull out and then down on the lever handle. - Includes a Kegco Exclusive 14" Tall, 3" Diameter Dual Faucet Polished Stainless Steel Draft Tower
This NSF-approved tower is a 3" diameter dual faucet metal draft tower made of polished stainless steel. It comes complete with two stainless steel faucets and two 5 foot lengths of 3/16" I.D. clear beer tubing. The tower is mounted using the gasket and four screws that are included. This Kegco Exclusive tower measures 14" tall, giving you an extra 2" of space over standard draft beer towers. - All dispensing accessories are UL recognized components
- Converts to a refrigerator with 3 full-width wire shelves
- Large enough to hold all full size kegs (including Coors, Miller, and many additional brands)
- Holds 1/2 barrels, full size kegs (15.5 gallons), 1/4 barrels, ponies (7.75 gallons), and 1/6 barrels (5 gallons)
- Matte black cabinet with stainless steel door
- Stainless door has a protective film on it to prevent scratches during shipment; film can be peeled off once the kegerator has been set up
- Digital temperature control allows you to adjust the temperature between 32 and 75 degrees Fahrenheit
- Maximum Ambient Temperature: 90 degrees Fahrenheit
- Minimum Ambient Temperature: The lowest temperature you want to store your kegs at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
- A great choice for dispensing beer, soda, kombucha, and wine
- Easy roll casters provide convenient mobility
- Removable built-in drip tray with grill collects drips and spills
- Chrome guard rail helps prevent mugs and glasses from sliding off
- Steel interior floor mat ensures long-lasting durability and allows kegs to glide easily in and out of the cabinet
- 25% more energy efficient design saves you money each month!
- Plugs into standard home outlets
- CSA certified to conform to NSF/ANSI 7
This kegerator can fit one full size, pony, or quarter slim keg, two 5 gallon commercial kegs, three ball lock kegs, or two pin lock kegs. PLEASE NOTE: Will not accommodate an "A" system keg.
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|
| Brand | Full Size | Pony Size | Quarter slim | 5 Gallon D System | 5 Gallon Ball Lock | 5 Gallon Pin Lock | 5 Gallon Strap Handle |
| Kegco K199 |
1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Kegco K209 |
1 | 1 | 1 | 2 | 3 | 3 | 3 |
| Kegco K309 |
1 | 1 | 1 | 2 | 3 | 3 | 3 |
| Kegco VSK-15 |
0 | 0 | 0 | 1 | 1 | 1 | 1 |
| Kegco SLK-15 |
0 | 0 | 0 | 1 | 1 | 1 | 1 |
| Kegco Z163 |
1 | 1 | 1 | 2 | 3 | 2 | 3 |
| Kegco HK38 |
1 | 1 | 2 | 3 | 3 | 3 | 3 |
| Kegco XCK-1 |
1 | 1 | 2 | 4 | 4 | 4 | 4 |
| Summit SBC677 |
1 | 1 | 1 | 2 | 3 | 2 | 3 |
| Summit SBC635 |
1 | 1 | 1 | 2 | 3 | 3 | 3 |
| Haier Kegerator |
1 | 1 | 2* | 2 | 3 | 3 | 3 |
| Danby Kegerator |
1 | 1 | 1 | 2 | 3 | 2 | 3 |
| All Marvel Kegerators |
1 | 1 | 1 | 2 | 3 | 3 | 3 |
| Perlick HP15T |
0 | 0 | 0 | 1 | 1 | 1 | 1 |
| Perlick HP24T |
0 | 1 | 0 | 2 | 2 | 1 | 2 |
| Perlick HC24T |
0 | 1 | 0 | 2 | 2 | 1 | 2 |
| UBC Kegmaster |
1 | 1 | 2 | 4** | 3 | 4** | 4** |
| Beverage Air BM23 |
1 | 1 | 2 | 3 | 4 | 4 | 4 |
| Everest EBD1 |
1 | 1 | 1 | 2 | 3 | 3 | 3 |
 |
 |
 |
|
|---|---|---|---|
| Brand | Full Size | Pony Size | Quarter slim |
| Kegco K199 |
1 | 1 | 1 |
| Kegco K209 |
1 | 1 | 1 |
| Kegco K309 |
1 | 1 | 1 |
| Kegco VSK-15 |
0 | 0 | 0 |
| Kegco SLK-15 |
0 | 0 | 0 |
| Kegco Z163 |
1 | 1 | 1 |
| Kegco HK38 |
1 | 1 | 2 |
| Kegco XCK-1 |
1 | 1 | 2 |
| Summit SBC677 |
1 | 1 | 1 |
| Summit SBC635 |
1 | 1 | 1 |
| Haier Kegerator |
1 | 1 | 2* |
| Danby Kegerator |
1 | 1 | 1 |
| All Marvel Kegerators |
1 | 1 | 1 |
| Perlick HP15T |
0 | 0 | 0 |
| Perlick HP24T |
0 | 1 | 0 |
| Perlick HC24T |
0 | 1 | 0 |
| UBC Kegmaster |
1 | 1 | 2 |
| Beverage Air BM23 |
1 | 1 | 2 |
| Everest EBD1 |
1 | 1 | 1 |
 |
 |
 |
 |
|
|---|---|---|---|---|
| Brand | 5 Gallon D System | 5 Gallon Ball Lock | 5 Gallon Pin Lock | 5 Gallon Strap Handle |
| Kegco K199 |
2 | 2 | 2 | 2 |
| Kegco K209 |
2 | 3 | 3 | 3 |
| Kegco K309 |
2 | 3 | 3 | 3 |
| Kegco VSK-15 |
1 | 1 | 1 | 1 |
| Kegco SLK-15 |
1 | 1 | 1 | 1 |
| Kegco Z163 |
2 | 3 | 2 | 3 |
| Kegco HK38 |
3 | 3 | 3 | 3 |
| Kegco XCK-1 |
4 | 4 | 4 | 4 |
| Summit SBC677 |
2 | 3 | 2 | 3 |
| Summit SBC635 |
2 | 3 | 3 | 3 |
| Haier Kegerator |
2 | 3 | 3 | 3 |
| Danby Kegerator |
2 | 3 | 2 | 3 |
| All Marvel Kegerators |
2 | 3 | 3 | 3 |
| Perlick HP15T |
1 | 1 | 1 | 1 |
| Perlick HP24T |
2 | 2 | 1 | 2 |
| Perlick HC24T |
2 | 2 | 1 | 2 |
| UBC Kegmaster |
4** | 3 | 4** | 4** |
| Beverage Air BM23 |
3 | 4 | 4 | 4 |
| Everest EBD1 |
2 | 3 | 3 | 3 |
* - Using Wood riser for front keg
** - With external CO2 tank (3 with internal CO2 tank)
Labor - 12 Months
LIMITED ONE YEAR WARRANTYFor one year from the date of purchase by the original owner, Kegco will, at its option, repair or replace any part of the unit, which proves to be defective in material or workmanship under normal use. During this period Kegco will provide all parts and labor necessary to correct such defects free of charge, so long as the unit has been installed and operated in accordance with the written instructions in this manual. Kegco will provide you with a reasonably similar replacement product that is either new or factory refurbished. In rental or commercial use, the warranty period is 90 days. All Kegco Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.
Parts - 60 Months
LIMITED SECOND THROUGH FIFTH YEAR WARRANTY:For the second through the fifth year from date of original purchase, Kegco Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the appliance to the servicers’ shop and back to the user's home, as may be required, are the user's responsibility.
Additional Details
WHAT IS NOT COVERED:- Content losses of food or other, due to spoilage.
- Incidental or consequential damages.
- Parts and labor costs for the following will not be considered as warranty:
- Door springs, and/or frames.
- Inner door panels, door rails and/or door supports.
- Light bulbs and/or plastic housing.
- Plastic cabinet liners.
- Punctured evaporator that voids the warranty on the complete sealed system.
- Repairs performed by unauthorized servicers.
- Shipping and handling costs associated with the replacement of the unit.
- Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
- Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service call to remote areas, including the State of Alaska.
- Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
- Replacement of house fuses or resetting circuit breakers.
- Failure of the product if it is used for other than its intended purpose.
- This warranty does not apply outside the Continental USA.
