20 Gallon Brew Kettle

Regular Price: $288.74
You Save $57.75

The Kegco Brew Kettles are specially designed for brewing applications and built with durability to keep you brewing for a lifetime. This 20 gallon brew pot is the perfect kettle for a full wort boil on any 15 gallon batch, a mash tun for 10 gallon all-grain system, or a 20 gallon hot liquor tank.

The Kegco brewing pots are constructed of heavy duty, food grade, 22 gauge, 304 stainless steel with a tri-clad bottom that ensures even heat distribution and makes them compatible with induction cook-tops. The boil pot comes equipped with a lid that was conveniently designed to hang on the kettle's handles. The silicone handles are riveted in place to assist when lifting a hot liquid-filled pot. This brew pot includes internal volume markers in both gallons and liters for quick and easy readings regardless of what recipe you're using The brew kettle features standard 7/8" accessory holes and weldless bulkheads for easy cleaning and customization. Perfect for brewing small batches, partial mash, or brew-in-a-bag systems - every detail of Kegco stock pots have been thought through to enhance the home-brewing experience.

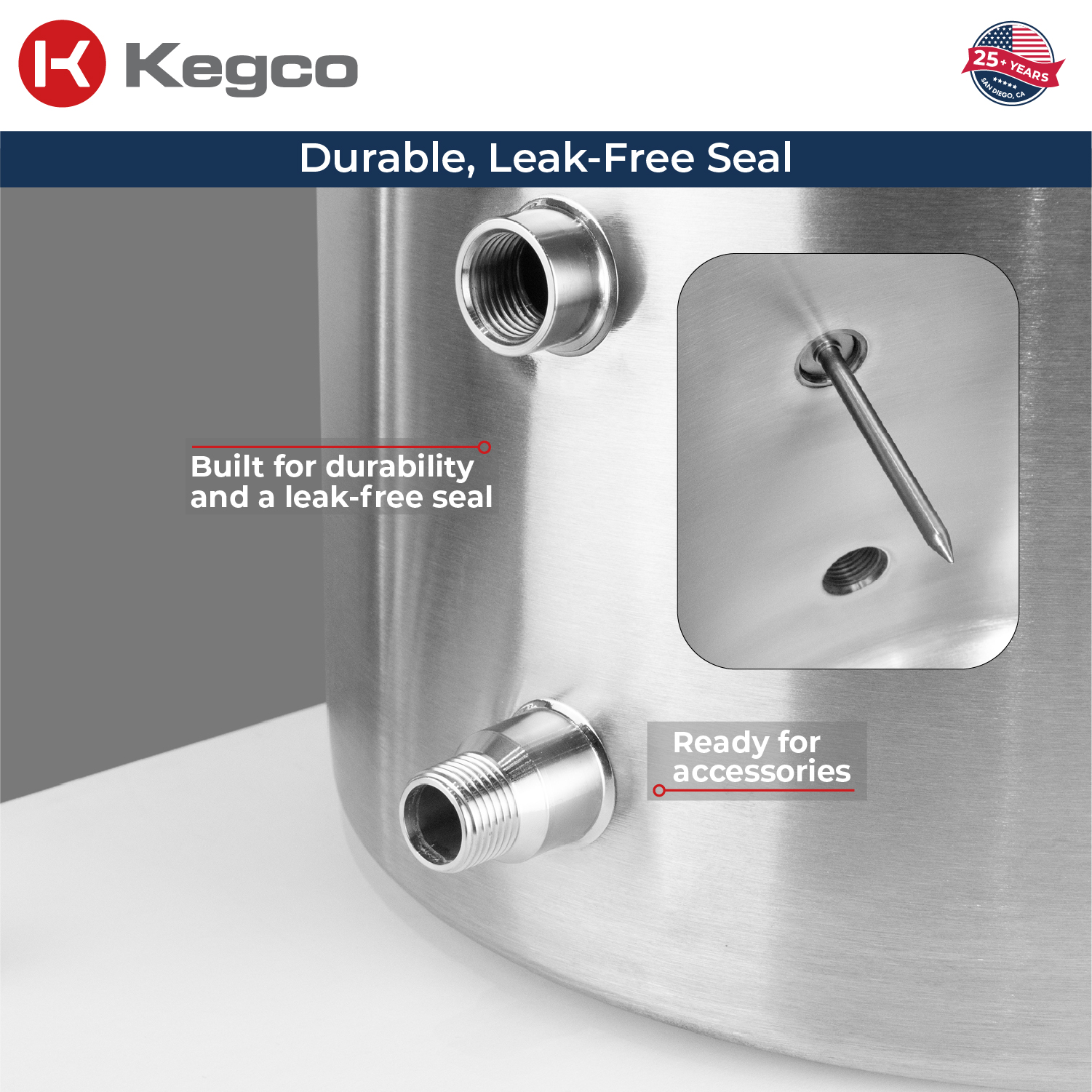

We give you the ability to customize the pot with either a plug or a thermometer in the upper bulkhead and your choice of a 2-piece or 3-piece ball valve in the lower bulkhead. The 1/2" NPT bulkheads feature male threads on one side and female threads on the other for a multitude of uses. See the available options below.

Add on a Kegco False Bottom Below

Part # Capacity Height Diameter
XBK6 6 Gallons 14.5" 12.25"
XBK8 8 Gallons 15.5" 13.25"
XBK10 10 Gallons 16.5" 14.5"
XBK15 15 Gallons 19" 16.5"
XBK20 20 Gallons 21.5" 18.5"
XBK30 30 Gallons 23.55" 20.5"
XBK50 50 Gallons 28.5" 24.55"
Part # Capacity
XBK6 6 Gallons
XBK8 8 Gallons
XBK10 10 Gallons
XBK15 15 Gallons
XBK20 20 Gallons
XBK30 30 Gallons
XBK50 50 Gallons

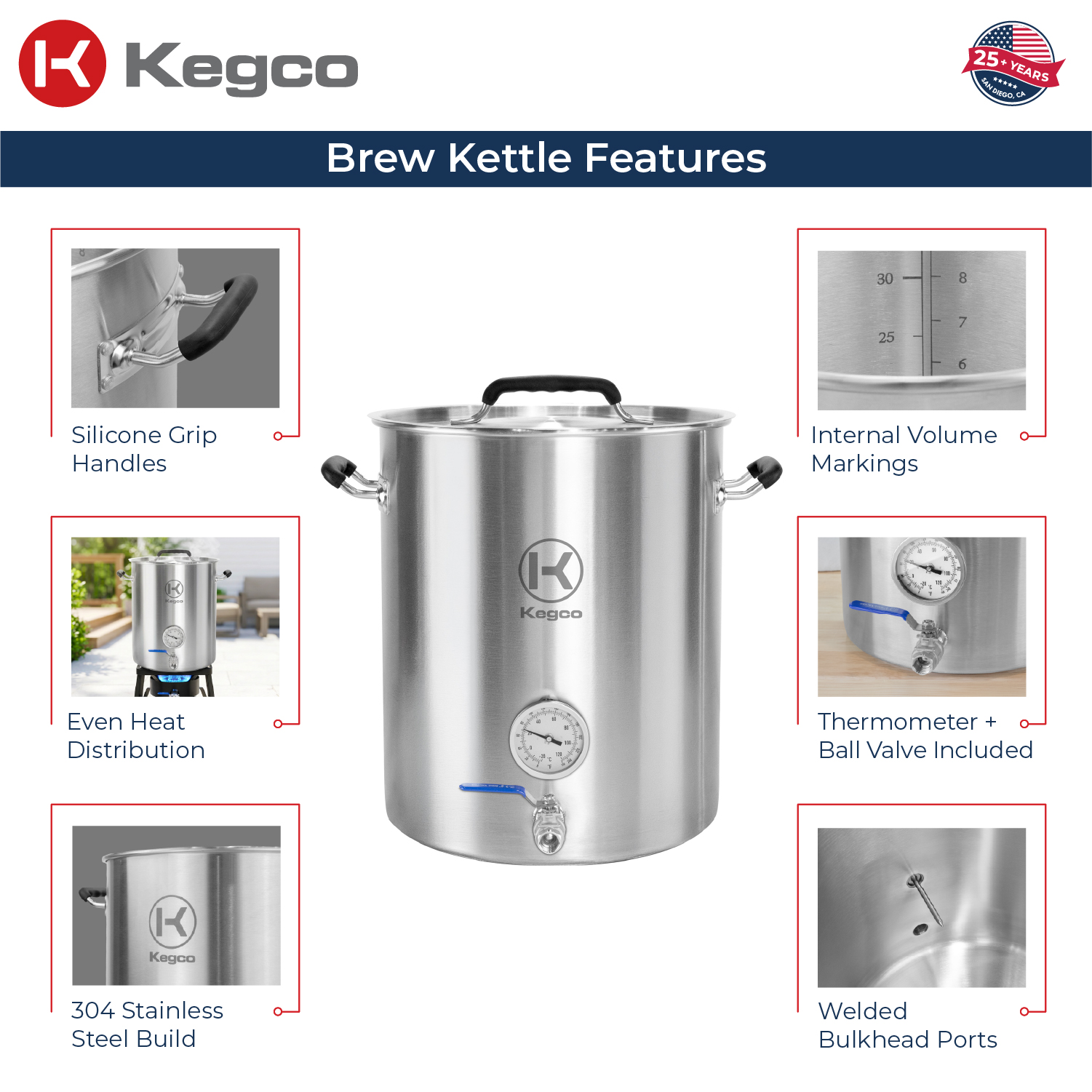

  • Capacity: 20 Gallons / 80 Quarts
  • Material: Heavy duty food grade 22 Gauge 304 Stainless Steel
  • Tri clad bottom
  • Riveted Handles with Silicone Grip for safe handling
  • Lid designed to hang on handles
  • Internal Graduations in both Gallons and Liters
  • Standard 7/8" accessories holes
  • Weldless Bulkheads
  • Compatible with induction cook-tops

Recommended Kettle size for 3 kettle system

  • 5 Gallon All Grain: 8 gal / 8 gal / 10 gal - for long boil such as scotch ales or higher gravity batches consider 10 gal / 10 gal / 10 gal
  • 10 Gallon All Grain : 15 gal / 15 gal / 20 gal
  • 15 Gallon All Grain : 20 gal / 20 gal / 30 gal
  • 20 Gallon All Grain : 30 gal / 30 gal / 50 gal
  • 31 Gallon All Grain : 50 gal / 50 gal / 50 gal

UPC: 700697203318

20 Gallon Brew Kettle Reviews

Average Customer Rating:
(based on 0 reviews)
No customer reviews available. Be the first to write a review!
Where is this kettle manufactured?
by Jaystrat on January 28, 2021
Hello, these kettles are manufactured in China.
by Dakota on February 08, 2021
Staff Answer


Select Options

This product has multiple options. Please select options and then add to cart at the bottom of the page.

Item Qty Discount Price
Model: BF XBK20
Availability: In Stock
Select Upgrade Options
Optional Upper Bulkhead Customization

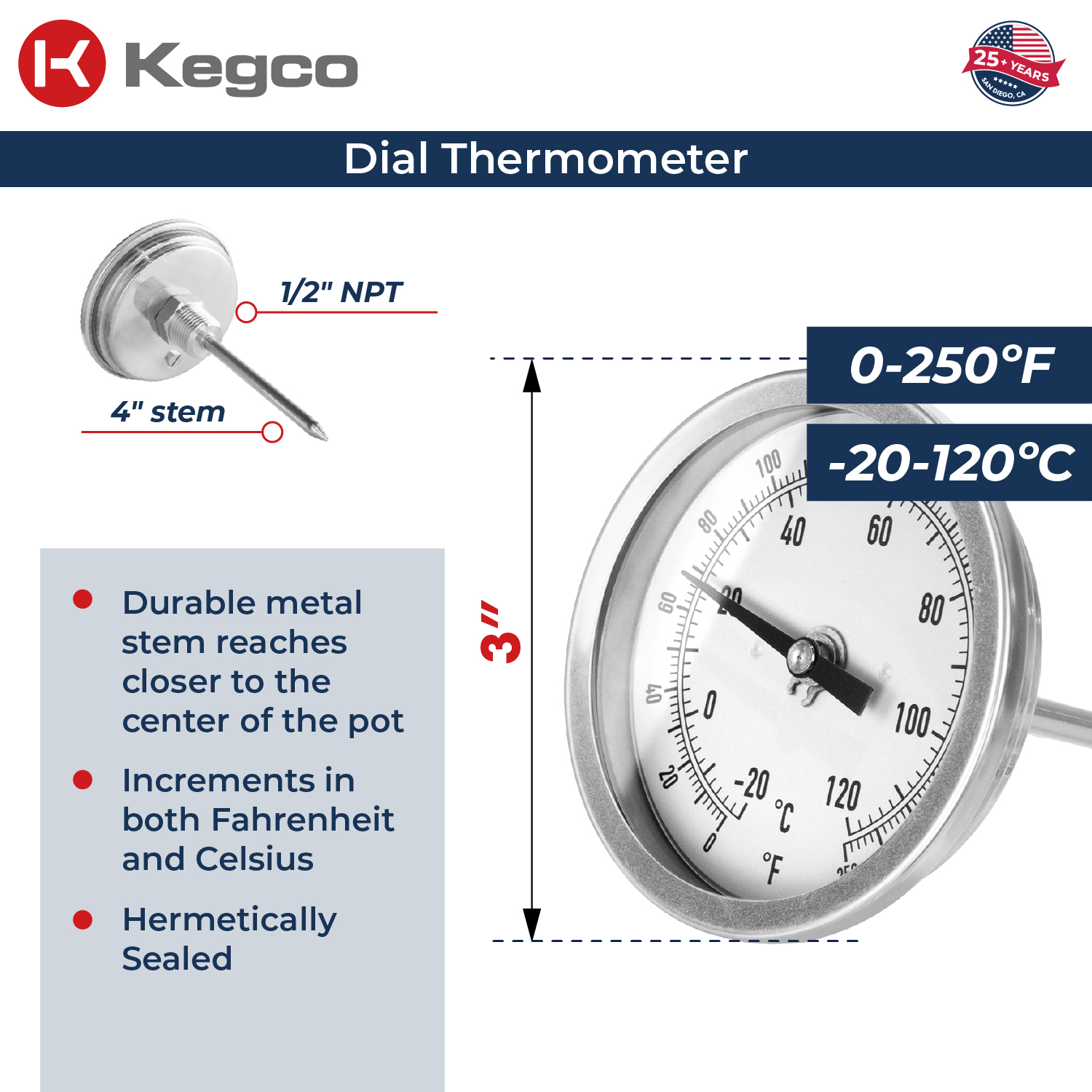

Dial Thermometer (included) +$0.00
Dial Thermometer for Brew Pots - 1/2 NPT Angle Connection +$70.69
Replace with 1/2" MPT Hex Head Plug -$23.99

Optional Lower Bulkhead Customization

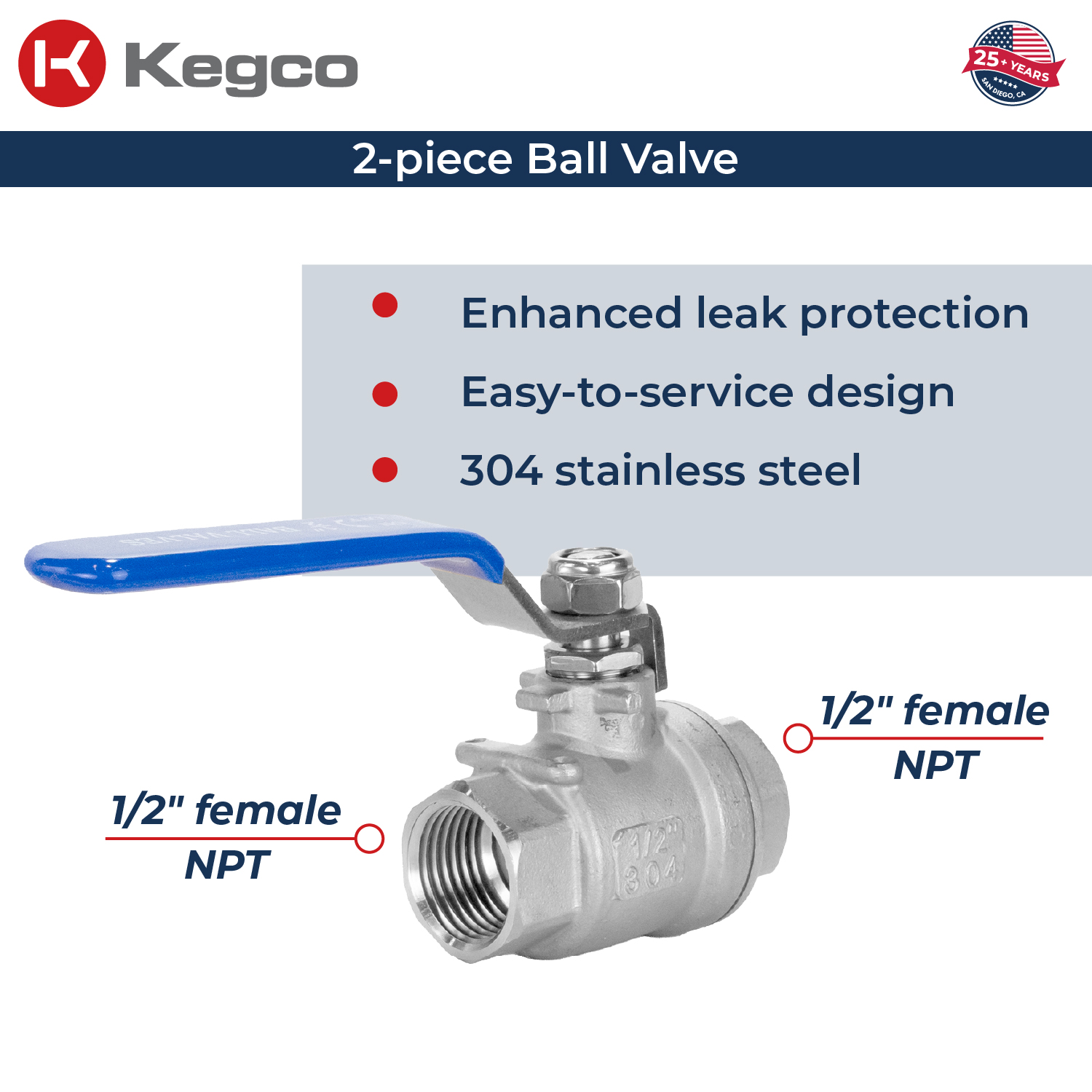

2-Piece Ball Valve +$0.00
3-Piece Ball Valve +$5.00

Optional False Bottom
False Bottom for 20 Gallon Brew Pot +$79.19
