CellarPro Split Recessed Ceiling Mount 1/3 Ton

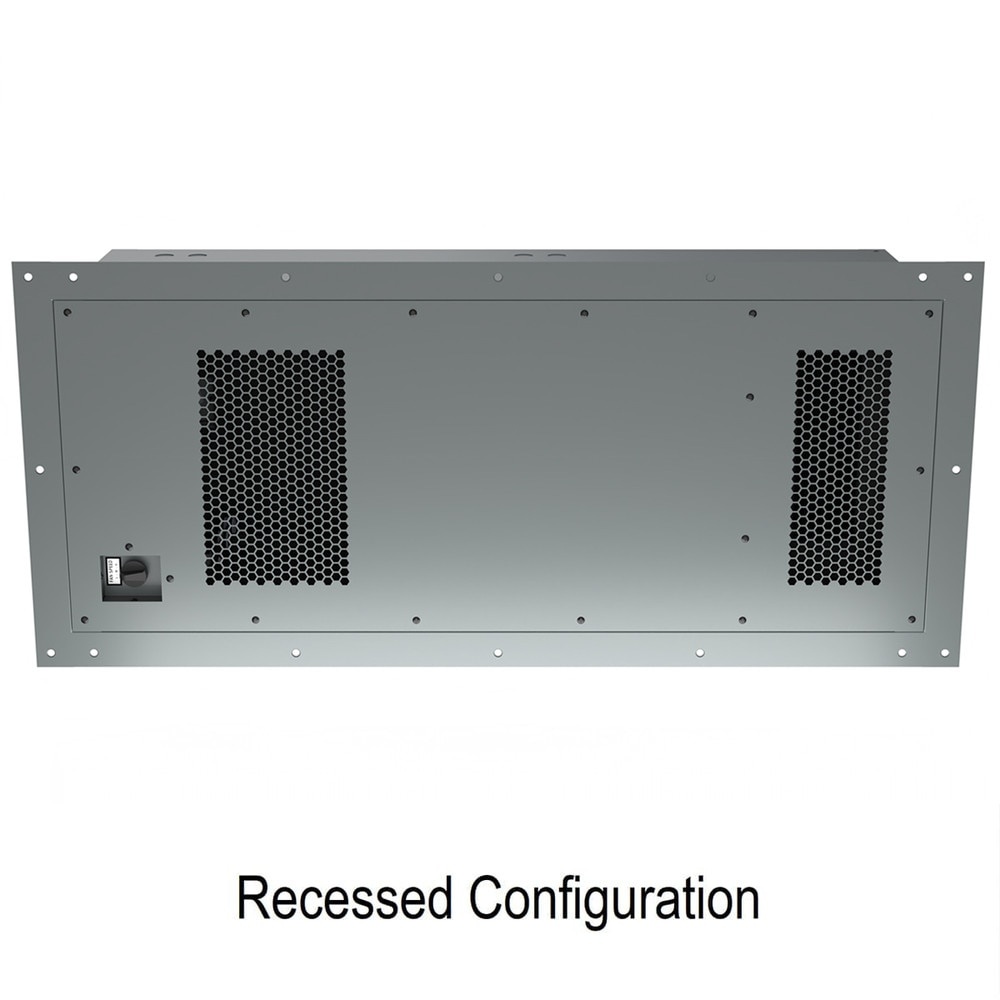

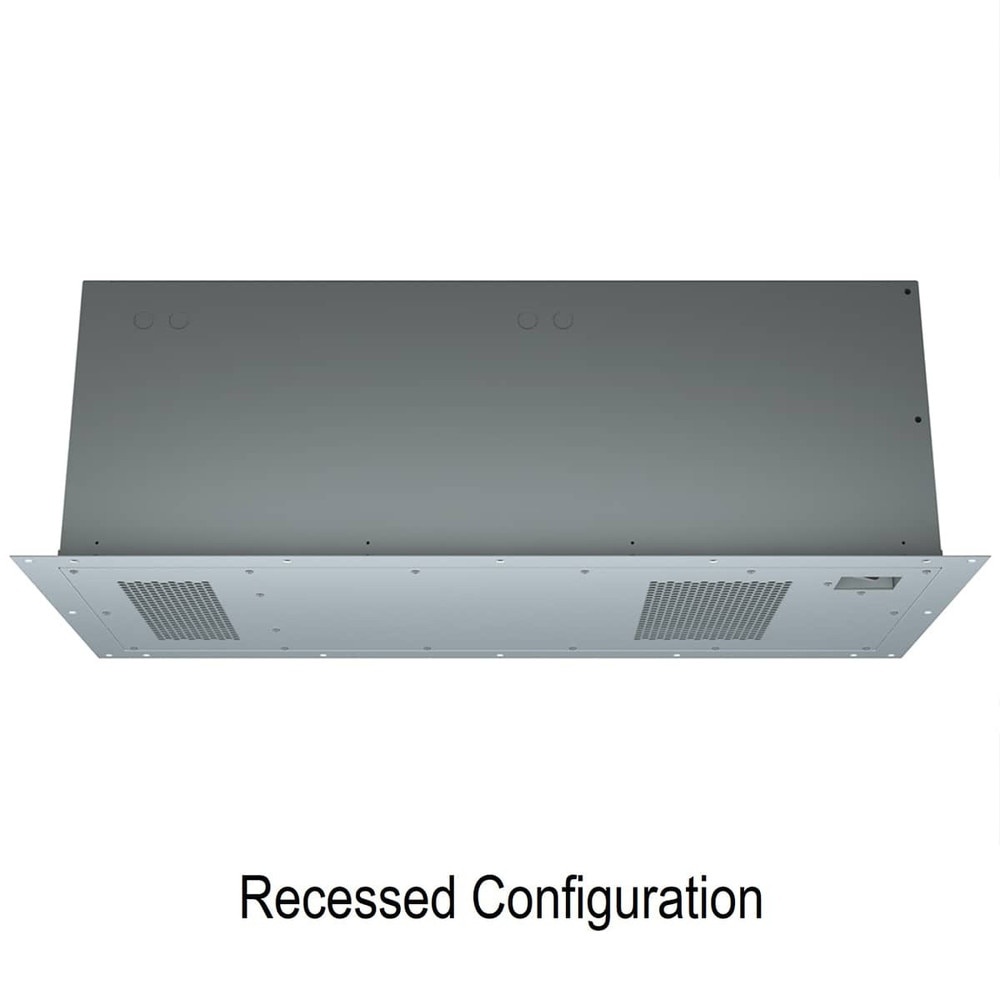

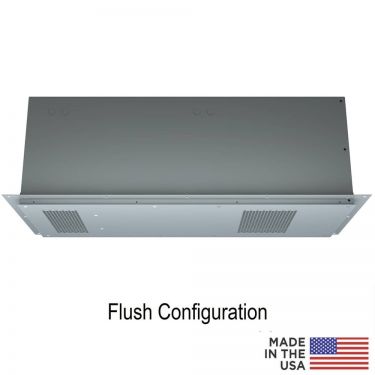

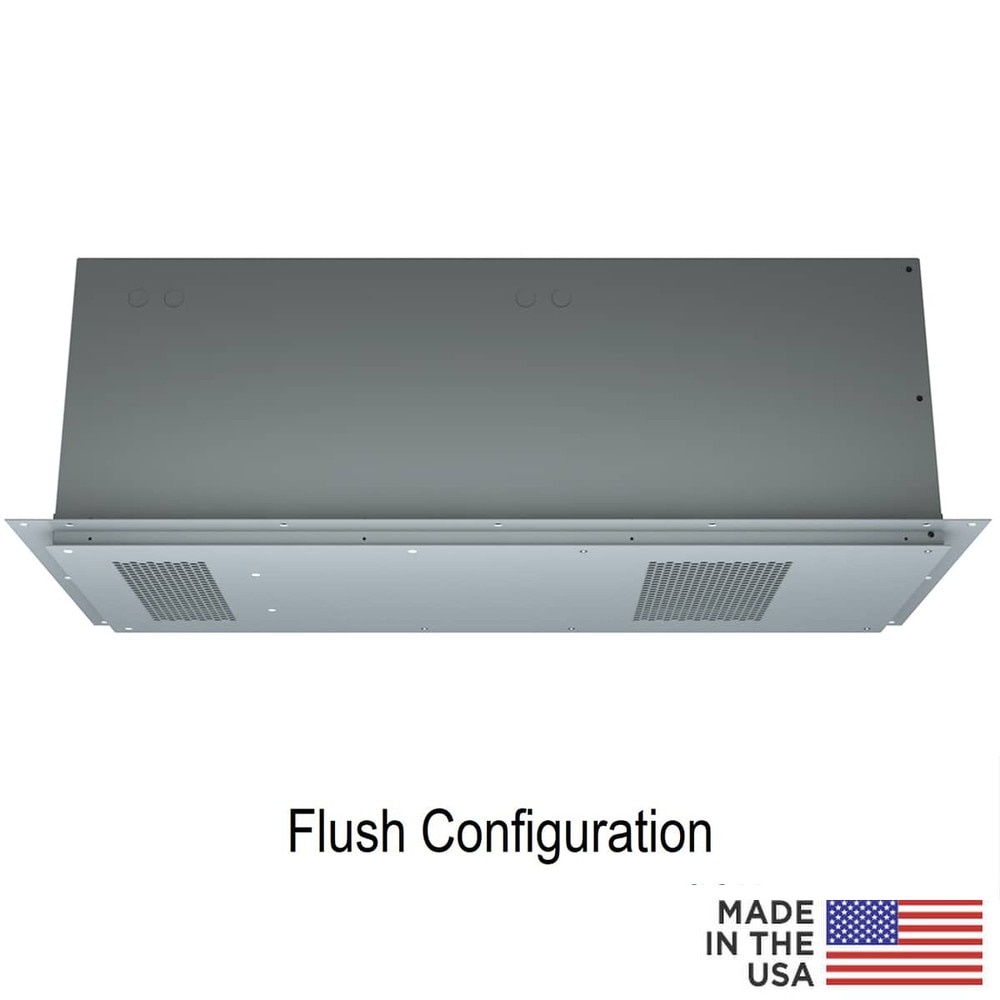

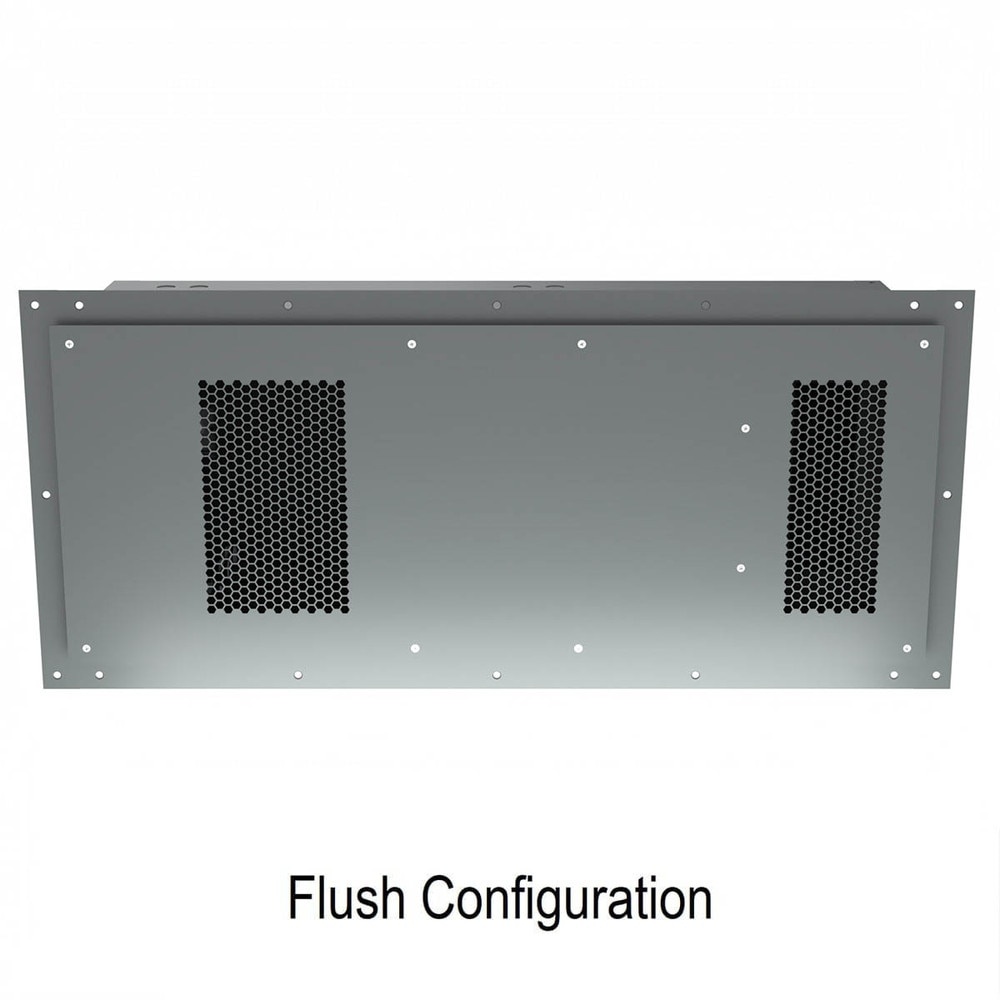

This CellarPro Ceiling Mount Recessed 3000Scmr-EC now features energy efficient EC fans! CellarPro engineered the Ceiling Mount Mini-Split 3000Scmr-EC cooling system to provide maximum cooling power and adjustable humidity control with a ceiling-mounted evaporator that can be recessed in the ceiling and therefore hidden from view. The condensing unit can be configured for indoor or exterior installations, and the evaporator includes a variable-speed fan with a low setting for quieter operation and a high setting for maximum power.

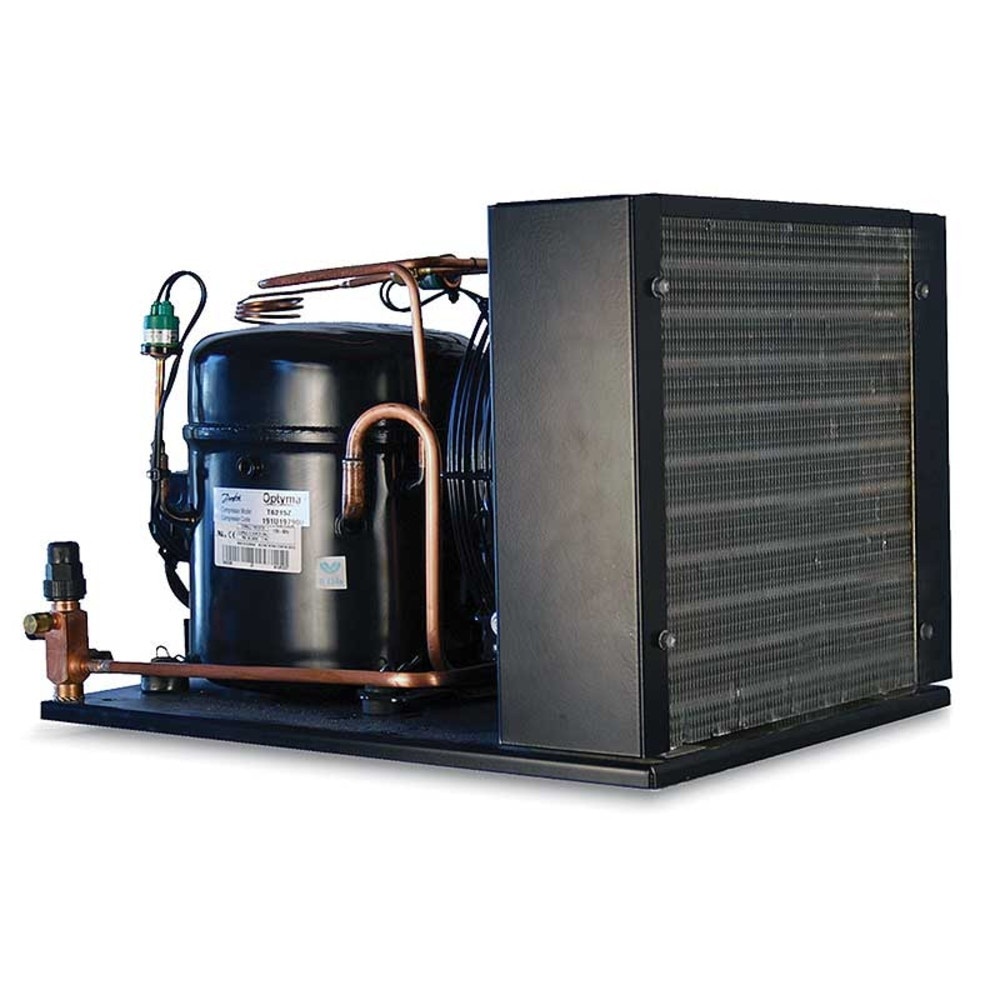

All air-cooled refrigeration equipment requires fresh air intake to dissipate the heat generated by the cooling unit. The condensing unit must be installed outside the cellar in a location that provides ample space and access to fresh air.

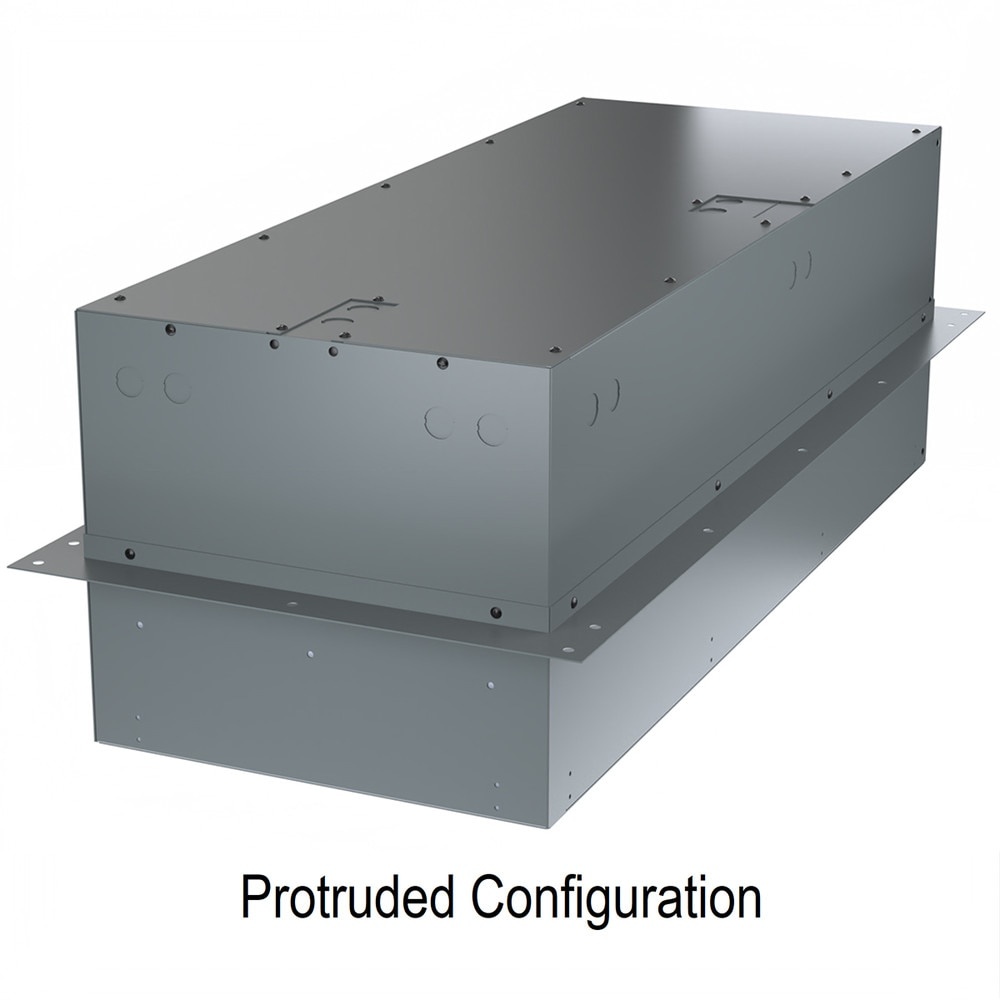

PLEASE NOTE: Please contact us to select your wiring, mounting configuration, and unit exposure options.

• Now with energy-efficient EC Fans on the cold side, save $72.04 in annual energy costs vs AC fans (assumes 75% runtime and $0.15/kWh)
• This unit is designed to separate the heat and noise from the condensing unit from interior living spaces, and can be configured to operate indoors or outdoors in extreme temperature conditions ranging from -20 to 110F.
• CellarPro evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (54 decibels) at the low fan speed.
• Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
• Extra-large coils generate maximum cooling power inside the cellar.
• Excess condensate is managed through an internal integrated condensate pump and a 1/4" drain line that exits from a choice of knockouts in the evaporator. The pump has automatic overflow protection.
• Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.

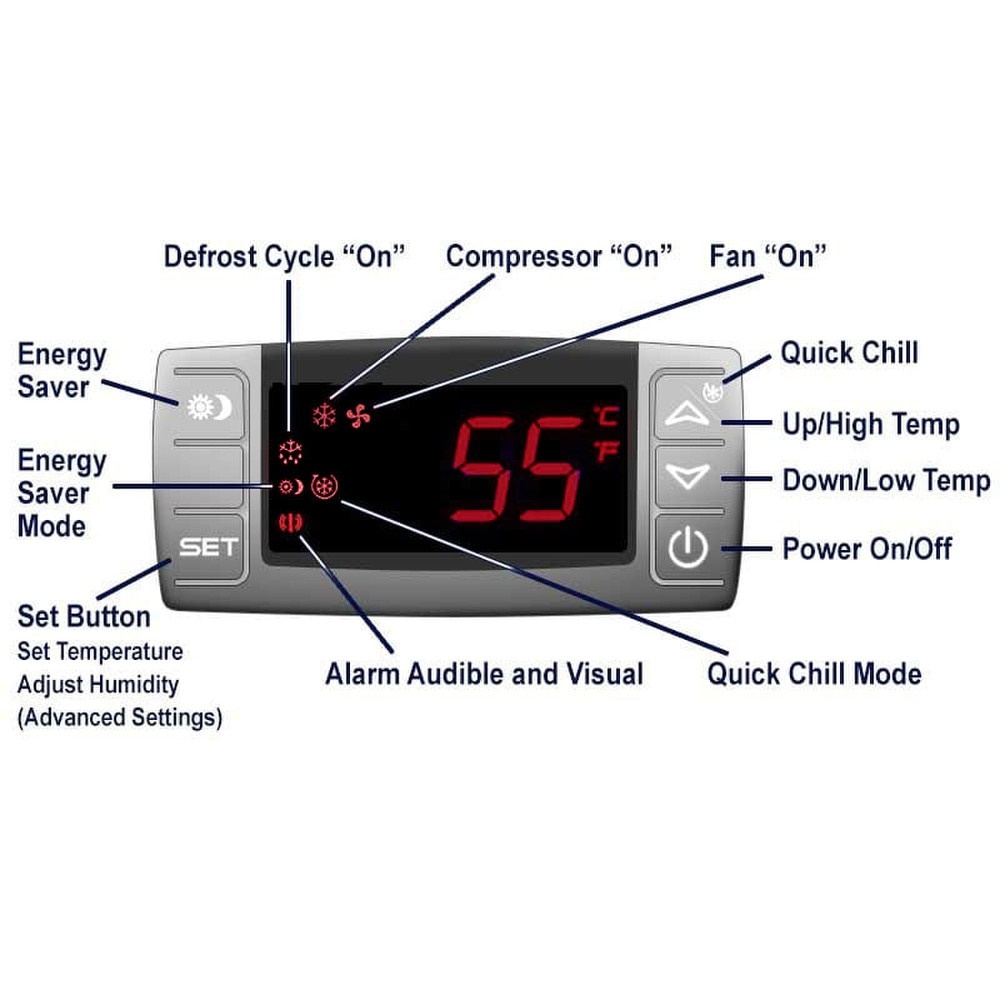

• Remote LED display panel and digital programmable controls includes 20-feet of wiring and can be mounted inside or outside the cellar.
• Quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
• Temperature set point range is 47F to 62F when the cooling unit is properly sized.
• Unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
• Multiple knockouts and access points ensure easy installation.

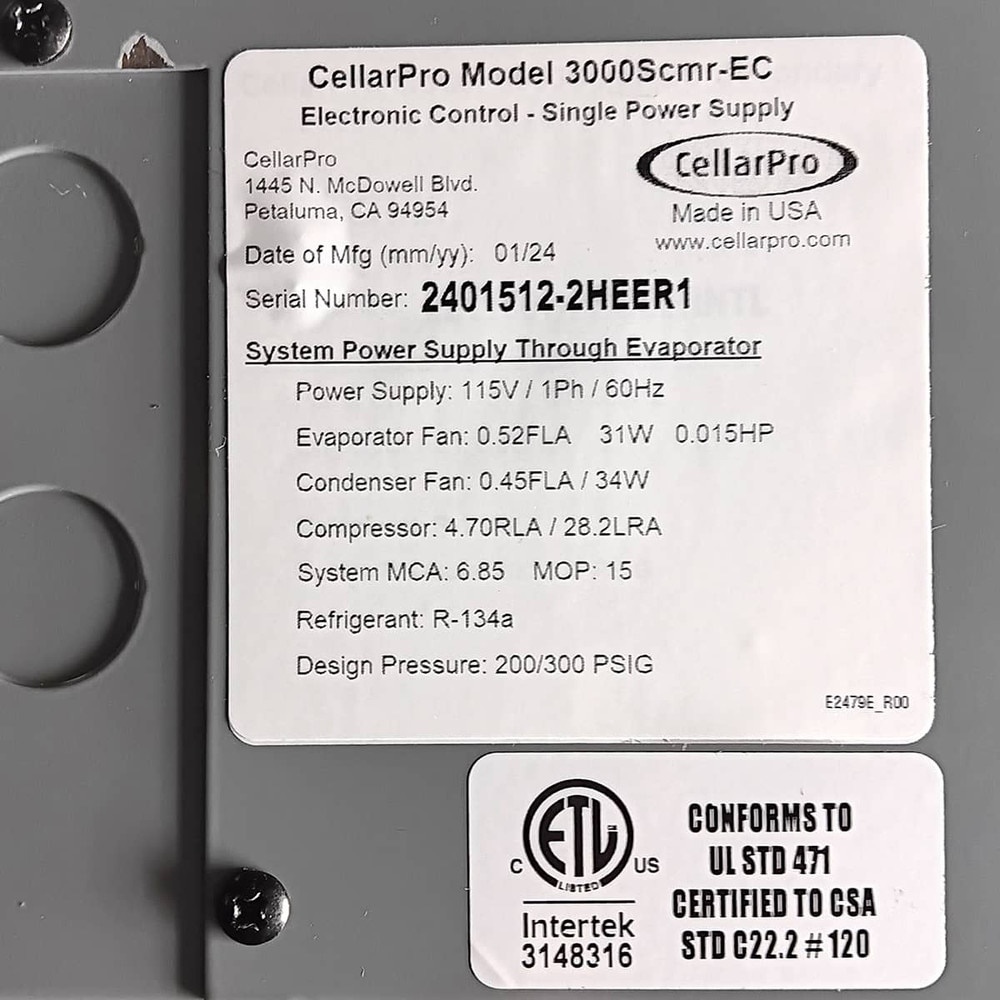

• Common dedicated 15-amp circuit is required to power the unit.
• Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
• Refrigerant access valve provides access to the internal components for servicing and repair.
• Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
• Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
• Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
• Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
• CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• ETL Tested and Certified to rigorous UL Standards for safety.
